In the realm of modern construction, particularly in large-scale projects involving high and wide spans, the use of Bailey frames has become increasingly prevalent. These modular steel structures are not only efficient but also versatile, making them suitable for various applications, including temporary support systems and permanent structures. This article delves into the innovative construction methods employed for concrete pouring on lift platforms, emphasizing the advantages of using Bailey frames over traditional scaffolding systems. With an annual production capacity exceeding 10,000 tons, EVERCROSS BRIDGE stands as a leading manufacturer in the steel bridge industry, collaborating with major enterprises such as China Communications Construction Company and China Railway Group. This expertise informs our discussion on the effective use of Bailey frames in construction, highlighting their role in enhancing project efficiency and safety.

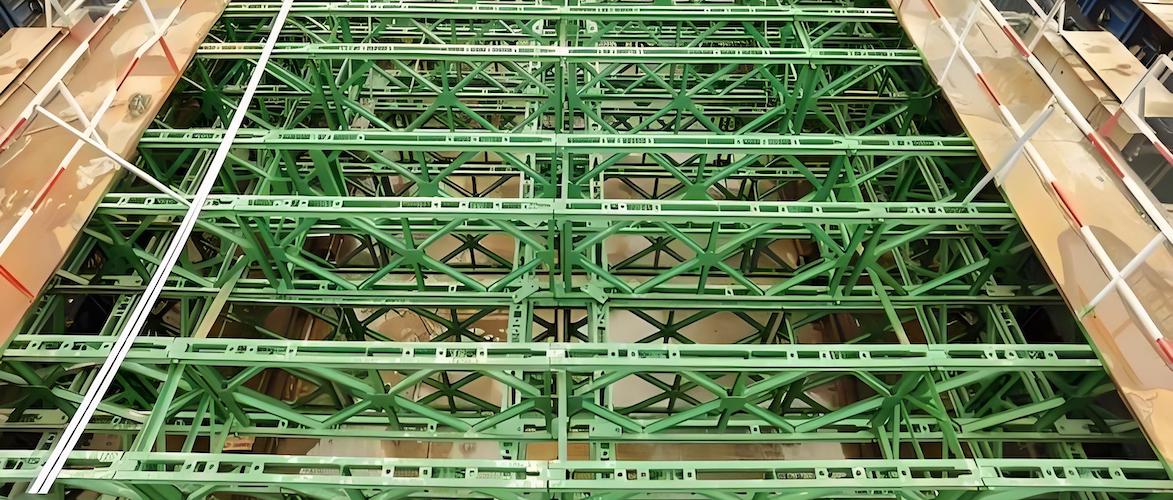

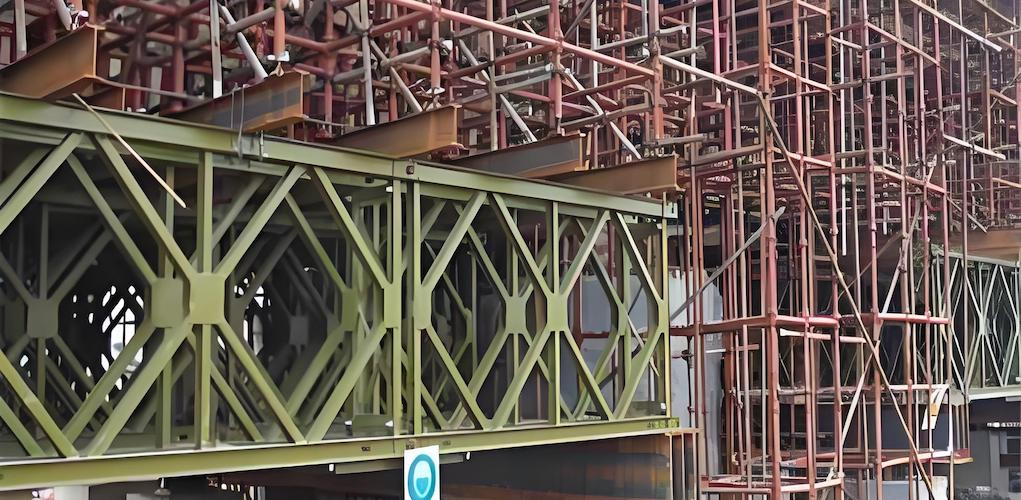

Bailey frames are modular steel structures designed for quick assembly and disassembly, primarily used in bridge construction and temporary support systems. Their lightweight yet robust design allows for efficient handling and installation, making them ideal for projects requiring high load-bearing capacities and rapid deployment. The modular nature of Bailey frames means they can be easily transported and adapted to various site conditions, providing flexibility that is often lacking in traditional scaffolding systems. This adaptability is crucial in today’s fast-paced construction environment, where time and efficiency are paramount.
● Efficiency in Construction: Bailey frames significantly reduce the time required for setup compared to traditional scaffolding. This efficiency translates into lower labor costs and faster project completion. The ability to pre-assemble components off-site further accelerates the installation process, allowing for simultaneous site preparation and frame assembly.
● Enhanced Safety: The design of Bailey frames minimizes the risks associated with high-altitude work. Their stability and strength provide a safer working environment for construction crews. Additionally, the use of Bailey frames reduces the need for extensive scaffolding, which can often be a source of accidents on construction sites.
● Cost-Effectiveness: By streamlining the construction process and reducing labor requirements, Bailey frames offer a more economical solution for large-scale projects. The long-term durability of these frames also means lower maintenance costs over time, making them a wise investment for construction companies.
Preparation of the Site: Before installation, ensure that the site is adequately prepared. This includes clearing debris and ensuring a stable foundation for the Bailey frames. Conducting a thorough site assessment can help identify potential challenges, such as soil stability and drainage issues, which can impact the overall construction process.
● Assembly of Bailey Frames:
Begin by assembling the Bailey frames according to the project specifications. Ensure that all components are securely fastened and that the structure is level. Utilizing advanced tools and technology, such as laser levels, can enhance the accuracy of the assembly process.
Utilize cranes or other lifting equipment to position the frames accurately, especially in high-altitude applications. Proper training for operators is essential to ensure safety and efficiency during this phase.
● Installation of Formwork:
Once the Bailey frames are in place, install the formwork for the concrete. This step is crucial for shaping the concrete and ensuring it adheres to design specifications. The choice of formwork materials can significantly affect the quality of the finished product, so selecting high-quality, durable materials is essential.
Use high-quality materials for formwork to prevent leaks and ensure a smooth finish. Additionally, consider incorporating insulation materials if temperature control is a concern during the curing process.
● Concrete Pouring:
With the formwork secured, proceed to pour the concrete. It is essential to monitor the pouring process closely to avoid air pockets and ensure even distribution. Employing experienced personnel during this phase can help maintain quality control.
Employ vibration techniques to settle the concrete and enhance its density. This step is critical in achieving the desired strength and durability of the concrete structure.
● Curing the Concrete:
After pouring, allow the concrete to cure adequately. This process is vital for achieving the desired strength and durability. Implementing curing methods such as covering with wet burlap or using curing compounds to retain moisture can significantly improve the final product.
Monitor environmental conditions during the curing process, as factors such as temperature and humidity can affect the curing time and overall quality of the concrete.
● Dismantling the Bailey Frames:
Once the concrete reaches the required strength, carefully dismantle the Bailey frames. Follow a reverse order of assembly to ensure safety during disassembly. Proper planning for this phase can prevent accidents and ensure that all components are handled correctly.
Ensure that all components are inspected for damage and stored properly for future use. This practice not only extends the lifespan of the frames but also reduces costs associated with replacements.
In a recent project involving the construction of a lift platform for a major infrastructure project, the use of Bailey frames resulted in a 30% reduction in construction time compared to traditional methods. The project team reported enhanced safety and reduced labor costs, demonstrating the effectiveness of this construction method. This case study highlights the potential for Bailey frames to revolutionize construction practices, particularly in complex projects where time and safety are critical.
One of the primary challenges in using Bailey frames is managing high-altitude work and heavy loads. To address these issues:
● Use of Advanced Lifting Equipment: Employ cranes with sufficient capacity to handle the weight of the Bailey frames and the concrete. Regular maintenance and inspections of lifting equipment are essential to ensure safety and reliability.
● Training for Workers: Ensure that all workers are trained in safety protocols and the proper use of lifting equipment. Continuous training programs can help keep the workforce updated on best practices and safety measures.
Adverse weather can impact the curing process of concrete. To mitigate these effects:
● Plan for Weather Delays: Schedule concrete pouring during favorable weather conditions whenever possible. Having contingency plans in place can help minimize disruptions caused by unexpected weather changes.
● Implement Protective Measures: Use tarps or temporary shelters to protect the work area from rain or extreme temperatures. Additionally, consider using heated enclosures for curing in cold weather to maintain optimal conditions for concrete setting.
The use of Bailey frames in concrete pouring for lift platforms represents a significant advancement in construction methodology. By prioritizing efficiency, safety, and cost-effectiveness, this approach not only meets the demands of modern construction but also sets a new standard for quality and reliability. As a leader in the steel bridge industry, EVERCROSS BRIDGE is committed to providing innovative solutions that drive success in every project. Our dedication to excellence ensures that we remain at the forefront of the industry, ready to tackle the challenges of tomorrow.
The load capacities of Bailey bridges can vary significantly based on their configuration and design. Generally, a standard Bailey bridge can support loads ranging from 20 to 100 tons, depending on factors such as the number of panels used, the span length, and the specific design modifications. For instance, a single-lane Bailey bridge typically supports around 20-30 tons, while a multi-lane configuration can handle heavier loads, often exceeding 100 tons.
Environmental regulations can influence the use of Bailey frames in several ways. Construction projects must comply with local and national environmental laws, which may dictate the materials used, waste management practices, and the impact on surrounding ecosystems. For example, regulations may require the use of environmentally friendly materials or mandate specific procedures for managing runoff during concrete pouring. Compliance with these regulations is essential to avoid fines and ensure sustainable construction practices.
Recent innovations in Bailey bridge design include the use of advanced materials such as high-strength steel and composite materials, which enhance durability and reduce weight. Additionally, modular designs that allow for quicker assembly and disassembly are becoming more common. Innovations in connection technology, such as boltless connections, improve structural integrity and reduce assembly time. Furthermore, the integration of smart technologies for monitoring structural health is gaining traction, allowing for real-time assessments of bridge conditions.
When using Bailey frames for high-altitude work, several safety measures should be implemented to ensure the safety of workers. These include:
● Proper Training: All personnel should be trained in safety protocols and the correct use of lifting equipment.
● Use of Personal Protective Equipment (PPE): Workers should wear appropriate PPE, including helmets, harnesses, and non-slip footwear.
● Regular Inspections: Conduct regular inspections of the Bailey frames and lifting equipment to identify any potential hazards.
● Clear Communication: Establish clear communication protocols among team members to coordinate activities and ensure everyone is aware of their responsibilities.
To optimize the curing process of concrete when using Bailey frames, consider the following strategies:
● Temperature Control: Maintain optimal curing temperatures by using insulated blankets or heated enclosures, especially in cold weather.
● Moisture Retention: Use curing compounds or wet burlap to retain moisture in the concrete, preventing premature drying and cracking.
● Timing: Begin curing as soon as the concrete is poured and continue for at least 7 days to achieve maximum strength.
● Monitoring Conditions: Regularly monitor environmental conditions, such as humidity and temperature, to adjust curing methods as needed.
