Emergency bridges play a crucial role in disaster response and recovery, providing essential access for emergency vehicles and personnel. These structures are often the lifeline in situations where traditional infrastructure has been compromised, allowing for the swift movement of resources and aid. Understanding the load limits of these bridges is vital for ensuring safety and functionality during critical situations. This article explores the various types of emergency bridges, their typical load limits, and the factors influencing these limits, providing a comprehensive overview of their importance in emergency management.
Emergency bridges are temporary structures designed to provide immediate access in situations where existing infrastructure has been compromised. They are often used in disaster scenarios, such as floods, earthquakes, or other emergencies that damage permanent bridges. The design and load capacity of these bridges are tailored to accommodate specific emergency vehicles and equipment. The ability to deploy these structures quickly can significantly impact the effectiveness of emergency response efforts, making them an essential component of disaster management strategies. Furthermore, the rapid assembly and disassembly of emergency bridges allow for flexibility in response operations, adapting to the evolving needs of the situation.
Emergency bridges can be categorized based on their design, materials, and intended use. The most common types include:

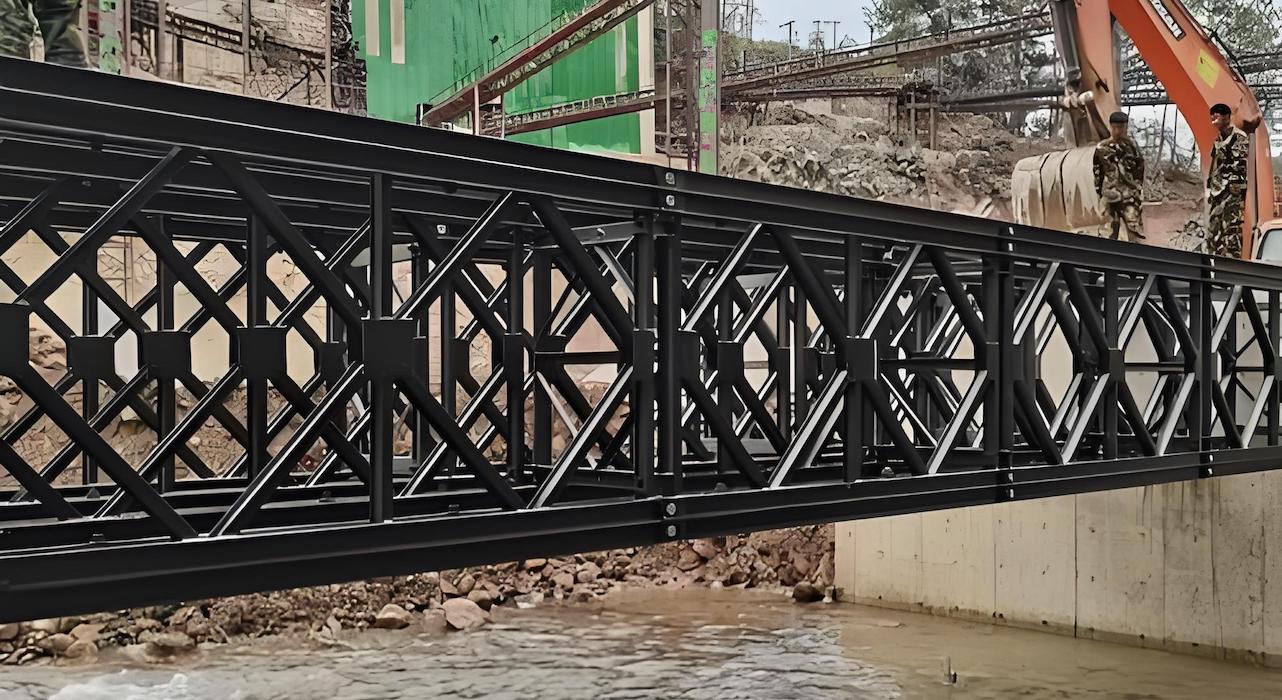

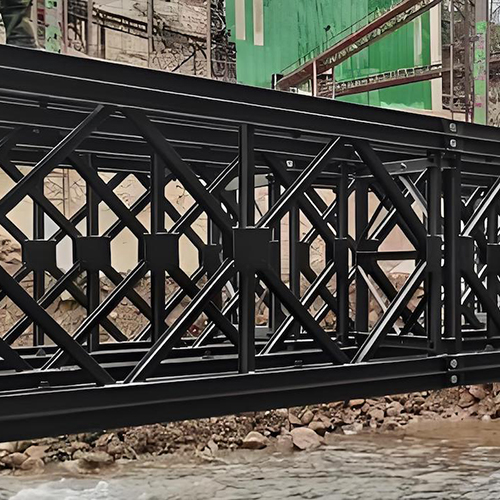

Bailey bridges are modular, prefabricated structures made from steel. They are lightweight and can be assembled quickly, making them ideal for emergency situations. Their load capacity typically ranges from 20 to 40 tons, depending on the configuration and materials used. The modular nature of Bailey bridges allows for easy transportation and setup, enabling rapid deployment in remote or challenging environments. Additionally, their robust design ensures that they can withstand harsh weather conditions, making them reliable in various scenarios.
Panel bridges consist of pre-manufactured panels that can be assembled on-site. These bridges are versatile and can support various loads, generally ranging from 10 to 30 tons. Their design allows for quick deployment and adaptability to different site conditions. Panel bridges are particularly useful in urban settings where space is limited, as they can be configured to fit specific locations. The ease of assembly and disassembly also means that they can be relocated as needed, providing ongoing support throughout the recovery process.
Truss bridges are characterized by their triangular framework, which provides strength and stability. These bridges can support heavier loads, often exceeding 40 tons, making them suitable for emergency response scenarios where larger vehicles are involved. The design of truss bridges allows for longer spans without the need for additional supports, making them ideal for crossing wide gaps or damaged areas. Their structural efficiency means that they can be constructed using a variety of materials, including steel and wood, depending on the availability of resources.
While less common for emergency use, suspension bridges can be deployed in specific situations. They are designed to carry significant loads, often exceeding 50 tons, but require more time and resources for installation compared to other types. Suspension bridges are particularly advantageous in scenarios where traditional bridge construction is not feasible due to geographical constraints. Their ability to span large distances without the need for extensive support structures makes them a valuable option in certain emergency situations.
The load limits of emergency bridges are determined by several factors, including design specifications, materials, and the intended use of the bridge. Understanding these limits is essential for ensuring the safety of emergency operations. Proper load management is critical, as exceeding these limits can lead to structural failure, endangering lives and hindering rescue efforts. Therefore, emergency responders must be well-informed about the capabilities and limitations of the bridges they utilize.
The design of an emergency bridge significantly impacts its load capacity. Engineers consider factors such as span length, material strength, and structural integrity when determining load limits. For instance, a bridge designed to accommodate heavy fire trucks will have different specifications than one intended for light rescue vehicles. The design process involves rigorous calculations and simulations to ensure that the bridge can withstand the expected loads while maintaining safety and stability.
The materials used in constructing emergency bridges also play a crucial role in determining load limits. Steel bridges, for example, typically have higher load capacities than those made from aluminum or composite materials. The choice of material affects not only the weight the bridge can support but also its durability and resistance to environmental factors. Engineers must carefully select materials that can endure the specific conditions of the deployment site, including temperature fluctuations, moisture, and potential corrosion.
Different emergency vehicles have varying weight and size specifications. For example, a standard fire truck may weigh around 30,000 pounds, while specialized rescue vehicles can weigh significantly more. Emergency bridges must be rated to accommodate the heaviest vehicles expected to use them. This consideration is crucial for ensuring that the bridge can support the necessary equipment and personnel during rescue operations, as well as for transporting supplies and medical aid.
The following are typical load limits for various types of emergency bridges:
Load Capacity: 20 to 40 tons
Typical Use: Fire trucks, ambulances, and light rescue vehicles
Bailey bridges are particularly effective in scenarios where rapid deployment is essential. Their load capacity allows them to support a range of emergency vehicles, making them a versatile choice for various situations.
Load Capacity: 10 to 30 tons
Typical Use: Light emergency vehicles and personnel transport
Panel bridges are ideal for situations where lighter loads are expected. Their flexibility in design allows for quick adjustments based on the specific needs of the emergency response.
Load Capacity: 40 tons and above
Typical Use: Heavy rescue vehicles and equipment transport
Truss bridges are well-suited for scenarios requiring the transport of heavy equipment, such as cranes or large rescue vehicles. Their robust design ensures stability and safety under significant loads.
Load Capacity: 50 tons and above
Typical Use: Large-scale emergency operations requiring heavy equipment
While more complex to deploy, suspension bridges can provide critical access in situations where traditional bridges are not feasible. Their high load capacity makes them suitable for extensive emergency operations.
Load rating is a critical aspect of bridge safety, particularly for emergency bridges. It involves assessing the maximum load a bridge can safely carry without compromising its structural integrity. This process is essential for ensuring that emergency vehicles can operate safely during crises. Accurate load ratings help emergency responders make informed decisions about which bridges to use, minimizing the risk of accidents and ensuring that aid can reach those in need.
Load rating procedures typically involve the following steps:
Structural Assessment: Engineers evaluate the bridge's design, materials, and condition to determine its load-carrying capacity. This assessment may include visual inspections, material testing, and structural analysis to ensure that the bridge meets safety standards.
Testing: Load tests may be conducted to verify the bridge's performance under various weight scenarios. These tests provide valuable data on how the bridge behaves under stress, allowing engineers to make necessary adjustments to the design or load limits.
Documentation: The results of the load rating are documented, providing essential information for emergency responders. This documentation serves as a reference for future operations and helps ensure that all personnel are aware of the bridge's capabilities and limitations.
Regulatory bodies, such as the Federal Highway Administration (FHWA) and the American Association of State Highway and Transportation Officials (AASHTO), provide guidelines for load rating procedures. These standards ensure that emergency bridges meet safety requirements and can support the necessary loads during emergencies. Compliance with these regulations is crucial for maintaining public safety and ensuring that emergency response efforts are effective.
While load rating is essential, several challenges can complicate the process:
In emergency situations, time is of the essence. Rapid assessments are often required to ensure that bridges can be used immediately. This urgency can lead to less thorough evaluations, potentially compromising safety. Emergency responders must balance the need for speed with the necessity of conducting adequate assessments to ensure the safety of all personnel involved.
Emergency situations may limit the availability of resources, including personnel and equipment needed for comprehensive load rating. This can hinder the ability to conduct thorough assessments. In many cases, emergency responders must rely on existing data and previous assessments to make quick decisions, which can introduce uncertainty into the process.
The conditions under which emergency bridges are deployed can vary significantly. Factors such as weather, terrain, and existing damage to infrastructure can affect load limits and the overall safety of the bridge. Engineers must account for these variables when assessing load limits, which can complicate the rating process and necessitate additional testing or adjustments.
Emergency bridges are vital for maintaining access during crises, and understanding their load limits is crucial for ensuring safety and effectiveness. By considering the various types of emergency bridges, their typical load capacities, and the factors influencing these limits, emergency responders can make informed decisions that enhance their operational capabilities. As infrastructure continues to evolve, ongoing research and development will be essential to improve the design and load rating of emergency bridges, ensuring they meet the demands of future emergencies. The ability to adapt and innovate in the field of emergency bridge construction will ultimately save lives and facilitate recovery efforts in the wake of disasters.
The primary purpose of emergency bridges is to provide immediate access and connectivity in situations where existing infrastructure has been compromised due to disasters such as floods, earthquakes, or other emergencies. They facilitate the movement of emergency vehicles, personnel, and supplies to affected areas.
Emergency bridges can typically be deployed within hours to a few days, depending on the type of bridge and the specific circumstances. Modular designs, such as Bailey and panel bridges, allow for rapid assembly and installation, making them ideal for urgent situations.
The load capacity of an emergency bridge is determined by several factors, including the design specifications, materials used, span length, and the intended types of vehicles that will use the bridge. Engineers assess these factors to ensure the bridge can safely support the expected loads.
Yes, there are specific regulations and guidelines provided by organizations such as the Federal Highway Administration (FHWA) and the American Association of State Highway and Transportation Officials (AASHTO). These regulations ensure that emergency bridges meet safety standards and can effectively support the necessary loads during emergencies.
Emergency bridges are designed to support a variety of vehicles, including fire trucks, ambulances, rescue vehicles, and heavy equipment used in disaster response. The specific load limits of the bridge will dictate which vehicles can safely cross it during an emergency situation.
