Recent historic flooding in Michigan, USA, triggered by prolonged heavy rainfall combined with accelerated snowmelt, has exposed the vulnerability of traditional infrastructure systems. Rivers surged beyond safe levels, embankments were eroded, and more than 15 bridges were forced to close, with at least two critical crossings completely destroyed. In northern regions such as Grand Traverse County, entire transportation networks were disrupted, severely delaying emergency response, isolating communities, and interrupting supply chains.
From a disaster management and infrastructure resilience perspective, restoring transportation access quickly is not just a logistical priority—it is a life-saving necessity. In such high-pressure scenarios, Type 321 Bailey Bridges—modular emergency steel bridge systems—stand out as the most efficient and proven solution for rapid deployment.
As a professional manufacturer and solution provider, Evercross Bridge delivers end-to-end services, including bridge design, fabrication, logistics, and on-site installation support, ensuring that critical transport routes are restored in the shortest possible time.

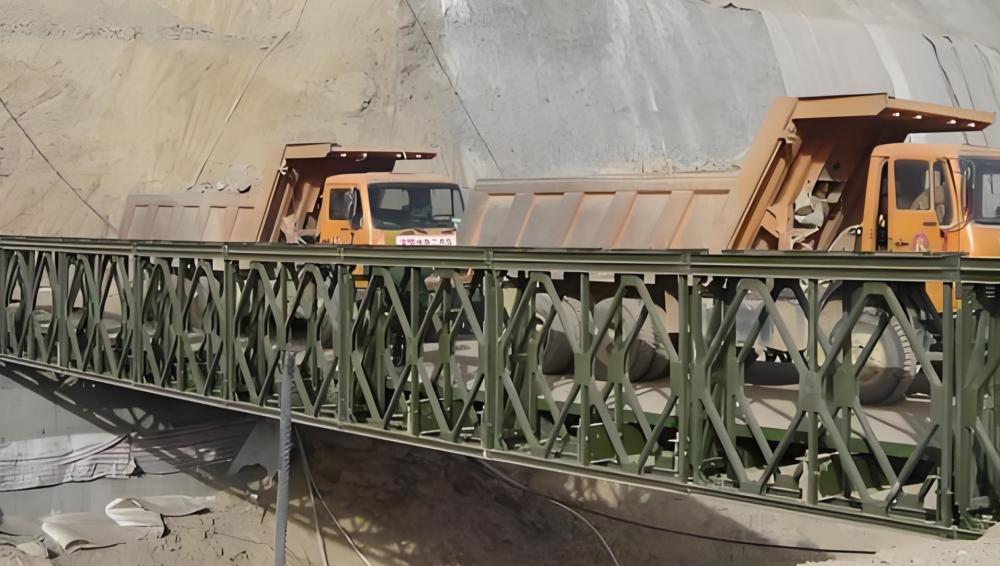

A Type 321 Bailey Bridge is a prefabricated, modular steel truss bridge system designed for rapid assembly under emergency or temporary conditions. Originally developed for military use, it has evolved into a widely adopted civil engineering solution for disaster recovery and temporary infrastructure.
The bridge consists of standardized components that can be quickly assembled into a stable load-bearing structure:
- Bailey panels (trusses): Form the main structural framework, distributing loads efficiently through triangular geometry
- Transoms: Provide lateral support and connect trusses
- Stringers and deck panels: Create the roadway surface
- Pins and bolts: Enable fast, secure connections without welding
This modular approach allows engineers to scale the bridge configuration based on span, load requirements, and site conditions, making it highly versatile.
- Standard panel length: 3 meters
- Configurable span range: 9 to 63 meters (extendable with special designs)
- Single-lane width: 3.7 meters (expandable to double-lane configurations)
- Load capacity: Up to HS20-44 / tracked 50, suitable for heavy vehicles
- Installation time: Typically 24–72 hours depending on site conditions
Expert Perspective:
The strength of the Bailey bridge lies in its redundant load paths and modular reinforcement options, such as double-truss or triple-truss configurations, which allow it to handle increased loads without redesigning the entire structure.
Natural disasters often cause simultaneous multi-point infrastructure failures, overwhelming traditional construction methods. In contrast, modular steel bridges are specifically engineered for speed and adaptability.
In the first 72 hours after a disaster, accessibility determines survival rates.
- Pre-engineered components eliminate fabrication delays
- No curing time is required, unlike concrete bridges
- Installation can begin immediately after site stabilization
This allows emergency teams to:
- Deliver medical supplies and rescue equipment
- Evacuate affected populations
- Restore communication and logistics networks
Real-world context: In many disaster scenarios, delays of even 24 hours can significantly impact rescue outcomes, making rapid bridge deployment essential.
Post-disaster terrains are often unpredictable:
- Eroded or missing foundations
- Soft, waterlogged soil
- Debris-filled river channels
Type 321 Bailey Bridges are uniquely suited because they:
- Require minimal foundation preparation
- Can be installed on temporary abutments or piers
- Maintain structural stability under dynamic loads
Additionally, modern corrosion protection systems (e.g., galvanization or advanced coatings) enhance durability in wet and chemically aggressive environments.
Unlike purely temporary structures, Bailey bridges can serve multiple roles:
- Immediate emergency access
- Medium-term traffic solutions during reconstruction
- Long-term infrastructure in remote or low-traffic regions
This flexibility allows governments and contractors to optimize budgets while maintaining operational continuity.
From a lifecycle cost perspective, Bailey bridges are highly efficient:
- Components can be reused more than 50 times
- Easy dismantling reduces labor costs
- Lower material waste compared to traditional methods
This aligns with global trends toward sustainable and circular construction practices, especially in infrastructure projects funded by international organizations.
Michigan's unique environmental conditions make it particularly vulnerable to infrastructure disruption.
- Seasonal snowmelt combined with heavy rainfall
- Increasing frequency of extreme weather events
- Prolonged wet conditions delaying conventional construction
These factors make fast, weather-independent solutions essential.
- Extensive network of rivers and inland lakes
- Low-lying flood-prone zones
- Remote northern regions with limited accessibility
In such conditions, lightweight, transportable bridge systems like the Type 321 Bailey Bridge offer unmatched logistical advantages.
In December 2025, Indonesia experienced severe landslides that destroyed over 100 bridges, isolating entire communities in mountainous regions.
- 30 Bailey bridges supplied and deployed
- Modular components shipped rapidly to affected zones
- First bridges installed within 72 hours
- Reconnected critical transportation routes
- Enabled delivery of humanitarian aid
- Supported evacuation and recovery operations
Key Insight:
This project demonstrated how standardized modular systems combined with experienced technical teams can drastically reduce recovery time, even in highly challenging terrains.
- Construction Time:
Bailey bridge: days; Traditional bridge: months to years
- Flexibility:
Bailey bridge: highly modular; Traditional: fixed design
- Cost Efficiency:
Bailey bridge: reusable; Traditional: one-time investment
- Site Requirements:
Bailey bridge: minimal; Traditional: extensive groundwork
This comparison highlights why Bailey bridges are increasingly used in disaster-prone regions and developing infrastructure markets.
1. Site Assessment
Engineers evaluate span length, soil conditions, and load requirements
2. Design Configuration
Selection of single, double, or reinforced truss systems
3. Transportation
Components delivered via trucks or containers

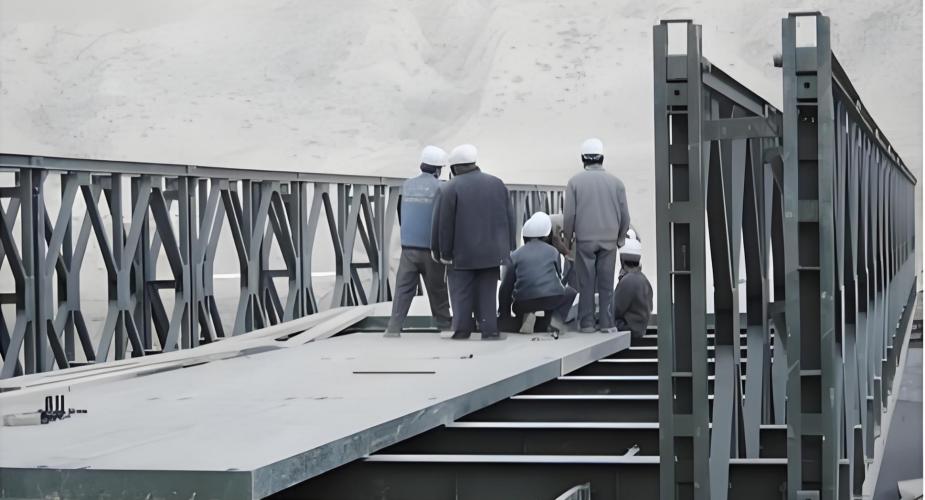

4. Assembly and Launching
Bridge assembled on-site and launched using rollers or cranes
5. Final Testing and Opening
Load testing ensures safety before public use
Typical completion time: 2–5 days depending on complexity.
Choosing the right supplier is critical for project success.
Evercross Bridge offers:
- Full lifecycle service (design to installation)
- Compliance with global standards (AASHTO, BS5400, GB)
- Rapid production and delivery capabilities
- Proven experience in international disaster response projects
If your project requires fast, reliable, and cost-effective bridge solutions, the Type 321 Bailey Bridge is the industry's most trusted option.
Contact Evercross Bridge today to receive:
- Customized engineering solutions
- Fast quotations and technical consultation
- End-to-end project support
With proper maintenance, it can last 10–20 years or longer, even under heavy usage.
Yes, it supports standard highway loads (HS20-44) and heavy construction vehicles.
Yes, especially in rural or low-traffic areas.
Most bridges can be operational within 48–72 hours.
Yes, it complies with AASHTO, BS5400, and Chinese standards.
