In the face of the Philippines' extreme climatic and geological challenges—including frequent typhoons, high-magnitude seismic activity, and relentless coastal salt-spray corrosion—the nation's infrastructure requires more than just standard engineering. For transport connectivity across this archipelago, steel structure bridges have emerged as the preferred solution, offering superior high-strength, high-ductility, and modular construction capabilities.
This guide represents a comprehensive summary compiled by our company's professional engineers, drawing upon both current practical realities and their own extensive engineering experience. It delves deeply into the design framework required for constructing steel-structure bridges characterized by high ductility and disaster resilience, seamlessly integrating international best practices with mandatory local code requirements.
To achieve maximum infrastructure resilience, engineering firms must adopt a dual-system approach: "International Core Standards + Local Forced Adaptation."
A "100-year return period" for risk prevention must be the baseline. This involves adhering strictly to the Department of Public Works and Highways (DPWH) regulations and the National Structural Code of the Philippines (NSCP), while selectively incorporating advanced technical insights from AASHTO (USA), Eurocode (Europe), and ISO standards to fortify structures against extreme environmental loads. [1, 2, 4, 15]
Different disasters require specialized mechanisms within the design framework to ensure structural integrity.
Strong winds and storm surges are constant threats.
Design Wind Speeds: Projects must use PAGASA regional data, with design wind speeds based on a 100-year return period (typically ≥250 km/h in coastal areas, ≥200 km/h in inland areas).
Aerodynamic Optimization: Referencing AASHTO LRFD methods, designers should prioritize streamlined box-girder sections or triangular truss designs to minimize wind suction and flutter risks.
Surge Protection: According to API RP 2A principles, bridge deck elevation should be set at least 3 meters above the 100-year flood level combined with storm surge, while steel piles and piers must be equipped with wave-protection shields to prevent structural deformation.
With the Philippines located in a highly active tectonic zone, earthquake resilience is non-negotiable.
Seismic Zone Adaptation: Designs must adhere to DPWH Seismic Design Guidelines, utilizing zone-specific seismic motion parameters.
Ductile Design Logic: Following Eurocode 8 (EN 1998), adopt a "Strong-Node, Weak-Member" design philosophy. Utilize flexible connections (such as end-plate bolted connections) and incorporate seismic isolators to absorb energy.
Material and Welding Quality: Brittle welding is prohibited. All critical welds must comply with AWS D1.5 standards. Furthermore, based on PHIVOLCS liquefaction risk assessments, pile foundations must be embedded into stable rock layers by at least 5 meters. [2, 11, 15]
Frequency Baseline: Standard designs must account for 100-year flood events, with vital transportation arteries upgraded to 200-year standards.
Scour Control: Reference AASHTO LRFD for scour calculations. Steel pile foundations must be encased in concrete protective casings or high-density riprap layers to prevent erosion that leads to pile exposure and accelerated corrosion.
In the humid, high-salinity environment of the Philippines, standard coatings are insufficient.
Coating Systems: Compliance with PNS ISO 12944 is mandatory. Coastal structures must follow the C5-M (Marine high-corrosion) classification, requiring a three-layer system—zinc-rich primer (100-150μm), epoxy intermediate coat (150-200μm), and polyurethane topcoat (80-120μm)—for a minimum total thickness of 400μm. [1, 3]
Supplementary Protection: Critical components like steel piles and joints should incorporate cathode protection (hot-dip galvanization or Impressed Current Cathodic Protection, ICCP). [3]
Disaster Type | Primary Local Reference | International Guidance | Key Design Priority |
Typhoon | DPWH Bridge Specifications | AASHTO LRFD / API RP 2A | Aerodynamic section, surge clearance |
Earthquake | DPWH Seismic Guidelines | Eurocode 8 / AWS D1.5 | Ductile nodes, seismic isolators |
Flood/Scour | DPWH Flood Load Standards | AASHTO LRFD | Protective casings, riprap layers |
Corrosion | PNS ISO 12944 | Eurocode 3 | Three-layer coating system, ICCP |
The material properties and structural forms of steel bridges impose specific adaptation requirements tailored to the extreme environmental conditions of the Philippines; consequently, explicit quantitative metrics must be defined within relevant standards:
Coastal steel-structure bridges must successfully pass a 1,000-hour Neutral Salt Spray (NSS) test, with a coating adhesion strength of ≥5 MPa. The surface treatment of steel components must meet the Sa 2.5 blast cleaning standard, ensuring the complete removal of all rust, oil, and mill scale. In high-humidity environments, enclosed cavities within the steel structure (such as the interior of box girders) must be equipped with ventilation ports and moisture-absorbing agents to prevent internal corrosion caused by the accumulation of condensation. Bolts at structural nodes must utilize a dual-protection system—combining hot-dip galvanizing with anti-corrosion grease—to prevent corrosion-induced seizing of the threads.
Given the significant diurnal and seasonal temperature variations in the Philippines, and considering the steel structure's coefficient of thermal expansion (11.7 × 10⁻⁶/°C), modular expansion joints (with an expansion capacity of ≥200 mm) must be installed in accordance with DPWH specifications to prevent girder warping or node cracking caused by thermal stress. The steel structure's coating system must feature a UV-resistant polyurethane topcoat to withstand intense tropical ultraviolet radiation, ensuring that no chalking or peeling occurs within a five-year period.
Steel-structure bridges must be designed to withstand superimposed disaster loads—specifically "Typhoon + Earthquake" and "Flood + Scour"—in accordance with established standards. The structural safety factors must be increased by 30% compared to those for ordinary regions (resulting in a safety factor of ≥1.8 for steel components and ≥2.2 for foundation bearing capacity). Critical load-bearing components (such as main girders and steel piles) must be fabricated using high-yield-strength steel (specified as ≥345 MPa under PNS 4939 standards, and increased to ≥460 MPa for critical bridges) to ensure structural redundancy under extreme load conditions.

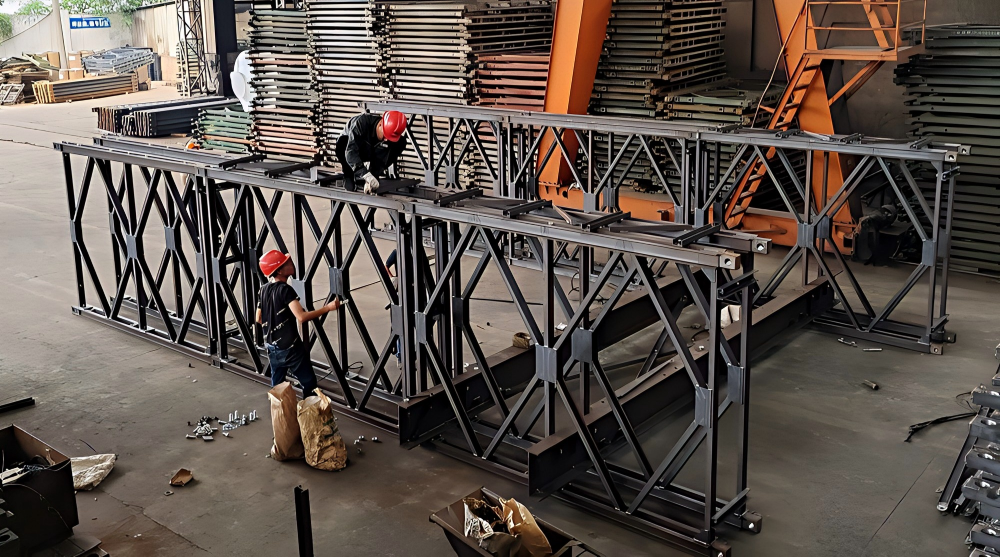

Prefabricated steel components must be manufactured in a factory setting under controlled environmental conditions to avoid open-air field welding (as the high-humidity environment in the Philippines is prone to causing weld porosity and slag inclusions). On-site installation activities must be scheduled to avoid the typhoon and rainy seasons; if such avoidance is not feasible, temporary rain- and wind-proof shelters must be erected to protect the work area. Standards mandate that steel-structure bridges be equipped with designated inspection walkways (at least 1.2 meters wide) and access ports for node inspection, thereby facilitating routine coating assessments and non-destructive testing of welds (UT/MT), and effectively meeting the requirements for rapid post-disaster restoration in the Philippines.
Resilience does not end at construction; it requires a lifecycle maintenance strategy.
Design for Maintainability: DPWH standards mandate that bridges must include maintenance pathways (width ≥ 1.2 meters) and accessible inspection ports for weld non-destructive testing (UT/MT).
Factory-Controlled Production: To ensure high-quality welding, prefabricated steel components should be produced in controlled factory environments, mitigating the high humidity risks (such as weld porosity) associated with outdoor site welding in the Philippines.
Fast-Repair Protocols: Emergency bridge designs must enable rapid assembly (restoring transit within 48 hours), fulfilling critical post-disaster recovery requirements.
The challenge of building infrastructure in the Philippines is a battle against nature, but it is one that can be won through engineering rigor. By integrating internationally validated steel structure methodologies with localized data and mandatory standards, we ensure that bridges become, and remain, the reliable arteries of the nation's economy.
Are you ready to strengthen your infrastructure with high-performance steel bridges designed for the Philippine climate? Evercross Bridge offers end-to-end support—from expert structural design and precision factory production to professional transport and installation. Contact our engineering team today to build a more resilient future.
1. [ASKFILO - Engineering Standards]
2. [DPWH - LRFD Seismic Bridge Design Specifications (Interim Revisions)]
3. [DPWH - Standard Plan for Bailey Bridge]
4. [Scribd - Philippine Steel Design Codes Overview]
5. [Slideshare - International Survey of Structural Design Codes]
6. [Davao Golden Hardware - Cold-Formed U-Type Steel Guide]
1. Q: Why is steel preferred over concrete for bridges in the Philippines?
A: Steel offers higher strength-to-weight ratios, superior ductility (essential for seismic areas), and allows for modular prefabrication, which speeds up construction and minimizes exposure to the Philippines' unpredictable weather.
2. Q: What is the primary standard for anti-corrosion for steel bridges in the Philippines?
A: The primary standard is PNS ISO 12944, which classifies environments and dictates the thickness and types of protective coating systems required, especially in aggressive marine environments.
3. Q: How does the "100-year return period" affect bridge design?
A: It requires that the structure be designed to safely withstand the maximum load (wind, flood, or earthquake) predicted to occur once in every 100 years, ensuring high safety margins for critical infrastructure.
4. Q: Can international standards like AASHTO be used directly in the Philippines?
A: While they provide excellent technical guidance, they must be adapted to local conditions (e.g., specific typhoon wind speeds from PAGASA or seismic parameters from PHIVOLCS) and must comply with mandatory local DPWH regulations.
5. Q: What measures are taken to ensure bridge longevity after construction?
A: Longevity is ensured through rigorous maintenance, including scheduled inspection of coatings, non-destructive testing of critical welds, and the integration of accessible inspection platforms designed during the initial engineering phase.
