When I first started working on modular steel pedestrian bridges over a decade ago, most public clients still preferred traditional cast‑in‑place concrete or heavy welded steel solutions. Today, I rarely see a major transport, municipal, or industrial project that does not at least evaluate prefabricated modular steel pedestrian bridges for their walkways, footbridges, or temporary detours. [dataintelo]
In this article, I will walk you through how modular steel pedestrian bridges actually perform on real projects, where they create value, and what we have learned at Evercross Bridge after delivering modular and Bailey‑type steel bridges into 50+ countries over the last 30 years. [baileybridgesolution]
A modular steel pedestrian bridge is a pedestrian‑only bridge composed of factory‑fabricated steel modules—typically truss panels, deck units, bracings, and connection elements—that can be rapidly assembled on site like a kit. [ecer]
Key characteristics include: [prefabsteelbridge]
- Prefabricated modules (truss panels, deck units, rails) produced under controlled factory conditions.
- Standardized connection systems, usually high‑strength bolted joints and pre‑drilled plates, enabling fast, repeatable erection.
- Configurable spans and widths, achieved by combining modules in series and sometimes in parallel.
- Reuse or relocation capability, especially for temporary or emergency footbridges.
Compared with conventional custom‑welded solutions, modular pedestrian bridges reduce on‑site welding, shorten construction windows, and improve quality consistency through industrialized production. [zetwerk]
From a client's perspective—whether a transport authority, municipality, or industrial operator—the decision to adopt modular steel footbridges usually comes down to cost, time, risk, and long‑term performance. [dataintelo]

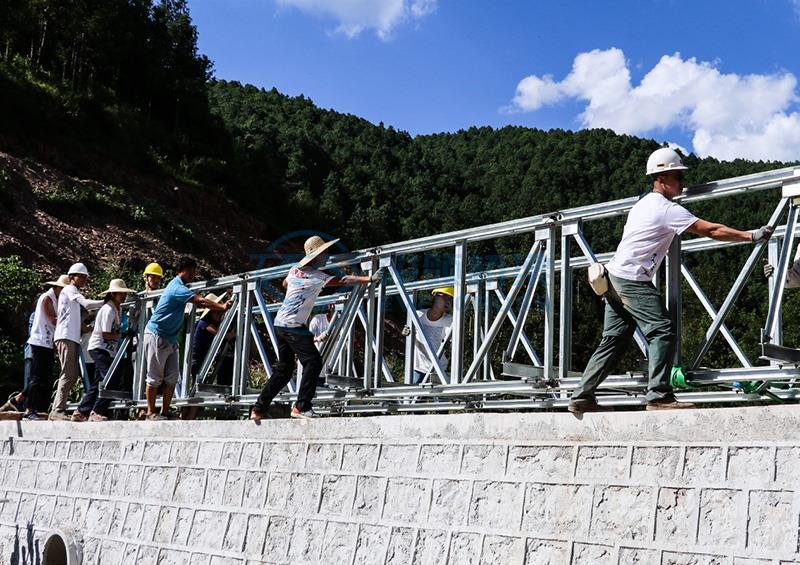

Because components are prefabricated and pre‑drilled, on‑site assembly can take days instead of months, especially when using panelized truss systems similar to Bailey bridges. [ecer]
- Minimal on‑site welding and cutting.
- Smaller crews required, reducing labor risk.
- Night or weekend installation windows feasible over roads or railways.
On recent projects in Southeast Asia and Africa, modular steel pedestrian bridges were installed during narrow traffic closure windows, avoiding long‑term disruption to highways and urban corridors. [baileybridgesolution]
Modular systems are produced in a controlled factory environment, allowing tighter tolerances and consistent weld and material quality. [zetwerk]
- Quality control plans cover material certificates, weld inspections, and trial assemblies.
- High‑strength steels (e.g., S355, S420, and above) provide excellent strength‑to‑weight ratios. [hkengineer.org]
- Dimensional accuracy simplifies on‑site fit‑up and alignment.
For pedestrian bridges in seismically active or corrosive environments—coastal or industrial sites—this factory‑controlled quality is a major safety factor. [hkengineer.org]
Modern modular systems, such as the GWD‑type modular bridge developed by Evercross, extend beyond the span limits of classic Bailey bridges while retaining modularity. [baileybridgesolution]
- Single spans up to around 90 m have been achieved with optimized truss geometries and high‑strength steels, reducing the number of intermediate piers. [ecer]
- Mixed configurations (single‑lane vehicular + integrated footpath, or dual pedestrian decks) can be assembled with standard modules. [evercrossbridge]
- Temporary, semi‑permanent, and permanent bridge scenarios can all be addressed with the same basic system. [ecer]
This flexibility is particularly valuable when a pedestrian bridge must cross rivers, valleys, railways, or multilane highways, where additional piers are costly or impractical. [zetwerk]
Modular steel pedestrian bridges are relatively light yet strong, reducing foundation sizes and material usage. [hkengineer.org]
- Fewer piers mean less concrete, smaller foundations, and lower environmental footprint.
- Components are repairable and replaceable, extending service life.
- Entire spans can be relocated or reused in temporary/emergency applications, aligning with circular economy principles. [prefabsteelbridge]
With global investment in prefabricated modular bridges expected to grow at around 7–8% CAGR into the 2030s, driven by infrastructure programs in developing regions, the cost‑benefit profile continues to improve. [dataintelo]
Evercross Bridge's product line includes both traditional Bailey‑type bridges and next‑generation modular steel bridges, so we often help clients choose between them. [evercrossbridge]
- Bailey bridges use relatively small truss panels with pin or bolted connections, originally designed for rapid military deployment. [ecer]
- They are excellent for short to medium spans but are typically limited to around 60 m per single span. [ecer]
- GWD‑type modular bridges increase truss height and use larger steel sections, improving stiffness and span capacity while retaining modular assembly. [baileybridgesolution]
- Bailey‑type systems remain ideal for short‑term detours, low‑to‑medium load applications, and remote emergency deployments. [ecer]
- Modern modular steel footbridges are better suited for longer permanent pedestrian crossings, urban walkways, and mixed‑traffic structures that must meet strict serviceability and aesthetic standards. [zetwerk]
From a design and engineering perspective, there are a few non‑negotiables when specifying a modular steel pedestrian bridge. [zetwerk]
- Load models must consider pedestrian crowd loads, wind, seismic actions, and, where applicable, shared utility loads. [zetwerk]
- Vibration control is critical for user comfort; dynamic analysis and pre‑arch techniques help reduce mid‑span deflections. [ecer]
- Truss geometry and connections must be proportioned to control both ultimate strength and deflection.
For bridges operating in humid, industrial, or coastal environments, we typically combine: [hkengineer.org]
- Hot‑dip galvanizing for primary components.
- Additional paint or duplex coating systems for extended life and color integration.
- Drainage details and closed section designs that minimize water trapping.
With suitable detailing and maintenance, modular steel bridges can achieve service lives comparable to conventional steel structures. [hkengineer.org]
As a manufacturer based in Shanghai, Evercross Bridge has supplied modular and Bailey‑type steel bridges to Southeast Asia, Africa, Latin America, and other regions, often under challenging logistical and climatic conditions. [steelbailey-bridge]
Modular pedestrian bridges have been widely adopted in road, rail, and urban projects linked to cross‑border connectivity initiatives, where rapid deployment and standardization are crucial. [evercrossbridge]
- Rail‑adjacent footbridges serving stations and maintenance personnel.
- Highway overpasses providing safe crossings for pedestrians and cyclists.
- Rural access bridges for schools, health posts, and markets.
In multiple large government infrastructure programs, modular steel bridges enabled authorities to deploy dozens of standardized designs across different sites, reducing per‑unit cost and simplifying maintenance. [evercrossbridge]

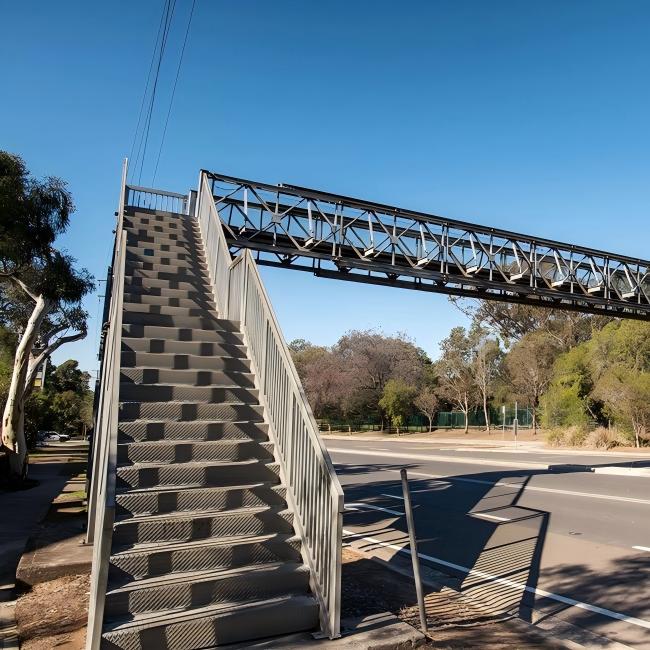

Floods, landslides, and bridge failures often demand rapid pedestrian access before permanent structures can be rebuilt. [prefabsteelbridge]
- Modular footbridges can be transported in containers and assembled with limited equipment.
- After permanent structures are constructed, these bridges can be relocated to other sites.
This reuse capability has made modular steel bridges a core tool for disaster response and temporary detours worldwide. [prefabsteelbridge]
From my perspective, what differentiates Evercross Bridge is not only manufacturing capacity—100,000 tons per year—but also the ability to deliver an end‑to‑end solution: design, manufacturing, transportation, and on‑site installation support. [steelbailey-bridge]
- Early‑stage feasibility and concept design, including span options, alignment studies, and structural configuration.
- Detailed design to international standards, integrating local code requirements where needed. [evercrossbridge]
- Value engineering to reduce pier counts, optimize foundation loads, and simplify construction sequencing.
Evercross operates a dedicated production line for Bailey and modular bridge components, including truss panels, transoms, deck units, and connectors. [steelbailey-bridge]
- Material traceability, welding procedures, and inspection routines are standardized.
- Trial assemblies in the factory verify fit‑up before shipment where project timelines allow.
For clients managing multiple sites simultaneously, this industrialized approach ensures consistent quality across all locations. [steelbailey-bridge]
Modular bridge components are designed for containerized shipping and can be transported to remote regions with limited port or road infrastructure. [steelbailey-bridge]
- Technical advisors can support local contractors with assembly methods, launching techniques, and safety procedures.
- For complex or high‑risk installations, complete installation services can be arranged in collaboration with local partners. [baileybridgesolution]
If you are considering modular solutions for an upcoming pedestrian bridge, this is the typical sequence we recommend based on global project experience. [evercrossbridge]
1. Clarify functional requirements
Define design life, width, accessibility needs (ramps/lifts), expected pedestrian flows, and any shared uses (e.g., utilities or light maintenance vehicles).
2. Assess site constraints
Identify span length, clearance requirements, geotechnical conditions, and construction access constraints.
3. Select a modular system family
Choose between Bailey‑type systems for short spans and emergency use, or higher‑capacity modular truss systems for longer or permanent pedestrian structures. [evercrossbridge]
4. Engage the manufacturer early
Early engagement with a modular bridge manufacturer such as Evercross enables accurate cost, schedule, and configuration planning aligned with the chosen system. [baileybridgesolution]
5. Coordinate design, fabrication, and logistics
Finalize drawings, approve material and coating specifications, and plan shipping and site assembly in line with the project schedule. [prefabsteelbridge]
Below is an example of how key parameters for a modular steel pedestrian bridge might be summarized in a project brief. [evercrossbridge]
Parameter | Typical Range / Option |
Clear span length | 20–90 m depending on system type and loading |
Deck width | 1.5–4.0 m for pedestrian use; wider for combined cyclist or service access |
Structural system | Prefabricated steel truss modules, bolted connections |
Design loads | Pedestrian crowd loads, wind, seismic, optional maintenance vehicle load |
Corrosion protection | Hot‑dip galvanizing plus optional paint or duplex coating system |
Applications | Urban footbridges, highway crossings, rail station access, emergency and temporary use |
Over the past two decades, Chinese steel bridge manufacturers have become major suppliers to global infrastructure projects. Working with a specialized manufacturer like Evercross offers several advantages: [steelbailey-bridge]
- Scale and experience: 30+ years in steel bridge manufacturing with tens of thousands of tons delivered annually. [baileybridgesolution]
- Full product range: From Bailey‑type bridges and modular pedestrian bridges to steel truss, box girder, and suspension structures. [evercrossbridge]
- Export know‑how: Proven experience with export documentation, standards alignment, and cross‑border logistics for 50+ countries. [steelbailey-bridge]
For international owners and EPC contractors, this combination of technical depth and export capability reduces risk and simplifies procurement.
If you are currently evaluating options for a modular steel pedestrian bridge—whether for an urban overpass, industrial facility, or emergency crossing—it is worth speaking directly with a manufacturer that can support design, fabrication, logistics, and installation.
Based in Shanghai, Evercross Bridge provides: [baileybridgesolution]
- Modular steel pedestrian and roadway bridges tailored to your site and loading requirements.
- End‑to‑end project support, from concept design to installation guidance.
- Proven references across Southeast Asia, Africa, Latin America, and other regions.
You can reach Evercross via the contact details on the official website to discuss preliminary concepts or request a budgetary proposal for your next modular bridge project. [evercrossbridge]
1. Are modular steel pedestrian bridges suitable for permanent use?
Yes. With appropriate design, material selection, and corrosion protection, modular steel pedestrian bridges can achieve service lives comparable to conventional steel bridges and are widely used as permanent structures worldwide. [hkengineer.org]
2. How long does it take to install a modular pedestrian bridge?
On‑site installation time varies with span, site access, and lifting equipment, but modular pedestrian bridges are typically installed in days or weeks rather than months thanks to prefabricated modules and bolted connections. [zetwerk]
3. Can modular bridge components be reused or relocated?
Yes. One of the key advantages of modular steel bridges is the ability to dismantle and relocate structures for new sites, making them ideal for temporary detours and emergency applications. [prefabsteelbridge]
4. What design codes apply to modular steel footbridges?
Modular steel pedestrian bridges are generally designed in accordance with regional bridge design standards (such as Eurocodes, AASHTO, or equivalent national codes), with manufacturer‑specific detailing guidelines for connections and modules. [zetwerk]
5. How do modular pedestrian bridges perform in corrosive environments?
When combined with hot‑dip galvanizing, appropriate coating systems, and good drainage details, modular steel pedestrian bridges perform well in coastal, industrial, and humid environments, provided regular inspection and maintenance are carried out. [hkengineer.org]
