Overwater bridges – crossing rivers, lakes, or coastal inlets – demand structural solutions that are reliable, quick to install, and mindful of the surrounding environment. Two bridge types that address these needs are the Bailey bridge, known for its modular portability, and the green steel bridge, which emphasises sustainability across its life cycle. When combined, they offer a practical approach to water crossings that balances rapid deployment with environmental responsibility.

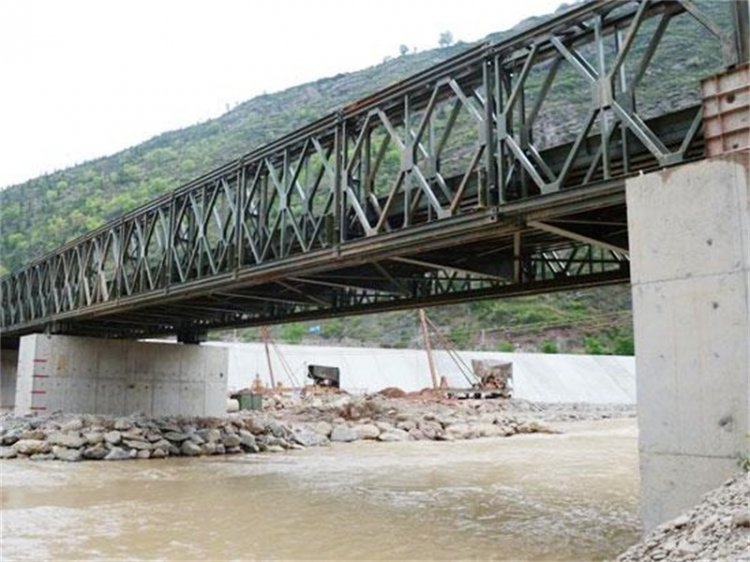

The Bailey bridge is a prefabricated, modular steel system originally designed for military use. Its interchangeable panels and simple bolted connections allow assembly without heavy cranes, making it particularly suitable for overwater sites where access is restricted or where temporary crossings are needed – for example, after floods, during bridge replacement, or for construction access over water.
Key features that make Bailey bridges effective over water include:
· Lightweight components– manageable by hand or small equipment, reducing the need for barges or large vessels.
· Adaptable spans– configurations can reach 60 metres or more, covering many river widths.
· Rapid erection– a typical Bailey bridge can be installed in days, minimising disruption to water traffic and nearby communities.
· Reusability– after use, the bridge can be dismantled and stored, or relocated to another site, which is especially valuable for temporary overwater projects.
A green steel bridge is not a separate type but an approach that applies sustainable practices to any steel structure. For both Bailey and permanent overwater bridges, this involves:
· Material efficiency– using high‑strength steels (such as Q355B or S355JR) reduces the total weight, lowering the carbon footprint of manufacturing and transport.
· Recycled content– structural steel typically contains a significant proportion of scrap, and at end‑of‑life it can be fully recycled without loss of quality.
· Durable corrosion protection– overwater environments are aggressive due to moisture and salt. Protective systems like hot‑dip galvanising or weathering steel extend service life, reducing maintenance frequency and the associated environmental impact.
By applying green steel principles, even a temporary Bailey bridge can contribute to lower embodied carbon, while permanent overwater bridges benefit from long service intervals and eventual material recovery.
The connection between these three elements lies in their shared goal: delivering effective overwater crossings with minimal environmental disturbance. Bailey bridges provide the modular speed needed for urgent or temporary access, while green steel ensures that the materials used are sourced responsibly and remain in the circular economy. This combination is particularly valuable in sensitive water ecosystems, where extended construction periods or frequent maintenance can harm aquatic life.
For example, a Bailey bridge built with galvanised steel components can be quickly launched over a river, serving as a detour while a permanent green steel bridge is constructed nearby. Once the permanent bridge is complete, the Bailey bridge can be removed and its steel recovered or reused – eliminating waste and reducing the project's overall environmental footprint.
All components for these bridges are manufactured in ISO 9001:2015‑certified workshops, with non‑destructive testing applied to critical welds. Materials meet international standards – GB/T 1591, EN 10025‑2, or ASTM A709 – and certifications such as CE marking (EN 1090) and AWS D1.5 are available upon request. For overwater projects, we also provide corrosion protection specifications tailored to the site's salinity and climate, ensuring a service life of several decades with routine inspections.
Our engineering team offers turnkey support, from preliminary design and detailing to logistics and on‑site erection. For Bailey bridges, we supply complete erection manuals and on‑site supervision if needed. For permanent green steel bridges, we handle foundation design and environmental compliance.
Bailey bridges, green steel principles, and overwater applications are closely linked: the Bailey system provides fast, adaptable crossings over water, while green steel ensures that these structures – whether temporary or permanent – are built with sustainability in mind. Together, they offer a responsible, cost‑effective approach to bridging water obstacles, reducing both construction timelines and environmental impact.
