Truss bridges have been a cornerstone of civil engineering for centuries, admired for their remarkable strength, efficiency, and versatility. Their distinctive triangular framework not only provides aesthetic appeal but also embodies fundamental engineering principles that allow these structures to span vast distances while bearing heavy loads. This comprehensive article explores why truss bridges are so strong and efficient, examining their design, materials, structural mechanics, advantages, and some limitations. By the end, readers will understand the engineering brilliance behind truss bridges and why they remain a preferred choice for modern infrastructure.

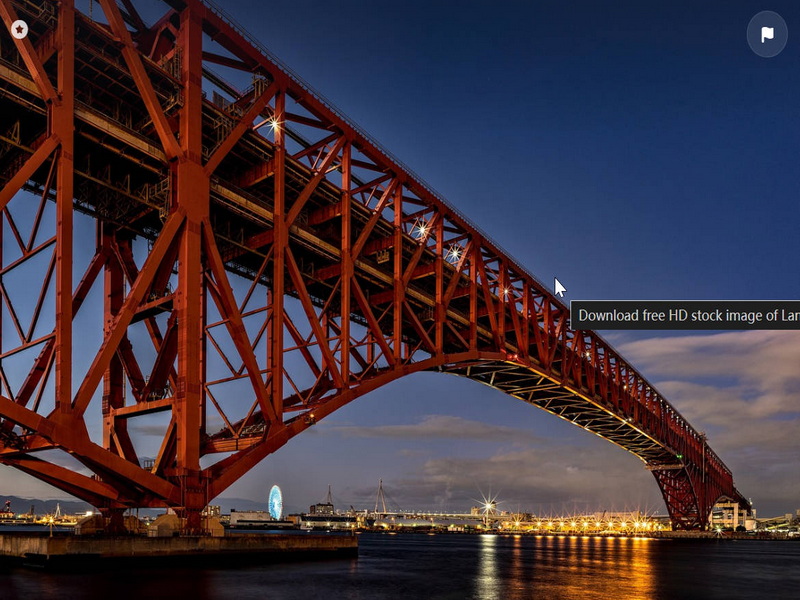

A truss bridge is a type of bridge whose load-bearing superstructure is composed of a series of interconnected elements arranged in triangular units. These elements, known as trusses, are typically straight members connected at joints called nodes. The triangles formed by these members provide geometric stability, preventing deformation under stress.
The deck or roadway of the bridge is supported by these trusses, which transfer loads to the bridge supports (abutments or piers). The key feature of a truss bridge is its use of triangles, which are inherently strong shapes because they maintain their shape unless the lengths of their sides change.
The fundamental reason truss bridges are so strong lies in their triangular configuration. Unlike other polygons, triangles do not deform easily when forces are applied. This geometric stability means that when a load is placed on the bridge, the forces are distributed evenly across the structure without causing distortion.
Each triangle in the truss shares the load with adjacent triangles, spreading stress evenly throughout the entire framework. This efficient load distribution prevents any single member from bearing too much weight, reducing the risk of structural failure[4][5].
In a truss bridge, the members primarily experience axial forces — either tension (pulling) or compression (pushing). Because the joints are typically designed as pin connections, bending moments and shear forces within the members are minimized. This means each member carries force along its length, which is the most efficient way for a structural element to bear load.
Axial loading ensures that the entire cross-section of each member is utilized effectively, unlike beams where stresses are concentrated in specific areas. This efficient force transfer allows truss bridges to be lighter yet stronger than solid beam bridges of comparable span[3][4].
The interconnected nature of truss bridges provides redundancy. If one member fails or is compromised, the load can be redistributed to other members, maintaining overall stability and safety. This characteristic enhances the durability and reliability of truss bridges, especially under dynamic or unexpected loads like heavy traffic or extreme weather conditions[4].
Modern truss bridges predominantly use steel due to its high strength-to-weight ratio, durability, and ability to withstand both tension and compression forces. Steel components can be prefabricated and assembled quickly on-site, reducing construction time and cost.
Steel also allows for longer spans and heavier loads compared to traditional materials. However, steel requires regular maintenance to prevent corrosion, especially in harsh environmental conditions[1][4].
Historically, wood was the primary material for truss bridges, especially in the 1800s. Wood is lightweight and relatively easy to work with but is susceptible to decay, insect damage, and fire. Today, wooden truss bridges are mostly preserved as historical structures or used in pedestrian bridges where loads are lighter[1][4].
Concrete is often used in combination with steel in truss bridges, particularly for piers and abutments. While concrete provides excellent compressive strength and resistance to environmental degradation, it lacks tensile strength. Thus, it is rarely used alone for truss members but can enhance overall stability when combined with steel[4].
The triangular design allows truss bridges to distribute weight evenly across the structure, enabling them to support heavy loads such as trains, trucks, and large volumes of traffic. This makes them ideal for both highway and railway bridges[1][4][5].
Because forces in truss members are axial, materials are used to their maximum potential without unnecessary mass. This efficiency means truss bridges can be constructed with less material than solid beam bridges of similar span and load capacity, resulting in cost savings[1][3][5].
Truss bridges can be designed for a wide range of spans—from short crossings to very long distances. Their modular nature allows engineers to adapt the design to various environmental conditions, including extreme weather and challenging terrains. This adaptability keeps communities connected even in difficult locations[1][4].
The relatively simple design of truss bridges, combined with prefabricated steel components, allows for rapid assembly and lower labor costs. This makes truss bridges a cost-effective option for many infrastructure projects, especially where budget and time constraints exist[1][4].
The open framework of a truss bridge allows for straightforward inspection and maintenance. Engineers can easily access individual members to assess wear, corrosion, or damage, facilitating timely repairs and extending the bridge's lifespan[4].
Characterized by diagonal members sloping down towards the center of the span, the Pratt truss is efficient at carrying loads and is commonly used in railroad bridges. It optimizes the distribution of tension and compression forces[4][7].
Featuring equilateral triangles throughout its design, the Warren truss evenly distributes loads and is frequently used for highway bridges. Its simplicity and efficiency make it a popular choice[4].
Similar to the Pratt but with diagonals sloping upwards towards the center, the Howe truss is effective for shorter spans and heavy loads. Experiments show it can reduce maximum compression forces compared to Pratt designs, without increasing material costs[7].

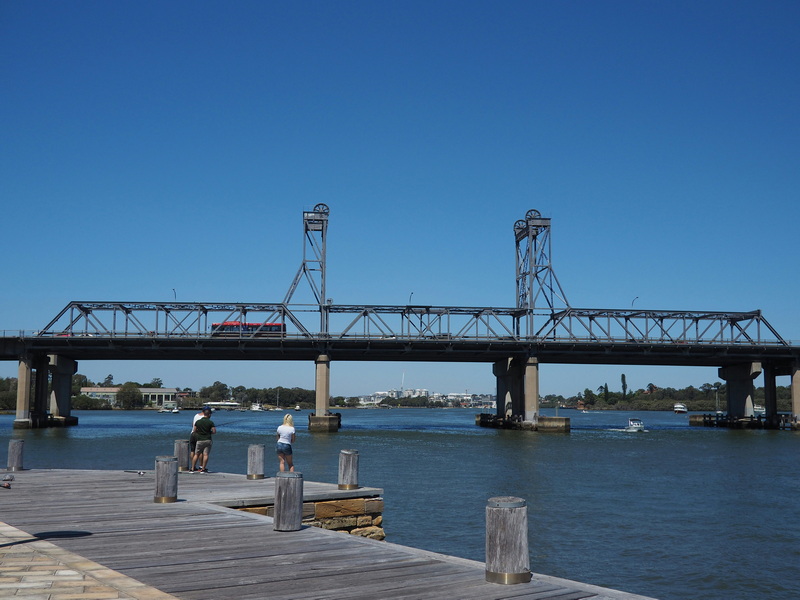

A movable truss bridge design that incorporates mechanical components to allow boat passage. It combines traditional truss elements with lifting mechanisms, often seen in urban waterways[4].
While truss bridges use materials efficiently, the overall structure can still be heavy, requiring strong foundations and piers. This can increase construction costs, especially in areas with poor soil conditions[4].
The truss framework often requires more vertical clearance than other bridge types, which can be a challenge in urban or restricted environments where height is limited[4].
Designing a truss bridge requires detailed analysis to ensure proper load distribution and member sizing. This complexity demands skilled engineering and precise fabrication, which can increase initial planning time[4].
Truss bridges excel over long spans because their members carry axial forces without bending moments, making them more material-efficient and stronger than solid beams or prestressed concrete alternatives. Unlike beams that experience concentrated stresses, trusses distribute forces evenly, reducing the amount of material needed for a given span.
Compared to cable-stayed bridges, trusses require less external support structure and can be more economical for certain span lengths. Their ability to cover large distances with fewer materials and maintain high load capacities makes them ideal for bridges over rivers, valleys, and other challenging terrains[3][6].
Truss bridges are a marvel of engineering that combine geometric stability, efficient force distribution, and material economy to create structures that are both strong and efficient. Their use of triangular units ensures that loads are evenly spread, minimizing stress concentrations and maximizing the strength of each member. Modern materials like steel have enhanced their capabilities, allowing for longer spans and heavier loads while maintaining cost-effectiveness.
Despite some limitations such as weight and design complexity, the advantages of truss bridges—high load-bearing capacity, versatility, affordability, and ease of maintenance—make them a preferred choice for many infrastructure projects worldwide. Understanding the principles behind truss bridge design provides valuable insight into why these structures have endured as a reliable and iconic solution in civil engineering.
The triangular shape is crucial because triangles are geometrically stable and cannot be deformed without changing the length of their sides. This stability allows truss bridges to distribute loads evenly and maintain their shape under stress, preventing structural failure[4][5].
Truss members are connected by pin joints, which means they mainly experience axial forces (tension or compression) rather than bending or shear forces. Axial loading is the most efficient way for structural members to carry loads, maximizing material use and strength[3][4].
Steel, the predominant modern material, offers a high strength-to-weight ratio, durability, and resistance to both tension and compression forces. This allows truss bridges to span longer distances and carry heavier loads compared to older wooden designs[1][4].
Truss bridges provide strong load-bearing capacity, efficient material use, versatility in design, cost-effective construction, and ease of maintenance. Their ability to distribute loads evenly and adapt to various spans makes them highly efficient compared to beam or arch bridges[1][4][5].
Common types include the Pratt truss (diagonals sloping down), Warren truss (equilateral triangles), Howe truss (diagonals sloping up), and bascule truss (movable bridge). Each design has specific benefits depending on span length, load requirements, and environmental conditions[4][7].
