Bridges are essential elements of a nation's infrastructure, enabling the movement of people, goods, and services across various geographical barriers. Among the different types of bridges, steel truss bridges have been particularly significant due to their unique structural characteristics and versatility. In Malaysia, a country characterized by diverse landscapes, steel truss bridges have played a crucial role in its development. This article will delve into the world of steel truss bridges, exploring their definition, structural composition, characteristics, advantages, main application fields, and focusing on the longest railway truss bridge in Malaysia—the Victoria Bridge. We will examine its construction history, service life, and historical significance.
A steel truss bridge is a type of bridge where the primary load-bearing structure is composed of a truss made from steel members. A truss is an assembly of straight steel bars connected at their ends, forming a rigid framework. This design allows the truss to distribute the weight of the bridge and the loads it carries—such as vehicles, trains, and pedestrians—across its various members, which are engineered to withstand either tension or compression forces. This structural arrangement enables steel truss bridges to span relatively long distances, making them suitable for crossing wide rivers, deep valleys, and other challenging terrains. The efficiency of this design not only enhances the bridge's load-bearing capacity but also minimizes material usage, making it an economical choice for large-scale infrastructure projects.
The structural composition of a steel truss bridge consists of a well-coordinated system of components that work together to ensure stability and functionality. The key parts include the truss structure, deck system, bearings, and piers or abutments.
The truss structure is the core of the bridge, comprising several main elements: upper chords, lower chords, and web members. The upper and lower chords are the horizontal or slightly curved members that run along the top and bottom of the truss, respectively. They form the main framework and are primarily responsible for resisting bending moments. The web members, which include diagonal and vertical bars, connect the upper and lower chords, transferring loads between them and providing lateral stability to the truss. This intricate arrangement not only enhances the bridge's strength but also allows for flexibility in design, enabling engineers to tailor the truss configuration to meet specific site conditions and load requirements.
The deck system is the surface on which traffic travels. It is supported by the truss structure and typically consists of steel plates, concrete slabs, or a combination of both. The deck must be robust enough to bear the direct loads of vehicles or trains while providing a smooth and safe riding surface. The choice of materials for the deck can significantly influence the overall performance of the bridge, as it must withstand not only the weight of traffic but also environmental factors such as weather and temperature fluctuations. Additionally, the deck design can incorporate features such as drainage systems to prevent water accumulation, further enhancing the bridge's longevity.
Bearings are placed between the truss structure and the piers or abutments. Their primary function is to transfer loads from the truss to the supporting structures while allowing for small movements due to thermal expansion and contraction, as well as the deflection of the bridge under load. This flexibility helps reduce stress on the bridge components. The design of bearings is critical, as they must accommodate various forces and movements while maintaining the integrity of the bridge. Advanced bearing technologies, such as elastomeric bearings or sliding bearings, are often employed to enhance performance and durability.
Piers and abutments are the substructures that support the entire bridge. Piers are vertical structures built in the middle of the span, while abutments are located at the ends of the bridge, connecting it to the land. They are designed to withstand the vertical and horizontal forces transmitted by the truss and the deck, ensuring that the bridge remains stable and anchored to the ground. The construction of piers and abutments often involves deep foundations to reach stable soil or bedrock, especially in areas with challenging geological conditions. This foundational work is crucial for the overall stability and safety of the bridge, particularly in regions prone to seismic activity or flooding.
Steel truss bridges possess a range of characteristics and advantages that make them a popular choice in bridge construction.
One of the most notable characteristics of steel truss bridges is their high strength-to-weight ratio. Steel is a strong material, and when formed into a truss structure, it can carry heavy loads without being excessively heavy itself. This allows for longer spans, reducing the number of piers needed, which is particularly beneficial in areas where building piers is difficult or costly, such as deep rivers or busy waterways. The ability to span greater distances without additional supports not only enhances the aesthetic appeal of the bridge but also minimizes the environmental impact by reducing the number of structures that disrupt natural habitats.
Steel truss bridges can be designed in various configurations, such as Pratt, Warren, Howe, and K-truss, depending on the specific requirements of the project. This flexibility enables engineers to adapt the bridge design to different span lengths, load requirements, and site conditions. The versatility of truss designs allows for innovative solutions to complex engineering challenges, making steel truss bridges suitable for a wide range of applications, from rural crossings to urban infrastructure.
The construction of steel truss bridges is often more straightforward than other types. The steel members are usually prefabricated in factories, ensuring high quality and precision. These prefabricated components can then be transported to the construction site and assembled quickly, reducing construction time compared to other bridge types that require on-site casting of concrete. This is especially advantageous in projects where minimizing disruption to the surrounding area is important. The efficiency of prefabrication also allows for better project scheduling and cost management, making steel truss bridges an attractive option for contractors and project managers.
When properly maintained, steel truss bridges can have a long service life. Steel is resistant to many environmental factors, and with regular inspection, painting to prevent corrosion, and replacement of worn-out components, these bridges can continue to function effectively for decades. The longevity of steel truss bridges is further enhanced by advancements in protective coatings and corrosion-resistant materials, which help to extend the lifespan of the structure and reduce maintenance costs over time.
Steel truss bridges exhibit good seismic performance. The inherent flexibility of the truss structure allows it to absorb and dissipate energy during an earthquake, reducing the risk of catastrophic failure. This makes them suitable for regions prone to seismic activity. Engineers can incorporate additional design features, such as expansion joints and damping systems, to further enhance the seismic resilience of these bridges, ensuring safety and reliability in the face of natural disasters.
Steel truss bridges find applications in various fields due to their unique properties.
In the railway sector, steel truss bridges are widely used for railway bridges. Trains exert heavy and dynamic loads on the bridge, and steel truss bridges can efficiently withstand these loads, providing a stable and smooth track for train operations. They are essential for connecting different parts of a railway network, especially across large water bodies or valleys. The design of railway truss bridges often includes features such as reinforced tracks and specialized bearings to accommodate the unique stresses imposed by train traffic.
Highway construction is another major application field. Steel truss bridges can accommodate heavy road traffic, including trucks and buses. Their ability to span long distances makes them ideal for highway interchanges, river crossings, and mountainous areas where building shorter span bridges would be impractical. The design of highway truss bridges often incorporates safety features such as guardrails and lighting, enhancing the overall safety of the structure for motorists.
In the field of water conservancy, steel truss bridges are used in projects such as irrigation canals and waterway crossings. They provide a stable passage over water channels, facilitating the movement of equipment and personnel for water management and maintenance. The ability to construct bridges over water bodies without disrupting the flow is crucial for maintaining ecological balance and ensuring efficient water management.
Mining areas also benefit from steel truss bridges. They are used to transport mining equipment, materials, and personnel across mining sites, which often have challenging terrains with steep slopes and deep gullies. The durability and load-bearing capacity of steel truss bridges make them suitable for the harsh conditions in mining areas. Additionally, the design can be tailored to accommodate the specific needs of mining operations, such as heavy loads and rough access roads.
Furthermore, steel truss bridges are used in special applications, such as pedestrian bridges in urban areas or scenic spots. They can be designed to be aesthetically pleasing while providing a safe and functional crossing for pedestrians. The incorporation of design elements such as decorative railings and lighting can enhance the visual appeal of these bridges, making them attractive landmarks in their respective locations.

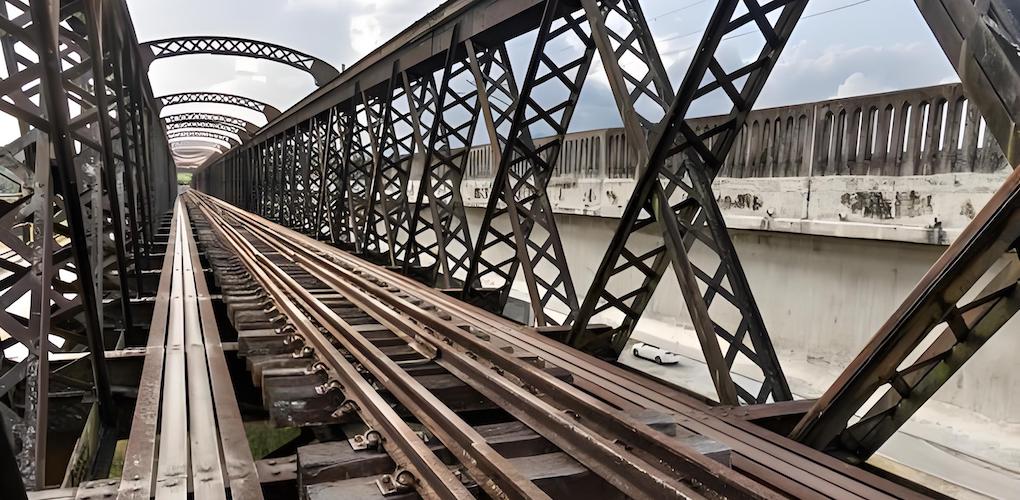

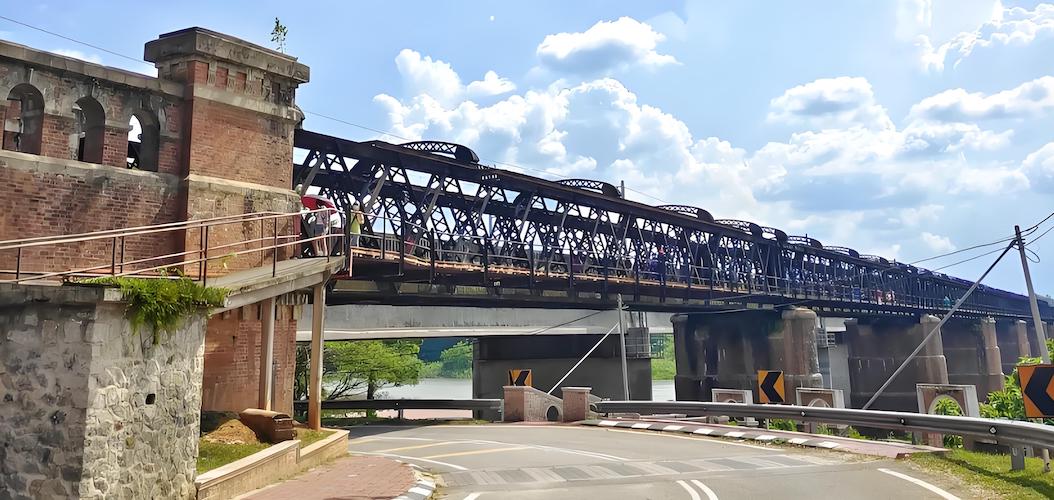

The Victoria Bridge, located in Malaysia, holds the distinction of being the longest railway truss bridge in the country. Its construction was a significant engineering feat during its time, reflecting the technological capabilities and vision of the era.
The idea for the Victoria Bridge emerged from the need to improve railway connectivity in Malaysia during the late 19th century. At that time, the railway network was expanding, and a reliable bridge was required to cross the Perak River, a major waterway that posed a significant barrier to railway development. The decision to construct the bridge was driven by the desire to enhance trade and transportation efficiency, which were critical for the economic growth of the region.
Construction of the Victoria Bridge began in 1897. The project was undertaken by a team of engineers and workers, many of whom were brought in from various parts of the world, bringing with them expertise in bridge construction. The construction process was challenging, given the technical limitations of the time and the difficult terrain surrounding the Perak River. Engineers had to devise innovative solutions to overcome obstacles such as strong currents and fluctuating water levels, which required careful planning and execution.
The steel members for the truss were manufactured in Malaysia and transported to the construction site. This required careful planning and coordination to ensure that the heavy and bulky components arrived on time and in good condition. The logistics of transporting these materials were complex, involving both land and water transport, which added to the overall challenge of the project.
The assembly of the truss structure was a complex task. Workers had to carefully position and connect each steel member, ensuring that the truss was properly aligned and rigid. The piers supporting the bridge were built in the river, which involved dealing with strong currents and variable water levels. Special techniques were used to construct the piers, such as driving piles into the riverbed to provide a stable foundation. This meticulous approach to construction ensured that the bridge would be both durable and capable of withstanding the forces exerted by the railway traffic.
After several years of hard work, the Victoria Bridge was completed in 1900. Its opening was a momentous occasion, marking a significant milestone in Malaysia's railway history. The bridge not only facilitated the movement of goods and people but also symbolized the progress and modernization of the country's infrastructure.
Since its completion, the Victoria Bridge has been in service for over 120 years. Throughout its long service life, it has undergone various maintenance and repair works to ensure its continued safety and functionality. Regular inspections are carried out to check for signs of corrosion, wear and tear, and structural damage. When necessary, damaged steel members are replaced, and the bridge is repainted to protect it from corrosion. This proactive maintenance approach has been crucial in preserving the integrity of the bridge and ensuring its reliability for modern railway operations.
Despite the passage of time and the increasing demands of modern railway traffic, the Victoria Bridge has stood the test of time. Its robust design and quality construction have allowed it to continue serving as an important part of Malaysia's railway network, a testament to the durability of steel truss bridges when properly maintained. The bridge has adapted to the evolving needs of the railway system, accommodating heavier trains and increased traffic volumes without compromising safety.
The Victoria Bridge holds great historical significance for Malaysia. Firstly, it played a crucial role in the development of the country's railway network. Before the bridge was built, crossing the Perak River was a major obstacle for trains, requiring time-consuming and inefficient ferry services. The Victoria Bridge provided a direct and reliable rail link, enabling the smooth movement of goods and passengers between different regions of Malaysia. This improved connectivity boosted trade and economic development, as it became easier to transport raw materials from rural areas to urban centers and ports, and to distribute finished goods across the country.
Secondly, the Victoria Bridge is a symbol of the engineering achievements of the late 19th century in Malaysia. It demonstrated the ability to overcome significant geographical challenges through innovative engineering design and construction techniques. The bridge's construction brought together expertise from around the world, contributing to the transfer of knowledge and technology to Malaysia. This exchange of ideas and practices not only advanced local engineering capabilities but also laid the groundwork for future infrastructure projects in the country.
In addition, the Victoria Bridge has become a historical landmark, attracting the attention of historians, engineers, and tourists. It serves as a reminder of Malaysia's past, particularly the era of colonialism and the development of infrastructure during that time. The bridge's existence is a tangible link to the country's history, preserving the memory of the efforts made to build a modern transportation system. Its architectural beauty and historical context make it a popular destination for visitors interested in Malaysia's cultural heritage.
Furthermore, the Victoria Bridge has had a social impact. It facilitated the movement of people, allowing for greater interaction and cultural exchange between different communities. It made travel more accessible and convenient, contributing to the integration of different regions of Malaysia. The bridge has become a symbol of unity, connecting diverse populations and fostering economic and social ties across the country.
Steel truss bridges, with their unique structural composition, numerous advantages, and wide range of applications, have been crucial in connecting communities and driving development around the world. In Malaysia, the Victoria Bridge stands as a shining example of the importance of steel truss bridges in the country's history. Its construction history is a story of human ingenuity and perseverance, its long service life attests to the durability of steel truss structures, and its historical significance is deeply rooted in Malaysia's railway development, economic growth, and cultural heritage. As Malaysia continues to develop and modernize its infrastructure, the Victoria Bridge remains a cherished landmark, reminding us of the vital role that bridges play in shaping a nation's future.
Steel truss bridges offer several advantages, including a high strength-to-weight ratio, which allows for longer spans with fewer supports. They are also versatile in design, easy to construct due to prefabrication, durable with a long service life, and exhibit good seismic performance, making them suitable for various applications.
The design of a steel truss bridge utilizes a framework of interconnected steel members that distribute loads evenly across the structure. The truss configuration allows the bridge to efficiently handle both tension and compression forces, enhancing its overall load-bearing capacity and stability.
Essential maintenance practices for steel truss bridges include regular inspections to identify signs of corrosion, wear, and structural damage. Routine painting to prevent rust, replacing worn-out components, and ensuring proper drainage systems are also critical for maintaining the bridge's integrity and extending its service life.
The Victoria Bridge is historically significant as it was the longest railway truss bridge in Malaysia upon its completion in 1900. It played a crucial role in enhancing railway connectivity, facilitating trade and transportation, and symbolizing the engineering advancements of the late 19th century in the country.
Engineers faced several challenges during the construction of the Victoria Bridge, including dealing with the strong currents and fluctuating water levels of the Perak River. The technical limitations of the time required innovative solutions for constructing the piers and assembling the truss structure, all while ensuring safety and structural integrity.
