In Mozambique, a country characterized by diverse and challenging landscapes, bridges serve as vital connections for communities and economic activities. Among the various types of bridges, the BS5400 Vehicle Load Bailey Bridge and the Deck Steel Bridge stand out as two prominent options. While both are designed to carry specified vehicle loads according to the British Standard BS5400, they differ significantly in their design, construction methods, and suitability for Mozambique's unique environments. Understanding these differences is essential for effective infrastructure planning in a nation that constantly balances emergency response with long-term development.

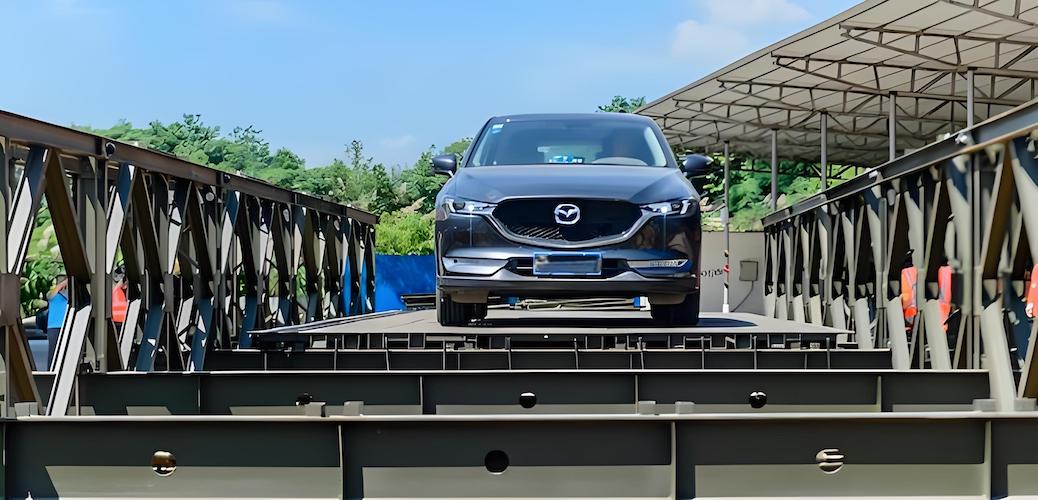

The Bailey Bridge was originally developed during World War II to facilitate military mobility. It is a prefabricated, modular panel bridge system that utilizes standardized, interchangeable steel components. These components include panels, transoms, stringers, and bracing, which can be manually assembled in various configurations using simple tools. The bridge functions as a through-truss structure, where the load-bearing truss framework is positioned beside the deck, which is supported within the truss.
One of the primary advantages of the Bailey Bridge is its rapid deployment capability. A trained crew can erect a single-span Bailey Bridge of 30 to 60 meters in just a few days or weeks. This speed is particularly critical in post-disaster scenarios, such as after cyclones or in conflict zones, where immediate access is necessary. The construction process typically does not require heavy cranes, making it feasible in remote areas.
The modular nature of the Bailey Bridge allows for easy adjustments in span length by adding or removing panels. Additionally, the load capacity can be increased by doubling or tripling the trusses, allowing for configurations such as "Double/Double-Double" or "Triple-Single." While it is primarily built as a through bridge, it can also be modified into a semi-through or deck bridge, although these modifications are less efficient.
Bailey Bridges are designed for repeated disassembly, transport, and reassembly. This feature makes them ideal for emergency response situations, as they can be stored and deployed quickly by organizations such as the National Roads Administration (ANE) or non-governmental organizations (NGOs).
The Bailey Bridge relies on relatively simple, temporary foundations, which can include timber or steel cribbing, compacted earth abutments, or small concrete pads. This adaptability suits soft ground conditions but limits the bridge's permanence.
Bailey Bridges are explicitly designed and rated according to standard classifications that correspond to the lane loading and uniformly distributed load (UDL) requirements of BS5400. Their modular design ensures predictable capacity based on the chosen configuration.
In the aftermath of Cyclone Idai in 2019, multiple Bailey Bridges were deployed in Sofala Province to restore critical access along the EN6 corridor near Beira. These bridges were erected by the Portuguese Army Engineers and local crews, providing vital humanitarian aid access in a matter of weeks after permanent structures were destroyed.
In 2021, a 120-meter modular Bailey-type bridge was constructed using components from Acrow to facilitate temporary access for machinery and materials during the construction of a permanent access road through the swampy delta terrain. The lightweight components were transported by barge, and assembly occurred on temporary foundations that were unsuitable for heavier permanent structures.
Ongoing deployments of Bailey Bridges by the World Food Programme (WFP) and the Mozambican Defense Forces (FADM) have been crucial in reconnecting communities isolated by insurgent activity or washed-out crossings in remote areas with poor soil conditions.

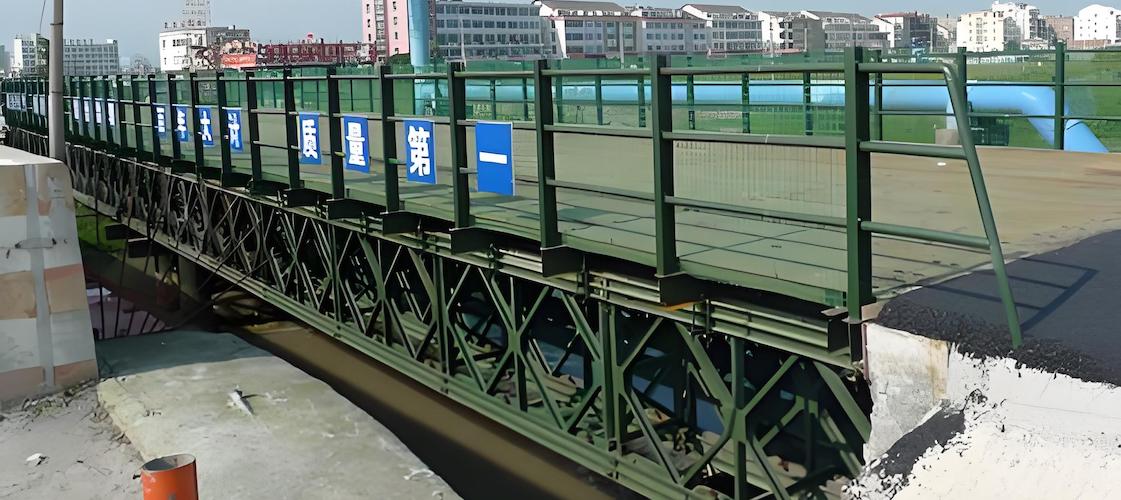

A Deck Steel Bridge is characterized by its primary load-bearing structure, which includes girders, trusses, and arches positioned below the deck level. The deck itself, made of concrete or steel grating, is supported directly on these main structural elements. This design is the most common for permanent highway bridges and is custom-engineered for specific site and load requirements.
Deck Steel Bridges are designed for long-term service, often lasting decades with minimal maintenance. They utilize heavier, welded or bolted plate girders, box girders, or trusses, which provide enhanced durability against the elements.
These bridges can be engineered to support very heavy loads, such as those from mining trucks, and can achieve much longer spans than Bailey Bridges. Advanced materials and engineering techniques, such as continuous spans and cable-stayed elements, contribute to their capacity.
Each Deck Steel Bridge is tailored to its specific topography, geotechnical conditions, and hydraulic requirements. The foundations are deep and robust, often utilizing piles or caissons to ensure stability.
The construction of Deck Steel Bridges is more complex and time-consuming than that of Bailey Bridges. It requires detailed engineering design, specialized fabrication, heavy lifting equipment, and skilled labor. The entire process can take months to years, depending on the project's scale.
Deck Steel Bridges in Mozambique, particularly those designed by international firms, often adhere to BS5400 standards for live load design. This standard dictates the magnitude and distribution of loads that the girders, deck, and foundations must withstand, necessitating complex structural analysis.
The planned Macuse Coal Port Access Bridge in Zambezia Province will require multiple large-span, high-capacity Deck Steel Bridges to cross tidal creeks and floodplains. These bridges are designed to accommodate heavy mining vehicles and will necessitate deep pile foundations to penetrate soft alluvial soils.
Several permanent Deck Steel Bridges are being constructed along the Maputo Ring Road, crossing tidal estuaries and drainage channels. These bridges utilize BS5400-derived loading standards and feature robust concrete piers designed for the corrosive marine environment.
The Limpopo River Crossing in Xai-Xai, Gaza Province, requires careful hydraulic modeling to design foundations that can withstand deep scour during floods. These permanent structures are designed for high-volume traffic and heavy agricultural loads over many years.
The choice between a BS5400-rated Bailey Bridge and a BS5400-rated Deck Steel Bridge in Mozambique is heavily influenced by the specific terrain and the project's goals.
In areas like the Zambezi Delta and coastal plains, the Bailey Bridge excels as a temporary solution. Its minimal foundation requirements allow for rapid deployment on waterlogged soils where establishing deep foundations is impractical. However, its long-term use is problematic due to the open truss structure, which can trap debris and accelerate corrosion.
Conversely, the Deck Steel Bridge serves as a permanent solution, requiring significant upfront investment in deep foundations and robust corrosion protection. While construction is logistically complex, the resulting bridge provides stable, high-capacity access essential for economic development.
In regions near Beira, Quelimane, and Maputo Bay, the Bailey Bridge is only suitable for very short-term emergency repairs. The corrosive effects of saltwater and tidal currents can quickly undermine its light foundations.
In contrast, the Deck Steel Bridge is specifically designed for marine environments, featuring deep pile foundations and high-performance corrosion protection systems. These structures are capable of handling heavy port traffic and resisting cyclonic conditions.
For emergency response, conflict zones, and remote access, the Bailey Bridge is the preferred choice due to its speed and portability. Its BS5400 rating ensures it can accommodate essential aid trucks and light vehicles.
For permanent highways, economic corridors, and mining access, the Deck Steel Bridge is essential. Its long-term durability and high capacity justify the higher costs and longer construction times, ensuring robust infrastructure for national and international traffic.
The BS5400 vehicle load standard provides a common framework for understanding the traffic capacity of both Bailey Bridges and Deck Steel Bridges in Mozambique. However, they represent fundamentally different engineering philosophies applied to distinct challenges.
The Bailey Bridge embodies rapid, flexible, and temporary infrastructure. Its modularity makes it an indispensable tool for restoring connections immediately after disasters or in insecure regions. However, its vulnerability to corrosion and foundation instability limits its suitability as a long-term solution.
On the other hand, the Deck Steel Bridge represents engineered permanence, high capacity, and resilience. It is crucial for Mozambique's long-term development, enabling heavy trade and supporting resource extraction. The investment in deep foundations and advanced corrosion protection is necessary for structures designed to endure in demanding environments.
Choosing between these two types of bridges is not about determining which is superior but rather selecting the appropriate solution for the specific challenges faced in Mozambique. The Bailey Bridge is ideal for speed and adaptability in crisis situations, while the Deck Steel Bridge is essential for building the enduring foundations of the nation's economic future. Often, the Bailey Bridge serves as a temporary solution that paves the way for the construction of the permanent Deck Steel structure it will eventually replace.
Bailey Bridges generally have lower initial costs due to their modular design and quick assembly. However, they may incur higher maintenance costs over time due to corrosion and structural wear, especially in harsh environments. In contrast, Deck Steel Bridges have higher upfront costs due to complex engineering and construction requirements but are designed for long-term durability, resulting in lower maintenance costs over their lifespan.
The availability of local materials can significantly impact the choice of bridge type. Bailey Bridges can often be constructed with locally sourced materials and require less specialized labor, making them suitable for remote areas. Deck Steel Bridges, however, may require imported materials and skilled labor for fabrication and installation, which can complicate logistics and increase costs.
Future projects in Mozambique may explore the use of composite materials that combine steel and fiber-reinforced polymers for enhanced durability and reduced weight. Additionally, designs that incorporate modular construction techniques and advanced corrosion-resistant coatings are being considered to improve the longevity and performance of bridges in challenging environments.
The choice of bridge type directly impacts emergency response capabilities. Bailey Bridges can be rapidly deployed in disaster situations, providing immediate access for humanitarian aid and recovery efforts. In contrast, Deck Steel Bridges, while more permanent, require longer construction times, which may delay access in urgent situations.
Environmental factors such as high humidity, saline coastal conditions, and seasonal flooding must be considered in bridge design. These factors influence material selection, foundation design, and corrosion protection measures. Bridges must be engineered to withstand these conditions to ensure safety and longevity.
