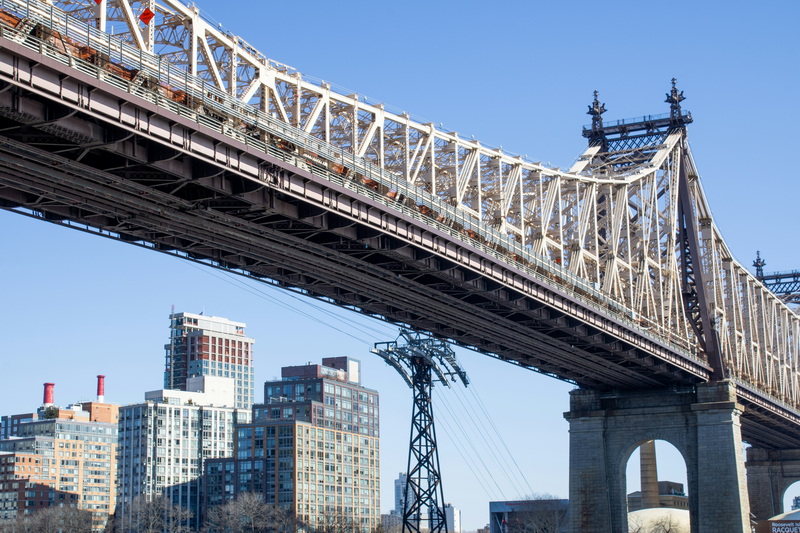

The Baltimore Pratt truss is a distinctive and historically significant variation of the Pratt truss bridge design. Originating in the late 19th century, it was developed to address the increasing demands for stronger, more stable bridges capable of supporting heavier loads, especially for railroad applications. This article explores the advantages of the Baltimore Pratt truss structure in detail, examining its design features, material efficiency, load distribution, stability, and relevance in modern engineering.
The Baltimore Pratt truss is a subclass of the Pratt truss, first developed by Thomas and Caleb Pratt in 1844. The original Pratt truss features vertical members under compression and diagonal members under tension, making it highly efficient for steel construction and popular for railroad bridges. The Baltimore truss enhances this design by adding additional diagonal and vertical members in the lower sections of the truss, known as subdivided panels or sub-struts and sub-ties, which improve the bridge's load-bearing capacity and stability[2][5].
This design was introduced by engineers at the Baltimore and Ohio Railroad around 1871 to meet the growing demands of heavier rail traffic. The additional bracing in the Baltimore truss prevents buckling of compression members and controls deflection, which are critical factors for the longevity and safety of bridges[3][4].
Understanding the advantages of the Baltimore Pratt truss requires familiarity with its structural components:
- Top Chord: The upper horizontal member that supports the bridge deck.
- Bottom Chord: The lower horizontal member connecting the ends of vertical members.
- Vertical Members: These transfer loads from the top chord to the bottom chord, generally under compression.
- Diagonal Members: These provide tension support and stability.
- Subdivided Panels: Additional diagonal and vertical members in the lower part of the truss that subdivide the main panels into smaller sections, reducing the length of compression members and increasing rigidity[3][4].
The Baltimore truss's defining feature is its subdivided panels, which incorporate extra diagonal and vertical members. This design allows the structure to distribute loads more evenly across the bridge, reducing the stress concentrations on any single member. The additional diagonals help share the load, particularly reducing the stress on the lower chord, which typically experiences the highest tension forces[3].
One of the critical weaknesses in truss bridges is the buckling of compression members under load. The Baltimore truss addresses this by adding short vertical and diagonal members in the lower sections. These short members brace the longer compression members, significantly reducing their effective length and susceptibility to buckling. This feature is especially important for railroad bridges, where heavy dynamic loads can cause instability in less reinforced structures[1][4][5].
By optimizing the placement and number of members, the Baltimore truss achieves a balance between strength and material use. The subdivided panels allow for shorter, lighter compression members that require less material while maintaining or improving load capacity. This efficiency makes the Baltimore truss economically attractive, especially in the era when steel was expensive and labor-intensive to fabricate[3].
As bridges increased in length and height to span wider obstacles, the Baltimore truss's design allowed for taller trusses without excessive deflection. The additional bracing members control lateral movement and bending, enabling the bridge to support heavier loads such as trains and modern vehicles. This adaptability has made the Baltimore truss a preferred choice for many railroad and highway bridges[1][3][4].
The Baltimore truss, like the Pratt truss, uses a repetitive pattern of members that simplifies fabrication and assembly. The added bracing does not significantly complicate construction but enhances durability and reduces maintenance needs by preventing member buckling and failure. This robustness translates into longer service life and reduced lifecycle costs[3][5].
The Baltimore Pratt truss was widely used in the late 19th and early 20th centuries, especially by the Baltimore and Ohio Railroad and other rail companies. Many surviving metal truss bridges in the United States, particularly in Maryland, are examples of Pratt and Baltimore trusses[2][5].
Modern engineering continues to benefit from the Baltimore truss principles. Advances in materials such as high-strength steel and computer-aided design (CAD) have allowed engineers to optimize the truss further, improving performance and extending lifespan. Additionally, smart sensor technology is increasingly used to monitor structural health in real time, ensuring safety and early detection of potential issues[3].
Feature | Pratt Truss | Baltimore Pratt Truss |
Diagonal Members | Diagonals in tension, verticals in compression | Additional diagonals and verticals in lower panels for bracing |
Buckling Resistance | Standard compression members | Enhanced with short members to prevent buckling |
Load Distribution | Effective but limited to main panels | Improved with subdivided panels for better load sharing |
Material Efficiency | Efficient for its time | More optimized due to shorter compression members |
Typical Use | Shorter spans, lighter loads | Longer spans, heavier loads (railroads) |
Stability | Good | Superior due to extra bracing |
Before constructing a Baltimore truss bridge, engineers conduct thorough site analysis, including soil conditions and environmental factors. Load calculations consider dead loads (bridge weight), live loads (vehicles, trains), and dynamic forces[3].
Using CAD and structural analysis software, engineers design the truss with precise dimensions and member placements. The subdivided panels require careful calculation to ensure optimal performance without overuse of materials[3].
The Baltimore truss's robust design reduces maintenance frequency, but regular inspections remain essential. Modern techniques include installing sensors to monitor stress and detect early signs of fatigue or damage[3].
The Baltimore Pratt truss structure represents a significant evolution in truss bridge engineering. Its innovative use of subdivided panels and additional bracing members provides enhanced load distribution, increased stability, and resistance to buckling, making it particularly suited for heavy-duty applications like railroad bridges. The design balances material efficiency with structural strength, allowing for economical construction and long service life. While rooted in 19th-century engineering, the Baltimore truss remains relevant today, benefiting from modern materials and technologies to meet contemporary infrastructure needs.
The Baltimore truss is a variation of the Pratt truss that includes additional diagonal and vertical members in the lower panels to prevent buckling and improve load distribution, enhancing stability and strength[2][3][5].
Yes, Baltimore truss bridges are robust enough to support heavy rail traffic and modern vehicles due to their enhanced bracing and load distribution features[3].
Steel is the most common material due to its strength and durability, although earlier versions used a combination of wood and iron. Modern bridges utilize high-strength steel and sometimes advanced composites[3].
Engineers use site analysis, load calculations, and computer-aided design (CAD) software to create detailed plans that optimize member sizes and placements for safety and efficiency[3].
Many historic Baltimore truss bridges exist in Maryland and other parts of the United States, especially those built by the Baltimore and Ohio Railroad in the late 19th and early 20th centuries[2][5].
