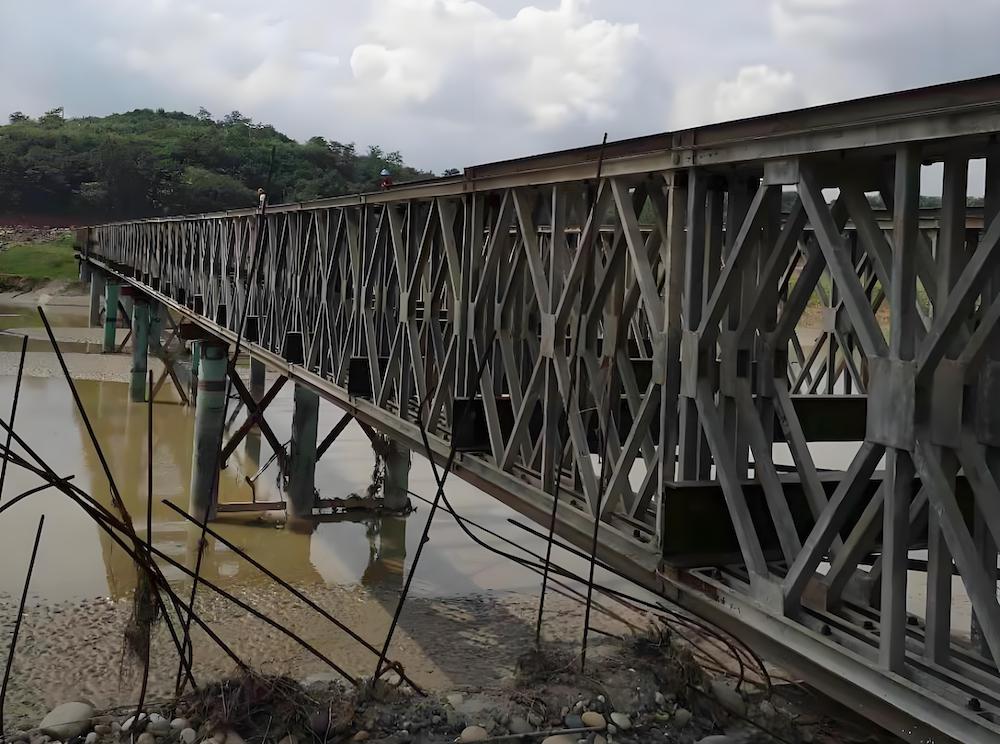

Bailey bridges are a type of portable, prefabricated bridge that can be quickly assembled and disassembled. Originally designed during World War II by Sir Donald Bailey, these bridges have become a staple in both military and civilian engineering due to their versatility and ease of use. The construction of a Bailey bridge involves several key components, each playing a crucial role in the overall structure and functionality of the bridge. This article will explore the various components of Bailey bridges, their functions, and the construction process involved. Understanding these elements not only highlights the engineering ingenuity behind Bailey bridges but also emphasizes their importance in addressing urgent infrastructure needs.
Bailey bridges are characterized by their modular design, which allows for easy transport and rapid assembly. The primary components include:
Truss Panels: These are the main structural elements that provide strength and stability to the bridge. They are typically made from high-strength steel and are designed to distribute loads evenly across the structure. The truss design is particularly effective in minimizing material use while maximizing load-bearing capacity.
Decking: The surface of the bridge where vehicles and pedestrians travel. Decking can be made from various materials, including steel or wooden planks, depending on the intended use of the bridge. The choice of decking material can significantly affect the bridge's durability and maintenance requirements.
End Posts: These vertical components are located at each end of the bridge and help to support the truss panels. They also provide a connection point for the bridge to the abutments or supports. The design of end posts is critical for ensuring that the bridge can withstand lateral forces, such as wind or seismic activity.
Transoms: Horizontal members that connect the truss panels and help to maintain the shape and integrity of the bridge. They also assist in load distribution. The transoms play a vital role in ensuring that the bridge remains stable under varying load conditions.

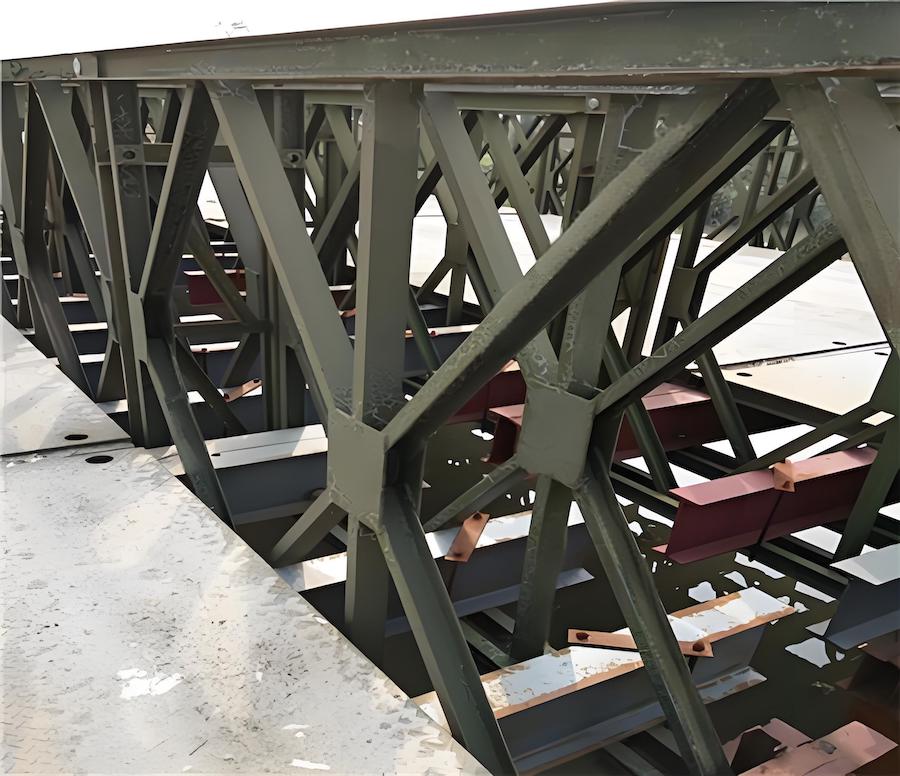

Truss panels are the backbone of a Bailey bridge. They are constructed from steel plates and are designed in a triangular configuration to maximize strength while minimizing weight. The triangular shape allows the panels to effectively distribute loads, making them ideal for supporting heavy vehicles. The use of high-strength steel not only enhances the load-bearing capacity but also contributes to the overall longevity of the bridge. Additionally, the modular nature of truss panels allows for easy replacement or repair, which is essential for maintaining the bridge over time.
The decking of a Bailey bridge is crucial for providing a safe and stable surface for traffic. It is typically made from steel or wooden materials, depending on the specific requirements of the bridge. The decking must be strong enough to support the weight of vehicles while also being resistant to environmental factors such as weather and wear. The choice of decking material can also influence the bridge's maintenance needs; for instance, wooden decking may require more frequent inspections and treatments to prevent rot, while steel decking may offer greater durability and lower long-term maintenance costs.
End posts are essential for the structural integrity of the bridge. They are positioned at both ends and serve multiple purposes, including:
Providing vertical support for the truss panels.
Acting as connection points for the bridge to the ground or other structures.
Enhancing the overall stability of the bridge during use.
The design of end posts is critical, as they must be able to withstand not only vertical loads but also lateral forces that can occur during high winds or seismic events. Engineers often incorporate additional reinforcements or bracing to ensure that end posts can handle these stresses effectively.
Transoms are horizontal beams that connect the truss panels. They play a vital role in maintaining the shape of the bridge and ensuring that loads are evenly distributed across the structure. Transoms also provide additional support for the decking, enhancing the bridge's overall strength. The spacing and design of transoms can vary based on the expected load and span of the bridge, allowing engineers to customize the bridge for specific applications. Properly designed transoms contribute to the overall safety and reliability of the bridge, making them a critical component in the construction process.
Before construction begins, careful planning is essential. Engineers must assess the site where the bridge will be installed, considering factors such as soil conditions, expected traffic loads, and environmental impacts. This planning phase also includes determining the appropriate size and configuration of the bridge based on its intended use. Detailed surveys and analyses help in identifying potential challenges, such as water flow patterns or existing infrastructure, which can influence the design and placement of the bridge. Effective planning ensures that the construction process proceeds smoothly and that the final structure meets all safety and performance standards.
Once the planning is complete, the individual components of the Bailey bridge are transported to the construction site. The assembly process typically involves the following steps:
Foundation Preparation: The site must be prepared to support the weight of the bridge. This may involve pouring concrete footings or constructing abutments. The foundation is critical for the stability of the bridge, as it must be able to bear the loads transmitted from the bridge structure.
Erecting the Truss Panels: The truss panels are assembled on-site, often using cranes or other lifting equipment. The panels are connected using bolts and other fasteners to ensure a secure fit. The assembly process requires skilled labor to ensure that all components are aligned correctly and that the connections are secure.
Installing the Transoms: After the truss panels are in place, the transoms are installed to connect the panels and provide additional support. This step is crucial for maintaining the structural integrity of the bridge and ensuring that it can safely support the intended loads.
Laying the Decking: Once the truss structure is complete, the decking is laid on top. This step is crucial for creating a safe surface for vehicles and pedestrians. The decking must be installed carefully to ensure that it is level and securely attached to the underlying structure.
Final Adjustments and Inspections: After assembly, the bridge undergoes a series of inspections to ensure that it meets safety standards. Any necessary adjustments are made before the bridge is opened for use. This final inspection phase is vital for identifying any potential issues that could affect the bridge's performance or safety.
Bailey bridges are designed for durability, but regular maintenance is essential to ensure their longevity. This includes routine inspections to check for signs of wear or damage, as well as addressing any issues that may arise due to environmental factors or heavy use. Proper maintenance can significantly extend the lifespan of a Bailey bridge, making it a cost-effective solution for temporary or permanent crossings. Maintenance activities may include repainting to prevent rust, tightening connections, and replacing worn decking materials. By implementing a proactive maintenance plan, operators can ensure that the bridge remains safe and functional for years to come.
One of the most significant advantages of Bailey bridges is their rapid assembly and disassembly. This feature makes them ideal for emergency situations, military applications, and temporary crossings. The modular design allows for quick transport and setup, enabling engineers to respond swiftly to infrastructure needs. In disaster relief scenarios, for example, Bailey bridges can be deployed to restore access to critical areas, facilitating the movement of emergency services and supplies.
Bailey bridges are often more cost-effective than traditional bridge construction methods. Their prefabricated components reduce labor costs and construction time, making them an attractive option for projects with budget constraints. Additionally, the ability to reuse components in different configurations can further enhance cost savings. This economic efficiency is particularly beneficial for municipalities and organizations with limited budgets for infrastructure projects.
Bailey bridges can be adapted to various configurations and lengths, making them suitable for a wide range of applications. Whether for military use, temporary roadways, or permanent installations, Bailey bridges can be customized to meet specific requirements. This versatility allows engineers to design solutions that fit the unique challenges of each project, whether it involves spanning a river, crossing a ravine, or providing access to remote areas.
Constructed primarily from high-strength steel, Bailey bridges are designed to withstand heavy loads and harsh environmental conditions. Their robust design ensures that they can support a variety of vehicles, from light cars to heavy military trucks. The materials used in construction are selected for their durability, ensuring that the bridge can endure the rigors of daily use and environmental exposure. This strength and durability make Bailey bridges a reliable choice for both temporary and permanent applications.
Bailey bridges represent a remarkable achievement in engineering, combining strength, versatility, and ease of use. Understanding the components involved in their construction is essential for appreciating their functionality and the role they play in modern infrastructure. From the truss panels to the decking, each element contributes to the overall integrity and performance of the bridge. As infrastructure needs continue to evolve, Bailey bridges will remain a vital solution for both temporary and permanent crossings, showcasing the ingenuity of modular bridge design. Their ability to adapt to various situations and requirements ensures that they will continue to be a valuable asset in the field of civil engineering for years to come.
Bailey bridges are primarily used for military applications, temporary roadways, and emergency situations where quick access is needed. They are also utilized in civilian infrastructure projects, such as crossing rivers or ravines, and can serve as permanent installations in areas with limited access to traditional construction methods.
The assembly time for a Bailey bridge can vary depending on the size and complexity of the bridge, but it generally takes a few hours to a couple of days. The modular design allows for rapid assembly, making it an efficient solution for urgent infrastructure needs.
Bailey bridges are primarily constructed from high-strength steel, which provides durability and load-bearing capacity. The decking can be made from steel or wooden materials, depending on the specific requirements of the bridge and the expected traffic loads.
Yes, one of the significant advantages of Bailey bridges is their modular design, which allows them to be easily disassembled, transported, and reassembled at different locations. This feature makes them an excellent choice for temporary applications or situations where infrastructure needs may change over time.
Regular maintenance for Bailey bridges includes routine inspections to check for signs of wear, rust, or damage. Maintenance activities may involve repainting to prevent corrosion, tightening connections, and replacing worn decking materials. Proper maintenance is essential to ensure the longevity and safety of the bridge.
