Building a spaghetti truss bridge is an exciting and educational project that combines engineering principles, creativity, and problem-solving skills. This comprehensive guide will walk you through the process of constructing a sturdy and efficient spaghetti bridge, from design to testing.

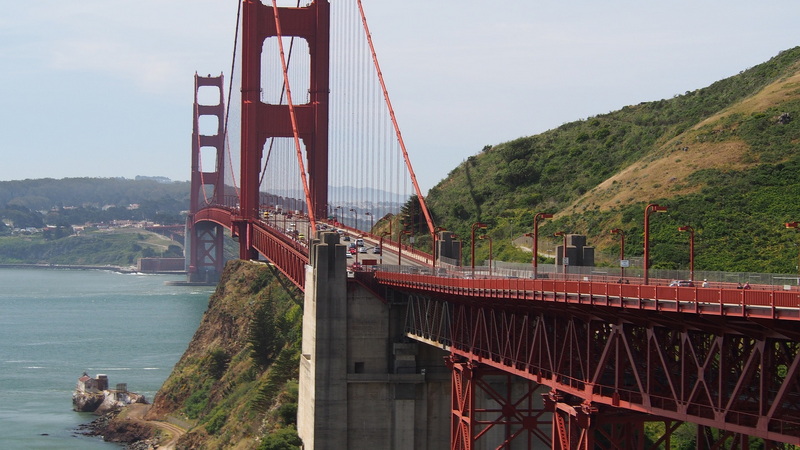

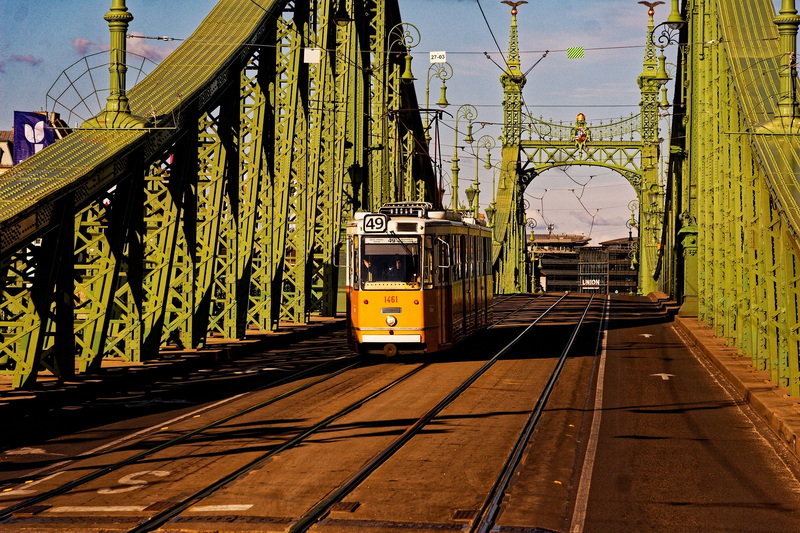

Before diving into the construction process, it's essential to understand what a truss bridge is and why it's an effective design. A truss bridge uses a series of triangular units to distribute weight and forces across a span. This design is known for its strength and efficiency, making it an ideal choice for spaghetti bridge projects.
To build your spaghetti truss bridge, you'll need the following materials:
- Uncooked spaghetti (regular thickness works best)
- Wood glue or hot glue gun with glue sticks
- Ruler or measuring tape
- Pencil and paper for design
- Scissors
- String or rubber bands (for temporary support during construction)
- Wax paper or a non-stick surface
- A flat work surface
Before you start building, it's crucial to plan your bridge design. The Warren truss and Pratt truss are two popular designs for spaghetti bridges. The Warren truss uses equilateral triangles, while the Pratt truss features vertical members and diagonal members that slope towards the center.
Consider the following factors when designing your bridge:
- Bridge span (typically 30-50 cm for most projects)
- Height and width of the bridge
- Number of triangular units
- Placement of cross-braces and supports
Sketch your design on paper, including measurements for each component. This will serve as your blueprint during construction.
1. Start by laying out spaghetti strands on your wax paper to form the top and bottom chords of your truss.
2. Cut spaghetti pieces to the appropriate lengths for vertical and diagonal members.
3. Use wood glue or a hot glue gun to attach the vertical and diagonal members to the top and bottom chords, forming triangular units.
4. Allow the glue to dry completely before handling.
5. Repeat this process to create the second truss wall.
1. Once both truss walls are dry, stand them upright parallel to each other.
2. Cut spaghetti pieces to the desired width of your bridge and use them to connect the bottom chords of the two truss walls.
3. Add cross-braces between the truss walls at regular intervals to increase stability.
4. Connect the top chords of the truss walls using spaghetti pieces, creating a roof-like structure.
1. Add additional diagonal braces between the vertical and horizontal members to strengthen the bridge.
2. Place extra supports at the ends of the bridge where it will rest on the testing platform.
3. Reinforce joints with additional glue if needed, especially at high-stress points.
1. Cut spaghetti pieces to fit across the width of your bridge.
2. Glue these pieces perpendicular to the truss walls, creating a flat surface for the bridge deck.
3. Ensure the deck is evenly supported and securely attached to the truss structure.
To maximize the strength of your spaghetti truss bridge, consider the following tips:
1. Use triangles: Triangles are the strongest shape in construction. Incorporate as many triangles as possible in your design.
2. Distribute weight evenly: Ensure that the forces are distributed evenly across the entire structure.
3. Quality matters: Choose straight, unbroken spaghetti strands for better structural integrity.
4. Allow for proper drying time: Give the glue ample time to dry between steps to ensure strong bonds.
5. Consider bundling: Group multiple spaghetti strands together to create stronger beams for critical structural elements.
6. Optimize material usage: Focus on placing more material away from the neutral axis of the bridge to increase its moment of inertia.
7. Joint reinforcement: Pay extra attention to the joints, as they are often the weakest points. Use additional small pieces of spaghetti to reinforce critical joints.
Once your bridge is complete and the glue has fully dried (allow at least 24 hours), it's time to test its strength. Here's how you can do it:
1. Set up two supports (e.g., books or blocks) at the appropriate distance for your bridge span.
2. Place your bridge across the gap, ensuring it's stable.
3. Gradually add weight to the center of the bridge. You can use coins, marbles, or small weights.
4. Record the maximum weight your bridge can hold before failing.
For a more accurate test, consider using a bucket hanging method:
1. Attach a loading block to the center of your bridge.
2. Hang a bucket from this block using string or wire.
3. Gradually fill the bucket with sand or water until the bridge fails or reaches your target weight.
Building a spaghetti truss bridge is not just about creating a strong structure; it's also about understanding engineering principles. As you build and test your bridge, consider the following questions:
- How does the distribution of forces affect the bridge's strength?
- What role do the triangular shapes play in supporting the load?
- How does the choice of materials (spaghetti and glue) impact the bridge's performance?
- What improvements could you make to your design for even greater strength?
Constructing a spaghetti truss bridge is an engaging way to explore engineering concepts, problem-solving skills, and creativity. By following this guide, you've learned how to design, build, and test a truss bridge using simple materials. Remember that the key to a successful bridge lies in careful planning, precise construction, and understanding the principles of force distribution.
Whether you're building for a school project, a competition, or personal interest, the skills and knowledge gained from this experience can be applied to many other areas of engineering and design. As you continue to experiment with different designs and techniques, you'll develop a deeper understanding of structural engineering principles and the importance of innovation in solving complex problems.
The number of spaghetti strands required depends on your bridge design and size. Generally, you'll need between 200 to 300 strands for a standard-sized bridge spanning 30-50 cm. It's always better to have extra spaghetti on hand in case of breakage or design changes.
Wood glue or a strong craft glue is ideal for spaghetti bridges. Hot glue can also be used for quicker assembly, but it may not provide as strong a bond as wood glue. Whichever type you choose, ensure it dries clear and forms a strong bond with the spaghetti.
It's best to allow at least 30 minutes to an hour between major assembly steps when using wood glue. For hot glue, you can continue building after a few minutes, but be careful not to disturb the joints. For the final structure, let it dry for 24 hours before testing to ensure all joints are fully set.
While spaghetti is the most common choice due to its length and versatility, you can experiment with other pasta shapes for specific parts of your bridge. For example, lasagna sheets could be used for the deck, or tubular pasta like bucatini could be used for stronger vertical supports. However, stick to spaghetti for the main structural elements to maintain consistency.
To increase strength without adding significant weight, focus on optimizing your design rather than simply adding more material. Use triangular shapes throughout your structure, ensure even distribution of forces, and pay special attention to reinforcing joints. You can also experiment with bundling spaghetti strands or creating hollow beam structures to increase strength while minimizing weight.
