Building a simple footbridge is a rewarding DIY project that can enhance your outdoor space by providing a safe and aesthetically pleasing way to cross streams, ravines, or wet areas. This guide will walk you through the essential steps to construct a sturdy and visually appealing footbridge, using materials like wood and concrete. Below, we'll cover site preparation, material selection, construction methods, and maintenance tips.
A footbridge serves as a practical and aesthetic solution for crossing streams, ravines, or wet areas. The complexity of the project depends on the stream's width, water flow, soil stability, and local regulations. This guide focuses on building a simple wooden footbridge suitable for small to medium-sized streams.
Before starting, ensure that you have obtained any necessary permits and assessed the environmental impact of your bridge. Verify that the bridge design minimizes disruption to aquatic life and vegetation.
- Width and Depth: Measure the stream's width to determine the bridge span. Account for seasonal changes in water levels.
- Soil Stability: Check the stream banks for erosion, loose soil, or soft spots. Rocky or clay-rich banks are ideal for anchoring supports.
- Environmental Considerations: Ensure the bridge design minimizes disruption to aquatic life and vegetation.
Many regions require permits for stream modifications. Contact local environmental agencies or municipal offices to verify regulations.

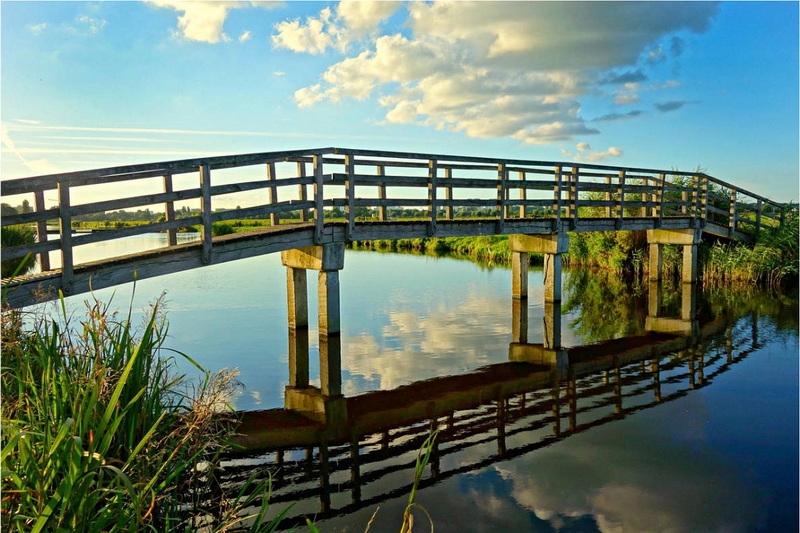

- Beam Bridge: Simplest design, using horizontal beams supported by abutments or piers. Ideal for spans under 20 feet.
- Arched Bridge: Offers aesthetic appeal and distributes weight more evenly, requiring skilled carpentry.

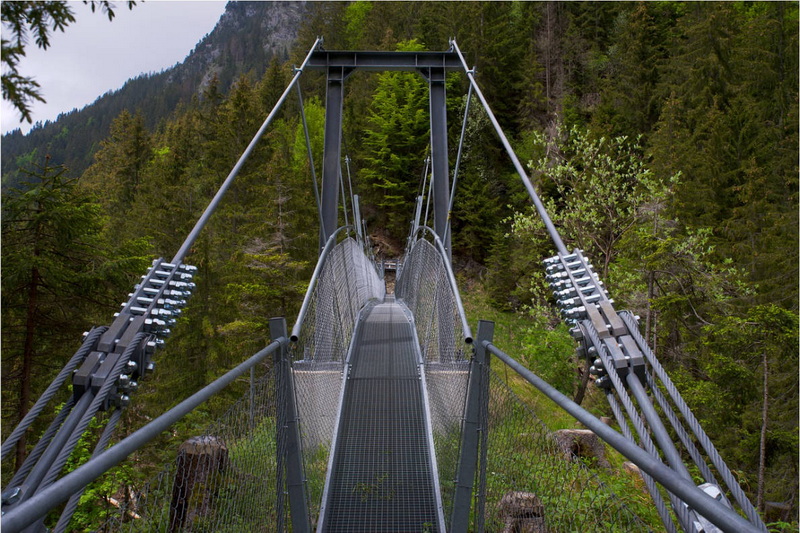

- Suspension or Cable-Stayed: Suitable for wider spans but complex for DIY projects.
- Pressure-Treated Lumber: Resists rot and insects. Use for beams, decking, and posts.
- Hardwoods (e.g., Oak, Cedar): Natural durability but higher cost.
- Concrete Piers: Provide stable foundations in loose soil.
- Galvanized Steel Hardware: Use rust-resistant bolts, brackets, and straps for structural connections.
1. Concrete Block Piers
- Level the ground at both ends of the stream.
- Place concrete blocks or pre-cast piers on compacted gravel beds.
- Use a spirit level to ensure even alignment.
2. Driven Piles
- For soft or sandy soil, drive steel or timber piles into the stream bed using a pile driver.
- Build temporary enclosures with sheet piles to divert water and create a dry workspace.
1. Laminated Wood Beams
- Glue and clamp two 12-foot 2x6 planks with construction adhesive.
- Secure with carriage bolts every 24 inches.
2. Steel I-Beams
- Ideal for heavy loads. Anchor beams to piers using galvanized brackets.
- Drill holes through beams and pier straps.
- Insert silicon-coated carriage bolts and tighten with washers and nuts.
1. Measure and Cut Treads
- Cut pressure-treated 2x6 planks to span the beams, allowing a 1-inch overhang on each side.
- Space planks ½ inch apart for drainage.
2. Secure with Rust-Resistant Screws
- Pre-drill holes to prevent splitting.
- Coat cut ends with wood preservative to prevent rot.
1. Post Installation
- Bolt pre-cut posts to the beams every 4–6 feet.
- Use a speed square to ensure vertical alignment.
2. Attach Horizontal Rails
- Secure 2x4 rails between posts using lag screws.
- Stain or seal wood to protect against UV damage and moisture.
- Use marine-grade paint for metal components.
- Check for loose bolts, rotting wood, or erosion around piers.
- Clear debris from the stream to prevent blockages.
- Materials: $500–$2,000 (depending on span and materials).
- Labor: 2–5 days for a DIY project.
When constructing a footbridge across a stream, it is crucial to consider environmental factors that may impact local ecosystems. Here are some key points:
Ensure that construction activities do not disturb fish habitats or spawning grounds. Avoid working during peak spawning seasons if applicable in your area.
Use erosion control measures such as silt fences or straw bales during construction to prevent sediment from entering the waterway.
Consider using sustainably sourced wood or recycled materials when building your bridge. This practice reduces environmental impact while promoting responsible sourcing practices.
For more complex bridge designs, consider using advanced building techniques such as layering ceilings to create multi-level structures or incorporating arches for aesthetic appeal.
By stacking ceilings, you can create a multi-level bridge that adds depth and visual interest to your build.
Use vaulted ceilings to create arches that not only enhance the appearance of your bridge but also provide additional structural support.
Future trends in bridge building will focus on improving sustainability, using eco-friendly materials, and enhancing structural efficiency. These advancements will further integrate bridges into natural environments while maintaining their functionality.
In conclusion, building a simple footbridge combines practical engineering with creative problem-solving. By selecting durable materials, preparing stable foundations, and following systematic construction steps, you can create a functional and long-lasting structure. Whether for garden aesthetics or rural access, a well-built bridge enhances both utility and landscape appeal.
Here are some frequently asked questions about building simple footbridges:
A beam bridge with pressure-treated lumber is ideal for spans under 20 feet. Use concrete piers for stability in loose soil.
Anchor piers below the frost line and use driven piles or weighted concrete blocks. Avoid building in flood-prone areas.
Yes. Use screw piles or cantilevered designs that minimize contact with water.
For spans over 20 feet or complex designs, consult an engineer. DIY is feasible for simple structures with proper planning.
With pressure-treated wood and regular maintenance, expect 15–25 years of service life. Replace rusted hardware and reseal wood every 3–5 years.
