The Bailey Bridge, a type of modular bridge developed during World War II, is renowned for its simplicity, versatility, and strength. Its design has significant implications for its load-bearing capacity, making it a popular choice for military and civilian applications alike. This article explores the various aspects of the Bailey Bridge design and how these features contribute to its ability to support heavy loads.
The Bailey Bridge was invented by Sir Donald Bailey in 1940, primarily to address the urgent need for portable and quickly deployable bridges during wartime. Its design was revolutionary, allowing for rapid assembly and disassembly, which was crucial in military operations where time and efficiency were paramount. The bridge consists of prefabricated steel panels that can be assembled on-site, allowing for rapid deployment in emergency situations or military operations. The design's modular nature not only facilitates quick assembly but also enhances its load-bearing capabilities. This adaptability has made the Bailey Bridge a staple in both military logistics and civil engineering, proving its worth in various scenarios, from temporary crossings to permanent installations.

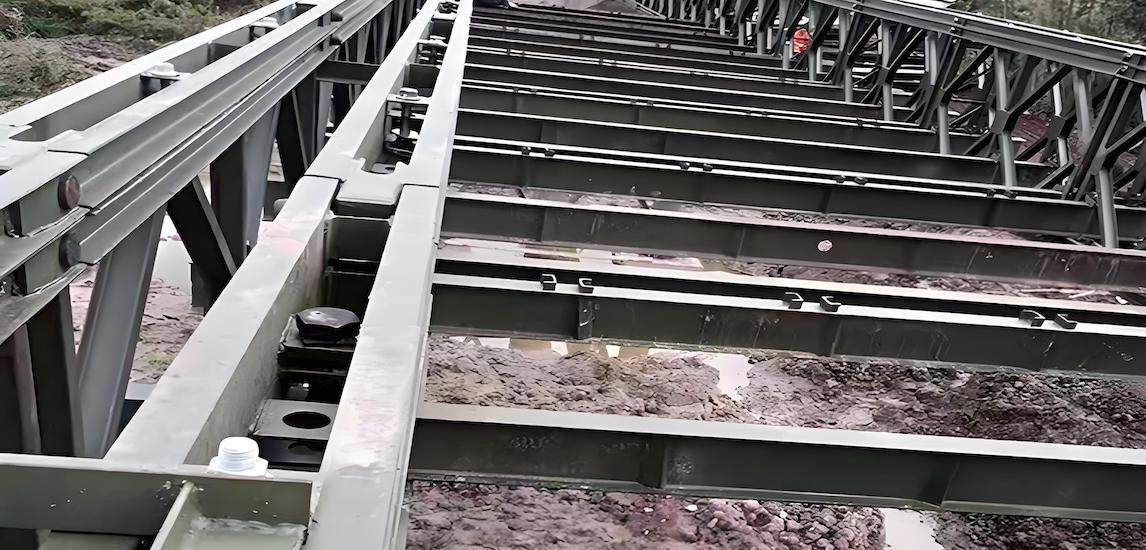

The Bailey Bridge is primarily composed of several key components, including panels, transoms, and bearings.
Panels: The bridge is made up of steel panels that are connected to form the bridge deck and sides. These panels are designed to distribute loads evenly across the structure, which is essential for maintaining stability under heavy traffic. The panels are typically made from high-strength steel, which not only provides durability but also allows for a lightweight structure that can be easily transported and assembled.
Transoms: These are horizontal beams that connect the panels and provide additional support. They play a crucial role in maintaining the structural integrity of the bridge by preventing lateral movement and ensuring that the load is evenly distributed across the panels. The design of the transoms is critical, as they must be robust enough to handle the forces exerted by vehicles while remaining lightweight for ease of handling.
Bearings: Bearings are used to support the bridge and allow for movement due to thermal expansion or load changes. They are essential for maintaining stability under varying conditions, as they help to absorb shocks and vibrations from traffic. The choice of bearing materials and designs can significantly affect the overall performance and longevity of the bridge, making it a vital component in the overall design.
One of the critical aspects of the Bailey Bridge design is its ability to distribute loads effectively. The arrangement of panels and transoms allows for even load distribution across the entire structure. This design minimizes stress concentrations, which can lead to structural failure. By spreading the load over a larger area, the Bailey Bridge can support heavier vehicles and equipment without compromising safety. This characteristic is particularly important in military applications, where heavy tanks and armored vehicles may need to cross the bridge. The design ensures that the bridge can handle these loads without excessive deflection or risk of collapse, making it a reliable choice in high-stress situations.
The materials used in the construction of the Bailey Bridge significantly influence its load-bearing capacity. The bridge is typically made from high-strength steel, which provides excellent tensile and compressive strength. This material choice ensures that the bridge can withstand heavy loads without deforming or failing. Additionally, advancements in steel manufacturing have led to the development of even stronger alloys, which can further enhance the load-bearing capabilities of the bridge. The choice of materials also impacts the bridge's weight, as lighter materials can facilitate easier transport and assembly while still providing the necessary strength.
The configuration of the Bailey Bridge also plays a vital role in its load-bearing capacity. The bridge can be designed in various configurations, including single-lane and double-lane designs. Each configuration has different load-bearing capabilities, with double-lane designs generally able to support heavier loads due to their increased width and structural support. The design can also be modified to include additional panels or trusses, which can further enhance the load-bearing capacity. Engineers must carefully consider the intended use of the bridge when selecting the configuration, as this decision will directly impact its performance and safety.
The span length of the Bailey Bridge affects its load-bearing capacity. Shorter spans tend to have higher load-bearing capacities because they experience less deflection under load. As the span length increases, the load-bearing capacity may decrease due to increased bending moments and shear forces. Therefore, careful consideration of span length is essential when designing a Bailey Bridge for specific applications. Engineers often conduct detailed calculations to determine the optimal span length for a given load requirement, ensuring that the bridge can safely accommodate the expected traffic.
The modular nature of the Bailey Bridge allows for quick and efficient assembly. Each panel and component is designed to fit together seamlessly, enabling teams to construct the bridge rapidly. This modular assembly not only speeds up the construction process but also ensures that the bridge maintains its structural integrity under load. The ease of assembly is particularly beneficial in emergency situations, where time is of the essence. Crews can be trained to assemble the bridge quickly, often within a matter of hours, allowing for immediate access to critical areas.
One of the significant advantages of the Bailey Bridge is its adaptability to various terrains and conditions. The design allows for on-site modifications, enabling engineers to adjust the bridge to meet specific load requirements or site conditions. This flexibility enhances the bridge's load-bearing capacity by allowing for tailored solutions that address unique challenges. For instance, if a particular site has uneven ground or requires a specific span length, engineers can modify the bridge design accordingly. This adaptability makes the Bailey Bridge an ideal choice for temporary crossings in disaster relief efforts or military operations.
To ensure the Bailey Bridge maintains its load-bearing capacity over time, regular inspections are essential. Engineers must assess the condition of the steel panels, connections, and bearings to identify any signs of wear or damage. Timely maintenance can prevent structural failures and extend the bridge's lifespan. Inspections typically involve visual assessments as well as more detailed evaluations using non-destructive testing methods to detect hidden flaws. Establishing a routine maintenance schedule is crucial for ensuring the bridge remains safe and functional, especially in high-traffic areas.
Corrosion can significantly impact the load-bearing capacity of the Bailey Bridge. To combat this issue, many Bailey Bridges are treated with protective coatings to enhance their resistance to environmental factors. Regular maintenance and inspections help ensure that these protective measures remain effective, preserving the bridge's structural integrity. Additionally, engineers may choose to use corrosion-resistant materials or design features that minimize water accumulation, further reducing the risk of corrosion. By prioritizing corrosion resistance, the longevity and safety of the bridge can be significantly improved.
The Bailey Bridge was initially designed for military applications, where rapid deployment and heavy load-bearing capacity were critical. It has been used extensively in combat zones to provide essential infrastructure for troops and equipment. Its ability to support tanks and heavy vehicles makes it an invaluable asset in military operations. The bridge's lightweight design allows for easy transport by air or land, enabling quick setup in remote locations. This capability has made the Bailey Bridge a preferred choice for military engineers, who require reliable solutions in challenging environments.
In addition to military applications, the Bailey Bridge has found a place in civil engineering projects. Its modular design allows for quick installation in emergency situations, such as after natural disasters. The bridge can be used to restore access to critical areas, ensuring that communities can recover swiftly. Civil engineers often utilize Bailey Bridges in temporary applications, such as during road construction or repairs, where traditional bridge construction would be impractical or too time-consuming. The versatility of the Bailey Bridge makes it a valuable tool in both emergency response and long-term infrastructure planning.
The design of the Bailey Bridge significantly affects its load-bearing capacity through various factors, including material strength, structural configuration, and assembly techniques. Its modular nature allows for rapid deployment and adaptability, making it a versatile solution for both military and civilian applications. Regular maintenance and inspections are crucial to preserving its load-bearing capabilities over time. As infrastructure needs continue to evolve, the Bailey Bridge remains a reliable and effective choice for bridging gaps in various environments. Its enduring legacy is a testament to the ingenuity of its design and the critical role it plays in modern engineering.
The weight limitations for Bailey Bridges vary based on their configuration. A standard single-lane Bailey Bridge can typically support loads of up to 40 tons, while a double-lane configuration can support loads of up to 70 tons or more, depending on the specific design and materials used.
Environmental factors such as temperature fluctuations, humidity, and exposure to corrosive elements can impact the load capacity of a Bailey Bridge. Over time, these factors can lead to material degradation, particularly if the bridge is not properly maintained or protected against corrosion.
Since its original creation, innovations such as the use of advanced materials, improved corrosion-resistant coatings, and enhanced modular designs have improved the Bailey Bridge. These advancements have increased its load-bearing capacity, durability, and ease of assembly.
Yes, Bailey Bridges can be used for permanent installations, especially in areas where traditional bridge construction is impractical. They are often employed in remote locations or as temporary solutions that can later be upgraded to permanent structures.
Essential maintenance practices for a Bailey Bridge include regular inspections for signs of wear or damage, cleaning to remove debris and prevent corrosion, and applying protective coatings as needed. Timely repairs and replacements of damaged components are also crucial for maintaining the bridge's structural integrity and load-bearing capacity.
