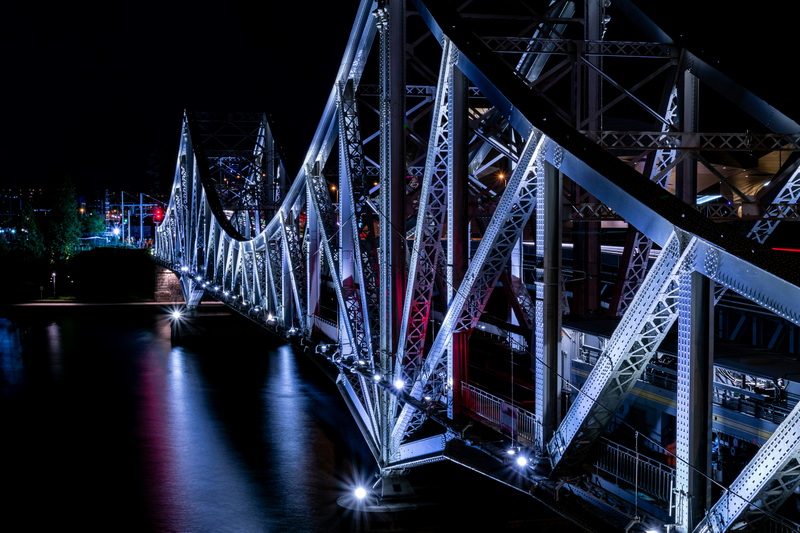

The truss bridge, an iconic structure in civil engineering, stands as a testament to human ingenuity in overcoming geographical obstacles. Characterized by its framework of interconnected triangles, the truss bridge efficiently distributes loads, offering a robust and cost-effective solution for spanning considerable distances. Its development has evolved over centuries, with early designs giving way to sophisticated engineering principles that define modern bridge construction.
The concept of the truss bridge can be traced back to the 13th century when French architect Villard de Honnecourt sketched one of the earliest known depictions. However, it was the Italian architect Andrea Palladio who, in 1570, documented four distinct truss bridge designs in his treatise "On Architecture". These early designs, though rudimentary by today's standards, laid the conceptual groundwork for future innovations in bridge engineering. The use of truss bridges gained momentum across Europe in the mid-1700s, setting the stage for more advanced developments.
By the mid-1800s, the United States emerged as a leader in truss bridge construction, driven by the need to replace structures destroyed during the Revolutionary War and to expand the transportation infrastructure of the growing nation. Early truss bridges were primarily constructed of wood, relying on empirical "rule of thumb" methods rather than quantifiable stress analysis. This approach meant that designs were based on visual appeal and perceived stability, without a deep understanding of the forces at play within the structure.
A pivotal moment in truss bridge history occurred in 1847 when Squire Whipple, an engineer from Utica, NY, published "A Work On Bridge-Building". This groundbreaking work presented a scientific analysis of the stresses within a truss bridge, establishing the foundation for modern bridge design. Whipple's method allowed engineers to calculate the forces acting on each component of the truss, enabling them to optimize designs for strength and efficiency. His contributions marked the shift from intuitive construction to a more rigorous, science-based approach.
Another significant milestone in truss bridge development was the invention of the lattice truss bridge by Ithiel Town. On January 28, 1820, Town, an architect from New Haven, CT, received a patent for his innovative design. Town's lattice truss bridge minimized building and labor costs. Town's design featured a network of crisscrossed diagonal timbers, forming a series of overlapping triangles. This configuration distributed the load evenly across the structure, eliminating the need for vertical timbers and enhancing its overall strength. According to Town, his truss could be, “built by the mile and cut by the yard”.
Town's patented design minimized building and labor costs. The ease of construction, strength, and ability to build a lattice truss bridge on piers spanning long distances quickly made the design the common choice for covered bridges and early railroad bridges until the post-Civil War era. The lattice truss bridge became so widely used across the eastern states in the 19th century that Town, who received royalties of $1 to $2 dollars per foot for use of his patented design, became a wealthy man.
Following Town's innovation, other significant truss bridge designs emerged. William Howe patented the Howe truss in 1840, which was the first to incorporate iron into its design. The Howe truss utilized vertical members under tension and diagonal members under compression, allowing for greater load-bearing capacity compared to earlier wooden designs. The Whipple Truss, patented by Squire Whipple in 1841, was the first all-iron truss bridge design.
Determining the absolute oldest truss bridge is challenging due to the evolution of design and construction methods over time. While Palladio's designs represent early conceptualizations, the first practical and widely adopted truss bridge design was Ithiel Town's lattice truss. However, pinpointing the oldest surviving example of a truss bridge requires careful consideration of factors such as original design, materials, and subsequent modifications.
Several bridges are often cited as contenders for the title of "oldest truss bridge." These include:
- Bull's Bridge: Located in Kent, Connecticut, Bull's Bridge is one of the oldest standing covered bridges in the United States and an example of Town's lattice truss design.
- West Cornwall Bridge: Situated in Cornwall and Sharon, Connecticut, the West Cornwall Bridge is another example of Town's truss design.
- The Tucker Toll Bridge: In Bellows Falls, VT, which was constructed in 1840 with a total length of 262 feet.
- Pratt Truss: Characterized by vertical members that are under compression and diagonal members that are under tension, the Pratt truss is suitable for medium-span bridges.
- Howe Truss: In contrast to the Pratt truss, the Howe truss features vertical members under tension and diagonal members under compression, making it well-suited for shorter spans and heavier loads.
- Warren Truss: The Warren truss is distinguished by its diagonal members, which alternate between tension and compression, offering an efficient design for various span lengths.
- Baily Bridge: During World War II, Sir Donald Coleman Bailey designed the Bailey Bridge to aid the Allies. Invaluable to the war efforts in Italy, and other theaters of war, the Bailey Bridge is a portable, prefabricated truss bridge, light enough to be carried in trucks and built by hand, without the need for special tools.
- Forth Bridge (Scotland): A cantilever truss bridge known for its distinctive appearance and historical significance.
- Quebec Bridge (Canada): A long-span cantilever truss bridge recognized as a National Historic Site of Canada.
- Shawneetown Bridge (United States): Commonly known as the Shawneetown Bridge first opened in 1955, carries Kentucky Route 56 and Illinois Route 13.
From their early depictions to their modern iterations, truss bridges have played a vital role in shaping transportation networks and connecting communities. Their efficiency, strength, and adaptability have made them a popular choice for bridge construction worldwide. As engineering technology advances, truss bridges continue to evolve, incorporating new materials and designs to meet the challenges of the 21st century.
While pinpointing the single oldest truss bridge remains a complex endeavor, the historical significance and engineering principles behind these structures are undeniable. From Villard de Honnecourt's early sketches to Ithiel Town's revolutionary lattice truss design and beyond, truss bridges represent a remarkable legacy of innovation and ingenuity. As we continue to build and maintain bridges around the world, understanding the history and evolution of truss bridges provides valuable insights into the art and science of civil engineering.
A truss bridge is a type of bridge that utilizes a framework of interconnected triangles to distribute loads efficiently. This design allows the bridge to support significant weight while using relatively less material.
Ithiel Town, an architect from New Haven, CT, patented the lattice truss bridge on January 28, 1820. His design revolutionized bridge construction due to its simplicity, strength, and use of readily available materials.
Truss bridges offer several advantages, including high strength-to-weight ratio, efficient use of materials, and adaptability to various span lengths. They can be constructed from wood, iron, or steel, making them a versatile option for different environments and load requirements.
The Howe truss, patented by William Howe in 1840, is a type of truss bridge that incorporates iron into its design. It features vertical members under tension and diagonal members under compression, allowing for greater load-bearing capacity compared to earlier wooden designs.
Squire Whipple was the first person to understand the stresses in truss members and he developed the first theoretical formula to calculate stresses in the articulated truss. His works established the science of bridge design.
