A truss bridge stands as a remarkable feat of engineering, demonstrating fundamental principles of physics and structural mechanics. Truss bridges are integral to infrastructure systems worldwide, facilitating the safe and efficient passage of vehicles, trains, and pedestrians across various obstacles. This article aims to explore the intricacies of truss bridges in a manner accessible to middle school students, providing a comprehensive overview of their design, function, types, and significance.
A truss bridge is a type of bridge where the load-bearing superstructure is composed of interconnected structural elements that form triangular units[9]. These interconnected elements, typically straight, experience tension, compression, or both when subjected to dynamic loads[9]. The primary reason for using triangular units is that a triangle is the only geometric shape that cannot be distorted when the lengths of its sides are fixed[11]. This inherent stability makes truss bridges exceptionally strong and efficient at distributing weight and managing stress.

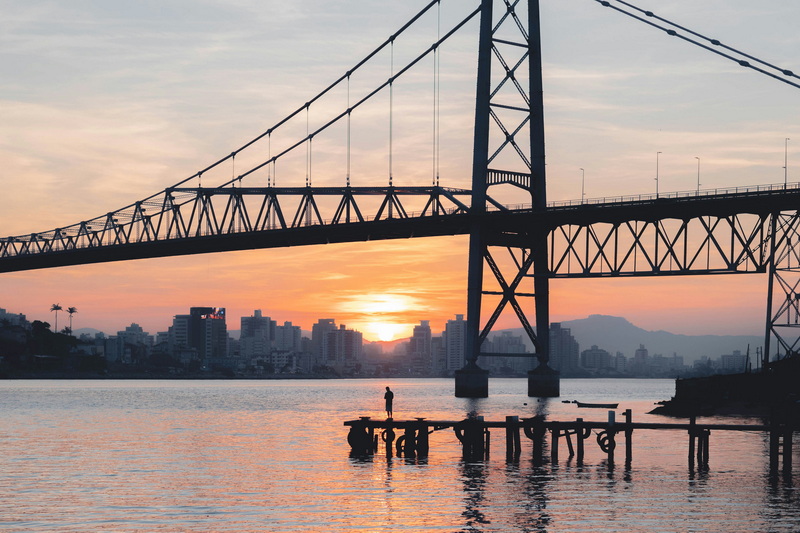

The design of a truss bridge involves arranging beams in a repeated triangular pattern. In a truss bridge, two long members, known as chords, usually form the top and bottom, connected by a web of vertical posts and diagonals[3]. The ends of the bridge are supported by abutments, and sometimes piers are used in the middle for additional support[3]. A well-designed truss bridge distributes stresses throughout its structure, allowing it to safely support its own weight, the weight of vehicles, and wind loads[3].
Understanding the components of a truss bridge is crucial for grasping how it functions. The main elements include:
Chords: These are the top and bottom horizontal members of the truss. The top chord is typically under compression, while the bottom chord is under tension[1].
Web Members: These include the diagonal and vertical members that connect the chords. They transfer compression and tension forces between the chords[1].
Panel Points: These are the joints where the truss members intersect. Also known as truss joints[7].
Abutments: These are the supports at each end of the bridge that transfer the load to the ground[1].
Piers: These are intermediate supports used in longer bridges to provide additional stability[3].
The efficiency of a truss bridge lies in its ability to manage and distribute forces effectively. When a load is applied to the bridge (e.g., a vehicle crossing), the truss structure distributes the load through its members[3]. The forces acting on these members can be either compressive or tensile.
Compression is the force that tends to squeeze or shorten a member.
Tension is the force that tends to stretch or elongate a member.
The arrangement of triangles in the truss ensures that these forces are distributed evenly, preventing any single point from bearing the entire load. The top chord experiences compression because it is being pushed inward, while the bottom chord experiences tension because it is being pulled outward[1]. The web members, both diagonal and vertical, help transfer these forces between the chords, ensuring the bridge remains stable and can bear the load[1].
There are several types of truss bridges, each designed to suit specific needs and environments. Some common types include:
Warren Truss: Characterized by diagonal members that form a series of equilateral or isosceles triangles. It is known for its strength and efficient use of materials.
Pratt Truss: Features vertical members and diagonal members that slope downward towards the center. The diagonals are designed to primarily handle tension, making it an economical choice.
Howe Truss: Similar to the Pratt truss but with diagonal members sloping in the opposite direction. The diagonals are designed to handle compression.
K-Truss: Uses a combination of vertical and diagonal members to form a "K" shape. This design reduces the length of the diagonal members, enhancing the bridge's stability.
Baltimore Truss: A variation of the Pratt truss, with additional support for heavy loads. It is often used for railway bridges.
The choice of materials for constructing truss bridges depends on factors such as cost, availability, load requirements, and environmental conditions. Common materials include:
Steel: Widely used for its high strength and durability. Steel truss bridges can support heavy loads and withstand significant stress[5].
Iron: Historically used in older truss bridges. While strong, it is more susceptible to corrosion than steel.
Wood: Used in smaller truss bridges or temporary structures. Wood is cost-effective but requires regular maintenance to prevent decay.
Concrete: Sometimes used in combination with steel to form composite truss bridges. Concrete adds mass and can enhance the bridge's stability.
Like any structural design, truss bridges have their own set of advantages and disadvantages:
Advantages:
- High Strength-to-Weight Ratio: Truss bridges can support heavy loads relative to their weight, making them efficient and cost-effective[9].
- Efficient Use of Materials: The triangular design minimizes the amount of material needed while maximizing strength[5].
- Versatility: Truss bridges can be adapted to various span lengths and load requirements.
Disadvantages:
- Complexity of Design and Construction: Designing and building truss bridges requires precise engineering and skilled labor.
- Maintenance: Regular inspection and maintenance are necessary to prevent corrosion, decay, and structural failure.
- Aesthetics: Some people find truss bridges less aesthetically pleasing compared to other bridge designs.
Truss bridges are found all over the world, each serving a vital role in transportation infrastructure. Here are a few notable examples:
Forth Bridge (Scotland): A cantilever truss railway bridge known for its impressive design and historical significance.
Quebec Bridge (Canada): A cantilever truss bridge that spans the St. Lawrence River, notable for its long span and robust construction.
Harding Memorial Bridge (USA): This bridge carries U.S. Route 40 over the Missouri River between Kansas City and Parkville, Missouri.
Truss bridges continue to play a crucial role in modern infrastructure. They are essential for connecting communities, facilitating trade, and supporting economic growth. As transportation demands increase, truss bridges are being designed and constructed to handle heavier loads and longer spans. Innovations in materials and construction techniques are also improving the durability and sustainability of truss bridges.
The future of truss bridge technology involves several exciting developments:
- Advanced Materials: The use of high-strength steel, composite materials, and fiber-reinforced polymers can enhance the strength and durability of truss bridges.
- Smart Sensors: Incorporating sensors into truss bridges allows for real-time monitoring of stress, strain, and environmental conditions, enabling proactive maintenance and preventing failures.
- Sustainable Design: Designing truss bridges with sustainable materials and construction practices reduces their environmental impact.
- 3D Printing: Emerging technologies like 3D printing could revolutionize the construction of truss bridges, making it faster, cheaper, and more efficient.
Truss bridges are a testament to human ingenuity, combining engineering principles and innovative design to create structures that support our modern world. Understanding how truss bridges work—from their basic components to the forces they manage—provides valuable insights into the broader field of engineering. As technology advances, truss bridges will continue to evolve, ensuring they remain a vital part of our infrastructure for generations to come.
A truss bridge is a bridge whose load-bearing superstructure is composed of a truss, a structure of connected elements usually forming triangular units[9]. These triangular units provide stability and strength, allowing the bridge to support heavy loads efficiently[11].
A truss bridge works by distributing the load through its interconnected members[3]. The top chord experiences compression, while the bottom chord experiences tension[1]. The web members transfer these forces, ensuring the bridge remains stable[1].
The main types of truss bridges include the Warren truss, Pratt truss, Howe truss, K-truss, and Baltimore truss. Each type has a unique configuration of members designed for specific load and span requirements.
Common materials used in truss bridges include steel, iron, wood, and concrete. Steel is widely used for its high strength and durability, while wood is used for smaller or temporary structures.
The advantages of using a truss bridge include its high strength-to-weight ratio, efficient use of materials, and versatility[9]. Truss bridges can support heavy loads, minimize material usage, and be adapted to various span lengths and load requirements.
