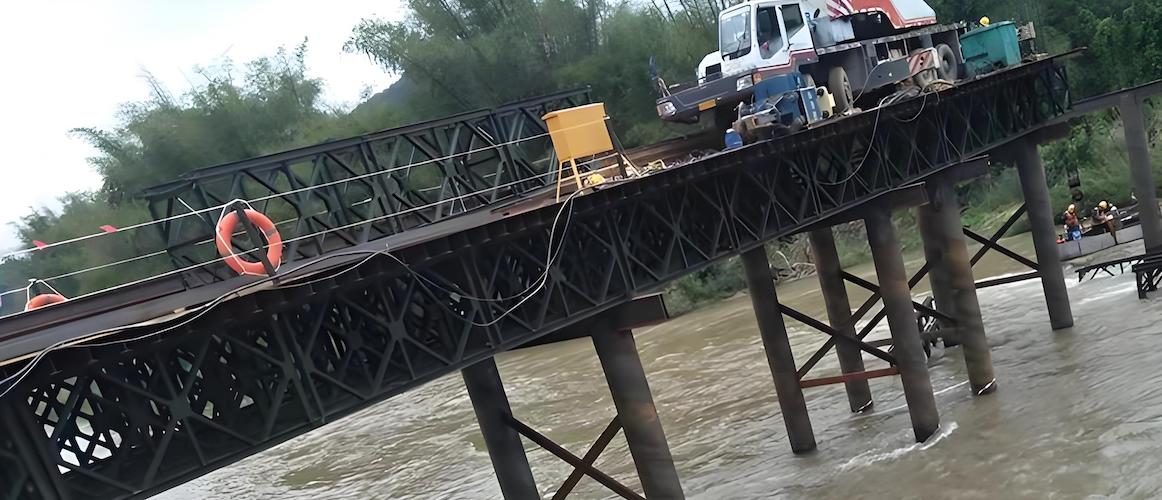

Bailey bridges are a type of portable, pre-fabricated, truss bridge that was developed during World War II. They are designed for quick assembly and disassembly, making them ideal for military and emergency applications. The construction of Bailey bridges involves various materials, each chosen for its specific properties and advantages. This article will explore the primary materials used in constructing Bailey bridge panels, detailing their characteristics, benefits, and roles in the overall structure.
The Bailey bridge was invented by Sir Donald Bailey in 1940, during a time when rapid deployment of military infrastructure was crucial. Its design was revolutionary for its time, allowing for quick assembly in combat zones where traditional construction methods would have been impractical. The bridge's modular nature means that it can be assembled using standard components, which can be transported easily. This flexibility has made Bailey bridges a popular choice not only in military applications but also in civilian infrastructure projects, such as temporary crossings after natural disasters or in remote areas lacking permanent structures. The historical significance of the Bailey bridge is underscored by its continued use in modern engineering, demonstrating its lasting impact on bridge design.

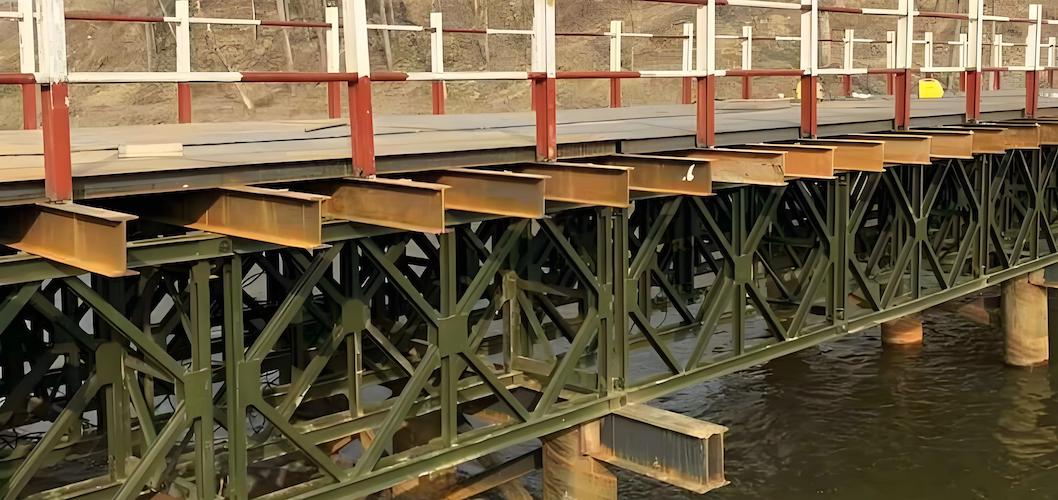

Bailey bridges are characterized by their truss design, which provides strength and stability while minimizing the amount of material needed. The panels are typically made from steel, and the bridge can be assembled in various configurations to accommodate different spans and load requirements. The design allows for easy assembly by unskilled labor, making it accessible for use in remote or disaster-stricken areas. The truss structure not only enhances the load-bearing capacity but also distributes weight evenly, reducing stress on individual components. This design feature is particularly important in ensuring the safety and reliability of the bridge under varying load conditions, including vehicular traffic and environmental factors such as wind and snow.
Steel is the primary material used in the construction of Bailey bridge panels. Its high strength-to-weight ratio makes it an ideal choice for structural applications. Steel is also ductile, allowing it to deform under stress without breaking, which is crucial for bridges that must withstand dynamic loads. The ability of steel to absorb energy during impacts or heavy loading conditions contributes to the overall safety of the bridge. Additionally, steel can be easily welded or bolted, facilitating the assembly process and allowing for repairs or modifications as needed.
The steel used in Bailey bridges is typically carbon steel, which is known for its strength and durability. In some cases, alloy steels may be used to enhance specific properties such as corrosion resistance or weldability. The choice of steel type can depend on the environmental conditions where the bridge will be deployed. For instance, in coastal areas where saltwater exposure is a concern, stainless steel or galvanized steel may be preferred to prevent rust and extend the lifespan of the bridge. Understanding the specific requirements of the bridge's location is essential for selecting the appropriate steel grade.
The use of steel in Bailey bridges offers several advantages. It allows for the construction of lightweight yet strong panels that can support heavy loads. Steel is also readily available and can be easily fabricated into the required shapes and sizes. Additionally, steel panels can be coated with protective finishes to enhance their resistance to corrosion and wear. The versatility of steel means that it can be adapted for various design specifications, making it suitable for a wide range of applications beyond just Bailey bridges. Furthermore, the recyclability of steel contributes to sustainable construction practices, as old steel can be repurposed for new projects.
Aluminum is another material that can be used in the construction of Bailey bridge panels, particularly in applications where weight is a critical factor. Aluminum is significantly lighter than steel, which can be advantageous for transport and assembly. Its low density makes it easier to handle, reducing labor costs and time during the installation process. Additionally, aluminum has a high strength-to-weight ratio, allowing it to support substantial loads despite its lighter weight.
The primary advantage of using aluminum is its lightweight nature, which allows for easier handling and quicker assembly. Aluminum also has excellent corrosion resistance, making it suitable for use in environments where exposure to moisture and chemicals is a concern. This property is particularly beneficial in coastal or industrial areas where steel might corrode more rapidly. However, aluminum is generally not as strong as steel, which limits its use in high-load applications. Despite this limitation, aluminum can be an excellent choice for temporary structures or where rapid deployment is necessary, as its lightweight nature allows for quick setup and dismantling.
In recent years, composite materials have gained popularity in various engineering applications, including bridge construction. Composites are made from two or more constituent materials with significantly different physical or chemical properties. When combined, they produce a material with characteristics different from the individual components. This innovative approach allows engineers to tailor materials to meet specific performance criteria, enhancing the overall functionality of the bridge.
The use of composite materials in Bailey bridge panels can offer several benefits. Composites can be engineered to provide high strength while remaining lightweight. They also exhibit excellent resistance to corrosion and environmental degradation, which can extend the lifespan of the bridge. Additionally, composites can be designed to have specific mechanical properties, making them suitable for various load conditions. The integration of composite materials can also lead to reduced maintenance costs over time, as they are less prone to issues such as rust and fatigue. As technology advances, the potential for new composite formulations continues to expand, offering exciting possibilities for future bridge designs.
While concrete is not typically used for the panels themselves, it plays a crucial role in the overall structure of Bailey bridges. Concrete is often used for the foundations and abutments that support the bridge. Its compressive strength makes it ideal for these applications, providing a stable base for the steel or aluminum panels. The use of concrete in these critical areas ensures that the bridge can withstand the forces exerted by traffic and environmental conditions.
Concrete offers several advantages when used in conjunction with Bailey bridges. It is readily available and can be poured into various shapes, allowing for customized foundation designs. Concrete is also durable and can withstand harsh environmental conditions, making it a reliable choice for long-term support structures. The thermal mass of concrete can help regulate temperature fluctuations, contributing to the stability of the bridge. Furthermore, concrete can be reinforced with steel rebar to enhance its tensile strength, providing additional support where needed. The combination of concrete and steel or aluminum in Bailey bridges creates a robust structure capable of enduring significant loads and stresses.
The modular design of Bailey bridges allows for quick assembly and disassembly. Each panel is prefabricated, which means that they can be manufactured off-site and transported to the installation location. This modularity reduces the time required for construction and minimizes the need for specialized equipment. The ability to assemble the bridge using standard components simplifies logistics and reduces costs, making Bailey bridges an attractive option for temporary or emergency applications.
The assembly of Bailey bridges typically involves connecting the panels using pins and bolts. This process can be completed by a small team of workers with minimal training, making it an efficient solution for emergency situations. The ability to quickly assemble the bridge is one of its most significant advantages, particularly in disaster relief scenarios. The straightforward assembly process also allows for flexibility in design, as different configurations can be achieved by varying the arrangement of panels. This adaptability is crucial in responding to the specific needs of a given site or situation.
Regular maintenance is essential to ensure the longevity and safety of Bailey bridges. Inspections should be conducted to check for signs of wear, corrosion, or structural damage. Any necessary repairs should be made promptly to maintain the integrity of the bridge. Maintenance practices may include cleaning surfaces to prevent corrosion, tightening connections, and replacing damaged components. Establishing a routine maintenance schedule can help identify potential issues before they become significant problems, ensuring that the bridge remains safe for use over its intended lifespan.
The choice of materials for Bailey bridges can have significant environmental implications. Steel and aluminum are both recyclable, which can reduce the overall environmental impact of bridge construction. Additionally, the use of composite materials can lead to lighter structures that require less energy for transport and installation. Sustainable practices in the selection and use of materials contribute to reducing the carbon footprint of construction projects, aligning with global efforts to promote environmentally friendly engineering solutions.
When constructing Bailey bridges, it is essential to consider the potential impact on local ecosystems. Careful planning and environmental assessments can help minimize disruption to wildlife and natural habitats. The temporary nature of Bailey bridges often means that they can be removed without leaving a lasting footprint, which is beneficial in sensitive areas. Implementing best practices for environmental protection during the construction and operation of Bailey bridges can help ensure that these structures serve their purpose without compromising the integrity of the surrounding environment.
Bailey bridges are a remarkable engineering solution that combines functionality with efficiency. The primary materials used in constructing Bailey bridge panels—steel, aluminum, composite materials, and concrete—each play a vital role in ensuring the bridge's strength, durability, and ease of assembly. Understanding these materials and their properties is crucial for engineers and planners involved in bridge construction, particularly in emergency and military applications. As technology advances, the potential for new materials and construction techniques will continue to evolve, further enhancing the capabilities of Bailey bridges in the future. The ongoing development of innovative materials and methods will ensure that Bailey bridges remain a relevant and effective solution for infrastructure challenges in various contexts.
The most commonly used steel grades for Bailey bridges are carbon steels, such as ASTM A36 and A572. These grades provide a good balance of strength, ductility, and weldability. In some cases, higher-strength alloy steels may be used for specific applications, especially in environments where corrosion resistance is critical.
Composite materials can be engineered to provide high strength while remaining lightweight. This allows for a more efficient design that can support significant loads without adding excessive weight. Additionally, composites are resistant to corrosion and environmental degradation, which can enhance the overall durability and lifespan of the bridge.
The typical lifespan of a Bailey bridge can range from 10 to 30 years, depending on the materials used, environmental conditions, and maintenance practices. Regular inspections and maintenance, such as checking for corrosion, tightening connections, and replacing damaged components, are essential to ensure safety and longevity.
While Bailey bridges are primarily designed for temporary or emergency use, they can be adapted for permanent applications in certain situations. With proper maintenance and reinforcement, they can serve as long-term solutions, especially in areas where rapid deployment is necessary.
Bailey bridges offer several environmental benefits, including the use of recyclable materials like steel and aluminum, which reduces waste. Their modular design allows for quick assembly and disassembly, minimizing land disturbance. Additionally, their temporary nature means they can be removed without leaving a lasting impact on the environment, making them suitable for sensitive ecological areas.
