The Bailey bridge is a remarkable engineering achievement, known for its versatility and ease of assembly. Developed during World War II, it has been widely used in military and civilian applications. This article explores the materials used in the construction of Bailey bridges, their design, advantages, and various applications.
Bailey bridges are portable, prefabricated truss bridges that can be assembled quickly and efficiently. They were designed by the British in the early 1940s to meet the urgent needs of military operations, allowing troops to cross obstacles such as rivers and ravines. The design is characterized by its modular components, which can be transported easily and assembled on-site without the need for heavy machinery. This adaptability has made Bailey bridges a preferred choice in various scenarios, from military campaigns to emergency disaster relief efforts.
The Bailey bridge was developed in response to the challenges faced during World War II, where rapid deployment of infrastructure was crucial. The design allowed for quick assembly and disassembly, making it ideal for military engineers who needed to create temporary crossings in various terrains. The bridge's introduction significantly improved the mobility of troops and supplies, enabling forces to maintain momentum in critical operations. Its success during the war led to its adoption in civilian engineering, where it has been used in countless projects worldwide.
The primary material used in the construction of Bailey bridges is steel. This choice is due to steel's high strength-to-weight ratio, which allows the bridges to support heavy loads while remaining lightweight and easy to transport. The use of steel not only enhances the structural integrity of the bridge but also contributes to its longevity, making it a reliable option for various applications.
High-Strength Low-Alloy Steel: This type of steel is commonly used for the main structural components of the bridge. It provides excellent tensile strength, which is essential for supporting the weight of vehicles and equipment. The incorporation of high-strength low-alloy steel allows for thinner sections to be used, reducing the overall weight of the bridge while maintaining its load-bearing capacity.
Galvanized Steel: Many Bailey bridges utilize galvanized steel to enhance corrosion resistance. This is particularly important for bridges exposed to harsh weather conditions, as it extends the lifespan of the structure. The galvanization process involves coating the steel with a layer of zinc, which acts as a sacrificial barrier against rust and deterioration, ensuring that the bridge remains functional and safe for extended periods.
Stainless Steel: In some cases, stainless steel may be used for specific components, especially in environments where corrosion is a significant concern. Stainless steel offers superior resistance to rust and staining, making it an ideal choice for bridges located in coastal areas or regions with high humidity.
While steel is the primary material, other materials are also used in the construction of Bailey bridges:
Wood: Traditionally, wooden decking was used for the surface of the bridge. However, modern designs often favor steel decking for improved durability and load-bearing capacity. Wooden components may still be utilized in certain applications, particularly in temporary installations where weight considerations are paramount.
Bolts and Fasteners: Various connection components, such as bolts and fasteners, are essential for assembling the bridge. These components are typically made from high-strength steel to ensure structural integrity. The design of the fasteners allows for easy assembly and disassembly, which is a key feature of the Bailey bridge's modular design.
The design of Bailey bridges is modular, consisting of several key components that can be assembled in various configurations. This modularity allows for flexibility in design and application, enabling engineers to customize the bridge to meet specific requirements.

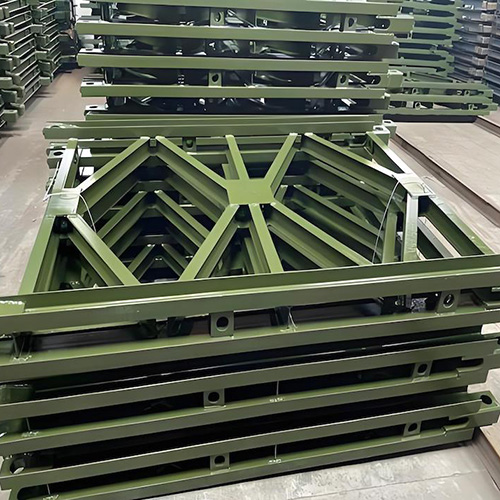

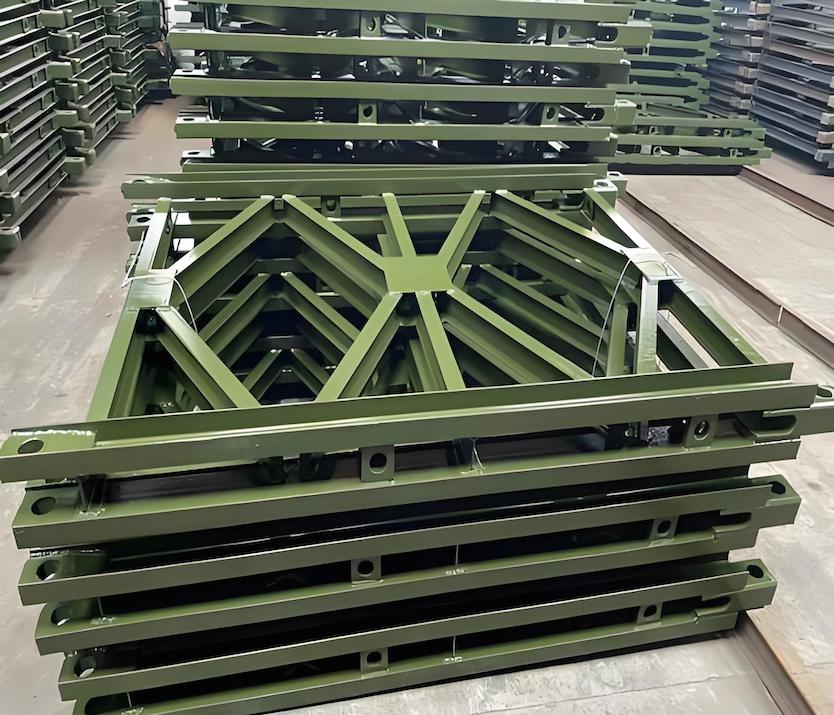

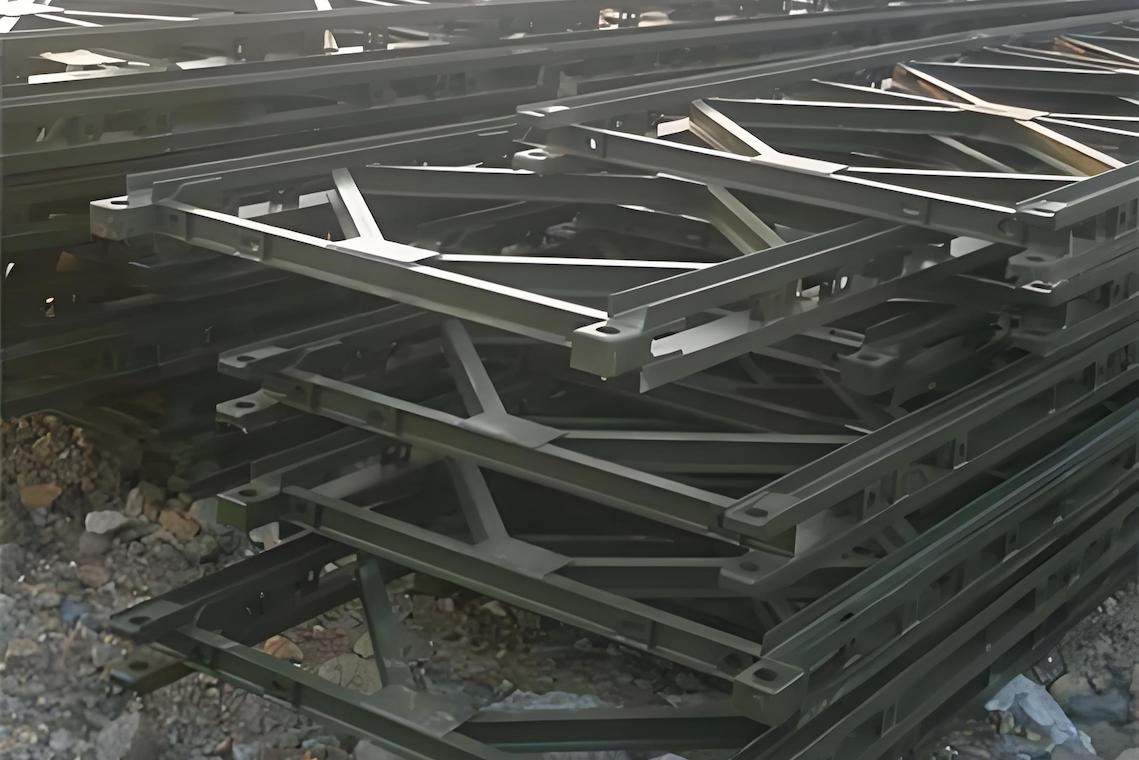

Truss Panels: The main structural elements of the bridge, truss panels are prefabricated and can be connected to form the bridge's framework. They provide the necessary strength and stability. The truss design distributes loads evenly across the structure, minimizing stress on individual components and enhancing overall durability.
Transoms: These are horizontal beams that connect the truss panels and support the decking. They play a crucial role in distributing the load across the bridge. The transoms are designed to withstand significant forces, ensuring that the bridge remains stable under varying load conditions.
Decking: The surface of the bridge, which can be made from steel or wood, provides a platform for vehicles and pedestrians to cross. The choice of decking material can influence the bridge's weight and load capacity, with steel decking offering greater strength and longevity compared to wood.
End Posts: These vertical components provide support at the ends of the bridge and help to stabilize the structure. End posts are critical for maintaining the alignment of the bridge and preventing lateral movement, which is essential for safety during use.
One of the significant advantages of Bailey bridges is their ease of assembly. The components are designed to fit together without the need for specialized tools or heavy equipment. This allows military engineers to deploy the bridges quickly in the field, often within a matter of hours. The assembly process typically involves connecting the truss panels and transoms using bolts, which can be done by a small team of personnel. This rapid deployment capability is invaluable in emergency situations where time is of the essence.
Bailey bridges offer several advantages that make them a popular choice for both military and civilian applications.
The modular design allows for quick assembly and disassembly, making Bailey bridges ideal for emergency situations where immediate access is required. This rapid deployment capability is particularly beneficial in disaster relief scenarios, where traditional construction methods may be too slow to meet urgent needs.
Due to their prefabricated nature, Bailey bridges can be produced at a lower cost compared to traditional bridge construction methods. This makes them an attractive option for temporary or emergency crossings. The reduced labor and material costs associated with Bailey bridges allow organizations to allocate resources more effectively, especially in budget-constrained situations.
Bailey bridges can be adapted to various lengths and load capacities, making them suitable for a wide range of applications, from military operations to civilian infrastructure projects. Their flexibility allows engineers to design bridges that meet specific requirements, whether for heavy military vehicles or light pedestrian traffic.
Constructed primarily from steel, Bailey bridges are designed to withstand heavy loads and harsh environmental conditions. The use of galvanized steel further enhances their resistance to corrosion, ensuring a long lifespan. This durability makes Bailey bridges a reliable choice for both temporary and permanent installations, reducing the need for frequent repairs or replacements.
Bailey bridges have been used in various contexts, demonstrating their versatility and effectiveness.
Originally designed for military applications, Bailey bridges have been extensively used by armed forces around the world. They enable rapid movement of troops and equipment across obstacles, facilitating logistics and operational efficiency. The ability to quickly establish crossings in challenging terrains has proven invaluable in combat situations, allowing forces to maintain strategic advantages.
In civilian contexts, Bailey bridges are often employed in disaster relief efforts, providing temporary crossings in areas affected by floods or other natural disasters. They are also used in construction projects where permanent bridges are not yet feasible. The adaptability of Bailey bridges allows them to be deployed in various environments, from urban settings to remote locations.
Some Bailey bridges have been adapted for recreational purposes, such as pedestrian crossings in parks or nature reserves. Their lightweight design and ease of assembly make them suitable for temporary installations in outdoor settings. These bridges can enhance accessibility in recreational areas, allowing visitors to enjoy natural landscapes without disrupting the environment.
The Bailey bridge is a testament to innovative engineering, combining strength, versatility, and ease of use. Made primarily from high-strength steel, these bridges have proven invaluable in both military and civilian applications. Their modular design allows for rapid deployment, making them an essential tool in emergency situations and infrastructure development. As we continue to face challenges in transportation and logistics, the Bailey bridge remains a relevant and effective solution, showcasing the enduring impact of thoughtful engineering on society.
Bailey bridges are primarily used for military applications, providing rapid crossings for troops and equipment. They are also utilized in civilian contexts for disaster relief, temporary roadways, and pedestrian crossings in parks and recreational areas.
A Bailey bridge can typically be assembled in a matter of hours, depending on the size and complexity of the bridge. The modular design allows for quick assembly without the need for heavy machinery or specialized tools.
Galvanized steel enhances the corrosion resistance of Bailey bridges, extending their lifespan and reducing maintenance needs. The zinc coating protects the steel from rust and deterioration, making it suitable for harsh environmental conditions.
Yes, Bailey bridges are designed to support heavy loads, including military vehicles and construction equipment. The use of high-strength steel and a well-engineered truss design allows them to handle significant weight while maintaining stability.
While Bailey bridges are often used as temporary structures, they can also be adapted for permanent installations. Their durability and strength make them a viable option for long-term use in various applications, especially in areas where traditional bridge construction may be impractical.
