Steel box girders are a crucial component in modern bridge engineering, offering a combination of strength, durability, and versatility. Their unique structural properties make them suitable for a wide range of applications in various types of bridge structures. This article explores the applications of steel box girders, their advantages, and the methods used for their erection in different bridge designs.
Steel box girders are hollow structural elements made from steel plates that are welded together to form a box-like shape. This design provides high resistance to bending and torsion, making them ideal for supporting heavy loads. The cross-section of a steel box girder typically resembles a rectangular or square tube, which enhances its structural integrity. The closed shape not only contributes to the girder's strength but also minimizes the risk of buckling under compressive loads. Additionally, the internal cavity of the box girder can be utilized for various purposes, such as housing utilities or providing access for maintenance.
The use of steel box girders in bridge construction offers several advantages. Their lightweight nature reduces the overall load on bridge foundations, allowing for longer spans without the need for additional supports. This characteristic is particularly beneficial in urban areas where space is limited, as it enables the construction of bridges that can cross wide valleys or rivers without obstructing the landscape. The closed shape of the girders also provides excellent resistance to environmental factors such as wind and seismic forces, making them suitable for regions prone to natural disasters. Additionally, steel box girders can be prefabricated, which speeds up construction time and reduces on-site labor costs. This prefabrication process allows for better quality control, as components are manufactured in a controlled environment, ensuring consistency and precision.
One of the primary applications of steel box girders is in the construction of highway and railway bridges. Their ability to span long distances without intermediate supports makes them ideal for crossing wide valleys, rivers, or urban areas. In highway bridges, steel box girders can accommodate heavy vehicular loads, while in railway bridges, they provide a stable platform for trains, ensuring safety and reliability. The design flexibility of steel box girders allows engineers to create aesthetically pleasing structures that blend seamlessly with their surroundings. Furthermore, the use of steel box girders in these applications can lead to reduced maintenance costs over time, as their durability minimizes the need for frequent repairs.
Steel box girders are also used in the construction of pedestrian and cycle bridges. These structures often require a lightweight design to minimize the impact on the surrounding environment. The aesthetic appeal of steel box girders allows for innovative designs that enhance the visual aspect of urban landscapes. Furthermore, their durability ensures that these bridges can withstand the wear and tear of daily use. The incorporation of safety features, such as railings and non-slip surfaces, can be easily integrated into the design of steel box girder bridges, making them safe and accessible for all users. Additionally, the use of steel box girders in pedestrian and cycle bridges promotes sustainable transportation options, encouraging more people to walk or cycle instead of using motor vehicles.
In addition to bridges, steel box girders find applications in various industrial and commercial structures. They are commonly used in the construction of warehouses, factories, and large retail spaces. The versatility of steel box girders allows for flexible design options, accommodating different architectural styles and functional requirements. Their strength and stability make them suitable for supporting heavy machinery and equipment, which is essential in industrial settings. Moreover, the open space created by the use of steel box girders allows for efficient layout designs, maximizing usable floor space. This adaptability is particularly valuable in commercial buildings, where changing business needs may require reconfiguration of interior spaces.
Steel box girders are also employed in the construction of special structures such as cable-stayed and suspension bridges. In these designs, the girders serve as the main load-bearing elements, distributing forces effectively across the structure. Their ability to handle dynamic loads and vibrations is particularly beneficial in these applications, ensuring the longevity and safety of the bridge. The use of steel box girders in these complex structures allows for innovative engineering solutions, enabling the creation of iconic bridges that become landmarks in their respective regions. Additionally, the lightweight nature of steel box girders reduces the overall weight of the bridge, which can lead to cost savings in foundation design and construction.
One of the key advantages of steel box girders is the ability to prefabricate them in a controlled environment. This process involves manufacturing the girders off-site, allowing for quality control and reducing construction time. Once fabricated, the girders are transported to the construction site using specialized vehicles. The transportation method depends on the size and weight of the girders, with larger sections often requiring the use of cranes or flatbed trucks. The prefabrication process not only enhances the quality of the girders but also minimizes the environmental impact of construction activities on-site. By reducing the amount of work needed at the construction site, the overall disruption to the surrounding area is minimized.

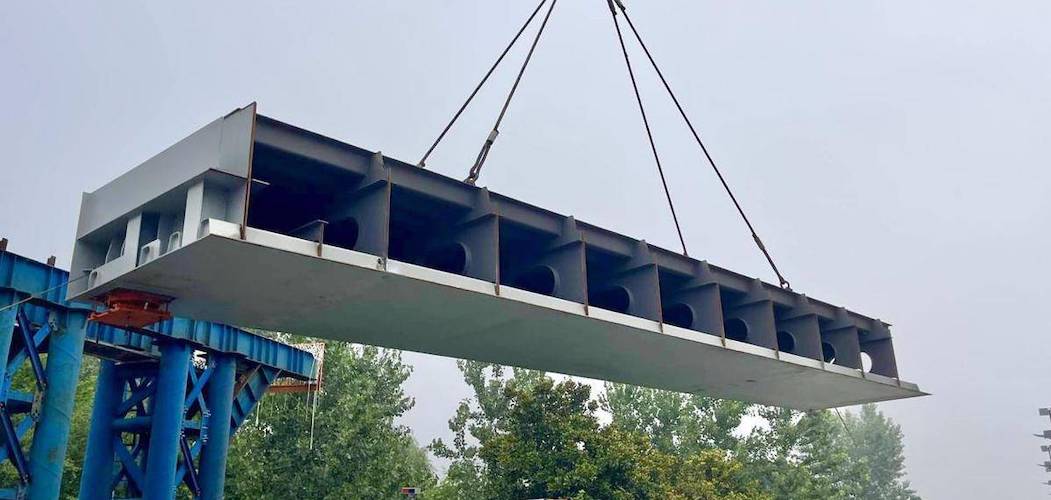

The erection of steel box girders can be accomplished using various techniques, depending on the specific requirements of the project. One common method is the use of cranes to lift the girders into place. This technique is particularly effective for larger spans, where precision is crucial. The girders are carefully positioned and secured to ensure stability during the erection process. Advanced lifting techniques, such as the use of synchronized cranes, can be employed to ensure that the girders are placed accurately, reducing the risk of misalignment. Additionally, the use of temporary supports during the erection process can help maintain the structural integrity of the girders until the entire bridge is completed.
In some cases, temporary supports may be required during the erection of steel box girders. These supports help maintain the alignment and stability of the girders until the entire structure is completed. The use of temporary supports is especially important in complex bridge designs, where multiple girders must be installed simultaneously. Engineers must carefully plan the placement of these supports to ensure that they do not interfere with the final design of the bridge. Once the girders are secured and the structure is complete, these temporary supports can be removed, allowing for a clean and unobstructed design.
Once the steel box girders are in position, they are typically connected to other structural elements using welding or bolting techniques. Welding provides a strong, continuous connection, while bolting allows for easier adjustments and disassembly if necessary. The choice between these methods depends on the design specifications and the intended use of the bridge. In some cases, a combination of both techniques may be used to optimize the structural performance of the bridge. Proper inspection and quality control during the welding and bolting processes are essential to ensure the long-term durability and safety of the structure.
The erection of steel box girders can be influenced by various site conditions, including terrain, weather, and accessibility. Uneven ground or adverse weather conditions can complicate the erection process, requiring additional planning and resources. Engineers must assess these factors during the design phase to ensure a smooth construction process. For instance, if the site is located in a remote area, logistical challenges may arise in transporting the girders and equipment. Additionally, environmental considerations, such as the presence of wildlife or protected habitats, may necessitate special measures to minimize the impact of construction activities.
Safety is a paramount concern during the erection of steel box girders. Workers must be trained in proper lifting techniques and safety protocols to prevent accidents. The use of personal protective equipment and adherence to safety regulations are essential to ensure the well-being of all personnel involved in the construction process. Regular safety audits and training sessions can help reinforce safe practices on-site. Furthermore, the implementation of safety measures, such as fall protection systems and clear signage, can significantly reduce the risk of accidents during the erection process.
Effective coordination and communication among the construction team are critical for the successful erection of steel box girders. Clear communication helps ensure that all team members are aware of their roles and responsibilities, reducing the risk of errors. Regular meetings and updates can facilitate collaboration and problem-solving throughout the construction process. The use of project management software can enhance communication by providing a centralized platform for sharing information and tracking progress. Additionally, establishing a clear chain of command can help streamline decision-making and ensure that any issues are addressed promptly.
The future of steel box girders may see advancements in materials and manufacturing techniques. The development of high-strength steel alloys can enhance the performance of girders, allowing for even longer spans and reduced material usage. These advancements can lead to lighter and more efficient designs, contributing to overall cost savings in construction. Additionally, the use of corrosion-resistant coatings can extend the lifespan of steel box girders, reducing maintenance needs and enhancing durability. Research into alternative materials, such as composite materials, may also provide new opportunities for innovation in bridge design.
As the construction industry increasingly focuses on sustainability, the use of steel box girders may evolve to incorporate eco-friendly practices. This includes the use of recycled materials in the production of steel and the implementation of energy-efficient manufacturing processes. Sustainable design principles can also be integrated into bridge projects, ensuring that steel box girders contribute to environmentally responsible construction. The adoption of life cycle assessment tools can help engineers evaluate the environmental impact of their designs, leading to more sustainable choices in materials and construction methods.
The integration of smart technologies into bridge design is another trend that may impact the use of steel box girders. Sensors and monitoring systems can be embedded within the girders to provide real-time data on structural health and performance. This information can help engineers identify potential issues early, allowing for timely maintenance and ensuring the longevity of the bridge. The use of data analytics and artificial intelligence can further enhance the management of bridge infrastructure, enabling proactive maintenance strategies that extend the lifespan of steel box girders and improve overall safety.
Steel box girders play a vital role in the construction of various bridge structures, offering numerous advantages in terms of strength, durability, and versatility. Their applications range from highway and railway bridges to pedestrian structures and industrial buildings. The methods used for their erection are equally diverse, incorporating prefabrication, advanced lifting techniques, and careful planning to ensure safety and efficiency.
As technology continues to advance, the future of steel box girders looks promising, with innovations in materials, sustainability, and smart technologies paving the way for more efficient and environmentally friendly bridge construction. The ongoing development of steel box girders will undoubtedly contribute to the evolution of modern infrastructure, enhancing connectivity and safety for communities worldwide. The continued exploration of new applications and technologies will ensure that steel box girders remain a cornerstone of bridge engineering for years to come.
Steel box girders can vary significantly in size depending on the specific application and design requirements. Typically, they range from 1 to 3 meters in height and 1 to 2 meters in width. The weight can vary from a few tons for smaller girders to over 100 tons for larger spans. The dimensions are often determined by the load requirements and the span length of the bridge.
Different welding techniques, such as MIG, TIG, and submerged arc welding, can impact the structural integrity of steel box girders. MIG welding is commonly used for its speed and efficiency, while TIG welding provides a cleaner finish and is ideal for thinner materials. Submerged arc welding is often used for thicker sections due to its deep penetration and high deposition rates. The choice of technique affects the weld quality, strength, and overall durability of the girder.
Long-term maintenance for steel box girder bridges typically includes regular inspections, cleaning, and repainting to prevent corrosion. The frequency of inspections can vary based on environmental conditions and traffic loads, but they are generally recommended every 2 to 5 years. Maintenance costs can vary widely, but budgeting for routine inspections and occasional repairs is essential to ensure the longevity of the structure.
Several factors influence the design of steel box girders, including the expected load conditions, span length, environmental factors (such as wind and seismic activity), and aesthetic considerations. Additionally, local building codes and regulations play a significant role in determining the design parameters. Engineers must also consider the construction methods and materials available to ensure the design is both practical and cost-effective.
Steel box girders offer several advantages over traditional I-beams and T-beams, including greater resistance to torsion and bending due to their closed shape. This allows for longer spans and reduced deflection under load. However, I-beams and T-beams may be more cost-effective for shorter spans or less demanding applications. The choice between these types of girders depends on the specific requirements of the bridge design, including load capacity, span length, and budget constraints.
