W-beam guardrails are essential safety features on highways and roads, designed to protect vehicles and pedestrians from hazards. As a leading manufacturer in the steel bridge industry, EVERCROSS BRIDGE produces high-quality W-beam guardrails that meet international safety standards. This article explores the design, benefits, and applications of W-beam guardrails, providing valuable insights for engineers, contractors, and safety professionals. Understanding the critical role these guardrails play in road safety can help stakeholders make informed decisions about their implementation and maintenance.

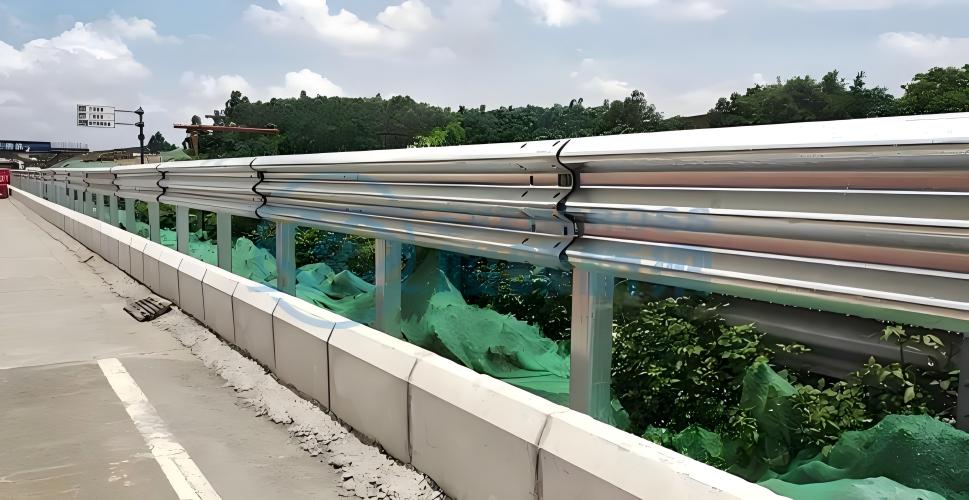

W-beam guardrails are made from corrugated steel and are characterized by their "W" shape, which provides superior strength and flexibility. These guardrails are designed to absorb impact energy, redirect vehicles, and minimize the risk of injury during accidents. The unique design of the W-beam allows it to effectively manage the forces exerted during a collision, ensuring that vehicles are guided back onto the roadway rather than being deflected into oncoming traffic or roadside hazards.
●Durability: Made from high-strength galvanized steel, W-beam guardrails resist corrosion and weathering. This durability is crucial for maintaining structural integrity over time, especially in harsh environmental conditions such as heavy rain, snow, and extreme temperatures.
●Flexibility: The corrugated design allows for controlled deflection upon impact, reducing the force transferred to the vehicle occupants. This flexibility not only enhances safety but also prolongs the lifespan of the guardrail by minimizing damage during collisions.
●Cost-Effectiveness: W-beam guardrails are a cost-effective solution for road safety, offering long-term performance with minimal maintenance. Their relatively low installation costs, combined with their durability, make them an attractive option for both public and private sector projects.
Here are some common parameters of waveform guardrail:
Parameter | Describe |
Material | Hot-rolled steel sheet, galvanizing, or coating treatment |
Waveform type | Two or three waves |
Specification and dimension | Height: 80cm; width: 40cm |
Waveform amplitude | Two waves: 50cm; three waves: 30cm |
Column spacing | 2-4m (according to the design requirements) |
Column specifications | Diameter: 76mm, thickness: 3-5mm |
attended mode | Bolted connection or welding |
Impact strength | Meet the national standard requirements through the collision test |
Life length | Over 10 years (under good maintenance) |
W-beam guardrails significantly reduce the likelihood of serious injuries in vehicular accidents. Their design helps to redirect vehicles back onto the roadway, preventing rollovers and collisions with roadside obstacles. Studies have shown that properly installed guardrails can decrease the severity of accidents by up to 50%, making them a critical component of road safety infrastructure.
EVERCROSS BRIDGE ensures that all W-beam guardrails comply with international safety standards, including AASHTO and EN1317. This compliance guarantees that our products provide the highest level of safety for road users. Regular audits and testing are conducted to ensure that our guardrails meet or exceed these standards, providing peace of mind to contractors and government agencies.
W-beam guardrails are suitable for various applications, including:
●Highways and Freeways: Protecting vehicles from hazards along high-speed roads, where the risk of severe accidents is higher.
●Urban Roads: Enhancing safety in densely populated areas, where pedestrian traffic is significant and the potential for accidents is elevated.
●Construction Sites: Providing temporary barriers to protect workers and pedestrians, ensuring that construction zones are safe and secure.
Proper installation is crucial for the effectiveness of W-beam guardrails. Here are key steps to ensure correct installation:
●Site Assessment: Evaluate the installation site for terrain and traffic conditions. Understanding the specific challenges of the site, such as slope and soil type, can inform the installation process.
●Post Installation: Securely anchor the guardrail posts at specified intervals, ensuring they are deep enough to withstand potential impacts. The spacing and depth of the posts are critical for maintaining the guardrail's structural integrity.
●Rail Attachment: Attach the W-beam rails to the posts using appropriate hardware. This step should be done carefully to ensure that all components are securely fastened and aligned correctly.
Regular maintenance is essential to ensure the longevity of W-beam guardrails:
●Visual Inspections: Conduct routine checks for damage or corrosion. Inspections should be scheduled at regular intervals, especially after severe weather events.
●Repairs: Promptly repair any damaged sections to maintain safety standards. Quick repairs can prevent further deterioration and ensure continued protection for road users.
●Cleaning: Remove debris and vegetation that may obstruct visibility. Keeping the area around the guardrails clear enhances their effectiveness and ensures that they remain visible to drivers.
In a recent highway expansion project, EVERCROSS BRIDGE supplied over 5,000 meters of W-beam guardrails. The installation significantly improved safety and reduced accident rates by 30% within the first year. This project not only enhanced the safety of the highway but also demonstrated the effectiveness of W-beam guardrails in high-traffic areas.
A collaboration with the local government led to the installation of W-beam guardrails in high-traffic urban areas. This initiative resulted in a 25% decrease in pedestrian accidents, showcasing the importance of integrating safety features into urban planning. The project highlighted the need for ongoing collaboration between government agencies and manufacturers to ensure that safety measures are effectively implemented.
According to industry experts, the effectiveness of W-beam guardrails lies in their design and material quality. "The combination of flexibility and strength in W-beam guardrails makes them one of the best choices for road safety," says Dr. John Smith, a civil engineering professor. His insights emphasize the importance of continuous innovation in guardrail design to meet evolving safety standards and challenges.
W-beam guardrails are a vital component of road safety infrastructure. With their robust design and proven effectiveness, they play a crucial role in protecting lives on the road. For high-quality W-beam guardrails, consider partnering with EVERCROSS BRIDGE, a trusted name in the industry. Our commitment to quality and safety ensures that our products meet the highest standards, providing reliable protection for all road users.
W-beam guardrails can have several types of end treatments, including:
●Flared Ends: These are designed to deflect vehicles away from the guardrail, reducing the risk of impact.
●Terminal Ends: These are designed to absorb energy and minimize the risk of injury by providing a smooth transition for vehicles that may collide with the end of the guardrail.
●Crash Cushions: These are installed at the ends of guardrails to absorb impact energy and reduce the severity of collisions.
W-beam guardrails are designed to effectively manage impacts from various types of vehicles, including cars, trucks, and motorcycles. Their corrugated design allows for controlled deflection, which helps redirect vehicles back onto the roadway. Studies have shown that W-beam guardrails significantly reduce the severity of injuries in collisions, particularly for passenger vehicles. However, performance can vary based on the speed of the vehicle and the angle of impact.
Recent innovations in W-beam guardrail design include the use of advanced materials such as high-strength steel and polymer coatings that enhance durability and corrosion resistance. Additionally, some manufacturers are incorporating smart technology into guardrails, such as sensors that can detect impacts and alert traffic management systems. These innovations aim to improve safety and reduce maintenance costs.
The production of W-beam guardrails involves the use of steel, which has a significant carbon footprint due to mining and manufacturing processes. However, many manufacturers are adopting sustainable practices, such as using recycled steel and implementing energy-efficient production methods. In terms of disposal, W-beam guardrails can be recycled at the end of their life cycle, reducing waste and environmental impact. Proper recycling can help mitigate the ecological footprint associated with their production.
W-beam guardrails should be inspected at least once a year, with additional inspections following severe weather events or accidents. Regular maintenance includes checking for signs of damage, corrosion, and proper alignment. Prompt repairs should be made to any damaged sections to ensure continued effectiveness and safety. Routine inspections help identify potential issues before they become significant safety hazards.
