The Type 321 Bailey Plate is a pivotal component in modern bridge construction, renowned for its robust design and versatility. Manufactured by EVERCROSS BRIDGE, a leading steel bridge producer in China, this bridge type is engineered to support various loads and spans, making it ideal for both temporary and permanent applications. In this article, we will explore the structure, construction techniques, and unique advantages of the Type 321 Bailey Plate, while also addressing common queries and providing insights into its practical applications.

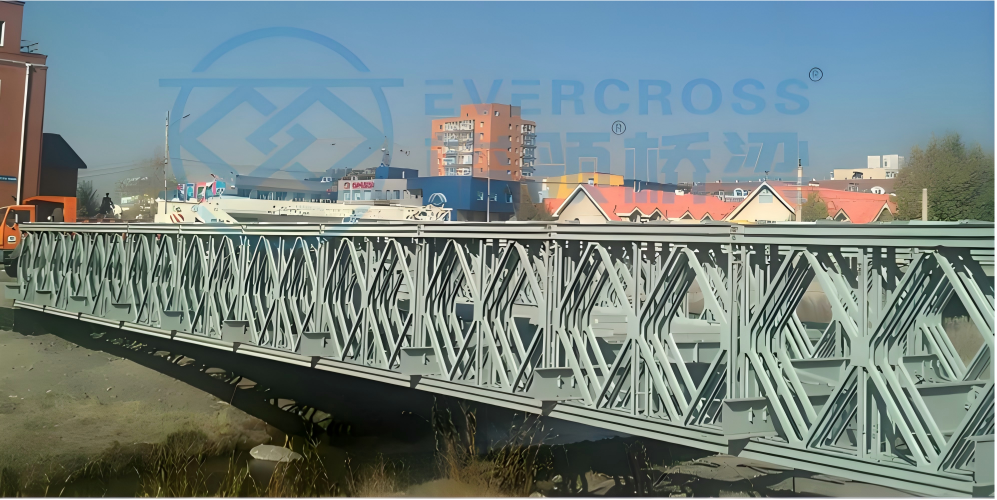

The Type 321 Bailey Plate is a modular steel bridge system characterized by its welded upper and lower strings, vertical and diagonal rods. This design allows for efficient load distribution and structural integrity, making it suitable for various applications, including military, emergency, and civilian infrastructure projects. The modular nature of the Bailey Plate means that it can be easily transported and assembled on-site, which is particularly beneficial in remote or challenging environments where traditional construction methods may be impractical.
●Modular Design: The bridge can be easily assembled and disassembled, facilitating rapid deployment in emergency situations. This modularity not only speeds up construction but also allows for flexibility in design, enabling engineers to customize the bridge to meet specific site requirements.
●Load Capacity: Designed to accommodate multiple load types, including car-10, car-15, car-20, and trailer-80, ensuring versatility in usage. This capacity makes the Type 321 suitable for a wide range of vehicles, from light cars to heavy trucks, which is essential for maintaining transportation links in various scenarios.
●Span Variability: Capable of spanning from 9 meters to 63 meters, the Type 321 can be configured for different site requirements. This adaptability allows for its use in diverse environments, from urban settings to rural areas, where the span length may vary significantly.
The Type 321 Bailey Plate consists of several key components that contribute to its strength and functionality:
●Upper and Lower Chords: These are the main horizontal members that provide the primary structural support. They are typically made from high-strength steel, ensuring durability and load-bearing capacity.
●Vertical and Diagonal Rods: These components provide additional support and stability, helping to distribute loads evenly across the bridge structure.
●Welded Connections: The components are connected using welded joints, which enhance the overall strength and integrity of the bridge.
●Modular Panels: Each panel measures approximately 3 meters in length and 1.5 meters in width, allowing for easy handling and transportation. The prefabricated nature of these panels ensures consistent quality and reduces on-site assembly time.
●Site Preparation: Ensure the site is cleared and leveled to support the bridge structure. This initial step is crucial as it lays the foundation for a stable and secure installation, preventing future structural issues.
●Foundation Installation: Construct a solid foundation using concrete or steel piers to anchor the bridge securely. The choice of foundation materials and design will depend on the soil conditions and expected load, ensuring that the bridge remains stable under various environmental conditions.
●Assembly of Bailey Panels: The panels are assembled on-site, utilizing simple tools and manpower, which significantly reduces construction time. This process can often be completed in a matter of days, allowing for quick restoration of access in emergency situations.
●Connection of Components: The upper and lower strings are connected using pin holes, ensuring a secure fit and stability. This connection method not only enhances the structural integrity of the bridge but also simplifies the assembly process, making it accessible for teams with varying levels of expertise.
●Final Inspection: Conduct a thorough inspection to ensure all components are securely fastened and meet safety standards. This step is vital for ensuring the longevity and safety of the bridge, as it allows for the identification and rectification of any potential issues before the bridge is put into service.
The installation of Bailey bridges can be accomplished using various methods, depending on the site conditions and available resources:
●Cantilever Launching Method: This method involves assembling the bridge on one side of the gap and then pushing it across using rollers. It is particularly useful in areas where heavy lifting equipment is not available.
●Hoisting Method: In this method, cranes are used to lift the assembled bridge into place. This technique is often employed in urban settings where space is limited.
●Progressive Cantilevering: This technique allows for the bridge to be built outwards from one side, adding sections as it extends over the gap. It is effective for longer spans and can be adapted to various site conditions.
●Rapid Deployment: The modular nature allows for quick assembly, making it ideal for emergency response scenarios. In disaster situations, the ability to deploy a bridge quickly can save lives and facilitate the delivery of essential services.
●Cost-Effective: Reduced labor and material costs due to the prefabricated design. The efficiency of the construction process translates into lower overall project costs, making it an attractive option for both public and private sector projects.
●Durability: Constructed from high-strength steel (16Mn), the Type 321 Bailey Plate is designed to withstand harsh environmental conditions. Its resistance to corrosion and wear ensures that it remains functional and safe over time, even in challenging climates.
●Flexibility: The modular design allows for easy modifications and expansions, accommodating changing transportation needs or urban development. This adaptability is particularly valuable in rapidly growing areas where infrastructure must evolve to keep pace with population growth and economic development.
●Military Operations: The Type 321 has been successfully deployed in various military operations, providing essential infrastructure in remote areas. Its ability to be rapidly assembled and disassembled makes it a strategic asset for military logistics and operations.
●Disaster Relief: In the aftermath of natural disasters, these bridges have been instrumental in restoring connectivity and facilitating aid delivery. Case studies from recent disasters highlight how quickly these bridges can be deployed to reconnect communities and support recovery efforts.
●Urban Development: Used in urban settings to enhance transportation networks, the Type 321 bridges have improved access to essential services. Their modular design allows for integration into existing infrastructure, minimizing disruption during installation.
According to industry experts, the adaptability of the Type 321 Bailey Plate makes it a preferred choice for both temporary and permanent installations. Its ability to support heavy loads while being easily transportable is unmatched in the current market. Experts also emphasize the importance of ongoing training for installation teams to ensure that best practices are followed, maximizing the safety and efficiency of the assembly process.
The Type 321 Bailey Plate stands out as a versatile and efficient solution for modern bridge construction. With its robust design, rapid deployment capabilities, and cost-effectiveness, it is an invaluable asset for infrastructure development. As the demand for flexible and durable bridge solutions continues to grow, the Type 321 Bailey Plate is poised to play a critical role in meeting the challenges of contemporary engineering and construction.
For more information on how EVERCROSS BRIDGE can assist with your bridge construction needs, please contact us.
The Type 321 Bailey Plate is primarily constructed from high-strength steel, specifically 16Mn, which provides excellent durability and load-bearing capacity. Each panel typically weighs around 270 kg and is designed to withstand various environmental conditions, making it suitable for both temporary and permanent installations.
EVERCROSS BRIDGE implements a rigorous quality control process throughout the manufacturing stages. This includes sourcing high-quality raw materials, conducting regular inspections during production, and performing final quality checks on finished products. Compliance with international standards and certifications further ensures that each Bailey Plate meets safety and performance requirements.
Maintenance for a Type 321 Bailey Bridge generally includes regular inspections to check for signs of wear, corrosion, or structural damage. It is recommended to clean the bridge periodically to remove debris and contaminants. Additionally, any damaged components should be repaired or replaced promptly to ensure the bridge remains safe and functional.
The Type 321 Bailey Bridge is known for its ease of assembly and disassembly, making it highly versatile compared to other modular bridge systems. While some modular bridges may require specialized equipment for installation, the Type 321 can be constructed using basic tools and manpower. Additionally, its robust design allows it to support a wide range of loads, making it suitable for various applications.
When installing a Type 321 Bailey Bridge, it is essential to consider the environmental impact of the construction process. This includes assessing the site for potential ecological disturbances, ensuring minimal disruption to local wildlife, and managing runoff during construction. Additionally, the use of sustainable materials and practices can help reduce the overall environmental footprint of the project.
