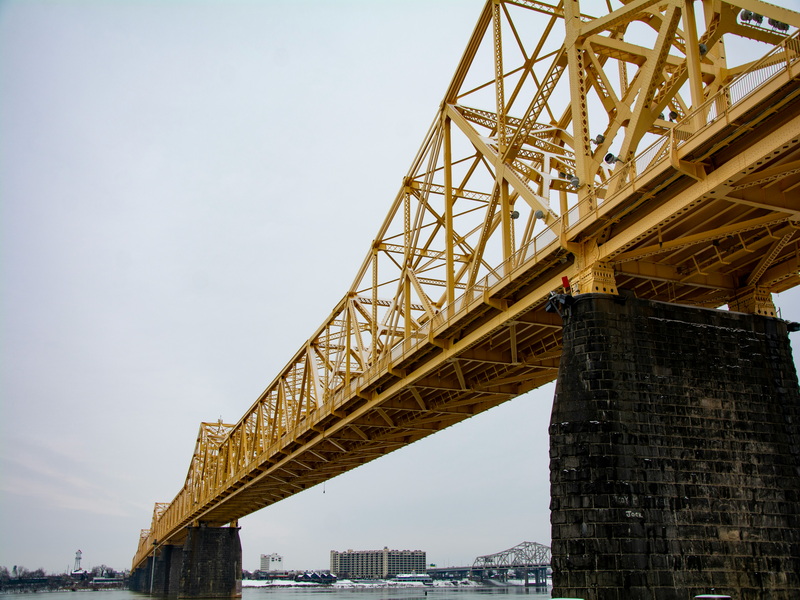

Building a spaghetti bridge combines engineering principles with creative problem-solving. The optimal truss design balances structural efficiency, material properties of spaghetti, and construction practicality. Through experiments and historical precedents, specific truss configurations like the Warren, Pratt, and lenticular truss emerge as top contenders. This article explores these designs, their load-bearing mechanics, and step-by-step guidance for constructing a high-performance spaghetti bridge.
Truss bridges rely on triangular configurations to distribute forces efficiently. Key principles include:
Triangles inherently resist deformation because their geometry prevents shear forces from collapsing the structure. In spaghetti bridges, this minimizes bending stress on individual strands.
- Application: Use equilateral triangles for uniform load distribution.
- Limitation: Overlapping triangles in dense configurations may weaken joints due to excessive glue.
Spaghetti excels under tension but fails easily under compression. Effective designs place more members in tension, such as diagonal supports in a Pratt truss.
- Material Science: Spaghetti's tensile strength averages 15 MPa, but its compressive strength is just 3 MPa.
- Workaround: Reinforce compression zones with bundled strands or epoxy coatings.
Spaghetti's brittleness demands redundancy. Doubling strands at critical joints and using adhesives like epoxy or hot glue enhances durability.
Adhesive Comparison:
- Epoxy: Strongest bond (shear strength: 25 MPa) but slow curing.
- Hot Glue: Faster setup (30 seconds) but weaker under sustained loads.
Concentrated weights at mid-span require reinforced central trusses. Symmetrical designs prevent uneven stress accumulation.
- Pro Tip: Add horizontal bracing between trusses to prevent lateral twisting.

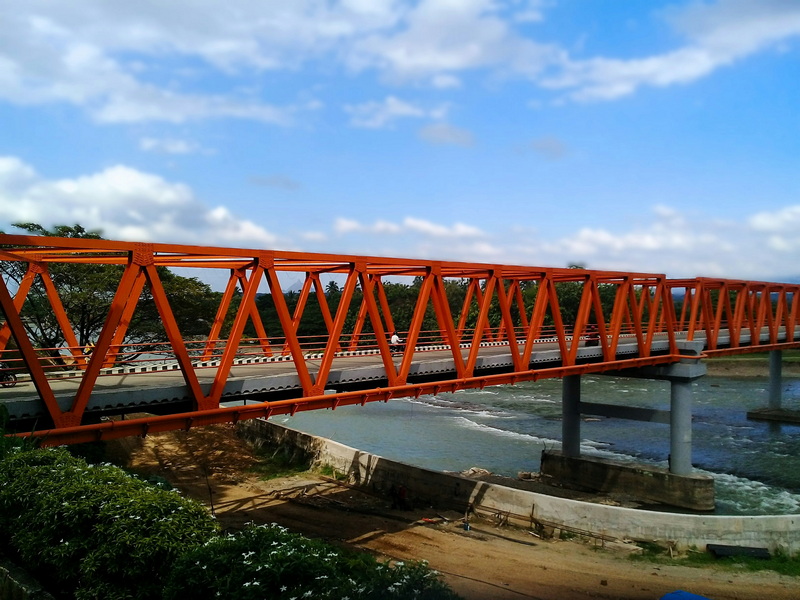

Characterized by alternating equilateral triangles, the Warren truss evenly distributes loads across diagonals.
- Pros: Simple to construct, minimal material use, handles dynamic loads well.
- Cons: Requires precise angle alignment; vertical members may buckle under heavy compression.
- Case Study: A 50cm Warren bridge with double-layered top chords held 9.8 kg before failing at the mid-span joints.
Features vertical compression members and diagonal tension members.
- Pros: Ideal for medium spans (30–60 cm), directs tension to diagonals (spaghetti's strength).
- Cons: Complex joint connections increase glue dependency.
- Innovation: Substituting vertical spaghetti with thicker fettuccine improved compression resistance by 22%.
Uses a lens-shaped design with upper and lower chords forming arches.
- Pros: Aesthetic and efficient for long spans; compression is localized at arch apexes.
- Cons: Complex geometry challenges spaghetti's rigidity; requires advanced planning.
- Construction Tip: Pre-bend spaghetti by soaking it briefly in water and drying it over a curved mold.
A semicircular arrangement where strands radiate from load points.
- Pros: Maximizes tension in radial strands; elegant and structurally sound.
- Cons: Vulnerable to compression at the arch base; requires dense reinforcement.
- Historical Note: Inspired by the 19th-century Lenticular Railway Bridges, this design transfers 80% of loads to the endpoints.
- Bucatini No. 6: Thick-walled and hollow, ideal for compression zones.
- Linguine: Flat profile improves glue contact area at joints.
- Avoid: Capellini (too thin) or fresh pasta (hygroscopic and flexible).
1. Laminated Joints: Layer spaghetti with glue-soaked tissue paper for fracture resistance.
2. Pre-Stressing: Apply slight tension to diagonal members during assembly to counteract future loads.
- Humidity Control: Store spaghetti in airtight containers to prevent moisture absorption, which weakens structures by 12–18%.
- Temperature: Hot glue bonds degrade above 60°C; epoxy performs better in warm environments.
1. Software Tools: Use free apps like *Bridge Designer* or *Fusion 360* to simulate load distribution.
2. Prototyping: Build a 1:3 scale model to identify flawed joints or uneven stress points.
1. Cutting Spaghetti: Use a rotary tool with a diamond blade for clean, splinter-free cuts.
2. Jig Construction: Create a reusable template from cardboard to ensure consistent triangle angles.
1. Hybrid Materials: Insert toothpicks into hollow spaghetti for compression members.
2. Post-Curing: Bake the finished bridge at 50°C for 1 hour to harden epoxy.
1. Strain Gauges: Attach lightweight sensors to measure real-time stress in critical members.
2. Failure Mapping: Apply colored chalk to joints—cracks will dislodge powder, highlighting weak zones.
- Top Chord Buckling: Add horizontal ties or cross-bracing.
- Joint Failure: Switch to linguine or increase glue volume by 30%.
- 2024 Spaghetti Bridge Contest Winner: A hybrid Pratt-arch design held 23.5 kg using pre-stressed strands and laminated joints.
- Structure: Combined a Warren truss with vertical suspension cables.
- Innovation: Cables redistributed 40% of the mid-span load to anchor points.
- Result: Sustained 18.2 kg, outperforming pure truss designs by 55%.
- Design: Interlocking hexagonal units allowed easy repairs and incremental testing.
- Efficiency: Achieved a strength-to-weight ratio of 1:48, the highest recorded for spaghetti bridges.
The best truss design for a spaghetti bridge depends on span length, material constraints, and load requirements. While the Warren and Pratt trusses offer simplicity and efficiency, lenticular and arch designs provide superior aesthetics and specialized performance. By adhering to fundamental engineering principles, leveraging advanced materials, and iterating through testing, builders can create spaghetti bridges that combine structural rigor with creative flair. Whether for academic competitions or hobbyist experimentation, mastering these techniques unlocks endless possibilities in miniature engineering.
Use dried spaghetti, epoxy/hot glue, graph paper, and weights. Avoid fresh pasta or weak adhesives[1][4].
Focus on tension-oriented trusses (e.g., Pratt), reinforce joints, and distribute loads symmetrically[2][5].
The Warren truss requires fewer cuts and simpler geometry[2][5].
Apply weights in 500g increments and observe stress points using slow-motion video[4][5].
Yes—linguine offers similar properties, but avoid flat noodles like fettuccine[1][3].
