Cable foot bridges, also known as cable-stayed or suspension footbridges, are elegant and efficient structures that span rivers, roads, railways, and other obstacles, providing safe passage for pedestrians and cyclists. Their design requires a sophisticated balance of engineering science, aesthetics, safety, and environmental considerations. This article explores the fundamental principles guiding the design of cable foot bridges, delving into structural concepts, material selection, load management, environmental integration, and user experience. It also addresses frequently asked questions to provide a comprehensive understanding of this fascinating subject.
Cable foot bridges are a hallmark of modern civil engineering, combining technical innovation with visual appeal. Their lightweight appearance belies the complexity of forces at play and the rigorous design process required to ensure stability, durability, and user comfort. Whether crossing a tranquil stream or a bustling urban highway, the design of a cable foot bridge must account for structural integrity, functional requirements, and the context of its environment.

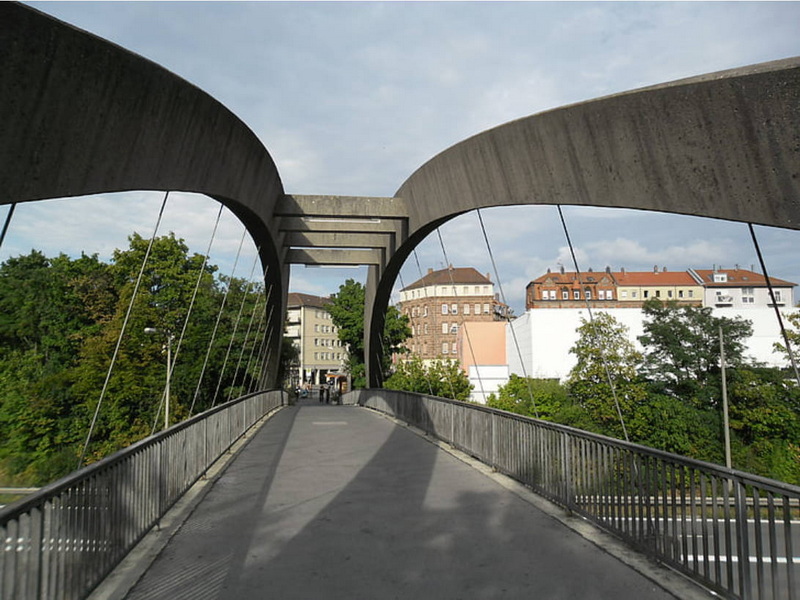

Cable foot bridges typically fall into two main categories: cable-stayed and suspension bridges. Both rely on cables to support the bridge deck, but their load paths and structural behaviors differ.
- Cable-Stayed Bridges: In these, the deck is directly supported by diagonal cables connected to towers or pylons. The cables transfer loads to the towers, which then transfer them to the foundations. The system is self-balancing, with compression in the deck and towers and tension in the cables.
- Suspension Bridges: Here, the main cables are anchored at both ends and drape over towers. Vertical suspenders connect the main cables to the deck. The deck hangs from the cables, which carry the loads to the anchorages and towers.
Both systems are highly efficient for long spans and allow for slender, aesthetically pleasing structures.
- Towers/Pylons: These vertical structures support the cables and transfer loads to the foundations.
- Deck: The walkway or path for pedestrians and cyclists, which must be stiff enough to limit deflections and vibrations.
- Cables: High-strength steel or composite cables that carry the primary loads.
- Anchorages: Secure the cables to the ground or foundation, resisting the enormous tension forces.
- Foundations: Support the entire structure, designed to suit ground conditions and resist all imposed loads.
A fundamental principle in cable foot bridge design is the accurate assessment and distribution of loads. These include:
- Dead Loads: The weight of the bridge itself, including the deck, cables, towers, and other permanent elements.
- Live Loads: The weight of pedestrians, cyclists, and occasional maintenance vehicles.
- Environmental Loads: Wind, snow, ice, seismic activity, and thermal effects.
Engineers use advanced computer models to simulate various load scenarios, ensuring the bridge can withstand both typical and extreme conditions. Safety factors are incorporated to account for uncertainties and unexpected stresses.
In cable-stayed bridges, the vertical loads from the deck are transferred via the cables to the towers, which experience both vertical and horizontal forces. The system must be in equilibrium, with the forces in the cables, deck, and towers carefully balanced. The design must also account for the dynamic effects of moving pedestrians and environmental forces, which can induce vibrations and oscillations.
Material selection is critical for the performance, longevity, and maintenance of cable foot bridges. Common materials include:
- Cables: High-strength steel wires, sometimes with corrosion-resistant coatings or made from advanced composites.
- Decks: Reinforced or prestressed concrete, steel, or composite materials, chosen for strength, stiffness, and durability.
- Towers: Steel, concrete, or composite structures, designed for both strength and visual impact.
- Foundations: Reinforced concrete, sometimes with deep piles for poor ground conditions.
Materials must be chosen for their resistance to corrosion, fatigue, and environmental degradation. Protective coatings, regular inspections, and accessible design for maintenance are essential for ensuring a long service life.
The geometry of a cable foot bridge affects both its structural efficiency and visual appeal. Key considerations include:
- Span Length: The distance between supports, influencing the choice of bridge type and cable arrangement.
- Cable Sag: In suspension bridges, the sag of the main cables is typically 8-12% of the span length, balancing structural efficiency and aesthetics.
- Cable Patterns: Cable-stayed bridges may use fan, harp, or star arrangements, each with distinct structural and visual characteristics.
- Deck Camber: A slight upward curve in the deck can improve aesthetics and drainage, but must not compromise accessibility.
A successful cable foot bridge harmonizes with its surroundings, offering unobstructed views and enhancing the landscape. The choice of tower shapes, deck profiles, and finishes all contribute to the bridge's aesthetic presence.
Cable foot bridges must be accessible to all, including people with disabilities, cyclists, and those with strollers or luggage. Design features include:
- Adequate Width: Sufficient space for two-way pedestrian and bicycle traffic, with wider paths for higher usage.
- Ramps and Stairs: Gentle slopes and compliant handrails to ensure accessibility.
- Parapets and Railings: Safety barriers to prevent falls, designed to appropriate heights and standards.
- Lighting: Adequate illumination for nighttime use and security.
Pedestrian-induced vibrations can be significant in slender foot bridges. The design must limit movements to ensure comfort and prevent resonance. This may involve increasing deck stiffness, adding dampers, or tuning the natural frequency of the structure.
The bridge's location determines many design parameters, including span length, foundation type, and environmental loads. Site analysis considers:
- Topography: The height and alignment of the bridge relative to the obstacle.
- Hydrology: For river crossings, flood levels and scour potential.
- Geology: Soil conditions affecting foundation design.
- Wind and Seismic Activity: Local climate and seismic zone influence structural requirements.
Modern bridge design emphasizes sustainability, minimizing the environmental footprint during construction and throughout the bridge's life. This includes:
- Material Efficiency: Using recyclable or low-impact materials.
- Construction Methods: Minimizing disturbance to sensitive environments.
- Longevity: Designing for a long service life with minimal maintenance.
The design must facilitate efficient and safe construction. Modular elements, prefabrication, and clear assembly sequences reduce construction time and risks.
Provisions for regular inspection and maintenance are essential. This includes access points, walkways, and the ability to replace cables or other critical components without major disruption.
While aesthetics and innovation are important, the design must remain cost-effective. This involves:
- Optimizing Material Use: Efficient structural forms minimize material costs.
- Lifecycle Cost Analysis: Considering not just initial construction costs but also maintenance, repair, and eventual replacement.
The bridge must be robust, able to withstand accidental loads or damage without catastrophic failure. Redundancy in critical elements, such as cables and anchorages, enhances safety.
Cable foot bridge design must comply with relevant national and international codes, covering:
- Structural Safety: Load factors, material strengths, and design methodologies.
- Accessibility: Requirements for ramps, handrails, and surface treatments.
- Environmental Protection: Measures to prevent pollution and habitat disruption.
Designers must engage with stakeholders, including local authorities, communities, and environmental agencies, to ensure the bridge meets all functional and regulatory requirements.
Designing a cable foot bridge is a multidisciplinary challenge that blends structural engineering, architecture, environmental science, and user-focused design. The key principles—load management, material selection, geometric optimization, accessibility, environmental integration, constructability, cost-effectiveness, and regulatory compliance—must all be carefully balanced to create a bridge that is safe, durable, and inspiring. As technology advances and urban environments evolve, cable foot bridges will continue to play a vital role in connecting communities and enhancing public spaces.
Cable-stayed bridges support the deck with diagonal cables connected directly to towers, transferring loads through compression in the deck and towers and tension in the cables. Suspension bridges use main cables draped over towers with vertical suspenders supporting the deck, transferring loads to anchorages at each end. Cable-stayed bridges are generally more efficient for medium spans, while suspension bridges are preferred for the longest spans.
Engineers use advanced modeling and analysis to simulate the effects of wind, earthquakes, and other extreme events. The design incorporates safety factors, robust materials, and sometimes damping systems to control vibrations. Foundations and structural elements are sized to resist all anticipated forces, ensuring the bridge remains safe and functional under adverse conditions.
High-strength steel is the most common material for cables due to its excellent tensile properties, durability, and cost-effectiveness. In some cases, advanced composites such as carbon fiber-reinforced polymers are used for their lighter weight and corrosion resistance, though they are more expensive.
Pedestrian comfort is ensured by limiting vibrations and deflections in the bridge deck. This is achieved through careful structural design, increasing deck stiffness, and sometimes adding tuned mass dampers. The bridge is also designed for smooth transitions, adequate width, and safety features such as handrails and lighting.
The choice of location and alignment depends on the obstacle to be crossed, site topography, user desire lines, environmental constraints, and integration with existing infrastructure. The design aims to provide the most direct, accessible, and safe route while minimizing environmental impact and construction complexity.
