The Bailey Bridge, a modular steel bridge design developed during World War II, has evolved into a vital infrastructure solution worldwide. With its unique combination of strength, adaptability, and cost-effectiveness, the Bailey Bridge continues to play a crucial role in modern engineering, particularly in regions requiring rapid deployment and robust performance. This article explores the design principles, historical significance, and contemporary applications of Bailey Bridges, highlighting their impact on infrastructure development globally.

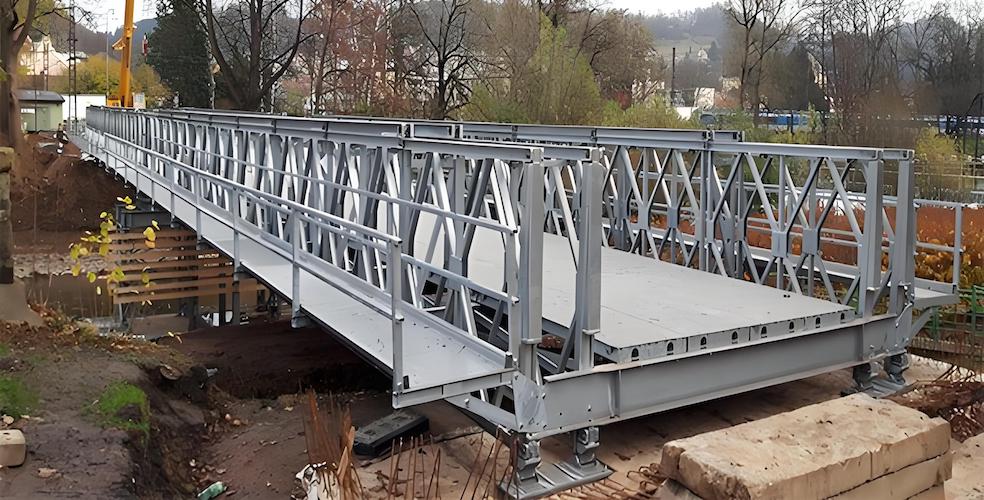

Bailey Bridges are characterized by their modular truss design, which allows for quick assembly and disassembly. Key features include:
●Modular Components: Each bridge consists of prefabricated panels that can be easily transported and assembled on-site. These panels are designed to interlock seamlessly, allowing for flexibility in length and configuration based on specific site requirements.
●High Load Capacity: Modern iterations can support loads exceeding 40 tons, making them suitable for various applications, from military to civilian use. The load-bearing capacity is achieved through the use of high-strength steel and a well-engineered truss system that distributes weight evenly across the structure.
●Durability: Constructed from high-strength steel, these bridges are designed to withstand harsh environmental conditions, including extreme weather and heavy traffic. The use of corrosion-resistant coatings further enhances their longevity, ensuring they remain functional and safe over extended periods.
The structural integrity of a Bailey Bridge is achieved through its truss panels, which are typically 3.05 meters long and 1.52 meters high. These panels are connected using high-strength bolts and pins, allowing for rapid assembly without the need for welding. The use of corrosion-resistant materials further enhances their longevity, making them ideal for both temporary and permanent installations.

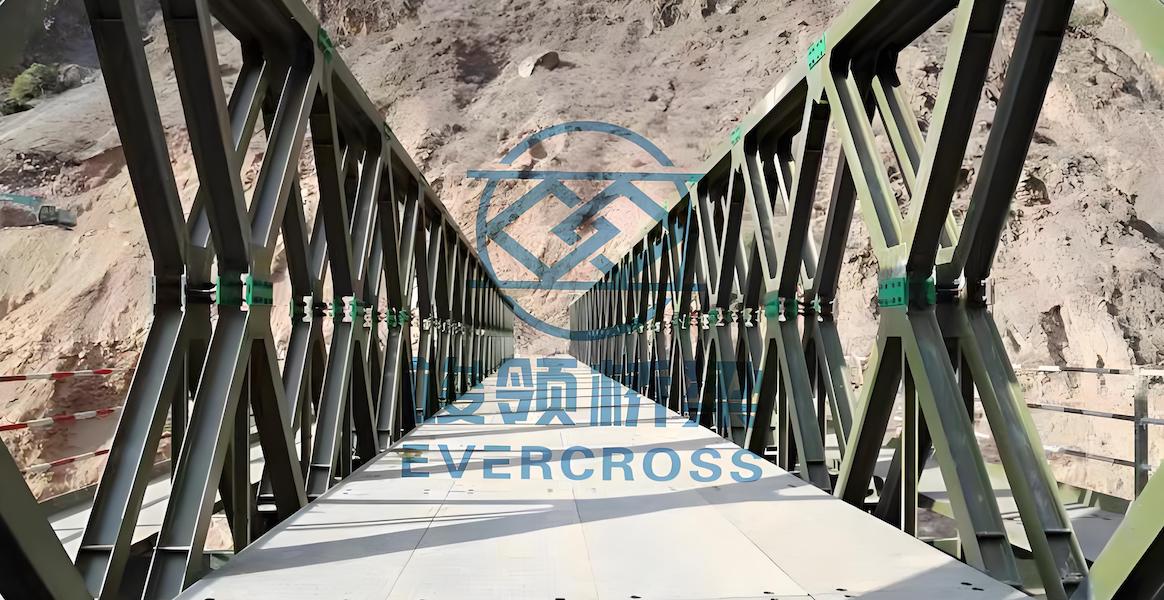

●Truss Panels: Each panel consists of top and bottom chords connected by diagonal and vertical members, forming a rigid triangular truss configuration. This design not only provides strength but also allows for efficient load distribution, which is crucial for maintaining stability under various load conditions.
●Load-Bearing Capacity: The load-bearing capacity of Bailey Bridges can vary based on the specific design and materials used. For instance, the HD200 model can support loads up to 40 tons, while specialized designs can accommodate even heavier loads, making them suitable for military vehicles and heavy construction equipment.
Originally designed for military purposes, the Bailey Bridge has transitioned into a critical component of civilian infrastructure. Its adaptability has made it a preferred choice in disaster relief efforts, rural development projects, and emergency situations. For instance, in regions like Papua New Guinea and Sierra Leone, Bailey Bridges have significantly improved access to remote areas, facilitating economic growth and social development.
●Post-War Reconstruction: After World War II, surplus Bailey Bridges were repurposed for civilian use, helping to rebuild war-torn regions. Their ease of assembly and disassembly made them ideal for quickly restoring vital transportation links.
●Global Reach: Today, Bailey Bridges are used in various countries, adapting to local needs and conditions. Their modular nature allows for customization, making them suitable for diverse environments, from urban settings to remote rural areas.
●Papua New Guinea: Bailey Bridges have been instrumental in connecting isolated communities, enhancing access to healthcare and education. Their rapid deployment capabilities have proven essential in disaster recovery efforts, allowing for quick restoration of transportation routes after natural disasters.
●Sierra Leone: The introduction of AASHTO-compliant Bailey Bridges has transformed local infrastructure, providing safe and reliable crossings that support economic activities, including mining and agriculture. These bridges have not only improved transportation but also contributed to local economies by facilitating trade and access to markets.
Recent innovations in Bailey Bridge design include the use of high-strength low-alloy (HSLA) steel and weathering steel, which offer improved durability and load-bearing capacity. These advancements enable longer spans and greater flexibility in design, catering to the specific needs of various projects. For example, the latest versions of the Bailey bridge, such as the Mabey Compact 200, offer higher load capacity, faster assembly, and greater durability. Some innovations include the use of advanced materials such as galvanized steel, which is more corrosion-resistant, thus extending the bridge's lifespan in harsh environments.
●Enhanced Materials: The shift towards using advanced materials has allowed for the construction of lighter yet stronger bridges. This not only reduces transportation costs but also simplifies the installation process, making it feasible to deploy bridges in challenging locations.
●Modular Design Innovations: New designs incorporate features such as integrated lifting points and pre-assembled components, further streamlining the assembly process and reducing the time required for installation.
Bailey Bridges are increasingly recognized for their environmental benefits. Their modular design minimizes the ecological footprint during construction, and their ability to withstand flooding and other natural disasters makes them a sustainable choice for infrastructure development.
●Sustainability: The use of recyclable materials in the construction of Bailey Bridges contributes to their sustainability. Additionally, their design allows for easy relocation and reuse, reducing waste and promoting efficient resource use.
●Flood Resilience: The truss design allows floodwater and debris to pass through, reducing hydrodynamic forces on the structure. This feature is particularly beneficial in regions prone to flooding, ensuring the bridge remains operational during adverse weather conditions.
The Bailey Bridge remains a testament to innovative engineering, providing essential infrastructure solutions across the globe. Its design, adaptability, and cost-effectiveness make it a preferred choice for both temporary and permanent applications. As we continue to face challenges in infrastructure development, the Bailey Bridge stands out as a reliable and sustainable option for enhancing connectivity and supporting economic growth.
A standard Bailey Bridge panel typically measures 3.05 meters (10 feet) in length and 1.52 meters (5 feet) in height. The weight of each panel can vary depending on the materials used, but a standard panel made from high-strength steel generally weighs around 200 to 300 kilograms (440 to 660 pounds). This modular design allows for easy transport and assembly on-site.
The load capacity of a Bailey Bridge can significantly vary based on its configuration. A single truss configuration typically supports loads up to 20 tons, while a double truss configuration can handle approximately 40 tons. In contrast, a triple truss configuration can support loads exceeding 60 tons. The choice of configuration depends on the specific requirements of the project, including the expected traffic and environmental conditions.
Maintaining and inspecting Bailey Bridges in remote locations presents several challenges, including:
●Accessibility: Remote sites may lack proper roads, making it difficult to transport maintenance crews and equipment.
●Weather Conditions: Harsh weather can hinder inspection and repair activities, especially in areas prone to heavy rain or snow.
●Resource Availability: Limited access to spare parts and specialized tools can complicate maintenance efforts.
●Training: Local personnel may require training to perform inspections and repairs effectively, which can be a logistical challenge.
Bailey Bridges offer several environmental benefits, including:
●Sustainability: Their modular design allows for easy relocation and reuse, minimizing waste and promoting efficient resource use.
●Minimal Ecological Footprint: The quick assembly process reduces the time and disruption to the surrounding environment during construction.
●Flood Resilience: The truss design allows floodwaters and debris to pass through, reducing the risk of damage during extreme weather events.
The assembly time for a Bailey Bridge can vary based on the size and complexity of the bridge, as well as the experience of the assembly crew. However, a standard Bailey Bridge can typically be assembled in a matter of hours to a few days. The modular design allows for rapid deployment, making it an ideal solution for emergency situations or temporary crossings.
