When it comes to large-scale infrastructure, suspension bridges and cable-stayed bridges are two of the most prominent designs used worldwide. Both bridge types serve the critical function of spanning vast distances, yet they differ significantly in their structural design, load distribution, and aesthetic appeal. This article will explore the key differences between these two bridge types, providing insights into their construction, advantages, and applications. Understanding these differences is essential for engineers, architects, and urban planners as they design and implement infrastructure that meets the needs of modern society.

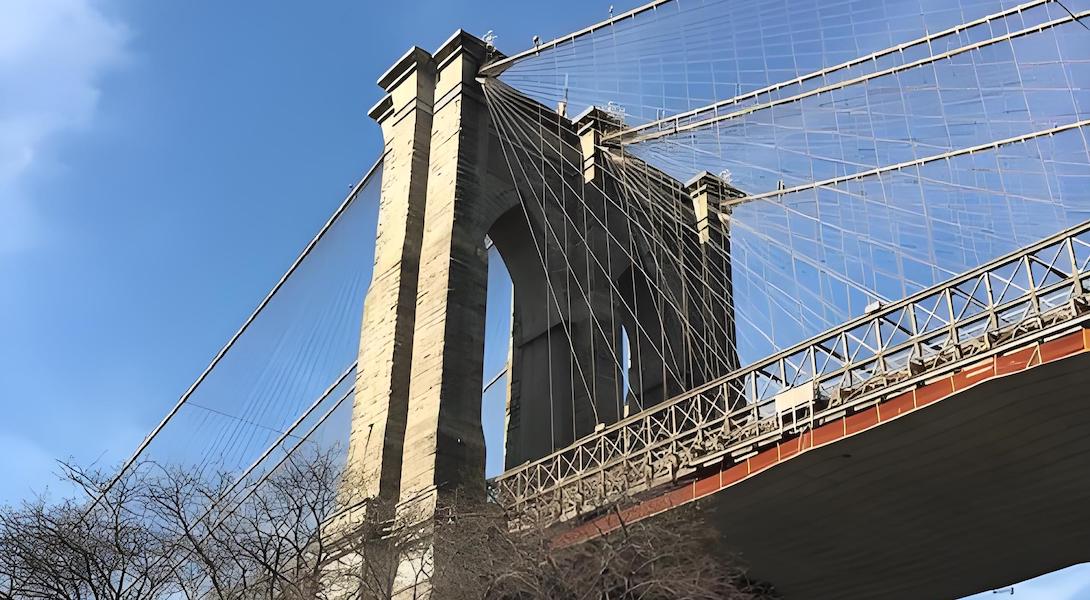

A suspension bridge is characterized by its main cables that are suspended between towers and hold up the bridge deck through vertical suspender cables. This design allows for long spans and is particularly effective in areas where deep water or challenging terrain makes traditional supports impractical. The flexibility of the suspension system also allows these bridges to absorb and dissipate energy from dynamic loads, such as wind and seismic activity, making them suitable for various environments.
● Long Span Capability: Suspension bridges can span distances exceeding 2,000 meters, making them ideal for crossing large bodies of water, such as rivers and straits. This capability is crucial for connecting regions that would otherwise be isolated by natural barriers.
● Flexibility: The design allows for some movement, which can be beneficial in areas prone to earthquakes or high winds. This flexibility helps to prevent structural failure during extreme weather events, ensuring the safety of users.
● Aesthetic Appeal: Often considered visually striking, suspension bridges can become iconic landmarks (e.g., the Golden Gate Bridge). Their elegant lines and soaring towers contribute to the skyline of cities, making them not just functional structures but also symbols of engineering prowess.
● Foundation and Towers: The construction begins with deep foundations for the towers, which must withstand significant forces. Engineers must carefully assess soil conditions and hydrology to ensure stability, often employing advanced techniques such as deep pile foundations or caissons.
● Cable Installation: Main cables are strung between the towers, followed by the installation of vertical suspender cables. This process requires precision and coordination, as the tension in the cables must be carefully calibrated to ensure the bridge's structural integrity.
● Decking: The bridge deck is then constructed, often in segments, and attached to the suspender cables. This modular approach allows for efficient construction and minimizes disruptions to the surrounding environment.

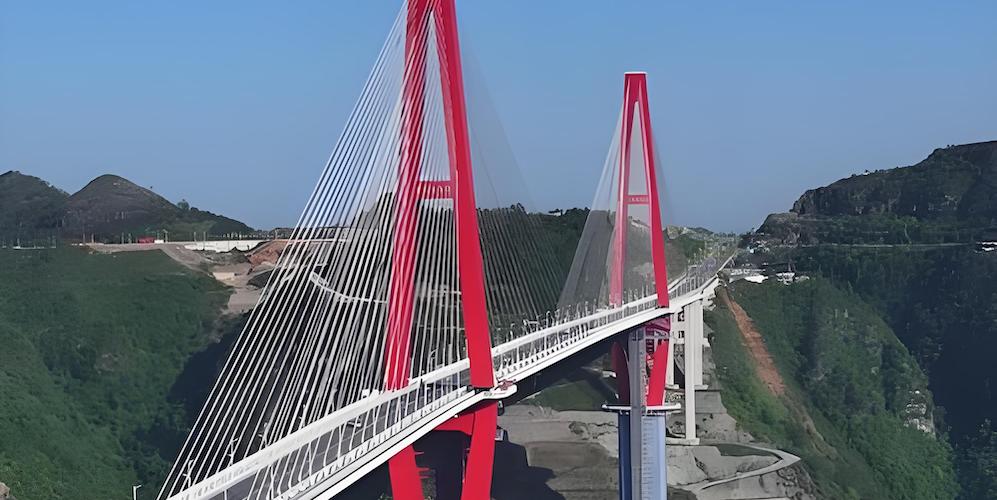

A cable-stayed bridge features one or more towers (or pylons) from which cables extend directly to support the bridge deck. This design is more rigid than that of a suspension bridge and is often used for medium to long spans. The direct connection between the cables and the deck allows for efficient load transfer, making cable-stayed bridges a popular choice for many modern infrastructure projects.
● Direct Load Transfer: The cables transfer loads directly to the towers, providing a more efficient load distribution. This design minimizes bending moments in the deck, allowing for a lighter structure that can be built with less material.
● Less Material Required: Generally, cable-stayed bridges require less material than suspension bridges, making them more cost-effective for certain applications. This efficiency can lead to lower construction costs and reduced environmental impact.
● Variety of Designs: Cable-stayed bridges can be designed in various configurations, including fan, harp, and radial styles. This versatility allows engineers to tailor the design to specific site conditions and aesthetic preferences, enhancing the bridge's integration into its surroundings.
● Foundation and Towers: Similar to suspension bridges, the construction starts with robust foundations for the towers. The design and construction of these foundations are critical, as they must support the weight of the bridge and resist lateral forces.
● Cable Installation: Cables are attached to the towers and the deck simultaneously, allowing for a more integrated construction process. This method can expedite construction timelines and improve overall project efficiency.
● Decking: The deck is constructed in sections, with cables providing immediate support. This approach allows for real-time adjustments during construction, ensuring that the bridge remains level and structurally sound.
Feature | Suspension Bridge | Cable-Stayed Bridge |
Load Distribution | Cables suspend the deck from above | Cables connect directly to the deck |
Span Length | Typically longer spans (up to 2,000m+) | Medium to long spans (up to 1,000m) |
Material Usage | Generally requires more materials | More material-efficient |
Flexibility | More flexible, suitable for dynamic loads | More rigid, better for static loads |
Aesthetic Appeal | Iconic and visually striking | Varied designs, often less iconic |
● Advantages:
Exceptional span capabilities, making them ideal for crossing large bodies of water and connecting distant regions.
Aesthetic appeal and iconic status, often becoming symbols of engineering excellence and cultural landmarks.
Flexibility in design and movement, allowing them to withstand dynamic forces such as wind and seismic activity.
● Disadvantages:
More complex construction and maintenance, requiring specialized knowledge and skills.
Higher material costs, which can impact project budgets and timelines.
● Advantages:
Efficient use of materials, leading to cost savings and reduced environmental impact.
Simpler construction process, which can result in faster project completion times.
Better suited for moderate spans, making them versatile for various applications.
● Disadvantages:
Limited span capabilities compared to suspension bridges, which may restrict their use in certain locations.
Less flexibility under dynamic loads, which can be a concern in areas prone to high winds or seismic activity.
Recent advancements in materials and engineering techniques have led to the development of hybrid designs that combine elements of both suspension and cable-stayed bridges. These innovations aim to enhance performance, reduce costs, and improve aesthetic appeal. For example, the use of high-strength materials and advanced computational modeling allows for more efficient designs that can adapt to specific site conditions.
● The Millau Viaduct in France: A stunning example of a cable-stayed bridge that combines height and elegance, showcasing the potential of modern engineering. Standing at 343 meters, it is the tallest bridge in the world and demonstrates the capabilities of cable-stayed designs in achieving remarkable heights.
● The Akashi Kaikyō Bridge in Japan: The longest suspension bridge in the world, demonstrating the capabilities of suspension designs in extreme conditions. Completed in 1995, it spans 1,991 meters and has withstood severe weather events, proving the resilience of its design.
Understanding the differences between suspension and cable-stayed bridges is crucial for engineers, architects, and urban planners. Each bridge type offers unique advantages and is suited for specific applications. As technology continues to evolve, the future of bridge design promises even more innovative solutions that will enhance infrastructure and connectivity worldwide. By leveraging the strengths of both designs, engineers can create bridges that not only meet functional requirements but also contribute to the aesthetic and cultural landscape of their environments.
The choice between a suspension and cable-stayed bridge depends on several factors, including:
● Span Length: Suspension bridges are preferred for longer spans (over 2,000 meters), while cable-stayed bridges are more suitable for medium spans (up to 1,000 meters).
● Site Conditions: The geographical and environmental conditions, such as soil type, wind patterns, and seismic activity, can influence the design choice.
● Cost: Budget constraints may lead to the selection of one design over the other, as cable-stayed bridges typically require less material and can be more cost-effective.
● Aesthetic Considerations: The visual impact of the bridge on the surrounding landscape may also play a role in the decision-making process.
Hybrid suspension-cable-stayed bridges integrate elements from both designs to optimize performance and aesthetics. They typically feature a combination of:
● Suspension Cables: Allowing for longer spans and flexibility, which is beneficial in areas with dynamic loads.
● Cable-Stayed Elements: Providing direct load transfer to the towers, enhancing structural efficiency and reducing material usage. This combination allows for greater design flexibility, improved load distribution, and the ability to adapt to various environmental conditions while maintaining aesthetic appeal.
Recent material innovations that are significantly impacting bridge design and construction include:
● High-Strength Steel: This material allows for lighter structures with greater load-bearing capacity, reducing the overall weight of the bridge.
● Fiber-Reinforced Polymers (FRP): These materials offer excellent corrosion resistance and can be used in various components, enhancing durability and reducing maintenance costs.
● Self-Healing Concrete: This innovative material can repair its own cracks, extending the lifespan of the bridge and reducing the need for repairs.
● Advanced Composite Materials: These materials combine the benefits of different substances to create stronger, lighter, and more durable components.
Maintenance requirements for both types of bridges vary but generally include:
● Regular Inspections: Both bridge types require periodic inspections to assess the condition of cables, towers, and the deck.
● Cable Maintenance: For suspension bridges, monitoring and maintaining the tension in the cables is crucial, while cable-stayed bridges require regular checks on the cable connections and tension.
● Surface Treatments: Both types may need protective coatings to prevent corrosion, especially in harsh environments.
● Structural Repairs: Any signs of wear, such as cracks or corrosion, must be addressed promptly to ensure safety and longevity.
Environmental factors play a significant role in the design of both bridge types:
● Wind Loads: Suspension bridges are designed to handle dynamic wind loads due to their flexibility, while cable-stayed bridges must account for lateral forces acting on the towers and cables.
● Seismic Activity: In earthquake-prone areas, both designs must incorporate features that allow for movement and flexibility to withstand seismic forces.
● Temperature Variations: Materials used in bridge construction must be selected based on their performance in varying temperatures, as thermal expansion can affect structural integrity.
● Water Conditions: For bridges spanning bodies of water, considerations such as wave action, water depth, and potential flooding must be factored into the design.
