In humanity's magnificent journey of spanning mountains,rivers,lakes,and seas,steel bridges have emerged as core pillars of modern transportation networks,thanks to their exceptional mechanical performance and flexible design forms,From towering suspension bridges to intricate steel arch bridges. from mass-produced steel beam bridges to hybrid systems pushing the limits of span length, steel bridgescontinuously break through technological boundaries.embodying the fusion of engineering and art. thisarticle systematically categorizes the main types ofsteel bridges and their engineering practices while exploring innovative directions for future development.

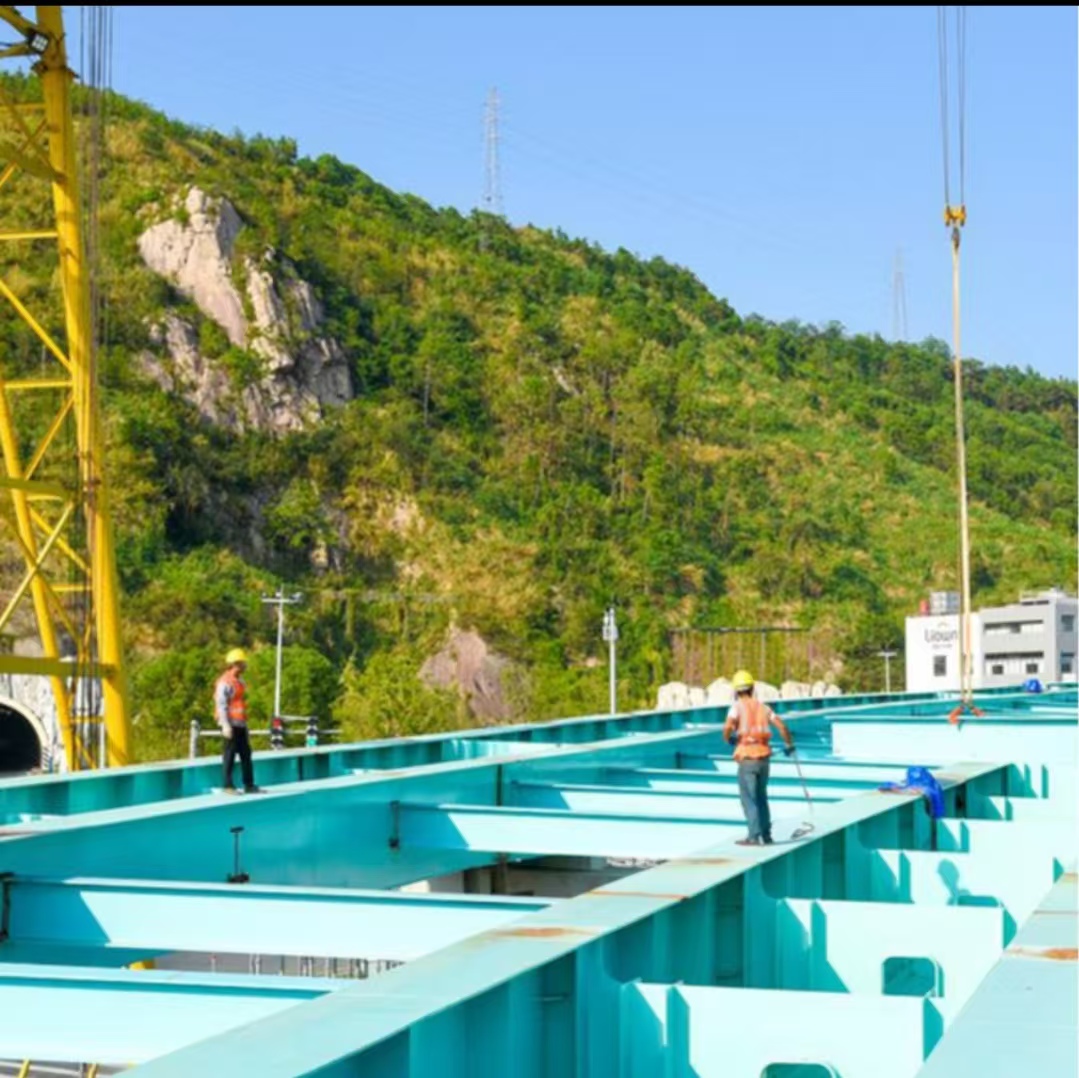

· Structural Features: Steel girders (I-beams, box girders) serve as the primary load-bearing components, transferring loads to piers via bending stiffness.
· Common Types:
· Simply Supported Girder Bridges: Single-span statically determinate structures for small to medium spans (20–50 m).
· Continuous Girder Bridges: Multi-span continuous structures with larger spans (50–200 m) and better seismic performance.
· Composite Girder Bridges: Steel girders combined with concrete decks for enhanced stiffness and cost-efficiency.
· Applications: Urban viaducts, highway/railway bridges.
· Example: Nanjing Yangtze River Bridge (composite girder).
· Structural Features: Triangular truss units transmit loads through axial forces in members, offering high rigidity and lightweight design.
· Advantages:
· Suitable for large spans (100–400 m), ideal for heavy-load or railway bridges.
· Open structure with low wind resistance.
· Types:
· Deck Truss Bridges: Roadway on top of the truss.
· Through Truss Bridges: Roadway through the truss.
· Example: Golden Gate Bridge, USA (steel truss towers in suspension structure).
· Structural Features: Curved arches carry loads via axial compression, combining aesthetics with large-span capabilities.
· Classifications:
· Deck Arch Bridges: Roadway above the arch (e.g., Sydney Harbour Bridge).
· Half-Through/Through Arch Bridges: Roadway passes through or hangs below the arch.
· Tied-Arch Bridges: Horizontal ties balance arch thrust, suitable for soft foundations.
· Span Range: 100–500 m.
· Example: Chongqing Chaotianmen Yangtze River Bridge (world’s longest steel truss arch).
· Structural Features: Main cables, suspenders, and towers form the load-bearing system; the deck is suspended from cables anchored at both ends.
· Advantages: Ultra-long spans (>500 m), ideal for deep valleys or straits.
· Key Components:
· Main cables (high-strength steel wires), towers (steel/concrete), stiffening girders (steel box/truss).
· Example: Akashi Kaikyō Bridge, Japan (main span: 1,991 m, world’s longest suspension bridge).

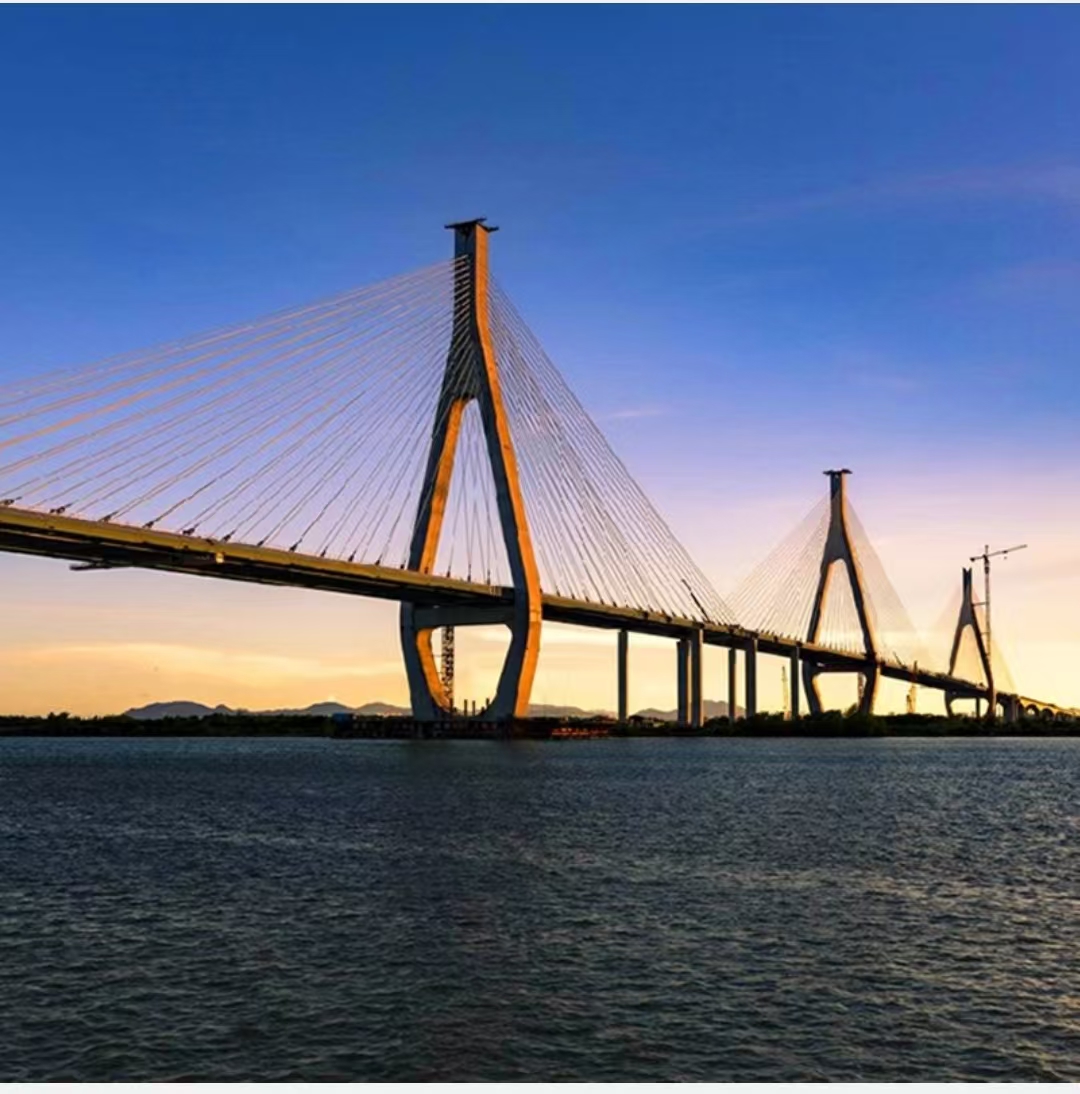

· Structural Features: Stay cables transfer deck loads to towers, forming a spatial cable-supported system.
· Advantages:
· Spans between girder and suspension bridges (300–1,000 m).
· Lightweight, aesthetically pleasing, and wind-resistant.
· Cable Arrangements: Radial, harp, or fan-shaped configurations.
· Example: Sutong Yangtze River Bridge (main span: 1,088 m, world’s longest cable-stayed bridge).
· Structural Features: Rigid connections between piers and girders create a monolithic structure without bearings.
· Continuous Rigid Frame Bridges: High piers and large spans (100–300 m), ideal for mountainous areas.
· T-shaped Rigid Frame Bridges: Segmental construction for medium spans.
· Advantages: Excellent seismic performance, unobstructed underpass space.
· Example: Guizhou Beipanjiang Bridge (continuous rigid frame).
· Structural Features: Hybrid use of steel and concrete to optimize material strengths.
· Steel-Concrete Composite Girders: Steel beams integrated with concrete decks.
· Corrugated Steel Web Bridges: Replace concrete webs with corrugated steel plates.
· Concrete-Filled Steel Tube (CFST) Arch Bridges: Steel tubes filled with concrete for enhanced compression resistance.
· Applications: Urban interchanges, long-span bridges.
1. Span Requirements: Small spans → girder bridges; large spans → suspension/cable-stayed bridges.
2. Geotechnical Conditions: Soft soil → tied-arch or suspension bridges.
3. Cost Efficiency: Composite structures reduce costs; suspension bridges require high initial investment.
4. Construction Constraints: Prefabricated steel components shorten timelines.
5. Aesthetic Needs: Arch/cable-stayed bridges offer iconic designs.
· High-Performance Steel: Weathering steel reduces corrosion maintenance.
· Modular Construction: BIM-driven prefabrication accelerates assembly.
· Sustainability: Recyclable materials align with green engineering.
The evolution of steel bridges is a technological epic of humanity challenging nature and itself. Today, driven by carbon neutrality goals, advancements in green steel materials, modular assembly techniques, and digital twin maintenance systems are injecting new vitality into steel bridge engineering. In the future, bridges will transcend their role as mere tools to overcome obstacles, evolving into multifunctional entities that integrate intelligent sensing, ecological sustainability, and landmark aesthetics. Balancing structural innovation with lifecycle sustainability will define the core mission of next-generation steel bridges—a pursuit destined to write an even more brilliant chapter in the history of bridge engineering.
