Bailey bridges have long been recognized as a crucial solution for rapid bridge construction in various scenarios, from military operations to civilian infrastructure projects. The weight of Bailey bridge parts plays a significant role in the overall design, transportation, and assembly of these versatile structures. In this comprehensive exploration, we will delve into the various factors that influence the weight of Bailey bridge components and how these weights impact the construction process.
Before we dive into the specifics of Bailey bridge parts weight, it's essential to understand the basic structure and components of a Bailey bridge.

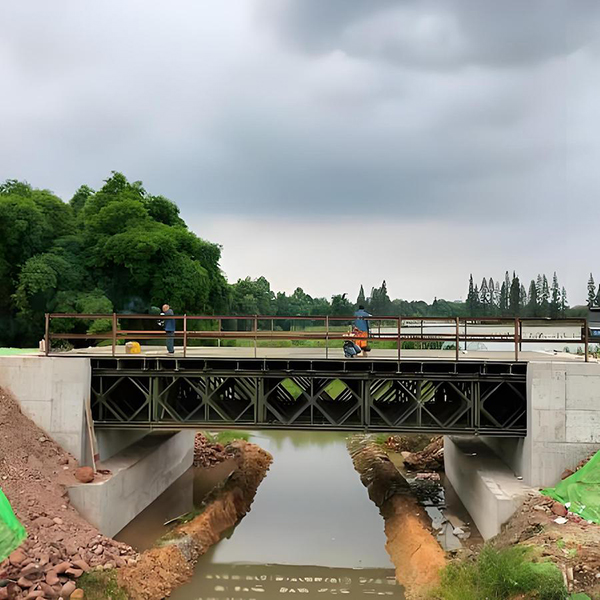

Bailey bridges are modular, prefabricated bridge systems that can be quickly assembled on-site. Their design allows for flexibility in length, width, and load-bearing capacity, making them suitable for a wide range of applications.
The Bailey bridge system consists of several main components, each contributing to the overall weight and structural integrity of the bridge. These components include:
Panels
Transoms
Stringers
Decking
Bracing frames
End posts
Ramps
Sway braces
The weight of Bailey bridge parts is influenced by various factors, each playing a crucial role in the overall design and functionality of the bridge.
The choice of materials used in manufacturing Bailey bridge components significantly impacts their weight. Traditionally, steel has been the primary material due to its strength and durability. However, advancements in materials science have led to the exploration of alternative materials that could potentially reduce weight without compromising structural integrity.
The intended load-bearing capacity of the Bailey bridge directly affects the weight of its components. Bridges designed to support heavier loads naturally require more robust and, consequently, heavier parts.
The length of the bridge span influences the weight of individual components, particularly the panels and stringers. Longer spans generally require stronger, and thus heavier, structural elements to maintain stability and safety.
The environment in which the Bailey bridge will be deployed can impact the weight of its parts. Bridges intended for use in harsh conditions, such as extreme temperatures or corrosive environments, may require additional protective coatings or materials, adding to their overall weight.
Let's examine the weight considerations for some of the key components of a Bailey bridge.
Panels form the primary structural elements of a Bailey bridge. The weight of these panels is a critical factor in the overall weight of the bridge. Standard Bailey bridge panels are designed to balance strength and portability, typically weighing between 500 to 600 pounds each. This weight allows for manual handling by a team of soldiers or construction workers while providing the necessary structural integrity.
Transoms are the cross-beams that support the bridge deck and transfer loads to the main panels. The weight of transoms varies depending on the bridge's width and load capacity. A typical transom for a standard Bailey bridge might weigh around 300 to 400 pounds.
Stringers run along the length of the bridge, providing additional support to the decking. The weight of stringers is influenced by the bridge's span and load requirements. A single stringer might weigh between 200 to 300 pounds, depending on its length and design specifications.

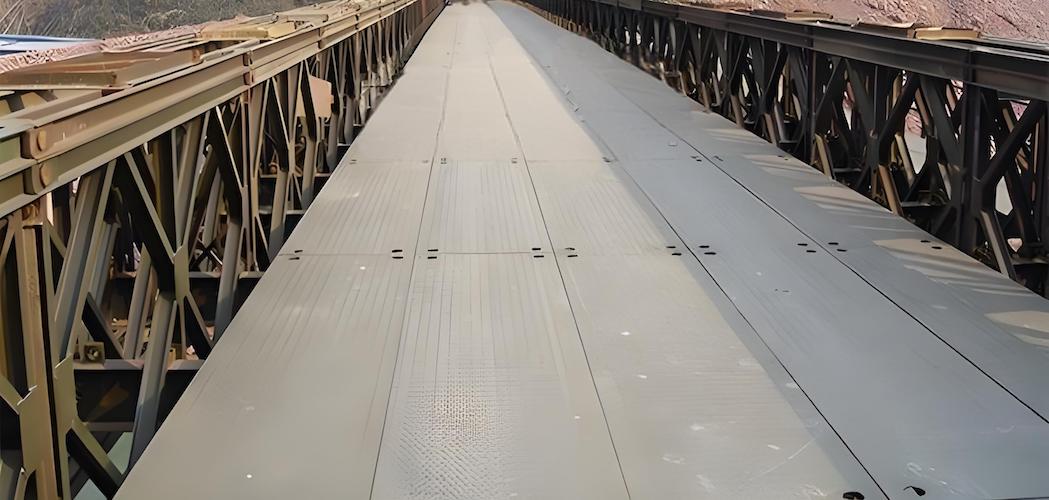

The decking of a Bailey bridge provides the surface for traffic to cross. While essential for functionality, the decking's weight must be carefully considered to avoid overburdening the structure. Steel decking panels are commonly used, with each panel weighing approximately 100 to 150 pounds.
The weight of Bailey bridge components has a significant impact on various aspects of bridge construction and deployment.
The weight of Bailey bridge parts directly affects the logistics of transporting the bridge components to the construction site. Heavier parts may require specialized transportation equipment, potentially limiting the accessibility of the bridge system in remote or difficult-to-reach areas.
The weight of individual components influences the assembly process of Bailey bridges. While the modular design allows for relatively quick construction, heavier parts may necessitate the use of mechanical lifting equipment, potentially slowing down the assembly in situations where such equipment is not readily available.
The weight of Bailey bridge parts determines the number of personnel required for handling and assembly. Heavier components demand more manpower, which can be a critical factor in emergency situations or in areas with limited labor resources.
The total weight of the Bailey bridge, including all its components, impacts the requirements for site preparation. Heavier bridges may necessitate more robust foundations or additional ground reinforcement, adding to the overall complexity and time of the construction process.
As engineering and materials science continue to advance, efforts are being made to reduce the weight of Bailey bridge components without compromising their strength and durability.
Research into advanced materials, such as high-strength alloys and composite materials, offers the potential to significantly reduce the weight of Bailey bridge parts. These materials could provide the same or even greater strength than traditional steel components at a fraction of the weight.
Engineers are continually working on optimizing the design of Bailey bridge components to reduce weight while maintaining structural integrity. This includes refining the geometry of panels and other elements to minimize material usage without sacrificing strength.
Innovations in modular design are allowing for more flexible and lightweight Bailey bridge configurations. These advancements enable the construction of bridges that are tailored to specific load requirements, potentially reducing unnecessary weight in certain applications.
As we look to the future, several trends and developments are likely to influence the weight of Bailey bridge components.
The advent of large-scale 3D printing in construction offers exciting possibilities for producing lightweight yet strong Bailey bridge parts. This technology could allow for the creation of complex geometries that optimize strength-to-weight ratios.
The development of smart materials that can adapt to different loads and environmental conditions could revolutionize Bailey bridge design. These materials might allow for bridges that can adjust their properties, potentially reducing the overall weight required for various applications.
Advancements in nanotechnology may lead to the creation of ultra-strong, lightweight materials suitable for Bailey bridge construction. These materials could dramatically reduce the weight of bridge components while enhancing their durability and performance.
The weight of Bailey bridge parts is a critical factor that influences every aspect of these versatile structures, from design and transportation to assembly and performance. As we continue to push the boundaries of engineering and materials science, the future holds exciting possibilities for lighter, stronger, and more efficient Bailey bridges. These advancements will undoubtedly expand the applications and accessibility of these invaluable temporary bridge solutions, ensuring their continued relevance in both military and civilian contexts for years to come.
A: A standard Bailey bridge panel typically weighs between 500 to 600 pounds, balancing strength and portability for ease of handling during construction.
A: The weight of Bailey bridge parts significantly impacts transportation logistics. Heavier components may require specialized equipment, potentially limiting accessibility in remote areas.
A: Yes, ongoing research in advanced materials and optimized designs aims to reduce the weight of Bailey bridge components while maintaining or even improving their structural integrity.
A: Bridges designed to support heavier loads require more robust and consequently heavier components to ensure structural stability and safety under increased stress.
A: Environmental factors can influence the weight of Bailey bridge parts. Bridges intended for harsh conditions may require additional protective materials or coatings, adding to their overall weight.
