Building a truss bridge from balsa wood is an engaging project that combines engineering principles with hands-on crafting. This guide will walk you through the entire process, from gathering materials to constructing a sturdy bridge. By the end, you will have a functional model that can support significant weight, making it perfect for educational purposes or just for fun.

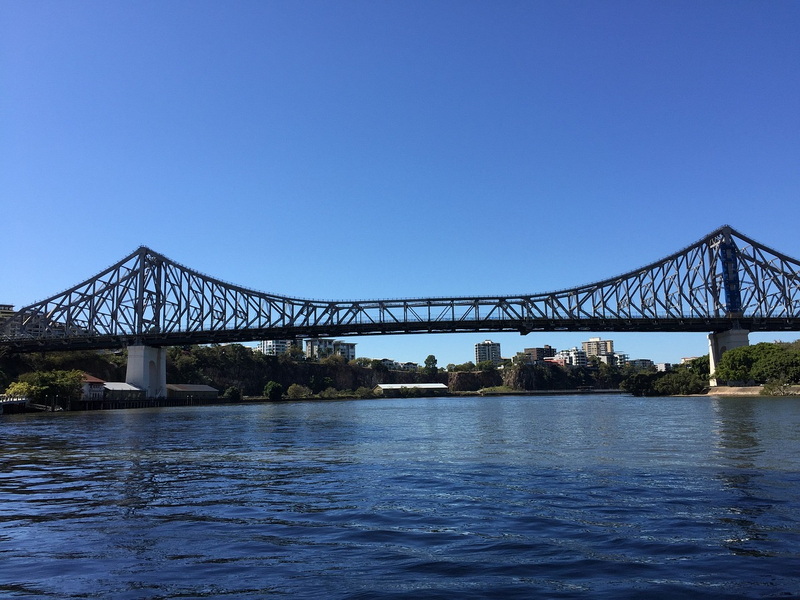

A truss bridge is a type of bridge that uses a framework of triangles to distribute loads. This design is highly efficient because it minimizes the amount of material needed while maximizing strength. The triangular shapes help to evenly distribute weight and forces throughout the structure, making truss bridges one of the most common designs in civil engineering.
Key Components of a Truss Bridge:
- Chords: The top and bottom horizontal members that bear the load.
- Web Members: The vertical and diagonal members that connect the chords, forming triangles.
- Decking: The surface of the bridge where vehicles or pedestrians travel.
- Supports: The elements that hold the bridge above the ground, typically at either end.
Before you start building your balsa wood truss bridge, gather the following materials:
- Balsa Wood Sticks: Typically, 1/4" x 1/4" sticks are used for the main structure.
- Wood Glue: A strong adhesive is essential for securing joints.
- Cutting Tools: A sharp hobby knife or balsa wood cutter will help you make precise cuts.
- Ruler and Pencil: For measuring and marking your cuts accurately.
- Clamps or Weights: These can help hold pieces in place while the glue dries.
- Gussets (optional): Made from index cards or paper, gussets can reinforce joints and add stability.
Start by sketching a design for your truss bridge. Consider using a K-Truss design, which is known for its strength and efficiency. Your design should include:
- Two main trusses
- Vertical supports
- Diagonal braces
Make sure to note the dimensions of each component so you can cut your balsa wood accurately.
Using your sketch, create a cutting plan that outlines the lengths of each piece you'll need. For example:
- Top chords (horizontal beams at the top)
- Bottom chords (horizontal beams at the bottom)
- Vertical members (upright supports)
- Diagonal braces (to form triangles)
Using your ruler and hobby knife, carefully cut each piece according to your cutting plan. Ensure that all cuts are straight and clean for better fitting.
1. Lay Out the Pieces: Arrange your top chords, vertical members, and diagonal braces on a flat surface according to your design.
2. Glue the Joints: Apply wood glue at each joint where pieces meet. Use clamps or weights to hold them in place while the glue dries.
3. Add Gussets: If using gussets, cut them from index cards and glue them over joints for additional support.
4. Repeat for Second Truss: Once the first truss is complete and dry, repeat the assembly process for the second truss.
Once both trusses are built, connect them with horizontal pieces at the top and bottom to form a complete bridge structure. Ensure they are spaced evenly apart.
To enhance stability, consider adding extra diagonal supports between vertical members or additional horizontal members across the top and bottom chords.
After allowing ample time for all glue to dry (typically 24 hours), it's time to test your bridge's strength. Gradually add weight to see how much it can hold before failing.
When designing a truss bridge, understanding how loads are distributed throughout its structure is crucial. The two primary forces acting on bridges are:
- Compression: This occurs when forces push on an object, causing it to shorten or buckle.
- Tension: This occurs when forces pull on an object, causing it to stretch or break apart.
In a well-designed truss bridge, these forces work together to keep the structure stable under various loads such as vehicles crossing or environmental factors like wind and snow.
There are several popular designs for truss bridges:
1. Warren Truss: Characterized by equilateral triangles which alternate between compression and tension members.
2. Pratt Truss: Features vertical members under compression and diagonal members under tension; ideal for longer spans.
3. Howe Truss: Similar to Pratt but with diagonals facing away from the center; effective in distributing loads.
4. K-Truss: A variation that reduces weight while maintaining strength by using smaller sections of vertical members.
Each design has its own advantages depending on factors like span length, material used, and intended load capacity.
When constructing your balsa wood bridge, consider these tips:
- Measure Twice, Cut Once: Precision in cutting ensures better joints and overall stability.
- Use Enough Glue: While it's tempting to minimize glue to save weight, strong joints are critical for structural integrity.
- Avoid Humidity: Balsa wood is sensitive to moisture; build in dry conditions to prevent warping.
- Reinforce Critical Areas: Focus on strengthening areas where tension or compression is highest—typically near mid-span or at joints.
Once your bridge is assembled and dried completely, testing its load-bearing capacity is essential. Here's how you can conduct effective tests:
1. Static Load Test:
- Gradually place weights on the center of the bridge until it fails or shows signs of stress.
- Use weights such as bags of sand or small weights from a gym set.
- Record how much weight was added before failure occurred.
2. Dynamic Load Test:
- Simulate moving loads by placing weights on one side of the bridge and then gradually moving them across.
- Observe how well your bridge handles dynamic forces compared to static loads.
3. Visual Inspection:
- After testing, inspect all joints and connections carefully for any signs of weakness or failure.
- Look for cracks in balsa wood or loose joints that may need reinforcement in future designs.
Understanding basic engineering principles can significantly enhance your ability to build effective structures:
- Force Distribution:
- Recognizing how forces act upon different parts of your bridge helps in designing more robust structures.
- Material Properties:
- Different materials have varying strengths; knowing these properties allows you to select appropriate materials based on project requirements.
- Safety Factors:
- Always consider safety factors in design; engineers often use safety factors greater than one to ensure structures can handle unexpected loads or stresses.
Building a balsa wood truss bridge is not only an enjoyable project but also an excellent way to learn about engineering principles such as force distribution and structural integrity. By following this guide, you should be able to construct a sturdy bridge capable of supporting significant weight while enjoying the creative process involved in model building.
With practice and experimentation, you can refine your skills and even try designing more complex structures in future projects. Understanding various designs will also help you choose what best suits your needs based on specific requirements such as span length and load capacity.
Engaging with this project not only fosters creativity but also encourages problem-solving skills as you navigate challenges during construction. Whether you're doing this as part of an educational project or simply as a hobbyist activity, building a truss bridge out of balsa wood offers invaluable insights into engineering concepts while providing satisfaction upon completion.
Wood glue is recommended as it provides strong bonds without causing damage to the delicate balsa wood fibers.
The weight capacity varies based on design and construction quality but can often exceed 30 pounds if built correctly.
While balsa wood is preferred due to its lightweight properties, other lightweight woods can be used; however, they may not provide the same ease of handling or strength-to-weight ratio.
Depending on complexity, building a basic truss bridge can take anywhere from several hours to a few days, especially when factoring in drying times for glue.
Common mistakes include uneven cuts, insufficient drying time between steps, and inadequate reinforcement at joints which can lead to structural failure during testing.
