Indonesia, an archipelago comprising over 17,000 islands, is experiencing rapid economic growth, which necessitates the development of a robust and interconnected railway network. The country's diverse geography, characterized by volcanic highlands, coastal plains, and dense tropical rainforests, presents unique challenges for infrastructure development. In this context, steel truss bridges designed according to the Australian Standard AS5100 have emerged as a vital solution for railway crossings across Indonesia. This article delves into the structural characteristics of steel truss bridges, the specifics of AS5100 design loading standards, their advantages, and their performance in Indonesia's distinct geographical and climatic conditions. Additionally, real-world examples of steel truss bridges in Indonesia will illustrate the practical application of these standards.

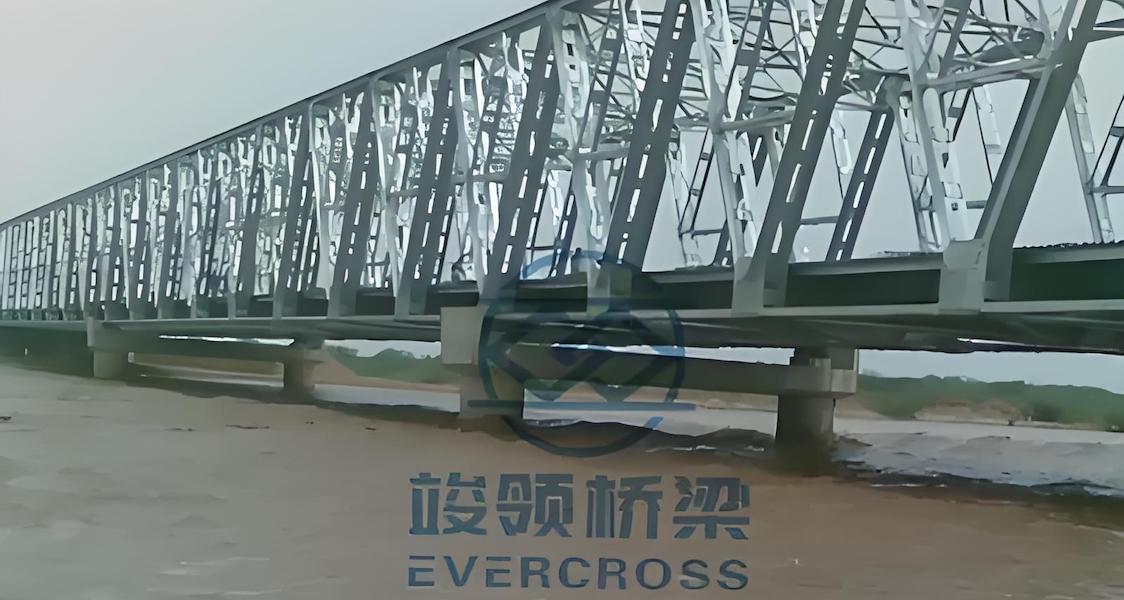

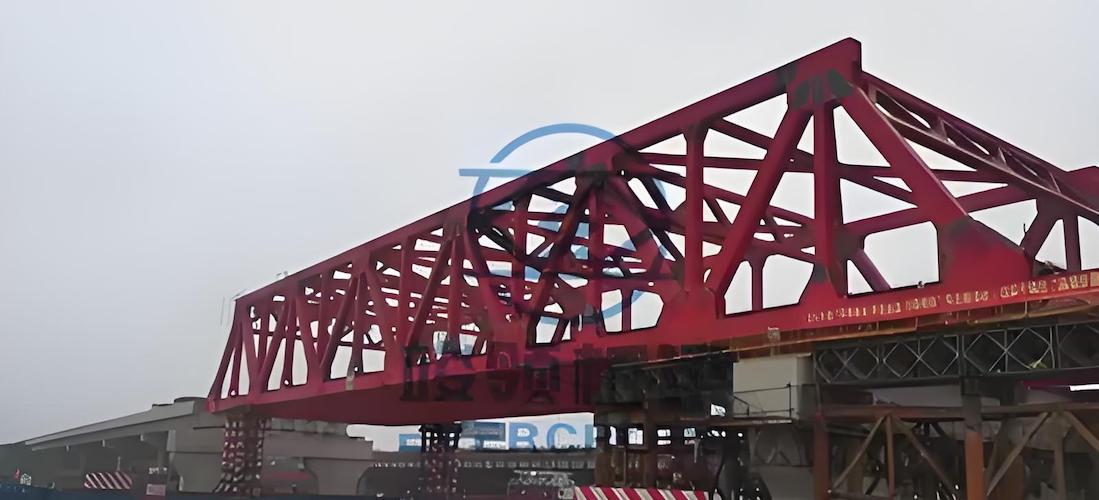

A steel truss bridge is a structural framework made up of interconnected steel members arranged in triangular patterns. This design effectively distributes loads across spans, leveraging the strength of steel in both tension and compression. The efficiency of steel truss bridges in supporting heavy railway loads is a key advantage. The main components of a steel truss bridge include:
The chords are the horizontal top and bottom members of the truss that bear the primary bending stresses. They play a crucial role in maintaining the structural integrity of the bridge. The design of the chords must consider not only the weight of the bridge itself but also the dynamic loads imposed by passing trains. This requires careful engineering to ensure that the materials used can withstand these stresses over time, particularly in a region like Indonesia where environmental factors can accelerate wear and tear.
These are the vertical and diagonal steel elements that transfer shear forces throughout the bridge structure. The arrangement of web members is essential for the overall stability and load distribution of the truss. The design of these members must account for various forces, including wind and seismic activity, which are particularly relevant in Indonesia. The choice of materials and the configuration of web members can significantly influence the bridge's performance, especially in areas prone to natural disasters.
Joints are the connections between the various members of the truss, which can be bolted, riveted, or welded. These connections ensure seamless load transfer and are critical for the bridge's performance. The design and construction of joints require meticulous attention to detail, as they are often the points of failure in a bridge structure. In Indonesia, where humidity and temperature fluctuations can affect material properties, the durability of joints is paramount. Engineers must select appropriate materials and methods to ensure that these connections remain strong and reliable throughout the bridge's lifespan.
Steel truss bridges can be categorized by their truss configurations, each suited to specific span requirements. For instance, the Warren truss, with its alternating diagonal members, is ideal for medium spans ranging from 50 to 150 meters. The Pratt truss, featuring vertical members in compression and diagonals in tension, excels in longer spans of up to 200 meters. The Howe truss, characterized by reversed diagonal configurations, is often employed in heavy-load applications, particularly in industrial railway corridors. Each configuration has its own set of advantages and is chosen based on the specific requirements of the site and the expected loads.
The Australian Standard AS5100 provides comprehensive guidelines for the design of bridges, ensuring their safety and performance, particularly for steel truss bridges used in railway networks. The 2017 edition of AS5100 has been widely adopted in regions facing similar environmental challenges to Australia, outlining specific loading criteria that are critical for steel truss bridges in Indonesia.
AS5100 specifies two primary load models for railway traffic: the HA (Heavy Axle) model for general railway use and the HB (Heavy Haul) model for freight trains with higher axle weights. In Indonesia, where coal and mineral transportation is crucial, the HB model simulates axle weights of up to 32 tonnes, ensuring that steel truss bridges can withstand frequent heavy freight traffic. This is particularly important in regions where the economy relies heavily on the transportation of bulk materials, necessitating robust infrastructure that can handle the demands of heavy loads.
The standard also addresses dynamic forces, including braking and tractive forces, which are calculated as a percentage of the total train weight. For straight tracks, this is set at 15%, while for curved sections, it increases to 20%. These forces are distributed through the web members of the bridge to prevent fatigue failure. Understanding these dynamic forces is essential for engineers, as they must design bridges that can absorb and dissipate these forces without compromising structural integrity. This is especially relevant in Indonesia, where trains may encounter varying track conditions and speeds.
AS5100 mandates that steel truss bridges must be designed to resist impact forces from derailed trains. This requirement necessitates reinforced piers and abutments to protect the integrity of the bridge structure. The potential for derailments, while statistically low, poses significant risks, and the design must account for these rare but catastrophic events. Engineers must consider the worst-case scenarios and ensure that the bridge can withstand such impacts without collapsing or causing harm to passengers and cargo.
In Indonesia, particularly in coastal regions such as Java and Sumatra, AS5100 classifies these areas as high-wind zones, with design speeds reaching up to 45 m/s. Steel truss bridges in these locations must incorporate aerodynamic truss profiles and wind bracing to minimize vibrations and ensure stability. The design must also consider the potential for wind-induced oscillations, which can lead to fatigue over time. Engineers often conduct wind tunnel tests to simulate conditions and refine their designs accordingly.
Given Indonesia's position on the Pacific Ring of Fire, AS5100 specifies seismic design spectra with Peak Ground Acceleration (PGA) values ranging from 0.3g to 0.5g in high-risk zones like Bali and Lombok. Steel truss bridges in these areas must include ductile connections and energy-dissipating systems to absorb seismic energy effectively. The design process involves complex calculations to ensure that the bridge can withstand the forces generated by earthquakes, which are a frequent occurrence in the region. This aspect of design is critical for ensuring the safety of passengers and cargo during seismic events.
Temperature fluctuations, which typically range from 18 to 34 degrees Celsius in most regions, can cause thermal expansion in steel truss bridges. AS5100 requires the incorporation of expansion joints and flexible bearings to accommodate these movements without inducing structural stress. Engineers must carefully calculate the expected thermal movements and design the bridge components to allow for these changes, ensuring that the structure remains stable and functional throughout its lifespan.
Steel truss bridges are designed to optimize material usage by distributing loads through triangular configurations. This design reduces the overall weight of the bridge while maintaining its strength. For example, a 120-meter span steel truss bridge can use approximately 35% less material than a concrete girder bridge of the same length, making it particularly advantageous for Indonesia's remote areas where material transportation costs are high. The efficiency of steel truss bridges not only reduces initial construction costs but also minimizes the environmental impact associated with material extraction and transportation.
The modular prefabrication of steel truss bridge components allows for off-site manufacturing, significantly reducing on-site labor and construction time. In Indonesia's challenging terrain, this modularity is invaluable. For instance, the steel truss bridge spanning the Citarum River in West Java was assembled in just four months, which is half the time required for a concrete alternative. This rapid construction capability is crucial in areas where infrastructure development is urgently needed to support economic growth and connectivity.
Steel truss bridges excel in spanning rivers, gorges, and volcanic valleys. In Sumatra, a 180-meter Warren truss bridge crosses the Musi River, requiring only two piers to navigate the wide waterway while avoiding disruption to aquatic ecosystems. This adaptability allows for the construction of bridges in locations that may be challenging due to geographical constraints, ensuring that vital transportation links can be established without significant environmental impact.
Steel is fully recyclable, aligning with Indonesia's green infrastructure goals. Many steel truss bridges in the country utilize recycled steel from decommissioned industrial structures, thereby reducing environmental impact. With proper maintenance, a steel truss bridge can achieve a service life exceeding 80 years, often outperforming concrete bridges in high-humidity environments. The sustainability aspect of steel truss bridges is increasingly important as Indonesia seeks to balance infrastructure development with environmental conservation.
Indonesia's equatorial climate results in annual rainfall ranging from 2,000 to 4,000 mm and humidity levels between 85% and 95%. These conditions accelerate corrosion in steel truss bridges. Coastal bridges, particularly those near Jakarta, face additional challenges from salt spray exposure, which can increase corrosion rates by up to 30% compared to inland structures. Engineers must implement effective corrosion protection measures, such as specialized coatings and regular maintenance schedules, to ensure the longevity of these structures in such demanding environments.
Daily temperature variations can cause thermal stress in steel truss bridges. In regions like Sulawesi, where temperatures can fluctuate from 22 degrees Celsius at night to 34 degrees during the day, unmanaged thermal expansion can lead to joint fatigue. This necessitates careful design considerations to accommodate these temperature changes, ensuring that the bridge remains functional and safe throughout its operational life.
With 127 active volcanoes, Indonesia faces risks from ashfall and lava flows. Steel truss bridges located near Mount Merapi in Central Java require heat-resistant coatings and regular ash removal protocols to maintain their structural integrity. The potential for volcanic activity necessitates ongoing monitoring and maintenance to ensure that these bridges can withstand the unique challenges posed by their surroundings.
The presence of major fault lines in the Java Sea and Indian Ocean heightens the seismic risk for steel truss bridges. These structures must be designed to withstand not only earthquakes but also the forces generated by potential tsunamis, necessitating reinforced foundations and flood-resistant materials. The design process involves extensive analysis to ensure that the bridges can endure the forces associated with these natural disasters, safeguarding both infrastructure and human life.
Monsoon rains can trigger landslides in mountainous regions like Bali, while rivers such as the Kapuas in West Kalimantan experience annual flooding. Steel truss bridges in these areas require scour-resistant pile foundations and elevated deck designs to prevent submersion. The design must also consider the potential for debris flow and other hazards associated with heavy rainfall, ensuring that the bridges remain safe and operational during extreme weather events.
AS5100 mandates the use of ISO 12944-compliant coating systems for steel truss bridges in Indonesia. Coastal bridges typically employ a three-layer system consisting of a zinc-rich primer, an epoxy intermediate layer, and a polyurethane topcoat to resist salt corrosion. Inland bridges often utilize galvanized steel with a minimum zinc layer to provide long-lasting protection. The choice of coatings is critical in extending the lifespan of the bridges, as they must withstand the harsh environmental conditions prevalent in Indonesia.
In high-salinity areas, such as the Strait of Malacca, steel truss bridges may incorporate sacrificial aluminum anodes to prevent rust, extending the life of protective coatings significantly. This proactive approach to corrosion management is essential in ensuring that the bridges remain structurally sound and safe for use over the long term.
Steel truss bridges located in earthquake-prone areas often utilize lead-rubber bearings to decouple the superstructure from the foundation. This design feature significantly reduces seismic forces during earthquakes, enhancing the bridge's resilience. The implementation of base isolation technology is a critical advancement in bridge engineering, allowing for greater flexibility and safety in regions susceptible to seismic activity.
The design of steel truss bridges includes redundant load paths and flexible joints, allowing them to dissipate energy effectively. Inspections following seismic events have shown minimal damage to these structures, demonstrating their ability to withstand significant forces. This ductility is a key factor in ensuring the safety and longevity of the bridges, particularly in a region where earthquakes are a common occurrence.
AS5100 requires bi-annual inspections of steel truss bridges in Indonesia. Inspection teams assess coating degradation, bolt tightness, and fatigue cracks, scheduling repairs during the dry season to ensure optimal adhesion of replacement coatings. Regular maintenance is essential for prolonging the lifespan of the bridges and ensuring their safety for users.
Modern steel truss bridges in Indonesia, such as those on the Jakarta-Bandung high-speed rail line, are equipped with sensors that monitor dynamic loads and vibration frequencies. This technology alerts engineers to potential fatigue issues before they escalate, ensuring the longevity of the structures. The integration of technology into bridge maintenance represents a significant advancement in infrastructure management, allowing for more proactive and efficient maintenance practices.
This 150-meter Warren truss steel truss bridge, completed in 2019, serves as a vital connection between Bandung and Jakarta's industrial zones. Designed to AS5100 standards, it features galvanized steel members with epoxy coatings to resist humidity and agricultural runoff. The bridge also incorporates wind bracing systems to withstand monsoon winds and base isolation bearings to protect against seismic activity. After five years of service, inspections have revealed minimal corrosion and no signs of structural fatigue, confirming its durability in Java's climate. This case study exemplifies the successful application of AS5100 standards in a challenging environment, showcasing the bridge's resilience and efficiency.
Spanning 280 meters, this Pratt truss steel truss bridge is a critical link in Sumatra's coal transportation network. Key features compliant with AS5100 include a heavy axle load capacity to support 32-tonne freight trains and cathodic protection systems to resist corrosion from the river's brackish water. The bridge's scour-resistant pile foundations extend deep below the riverbed, ensuring stability during annual floods. Since its construction in 2015, the bridge has operated continuously through multiple monsoon seasons and minor earthquakes without requiring major repairs. This bridge serves as a testament to the effectiveness of AS5100 standards in enhancing the reliability and safety of critical infrastructure.
This 220-meter modular steel truss bridge, completed in 2021, connects Bali to Lombok, utilizing AS5100 standards adapted for marine environments. Innovations include aerodynamic truss profiles to reduce wind drag and titanium-zinc alloy coatings to resist salt spray corrosion. The bridge is also equipped with seismic dampers to absorb energy from frequent earthquakes in the region. Its modular design facilitated rapid assembly, minimizing disruption to marine life in the ecologically sensitive strait. This project highlights the adaptability of steel truss bridges to various environmental conditions, demonstrating their potential for sustainable infrastructure development.
AS5100-compliant steel truss bridges offer Indonesia a durable, efficient, and adaptable solution for expanding its railway infrastructure. By addressing the country's unique challenges—such as tropical humidity, seismic activity, volcanic hazards, and diverse terrain—these bridges provide reliable connectivity that is critical for economic growth. The structural efficiency of steel truss bridges, combined with the rigorous loading standards of AS5100, ensures they can withstand heavy freight traffic, extreme weather, and geological events.
Through effective corrosion protection, seismic design, and proactive maintenance, steel truss bridges in Indonesia demonstrate impressive longevity, with lifespans exceeding 80 years under optimal conditions. Case studies like the Citarum River and Musi River steel truss bridges validate the practicality of AS5100 standards in Indonesia's environment, proving that steel truss bridges are not only technically feasible but also economically viable.
As Indonesia continues to develop its railway networks, steel truss bridges will remain a cornerstone of infrastructure development. By leveraging the strengths of steel truss technology and adhering to AS5100 standards, Indonesia can build a resilient transportation system that connects its islands, supports industrial growth, and withstands the challenges of its dynamic environment for generations to come.
The maintenance costs for AS5100 steel truss bridges in Indonesia can vary significantly based on factors such as location, environmental conditions, and the specific design of the bridge. On average, annual maintenance costs can range from 1% to 3% of the initial construction cost. Regular inspections, corrosion protection, and minor repairs are essential to ensure the longevity of the bridges.
Local regulations in Indonesia often complement AS5100 standards by addressing specific environmental and geological conditions unique to the region. These regulations may impose additional requirements for seismic resilience, corrosion protection, and material specifications, ensuring that bridges are not only compliant with international standards but also suitable for local challenges.
Innovations in the design and construction of steel truss bridges in Indonesia include the use of advanced materials such as high-strength steel and corrosion-resistant coatings. Additionally, the integration of smart technologies, such as sensors for real-time monitoring of structural health and load conditions, is being explored to enhance the resilience and safety of these bridges.
Steel truss bridges generally have a lower environmental impact compared to concrete bridges due to their lighter weight and reduced material usage. Steel is also 100% recyclable, which aligns with sustainability goals. In contrast, concrete production is energy-intensive and contributes to higher carbon emissions. The ability to use recycled steel further minimizes the ecological footprint of steel truss bridges.
Steel truss bridges are crucial for Indonesia's economic development as they facilitate the efficient transportation of goods and people across the archipelago. By improving connectivity between islands and remote areas, these bridges support trade, tourism, and access to essential services, ultimately contributing to the overall growth and development of the country's economy.
