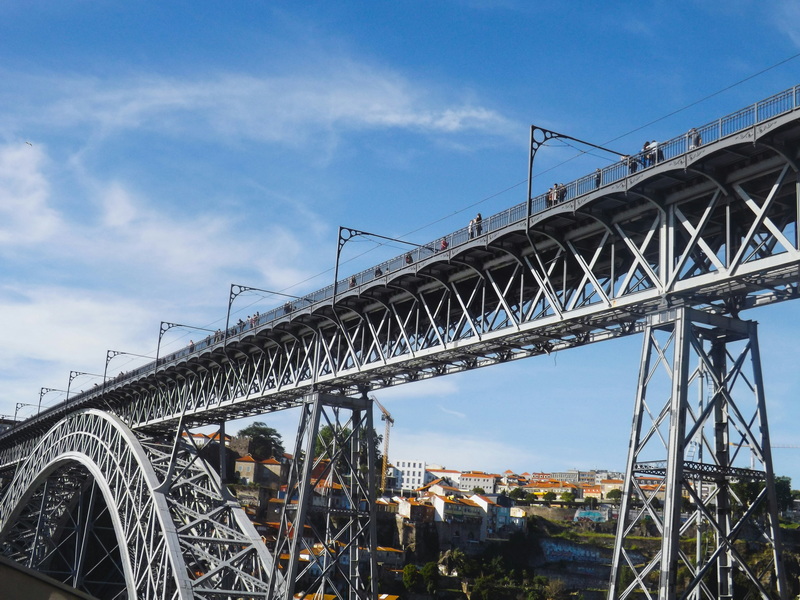

The truss bridge stands as one of the most significant achievements in civil engineering, a testament to humanity's ingenuity in overcoming natural obstacles and connecting communities. From its early wooden forms to the sophisticated steel structures of today, the truss bridge's evolution mirrors advances in materials science, mathematical understanding, and society's ever-growing transportation needs. This comprehensive exploration traces the journey of truss bridge design, examining its origins, key developments, and the innovations that continue to shape its future.
The fundamental principle behind truss bridges-the use of interconnected triangles to distribute loads-can be traced back to ancient civilizations. Early builders recognized that triangular frameworks provided unmatched stability, as triangles inherently resist deformation under stress. However, the formalization and widespread application of truss principles in bridge construction did not occur until much later.
During the Middle Ages, sketches by French architect Villard de Honnecourt and treatises by Italian architect Andrea Palladio hinted at the potential of truss structures. Palladio's 1570 publication described four truss bridge designs, setting the stage for future experimentation and refinement.
By the late 18th and early 19th centuries, the United States faced the challenge of expanding its transportation network across vast, untamed landscapes. Rivers and valleys presented significant barriers, and the need for economical, rapidly constructed bridges became pressing. Timber was abundant, making wooden truss bridges an attractive solution.
Early American bridge builders, such as Timothy Palmer, Louis Wernwag, and Theodore Burr, contributed to the development of truss bridge construction. Burr's innovative combination of arch and truss elements created sturdy "camelback" or "hump" bridges, which could span greater distances than previous designs.
A pivotal moment in truss bridge history arrived in 1820, when American architect and civil engineer Ithiel Town patented the lattice truss bridge. Town's design featured an uninterrupted series of crisscrossed diagonals, forming a lattice of overlapping triangles. This configuration distributed loads efficiently, allowing the bridge to be constructed quickly and inexpensively using local timber and relatively unskilled labor.
Town's lattice truss design became immensely popular, especially for covered bridges and early railroad crossings. The simplicity and adaptability of the lattice truss allowed it to be "built by the mile and cut by the yard," as Town famously claimed. The design's lightness and cost-effectiveness made it the preferred choice for many decades, and Town's patent earned him significant royalties.
As the demands of transportation increased, particularly with the rise of the railroads, engineers sought stronger and more durable truss designs. In 1840, William Howe patented the Howe truss, which ingeniously combined wood and iron. The Howe truss featured vertical iron rods in tension and wooden diagonal members in compression, resulting in a structure capable of supporting heavier loads.
The Howe truss was notable for its adaptability; it could be constructed entirely from metal as steel production advanced. Its straightforward assembly and robust performance made it a favorite for railroad bridges and longer spans.
Shortly after the Howe truss, Thomas and Caleb Pratt introduced the Pratt truss in 1844. The Pratt truss reversed the arrangement of tension and compression members: its vertical elements were in compression, while the diagonals were in tension. This configuration proved highly efficient for longer spans and heavier loads, especially as steel became more widely available.
The Pratt truss's modular design facilitated prefabrication and rapid assembly, contributing to its widespread adoption in both railroad and highway bridges.
The Warren truss, developed in the mid-19th century, introduced a series of equilateral triangles without vertical members. This design alternated tension and compression forces efficiently among its diagonal members, resulting in a lightweight yet strong structure. The Warren truss's simplicity and material efficiency made it ideal for a variety of applications, from short pedestrian bridges to major railway crossings.
Emerging in the early 20th century, the K truss represented a further refinement in load distribution. Invented by Phelps Johnson, the K truss features two subdivided diagonal beams per panel that meet at the center of a vertical beam, forming a distinctive "K" shape. This arrangement improves load distribution and enhances overall strength, making the K truss suitable for longer spans and heavier traffic.
In the early days of truss bridge construction, builders relied on empirical methods and experience rather than scientific analysis. Designs were often based on intuition, leading to overbuilt or occasionally underperforming structures.
The publication of Squire Whipple's "A Work On Bridge-Building" in 1847 marked a turning point. Whipple systematically analyzed the stresses within truss bridges, laying the foundation for modern structural engineering. His work enabled engineers to design bridges with greater confidence, optimizing material use and ensuring safety.
As the 19th century progressed, the limitations of timber became apparent. Wood was susceptible to rot, fire, and insect damage, and its strength-to-weight ratio limited the achievable span lengths. The advent of iron and, later, steel revolutionized truss bridge construction.
Iron and steel offered superior strength, durability, and resistance to environmental degradation. All-metal truss bridges could span greater distances, support heavier loads, and require less maintenance. The Whipple truss, for example, was the first all-iron truss bridge design, signaling the transition to modern materials.
The standardization of truss designs and the adoption of prefabricated components further accelerated bridge construction. The Bailey Bridge, developed during World War II by Sir Donald Coleman Bailey, exemplified this trend. The Bailey Bridge was a portable, prefabricated truss bridge that could be rapidly assembled by hand without special tools, proving invaluable in military operations and disaster response.
Today, steel remains the material of choice for most truss bridges, thanks to its strength, affordability, and ease of fabrication. Modern steel alloys offer enhanced corrosion resistance and durability, extending the lifespan of truss bridges even in harsh environments.
In recent years, engineers have also experimented with advanced materials such as fiber-reinforced polymers (FRP). FRP truss bridges are lightweight, easy to transport, and can be installed without heavy equipment, making them ideal for remote or challenging locations.
Contemporary truss bridge design benefits from powerful computational tools and advanced welding and fabrication techniques. Engineers can simulate complex load scenarios, optimize member sizes, and ensure that bridges meet stringent safety and performance standards.
Design modifications, such as the double bottom chord used in some modern truss bridges, allow for debris to fall off the bridge, reducing maintenance needs and enhancing longevity. The adaptability of truss designs enables their use in a wide range of applications, from pedestrian walkways to major highway and railway crossings.
Modern truss bridges are often prefabricated off-site, allowing for accelerated construction and reduced disruption to the surrounding environment. The use of lightweight, sustainable materials contributes to lower transportation and installation costs, while the inherent efficiency of the truss structure minimizes material use.
Truss bridges continue to play a vital role in military and emergency contexts, where rapid deployment and adaptability are essential.
Truss bridges remain a fixture of the built environment, valued for their strength, efficiency, and visual appeal. Their modular design and adaptability ensure their continued relevance in an era of evolving transportation needs and environmental challenges.
Looking ahead, the integration of smart materials, advanced monitoring systems, and sustainable construction practices promises to further enhance the performance and longevity of truss bridges. As engineers seek to balance function, form, and environmental stewardship, the truss bridge stands as a symbol of enduring innovation.
The evolution of truss bridge design is a story of continuous innovation, driven by the need to span greater distances, support heavier loads, and adapt to changing materials and technologies. From the humble wooden lattice trusses of Ithiel Town to the steel giants of the modern era, truss bridges have shaped landscapes and connected communities for centuries. Their enduring appeal lies in the elegant simplicity of the triangle, a geometric form that has enabled countless feats of engineering. As society faces new challenges in transportation and sustainability, the truss bridge stands ready to meet them, a timeless symbol of human ingenuity.
The primary types of truss bridges include the Howe, Pratt, Warren, and K trusses. The Howe truss features diagonal members in compression and vertical members in tension, often combining wood and metal. The Pratt truss reverses this arrangement, with diagonals in tension and verticals in compression, making it ideal for longer spans. The Warren truss uses equilateral triangles and typically lacks vertical members, efficiently alternating tension and compression. The K truss, developed in the 20th century, features a "K" shape in its panels, improving load distribution and strength for longer spans.
Triangles are the fundamental geometric shape in truss bridge design because they are inherently stable and resist deformation under load. When force is applied to a triangle, its shape remains unchanged, unlike other polygons. This stability allows truss bridges to efficiently distribute loads across their structure, minimizing material use while maximizing strength.
The shift from wood to iron and steel revolutionized truss bridge construction. Metal offered greater strength, durability, and resistance to environmental damage, enabling longer spans and heavier loads. All-metal truss bridges required less maintenance and could be prefabricated, accelerating construction and reducing costs. This transition also facilitated the development of new truss types and more sophisticated engineering analysis.
Prefabrication allowed truss bridge components to be manufactured off-site and assembled rapidly at the construction location. This innovation reduced construction time, labor costs, and environmental disruption. The Bailey Bridge, a prefabricated truss bridge developed during World War II, exemplified the advantages of this approach, enabling quick deployment in military and emergency situations.
Yes, truss bridges remain highly relevant due to their strength, adaptability, and efficiency. Modern materials such as advanced steel alloys and fiber-reinforced polymers have further enhanced their performance. Truss bridges are used in a variety of contexts, from pedestrian walkways and highway overpasses to military and emergency applications. Their modular design and ability to span both short and long distances ensure their continued importance in contemporary infrastructure.
