Modular bridges represent a significant advancement in civil engineering, offering flexibility, rapid deployment, and the ability to support various load capacities. This article explores the design, construction, and applications of modular bridges, particularly focusing on their adaptability to different load requirements. By delving deeper into each aspect, we can appreciate the full potential and versatility of modular bridge systems.

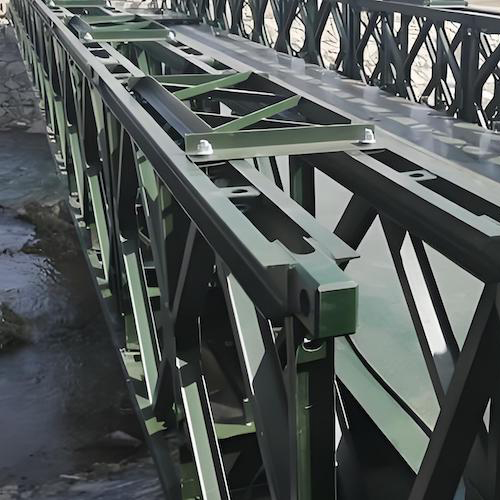

A modular bridge is a prefabricated structure composed of standardized components that can be easily assembled on-site. These bridges are designed to be portable, reusable, and adaptable to various sizes and load requirements. The modular design allows for quick installation, making them ideal for both temporary and permanent applications. The concept of modularity not only streamlines the construction process but also enhances the sustainability of bridge projects by reducing the need for extensive on-site labor and minimizing construction waste. This approach aligns with modern engineering practices that prioritize efficiency and environmental responsibility.
Modular bridges are characterized by several key features that enhance their functionality and versatility:
Standardized Components: The use of standardized parts facilitates mass production and simplifies assembly. This standardization means that components can be manufactured in controlled environments, ensuring high quality and consistency. It also allows for easy replacement of parts, which can be crucial for maintenance and repairs.
Portability: Modular bridges can be transported easily to remote locations, often using standard shipping containers or flatbed trucks. This portability is particularly beneficial in regions where traditional construction methods may be hindered by logistical challenges, such as difficult terrain or limited access.
Rapid Assembly: The prefabricated nature of these bridges allows for quick on-site assembly, reducing construction time significantly. This rapid deployment is essential in emergency situations, where access is needed immediately, and can also minimize disruption to local communities during construction.
When designing a modular bridge, engineers must consider various load types, including:
Dead Loads: The weight of the bridge itself and any permanent fixtures. Understanding dead loads is crucial for ensuring that the bridge's foundation and structural components can support the inherent weight without compromising safety.
Live Loads: The weight of vehicles, pedestrians, and any other dynamic loads that the bridge must support. Live loads can vary significantly based on traffic patterns, making it essential for engineers to anticipate potential changes in usage over time.
Environmental Loads: Forces exerted by wind, snow, and seismic activity. These environmental factors can greatly influence the design and materials used in modular bridges, particularly in regions prone to extreme weather or seismic events.
One of the most significant advantages of modular bridges is their ability to be customized for specific load capacities. Engineers can modify the design and materials used in the prefabricated components to meet the required specifications. This adaptability allows modular bridges to support a wide range of applications, from pedestrian walkways to heavy vehicular traffic. For instance, bridges designed for heavy trucks may incorporate reinforced materials and additional support structures, while those intended for lighter use can utilize more economical designs.
The engineering process for modular bridges often involves rigorous testing and simulations to ensure that the structure can withstand not only static loads but also dynamic forces. This includes:
Finite Element Analysis (FEA): A computational method used to predict how structures respond to external forces. FEA allows engineers to visualize stress points and optimize designs before physical construction begins, reducing the risk of failure.
Load Testing: Physical tests conducted on bridge prototypes to validate design assumptions and ensure safety. These tests are critical for confirming that the bridge can handle the expected loads and for identifying any potential weaknesses in the design.
Modular bridges are frequently used in emergency situations where rapid deployment is essential. Their portability and ease of assembly make them ideal for:
Disaster Relief: Providing immediate access in areas affected by natural disasters. In the aftermath of events like earthquakes or floods, modular bridges can restore vital transportation links, enabling rescue operations and the delivery of aid.
Military Operations: Facilitating quick movement of troops and equipment in remote locations. The military often requires temporary structures that can be deployed quickly and efficiently, making modular bridges a valuable asset in logistical planning.
In addition to temporary uses, modular bridges can also serve as permanent structures. Their design flexibility allows them to be integrated into various environments, including:
Urban Areas: Connecting neighborhoods and improving traffic flow. In cities where space is limited, modular bridges can provide innovative solutions for pedestrian and vehicular traffic, enhancing urban mobility.
Rural Locations: Providing access to remote communities and enhancing infrastructure. Modular bridges can be particularly beneficial in rural areas where traditional construction methods may be cost-prohibitive or logistically challenging.
The use of modular bridges can lead to significant cost savings in both construction and maintenance. Their prefabricated nature reduces labor costs and minimizes the time required for installation. Additionally, the ability to manufacture components in bulk can lower material costs, making modular bridges an economically viable option for many projects.
Modular bridges can also have a reduced environmental impact compared to traditional bridge construction methods. The ability to prefabricate components off-site minimizes disruption to the surrounding area and reduces waste. Furthermore, the use of sustainable materials and practices in the manufacturing process can enhance the overall environmental performance of modular bridges.
The adaptability of modular bridges means they can be easily modified or expanded in the future. This is particularly beneficial in areas where traffic patterns may change over time, allowing for adjustments without the need for complete reconstruction. This flexibility not only extends the lifespan of the bridge but also ensures that it can continue to meet the evolving needs of the community.
Ensuring the structural integrity of modular bridges is crucial, especially when designed for heavy loads. Engineers must carefully consider the connections between different sections to maintain strength and stability. The design must account for potential stress concentrations at these joints, which can be critical points of failure if not properly addressed.
Modular bridges must comply with local and national regulations regarding safety and load capacity. This can vary significantly depending on the location and intended use of the bridge. Navigating these regulations can be complex, requiring collaboration with local authorities and adherence to specific engineering standards.
There can be a perception that modular bridges are less durable or aesthetically pleasing than traditional bridges. Addressing these concerns through effective design and community engagement is essential for successful implementation. By showcasing successful modular bridge projects and emphasizing their benefits, engineers and planners can help shift public perception and foster acceptance of these innovative structures.
Modular bridges offer a versatile and efficient solution for modern infrastructure needs. Their ability to be designed for various load capacities makes them suitable for a wide range of applications, from emergency relief to permanent installations. As engineering techniques continue to evolve, the potential for modular bridges to meet the demands of diverse environments and load requirements will only increase, paving the way for innovative solutions in civil engineering. The future of modular bridges looks promising, with ongoing advancements in materials, design, and construction methods that will further enhance their capabilities and applications.
Modular bridges are typically constructed using materials such as steel, aluminum, and reinforced concrete. Steel is favored for its strength and durability, while aluminum is lightweight and resistant to corrosion. Reinforced concrete is often used for its compressive strength and versatility in various designs.
The installation time for a modular bridge can vary depending on its size and complexity, but one of the key advantages is the speed of assembly. Many modular bridges can be installed in a matter of days, significantly faster than traditional bridge construction, which can take months or even years.
Yes, modular bridges can be designed to withstand extreme weather conditions. Engineers can incorporate specific features such as enhanced structural supports, weather-resistant materials, and design modifications to ensure stability and safety in environments prone to heavy snow, high winds, or seismic activity.
Absolutely. Modular bridges can be engineered to support heavy vehicular traffic by using reinforced materials and appropriate design techniques. The load capacity can be customized based on the expected traffic, making them suitable for highways, industrial areas, and other locations with significant vehicle loads.
Modular bridges offer several environmental benefits, including reduced construction waste due to prefabrication, minimized disruption to the surrounding ecosystem during installation, and the potential use of sustainable materials. Their ability to be relocated and reused also contributes to a lower overall environmental impact compared to traditional bridge construction methods.
