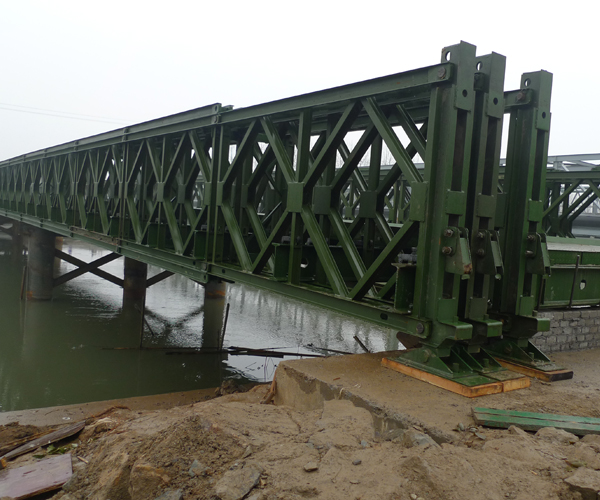

From the artillery fire of the Normandy landings in WWII, to the ruins of the Wenchuan earthquake, across raging African rivers—one golden steel bridge has always been the first to open lifelines. This is the 321 Bailey Steel Bridge, invented by British engineer Donald Bailey in 1941.
Key Specifications:
Maximum Span: 69m (reinforced version)
Load Capacity: 50-ton tracked vehicles / 20-ton wheeled vehicles
Deployment Speed: 30m span can be assembled in 8 hours by professionals
Service Life: 5 years (military) / 30 years (civilian), reusable 3-5 times
Three Core Advantages:
1. LEGO-like Assembly
Composed of standard 3m×1.5m truss units, expandable longitudinally/laterally into single/double-layer or reinforced configurations. During the 2013 Ya'an earthquake, Chinese armed police bridged an 80m chasm in 12 hours using 321 Bailey components.
2. All-Weather Performance
Operates reliably from -40°C to 60°C. Zinc-coated steel resists oceanic salt spray—some Middle Eastern deployments have endured sandstorms for 15 years.
3. Unmatched Cost Efficiency
60% cheaper than cast-in-place concrete bridges, with 90% steel recyclability. A Congolese gold mine used second-hand Bailey bridges for transport routes at 1/3 the cost of new construction (2022).
Military Upgrades:
US ACB (Armored Vehicle Launched Bridge) deploys lightweight Bailey modules to cross 12m trenches in 3 minutes
China's ZB-200 with hydraulic locks improves deployment speed by 40%
Civilian Innovations:
Ecotourism: Tiger Leaping Gorge (Yunnan) integrates Bailey structures with glass platforms for industrial-chic vistas
Disaster Readiness: Japanese prefectures stockpile 200m Bailey sets—restored island access within 6 hours during 2023 Typhoon Nanmadol
Logistics: JD.com used Bailey modules for temporary sorting hubs during 2021 Singles' Day
Instant Response: Inventory components ship within 24h—20x faster than traditional bidding
Limitless Configurations: From 3m footbridges to 60m highway spans
Zero-Skill Assembly: Foolproof manuals enable militia teams to operate after 1-day training
Asset Value: Active secondary market with >50% residual value
Global Compliance: Meets 12 international standards including NATO STANAG 2021
While Germany showcases 3D-printed bridges, the Bailey quietly evolves:
Smart Monitoring: Embedded strain sensors with real-time mobile alerts
Carbon Fiber Prototypes: 60% lighter versions undergoing US military tests
Space Ambitions: NASA lists Bailey derivatives as lunar base bridge candidates
