Truss bridges are a common type of bridge design that utilize a series of interconnected triangles to distribute loads efficiently. Understanding the placement and function of triangle trusses within this structure is essential for grasping how these bridges work and their advantages over other types of bridges. This article will explore the components of truss bridges, focusing on the triangle trusses, their locations, functions, and significance in bridge engineering.
A truss bridge consists of various structural elements that work together to support loads. The primary components include:
- Top Chords: These are the upper horizontal members of the truss, typically under compression when loads are applied.
- Bottom Chords: These are the lower horizontal members, which usually experience tension.
- Web Members: These include diagonal and vertical members that connect the top and bottom chords. They play a crucial role in transferring forces throughout the structure.
The configuration of these elements forms triangular shapes, which is where the term "truss" originates. The triangular geometry is fundamental because it allows for efficient load distribution, making truss bridges both strong and lightweight.
The triangle trusses are specifically formed by the web members connecting the top and bottom chords. This arrangement creates a series of triangles that help distribute loads evenly across the bridge.
In a typical truss bridge, triangle trusses can be found throughout the webbing, often arranged in repeating patterns. The most common designs include:
- Pratt Truss: Characterized by diagonal members that slope towards the center, creating a series of triangles pointing downwards.
- Warren Truss: Features equilateral triangles throughout its design, providing uniform load distribution.
- Howe Truss: Similar to the Pratt but with diagonals sloping towards the ends, creating triangles pointing upwards.
These designs illustrate how triangle trusses are strategically placed to optimize strength and stability while minimizing material use.
Triangle trusses are vital for several reasons:
- Load Distribution: The triangular configuration allows forces to be distributed evenly across the structure, reducing stress on individual components.
- Material Efficiency: By using triangles, engineers can create lighter structures without sacrificing strength. This efficiency is particularly important in large spans where weight becomes a critical factor.
- Stability and Rigidity: Triangles inherently provide stability; they cannot be deformed without changing the length of their sides. This property ensures that truss bridges maintain their shape under various loads.
When a load is applied to a truss bridge, it creates forces that travel through the structure. The top chords experience compression while the bottom chords experience tension. The diagonal web members (the triangle trusses) then transfer these forces between the top and bottom chords.
The load's effect can be visualized as follows:
- Compression in Top Chords: When weight is applied to the bridge deck, it pushes down on the top chords.
- Tension in Bottom Chords: As the top chords compress, they pull on the bottom chords.
- Force Transfer through Web Members: The diagonal members (triangle trusses) carry these forces across to balance out stress within the structure.
This system allows truss bridges to efficiently handle heavy loads over long spans without excessive material usage.
Understanding how triangle trusses function also requires knowledge about different types of loads that affect truss bridges:
- Dead Loads: These are permanent static forces acting on a structure due to its own weight and any other fixed elements like railings or pavement.
- Live Loads: These are dynamic forces resulting from vehicles or pedestrians crossing the bridge. Live loads can vary significantly over time and must be accounted for in design calculations.
- Environmental Loads: These include wind pressure, snow accumulation, seismic activity, and temperature changes that can affect bridge integrity.
Each type of load interacts with triangle trusses differently, requiring careful consideration during design and construction to ensure safety and longevity.
When designing triangle trusses for a bridge, several factors must be taken into account:
- Material Selection: Engineers must choose materials that provide sufficient strength while minimizing weight. Common materials include steel for its high tensile strength and wood for its aesthetic appeal in smaller structures.
- Truss Configuration: Different configurations can influence how effectively loads are distributed. Engineers often perform simulations and calculations to determine which design will perform best under expected conditions.
- Span Lengths and Heights: The length between supports (span) and the height of the truss affect its load-carrying capacity. Longer spans may require deeper or more complex trusses to maintain structural integrity.
Maintaining triangle trusses is crucial for ensuring their longevity and safety. Regular inspections should focus on:
- Corrosion Protection: For steel structures, protective coatings can prevent rusting.
- Joint Integrity: Connections between members should be checked for wear or damage.
- Load Monitoring Systems: Advanced technologies can monitor real-time stress levels within the structure to predict potential failures before they occur.
Effective maintenance practices not only prolong the life of a bridge but also enhance public safety by preventing catastrophic failures.

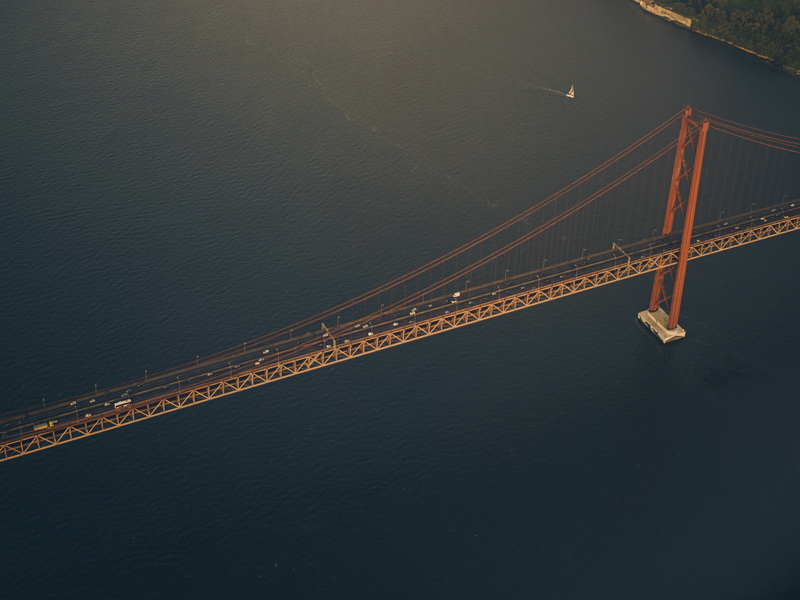

Several iconic bridges around the world showcase effective use of triangle trusses:

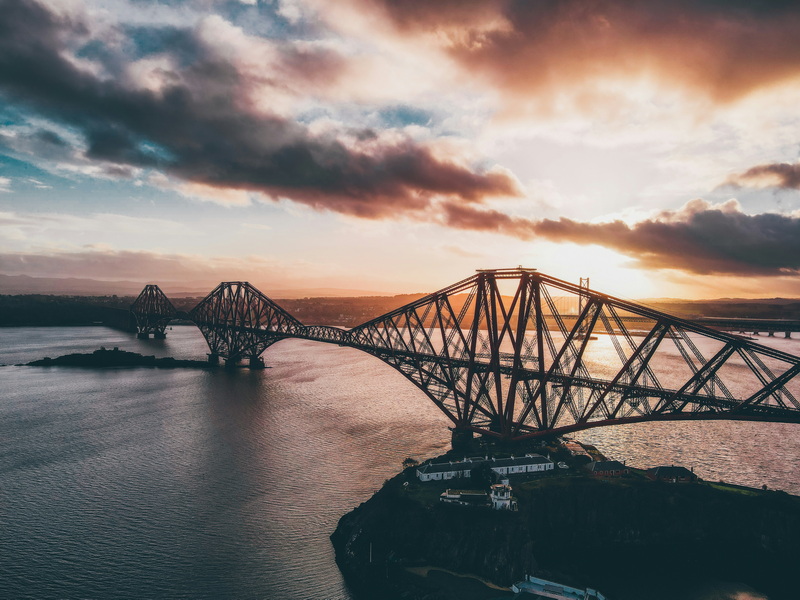

- The Forth Bridge (Scotland): A cantilever railway bridge known for its distinctive red color and intricate lattice structure composed primarily of steel triangle trusses.
- The Brooklyn Bridge (USA): Although primarily known for its suspension design, it incorporates elements of triangular bracing in its towers that support significant loads.
- The Quebec Bridge (Canada): Once considered one of the longest cantilevered bridges in the world, it features extensive use of triangular configurations to manage immense loads across its span.
These examples demonstrate how effective design using triangle trusses can lead to both functional and visually striking structures that stand the test of time.
As technology advances, so does bridge design. Innovations such as computer-aided design (CAD) software allow engineers to simulate various stress scenarios on triangle trusses before construction begins. This predictive modeling helps identify potential weaknesses in designs early on, enabling adjustments that enhance overall safety and performance.
Additionally, new materials such as fiber-reinforced polymers (FRP) are being explored for use in truss bridges due to their high strength-to-weight ratio and resistance to corrosion. These materials could potentially reduce maintenance costs while extending service life compared to traditional materials like steel or concrete.
In recent years, there has been an increasing emphasis on sustainability within civil engineering projects, including bridge construction. Engineers are now considering environmental impacts during both construction and operation phases.
For instance, selecting materials with lower carbon footprints or designing bridges that minimize disruption to local ecosystems can significantly contribute to environmental conservation efforts. Moreover, incorporating renewable energy sources like solar panels into bridge designs has become an emerging trend aimed at reducing reliance on non-renewable energy during maintenance operations.
Looking ahead, several trends are likely to shape the future of truss bridge engineering:
- Smart Bridges: The integration of sensors into bridge designs will allow real-time monitoring of structural health and traffic patterns. This data-driven approach enables proactive maintenance strategies rather than reactive ones.
- Modular Construction Techniques: Prefabricated sections could streamline construction processes while ensuring consistent quality control across components.
- Adaptive Designs: Future designs may incorporate adjustable elements capable of responding dynamically to changing load conditions or environmental factors such as wind or seismic activity.
- Enhanced Aesthetics through Design Innovation: As urban areas continue to grow densely populated with infrastructure demands increasing simultaneously; aesthetically pleasing yet functional designs will become paramount in urban planning discussions surrounding new constructions like bridges.
By embracing these trends alongside traditional principles rooted in effective load distribution via triangle trusses; engineers will continue pushing boundaries toward safer more efficient structures capable meeting modern transportation needs while respecting environmental concerns inherent within today's society!
Triangle trusses are integral to the design and functionality of truss bridges. Their unique geometric properties allow for effective load distribution, material efficiency, and structural stability. Understanding where these triangle trusses are located within a bridge's framework provides insight into their importance in engineering and construction practices.
As we continue to innovate in bridge design, recognizing the role of triangle trusses will remain essential for developing safe and efficient structures capable of meeting modern transportation needs. With ongoing advancements in materials science and engineering techniques, future designs will likely push boundaries further while maintaining safety standards rooted in traditional principles like those exemplified by triangle trusses.
A truss bridge is a type of bridge that uses interconnected triangular units to support loads effectively.
Triangles provide stability and distribute loads evenly due to their geometric properties, making them ideal for structural applications.
Common types include Pratt, Warren, Howe, and Bowstring trusses, each with distinct configurations for load distribution.
Triangle trusses allow for efficient transfer of forces between components, enabling bridges to carry heavier loads without increasing material use significantly.
Triangle trusses can be made from various materials including steel, wood, or reinforced concrete depending on design requirements and environmental conditions.
