Highway construction projects often face challenges that require innovative, flexible, and rapid solutions. Among the most reliable and versatile tools in the civil engineer's arsenal is the Bailey bridge—a modular, prefabricated truss bridge system originally developed for military use but now widely adopted in civil engineering. This article explores in depth when and why Bailey bridges are the optimal choice for highway construction, examining their history, design, advantages, deployment scenarios, and practical considerations for modern infrastructure projects.
The Bailey bridge was conceived during World War II by Sir Donald Bailey as a solution to the urgent need for quickly deployable, robust bridges that could support heavy military traffic. Its modular, prefabricated components allowed for assembly without specialized equipment, enabling rapid deployment in the field. Over time, the Bailey bridge transitioned from a military asset to a staple in civil engineering, especially for temporary or emergency highway crossings.

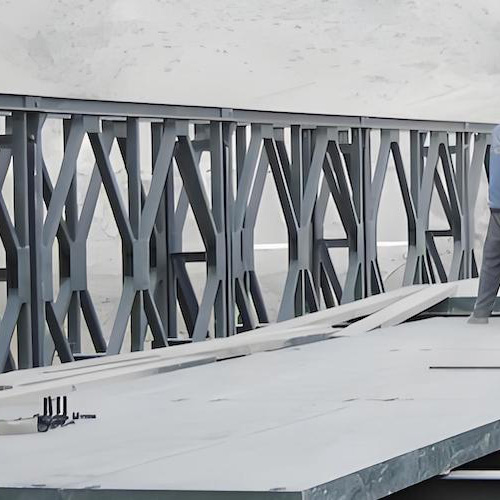

Bailey bridges are characterized by their modular truss panels, which can be easily transported and assembled on-site. The basic components include:
- Side Panels: Provide the main load-bearing structure.
- Transoms: Cross beams that support the deck.
- Stringers: Longitudinal beams running parallel to the traffic flow.
- Decking: The surface for vehicles and pedestrians, typically made of timber or steel.
The modular design allows for customization of span length and load capacity by varying the number and arrangement of panels and beams. This flexibility is a key reason for their continued relevance in modern construction.
One of the most significant advantages of Bailey bridges is their ability to be assembled quickly, often in a matter of days. This speed is crucial in scenarios where restoring connectivity is urgent, such as after a natural disaster or when a permanent bridge is under repair.
Bailey bridges are designed for easy transportation. All components can be moved by standard trucks and assembled with basic tools, making them ideal for remote or difficult-to-access locations. The modular nature also means that bridges can be lengthened, shortened, or reinforced as needed.
Compared to traditional bridge construction, Bailey bridges require less labor, equipment, and time. This results in lower overall costs, both in terms of initial construction and long-term maintenance. Their reusability further enhances their cost-effectiveness, as components can be dismantled and redeployed elsewhere.
Bailey bridges can be adapted for a wide range of uses, from pedestrian walkways to heavy-duty vehicular crossings. Their design accommodates various span lengths and load requirements, making them suitable for both temporary and semi-permanent installations.
Despite their lightweight, modular construction, Bailey bridges are engineered to support substantial loads, including heavy trucks and construction equipment. Their steel components are designed to withstand harsh environmental conditions, ensuring longevity even in demanding settings.
Bailey bridges are the go-to solution when natural disasters such as floods, earthquakes, or landslides destroy or damage existing infrastructure. Their rapid assembly allows for the swift restoration of transportation routes, which is critical for emergency response and relief efforts.
During major highway reconstruction or maintenance, traffic flow must be maintained. Bailey bridges serve as temporary detours, allowing vehicles and pedestrians to bypass construction zones safely and efficiently. This minimizes disruption and keeps essential routes open.
In areas where conventional bridge-building equipment cannot be easily transported, Bailey bridges offer a practical alternative. Their components can be carried to the site using smaller vehicles or even by hand in extreme cases, making them ideal for rural or mountainous regions.
While their primary application has shifted to civil projects, Bailey bridges remain vital for military logistics, enabling the rapid movement of troops and equipment across challenging terrain.
When existing bridges require major repairs or upgrades, Bailey bridges can be installed temporarily to maintain connectivity. This is especially valuable for highways that serve as critical supply or evacuation routes.
The first step involves a thorough assessment of the site, including soil conditions, span requirements, and anticipated load. Environmental and logistical factors are considered to determine the optimal bridge configuration.
A stable foundation is essential for any bridge. Depending on the site, this may involve constructing concrete abutments or using existing structures. The foundation must be capable of supporting the bridge and the expected traffic loads.

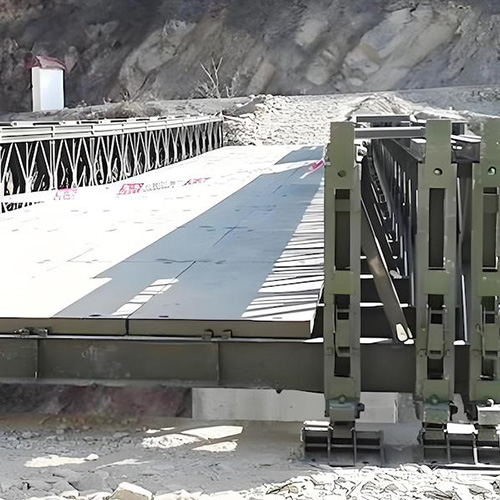

Bailey bridge components are delivered to the site and assembled according to the required configuration. Side panels are connected to form the truss, transoms and stringers are installed, and the deck is laid. The modular nature of the system allows for assembly with minimal equipment.
Once the main structure is assembled, it is positioned over the span, often using rollers or cranes. Final adjustments are made to ensure alignment and stability. Safety features such as guardrails and lighting may also be added.
Before opening the bridge to traffic, a thorough inspection is conducted to verify structural integrity and safety. Any necessary adjustments or reinforcements are made at this stage.
Bailey bridges have played a pivotal role in restoring connectivity after hurricanes, floods, and earthquakes worldwide. Their rapid deployment has enabled emergency services to reach affected areas quickly, delivering aid and facilitating evacuations.
In many countries, Bailey bridges have been used to maintain traffic flow during the replacement or repair of permanent bridges. For example, when a major highway bridge collapses or is closed for repairs, a Bailey bridge can be installed within days, minimizing disruption to commuters and freight transport.
In regions with limited infrastructure, Bailey bridges provide essential links to education, healthcare, and markets. Their adaptability allows for installation in challenging terrains where traditional bridges would be impractical or prohibitively expensive.
Bailey bridges are designed to support a range of loads, from light pedestrian traffic to heavy vehicles. The configuration of panels and beams can be adjusted to meet specific requirements, but careful engineering analysis is essential to ensure safety.
The modular design allows for customization of span length. However, extremely long spans may require additional supports or piers, which can complicate installation in certain environments.
While Bailey bridges are durable, regular inspection and maintenance are necessary to ensure continued safe operation, especially for installations intended to remain in place for extended periods.
Construction of Bailey bridges must comply with local regulations and environmental guidelines. This includes obtaining necessary permits and conducting impact assessments as required.
Advancements in materials and assembly techniques continue to enhance the performance and versatility of Bailey bridges. The integration of robotic assembly systems and drones is streamlining construction processes, further reducing deployment times and labor requirements. Additionally, improvements in corrosion-resistant coatings and modular design are extending the lifespan and reducing maintenance needs of these bridges.
Bailey bridges have stood the test of time as a versatile, cost-effective, and rapid solution for highway construction projects. Their unique combination of modularity, strength, and adaptability makes them indispensable in emergency situations, remote locations, and as temporary detours during major infrastructure works. As technology advances, the efficiency and utility of Bailey bridges will only continue to grow, ensuring their place in the future of civil engineering and highway construction.
Bailey bridges offer rapid deployment, cost-effectiveness, portability, and flexibility. Their modular design allows for quick assembly and disassembly, making them ideal for temporary or emergency applications. They can support a wide range of loads and span various distances, making them suitable for diverse highway construction needs.
The assembly time for a Bailey bridge depends on the span length, site conditions, and available manpower. In many cases, a standard Bailey bridge can be assembled within a few days, while more complex configurations may take longer. The use of prefabricated components and simple assembly techniques significantly reduces construction time compared to traditional bridges.
While Bailey bridges are primarily designed for temporary or semi-permanent use, they can be adapted for permanent installations with proper engineering and maintenance. Factors such as load requirements, environmental conditions, and regulatory standards must be considered when using a Bailey bridge as a long-term solution.
Regular inspection and maintenance are essential for ensuring the safety and longevity of a Bailey bridge. This includes checking for signs of corrosion, wear, or damage to structural components, tightening bolts and connections, and ensuring the deck and safety features are in good condition. Proper maintenance can extend the service life of the bridge significantly.
Bailey bridges may not be suitable for extremely long spans without intermediate supports, locations with exceptionally high traffic volumes over extended periods, or environments with aggressive corrosion factors unless additional protective measures are implemented. In such cases, alternative bridge designs may be more appropriate.
