What Size Cable for A Pedestrian Foot Bridge?

Views: 222     Author: Astin     Publish Time: 2025-03-22      Origin: Site

Inquire

wechat sharing button
line sharing button
twitter sharing button
facebook sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

Introduction to Pedestrian Footbridges

Factors Influencing Cable Size

Cable Materials and Specifications

Design Considerations for Small Cable Suspension Bridges

Case Studies and Examples

Advanced Engineering Techniques

Maintenance and Inspection

Conclusion

FAQs

>> 1. What is the typical load capacity for pedestrian bridges?

>> 2. How do environmental conditions affect cable size?

>> 3. What safety factor is typically applied to cable strengths?

>> 4. What materials are commonly used for bridge cables?

>> 5. How does cable sag affect the design of a suspension bridge?

Citations:

When designing a pedestrian footbridge, selecting the appropriate size of cable is crucial for ensuring the structural integrity and safety of the bridge. The choice of cable size depends on several factors, including the span length, load capacity, and environmental conditions. In this article, we will delve into the key considerations for determining the correct cable size for a pedestrian footbridge.

can gout affect the bridge of your foot_2

Introduction to Pedestrian Footbridges

Pedestrian footbridges are structures designed to facilitate safe passage for pedestrians over obstacles such as rivers, roads, or other barriers. They can be constructed using various materials and designs, including beam bridges, truss bridges, arch bridges, cable-stayed bridges, and suspension bridges. The type of bridge chosen often depends on the span length, local building codes, and aesthetic preferences. For instance, cable-stayed bridges are popular for their sleek appearance and ability to span longer distances, while suspension bridges are often used for even longer spans where aesthetics and cost are balanced.

Factors Influencing Cable Size

1. Span Length: The length of the bridge span significantly affects the cable size. Longer spans require larger and stronger cables to support the dead load of the bridge and any additional live loads from pedestrians. For example, a bridge spanning a river might need larger cables than one crossing a small stream.

2. Load Capacity: Pedestrian bridges are typically designed for a uniform load of 85 to 90 pounds per square foot (psf), depending on the design specifications and local regulations. The load capacity influences the required strength and size of the cables. In areas with high foot traffic or where the bridge might also support bicycles or maintenance vehicles, the load capacity needs to be adjusted accordingly.

3. Cable Sag: The sag of the cable, usually between 8% and 12% of the span length, impacts the cable's tension and, consequently, its size. Proper sag ensures that the cable can support the intended loads without excessive stress. Incorrect sag can lead to structural issues, such as increased stress on the anchorages or reduced stability under wind loads.

4. Environmental Conditions: Wind, snow, and other environmental factors can affect the bridge's stability and must be considered when sizing the cables. Lateral bracing or sway cables may be necessary to mitigate these forces. For instance, in areas prone to strong winds, additional structural elements might be required to prevent excessive vibration or sway.

5. Safety Factor: A safety factor, often greater than 3.0, is applied to ensure that the cables can withstand unexpected loads or failures. This means the minimum breaking strength of the cable must be significantly higher than the calculated maximum tension. This safety margin is crucial for ensuring the bridge remains safe under various conditions.

Cable Materials and Specifications

Cables for pedestrian bridges are typically made from galvanized steel strands. For small suspension bridges, a standard galvanized steel bridge strand with a diameter of 1/2 inch and a minimum breaking strength of 30 kips is commonly used for hangers due to aesthetics and availability. For main cables, larger strands such as those with a diameter of 1 1/4 inches and a breaking strength of 96 tons (192 kips) may be required. The choice of material and size depends on the specific design requirements and environmental conditions.

Design Considerations for Small Cable Suspension Bridges

Small cable suspension bridges, often used in rural or trail settings, require careful design to ensure safety and durability. These bridges typically have a simpler design compared to larger suspension bridges but still need to adhere to basic engineering principles:

- Cable Sag and Geometry: Ensuring the correct sag is crucial for maintaining structural integrity.

- Load Capacity: Designing for pedestrian loads and potential additional loads like snow or small vehicles.

- Safety Factors: Applying a safety factor to cable strengths to account for unexpected loads.

- Aesthetics: Balancing functionality with visual appeal, especially in scenic areas. The design should complement the surrounding environment while ensuring safety and functionality.

Case Studies and Examples

1. Älvsbacka Bridge: This cable-stayed timber footbridge in Sweden highlights the importance of dynamic design considerations for longer spans. The bridge's design accounted for vibrations caused by pedestrian traffic, demonstrating the need for advanced engineering techniques in modern footbridge construction. The use of timber as a primary material also showcases the potential for sustainable and aesthetically pleasing designs.

2. Rattlesnake Creek Bridge: This small cable suspension bridge illustrates the application of simple yet effective design methods for small bridges. The use of standard galvanized steel strands and careful calculation of cable forces ensure the bridge's stability and safety. This example demonstrates how basic engineering principles can be applied effectively in smaller projects.

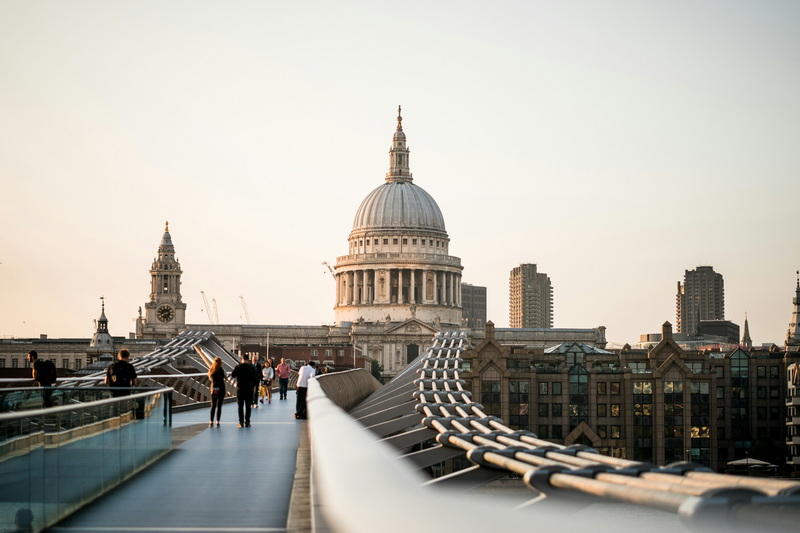

3. Millennium Bridge: Located in London, this cable-stayed bridge is a prominent example of modern engineering and design. While not exclusively a pedestrian bridge, it showcases how cable-stayed designs can be both functional and visually striking. The bridge's unique design and construction highlight the importance of balancing aesthetics with structural integrity.

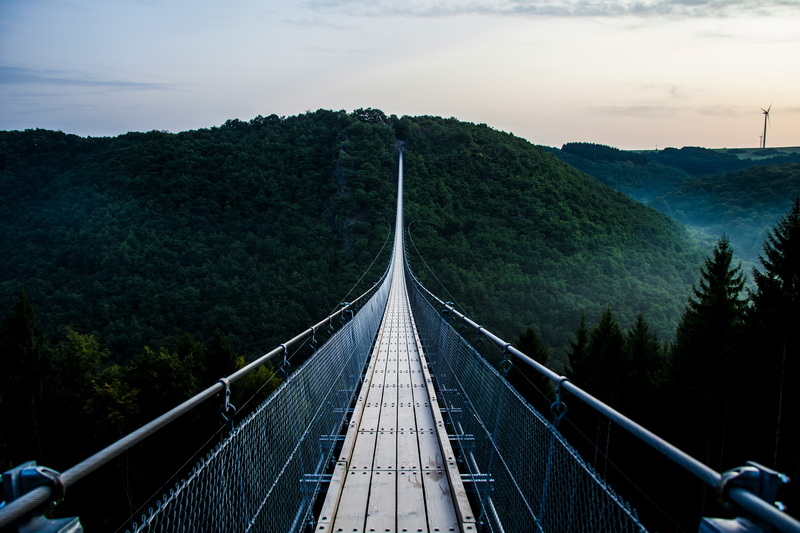

can gout affect the bridge of your foot_1

Advanced Engineering Techniques

Modern pedestrian bridges often incorporate advanced engineering techniques to enhance safety, durability, and aesthetics. These include:

- Dynamic Analysis: This involves studying how the bridge responds to dynamic loads such as wind or pedestrian traffic. Advanced software tools are used to simulate these conditions and optimize the design.

- Material Innovation: New materials and technologies, such as fiber-reinforced polymers (FRP), are being explored for their potential to reduce weight and increase durability.

- Sustainable Design: There is a growing emphasis on sustainable design practices, including the use of recycled materials and minimizing environmental impact during construction.

Maintenance and Inspection

Regular maintenance and inspection are critical for ensuring the longevity and safety of pedestrian bridges. This includes:

- Visual Inspections: Regular visual checks for signs of wear or damage.

- Structural Testing: Periodic testing to assess the structural integrity of the cables and other components.

- Corrosion Protection: Ensuring that protective coatings remain effective to prevent corrosion of metal components.

Conclusion

Selecting the appropriate cable size for a pedestrian footbridge is a complex process that involves careful consideration of span length, load capacity, environmental conditions, and safety factors. By understanding these factors and applying established engineering principles, designers can create safe and durable bridges that meet both functional and aesthetic requirements. The integration of advanced engineering techniques and sustainable design practices further enhances the potential for innovative and effective bridge designs.

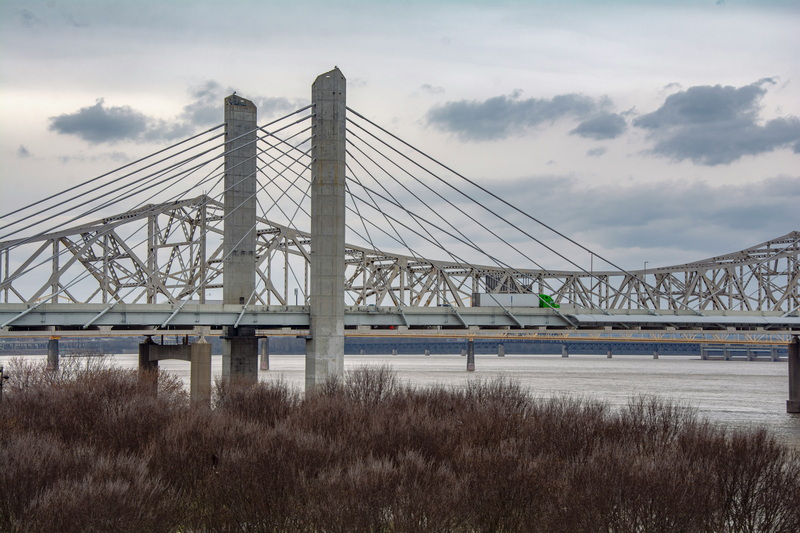

can gout affect the bridge of your foot_3

FAQs

1. What is the typical load capacity for pedestrian bridges?

Pedestrian bridges are generally designed for a uniform load of 85 to 90 psf, depending on the specific design guidelines and local regulations.

2. How do environmental conditions affect cable size?

Environmental conditions such as wind and snow can impact the stability of the bridge, necessitating larger cables or additional structural elements like sway cables to mitigate these forces.

3. What safety factor is typically applied to cable strengths?

A safety factor greater than 3.0 is commonly applied to ensure that cables can withstand unexpected loads or failures.

4. What materials are commonly used for bridge cables?

Galvanized steel strands are the most common material used for bridge cables due to their strength and durability.

5. How does cable sag affect the design of a suspension bridge?

Cable sag, typically between 8% and 12% of the span length, affects the tension in the cable and must be carefully calculated to ensure structural integrity.
