Truss bridges represent a cornerstone in the history of civil engineering, offering efficient and reliable solutions for spanning gaps and overcoming obstacles. These bridges, characterized by their distinctive network of interconnected elements forming triangular units, have been employed across diverse landscapes and for various purposes, from carrying vehicular traffic to supporting railway lines and pedestrian walkways. The inherent strength and stability of truss bridges stem from their ability to distribute loads effectively through the truss structure, making them a popular choice for engineers and designers seeking robust and cost-effective bridge solutions.
The question of which type of truss bridge is the strongest is not straightforward, as the optimal choice depends on a multitude of factors, including the span length, load requirements, material considerations, and site-specific conditions. Different truss configurations, such as the Pratt, Howe, Warren, and K trusses, offer unique advantages and are suited for different applications. Understanding the characteristics of each truss type is crucial for making informed decisions and selecting the most appropriate design for a given project.
In this article, we will delve into the world of truss bridges, exploring the fundamental principles behind their design, the various types of truss configurations, and the factors that influence their strength and performance. We will also examine real-world examples of iconic truss bridges and discuss the latest advancements in truss bridge technology. By the end of this article, you will have a comprehensive understanding of truss bridges and be equipped to answer the question, "What kind of truss bridge is the strongest?"

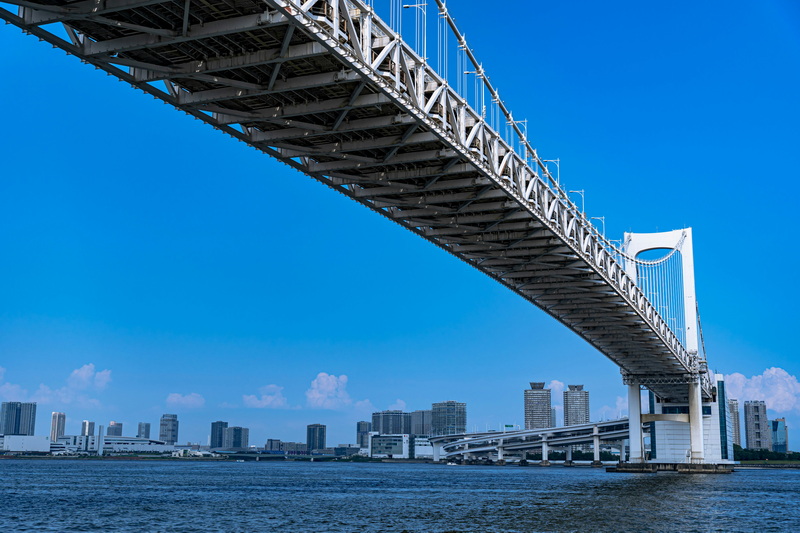

A truss bridge is a type of bridge whose load-bearing superstructure consists of interconnected elements forming triangular units designed for efficient load distribution. The triangular shape is inherently stable, as it distributes forces evenly across all three sides, minimizing the risk of structural failure.
A typical truss bridge comprises the following key components:
- Top and bottom chords: These are the horizontal members that form the upper and lower boundaries of the truss. They resist bending forces and transfer loads to the supports.
- Vertical members: These are the vertical elements that connect the top and bottom chords. They primarily resist compressive forces.
- Diagonal members: These are the inclined elements that connect the top and bottom chords. They resist both tensile and compressive forces, providing additional stability to the truss structure.
Truss bridges are designed to distribute loads efficiently through the truss structure. When a load is applied to the bridge, it is transferred to the top chord, which then distributes the load to the vertical and diagonal members. These members, in turn, transfer the load to the bottom chord and the supports.
The arrangement of the vertical and diagonal members determines how the loads are distributed and the overall strength of the truss bridge. Different truss configurations, such as the Pratt, Howe, Warren, and K trusses, offer unique load distribution characteristics and are suited for different applications.
There are many varieties of trusses; however, there are four commonly used truss-styles, including the Warren, Pratt, Howe, and K Truss. Each style contains the same basic truss structure, which includes top and bottom chords (horizontal members) and multiple vertical and diagonal members between the chords that are put together into triangular shapes which helps to strengthen the bridge. The visual difference between the styles is the arrangement of the various vertical, horizontal, and diagonal members. The top and bottom chords control how the compression and tension are distributed.
The Pratt truss is characterized by its diagonal members sloping towards the center of the bridge. Vertical members are in compression, while diagonal members are in tension. This design is particularly well-suited for long spans and heavy loads.
The Howe truss features diagonal members sloping away from the center of the bridge. Diagonal members are in compression, and vertical members are in tension. This design is often used for shorter spans and lighter loads.
The Warren truss consists of equilateral triangles and does not use vertical members. Compression and tension are alternated between the members. Warren trusses are efficient and require less material, making them suitable for spans between 50 and 250 feet. Warren trusses excel in situations where minimizing weight without sacrificing strength is essential.
The K truss incorporates smaller length diagonal and vertical members. Vertical members are in compression, and diagonal members are in tension. The smaller sections help to eliminate the bridge's tension. This design provides extra support, making it effective for heavy load situations and longer spans.
Several factors influence the strength and performance of truss bridges, including:
- Design Efficiency: The arrangement of truss members plays a crucial role in load distribution and overall strength. Pratt trusses tend to perform better under longer spans due to their efficient load distribution capabilities.
- Material Selection: The choice of materials significantly affects the load-bearing capacity of the bridge. Steel generally offers higher load capacities compared to wood. Common materials include steel (for high strength-to-weight ratios), wood (for lighter applications), aluminum (for lightweight structures), and fiber-reinforced polymer (FRP) which offers corrosion resistance along with durability.
- Span Length: The distance between supports affects the stresses and strains on the truss members. Longer spans require stronger and more robust designs.
- Load Requirements: The anticipated loads, including vehicular traffic, pedestrian traffic, and environmental factors, must be considered in the design process. Railway Bridges often utilize Pratt or Warren designs due to their ability to handle heavy loads over long distances. Pedestrian Bridges frequently employ lighter designs like Howe or K trusses where weight restrictions exist but still require sufficient strength for safety.
- Site Conditions: Soil conditions, wind patterns, and seismic activity can all impact the stability and performance of the bridge.
Numerous truss bridges around the world stand as testaments to the ingenuity and skill of civil engineers. Some notable examples include:
- Pakokku Bridge (Myanmar): With a total length of 6,278 meters (20,597 feet), it is recognized as one of the longest continuous truss bridges globally and significantly enhances connectivity in Myanmar.
- Astoria-Megler Bridge (USA): With a total length of 6,545 meters (21,474 feet), it is known for its massive steel structure capable of supporting heavy traffic loads while providing reliable service across challenging terrain.
- Forth Bridge (Scotland): With a total length of approximately 2,528 meters (8,301 feet), it is a UNESCO World Heritage site famous for its cantilever design and showcases how trusses can be utilized effectively in large-scale projects.
- Quebec Bridge (Canada): With a total length of approximately 3,200 meters (10,500 feet), it was initially designed as a cantilever bridge but completed as an arch bridge after two collapses during construction and remains an engineering marvel due to its innovative use of materials.
Advancements in materials, design techniques, and construction methods have led to significant improvements in truss bridge technology. Some notable advancements include:
- Fiber-Reinforced Polymer (FRP) Composites: FRP materials offer high strength-to-weight ratios, corrosion resistance, and durability, making them ideal for truss bridge construction.
- Computational Modeling: Engineers use sophisticated software to simulate various load scenarios and optimize truss designs before construction begins.
- Prefabrication: Prefabricating truss components in a controlled environment can improve construction efficiency and reduce costs.
Determining which type of truss bridge is the strongest involves evaluating various factors such as design efficiency, material selection, application context, and structural integrity under different loading conditions. While specific designs like Pratt or Warren may excel in particular scenarios—such as longer spans or heavier loads—the overall effectiveness depends on careful engineering analysis tailored to meet project requirements effectively.
While no single design universally outperforms others across all scenarios, Pratt trusses often excel in longer spans due to their efficient load distribution capabilities compared with Howe or Warren designs depending on specific applications required by engineers during construction phases!
Engineers incorporate safety factors into their designs based on expected loads while conducting thorough inspections throughout construction phases ensuring compliance with established standards before opening them up for public use!
As technology advances and materials improve over time—leading towards innovative solutions—we can anticipate further enhancements in both design capabilities and performance metrics associated with modern-day constructions involving these robust structures known as trusses!
Answer: The four commonly used truss-styles include the Warren, Pratt, Howe, and K Truss.
Answer: Truss bridges use a network of interconnected elements forming triangular units designed for efficient load distribution.
Answer: Triangles are inherently stable shapes; when force is applied, they distribute that force evenly across all three sides. This means that no single member of the truss bears an excessive load, reducing the risk of structural failure.
Answer: Common materials include steel (for high strength-to-weight ratios), wood (for lighter applications), aluminum (for lightweight structures), and fiber-reinforced polymer (FRP) which offers corrosion resistance along with durability.
Answer: Notable examples include Pakokku Bridge (Myanmar), Astoria-Megler Bridge (USA), Forth Bridge (Scotland), Quebec Bridge (Canada)—each showcasing unique strengths tailored towards specific applications!
