Building bridges with LEGO is a captivating way to explore engineering, creativity, and problem-solving. Among the various bridge types, the truss bridge stands out for its unique use of triangles, which provide exceptional strength and stability. In this comprehensive guide, we will delve into the principles of truss bridge engineering, compare popular truss designs, and provide step-by-step strategies for constructing the most robust LEGO truss bridge possible. Whether you are a hobbyist, educator, or aspiring engineer, this article will equip you with the knowledge and inspiration to build the best LEGO truss bridge.

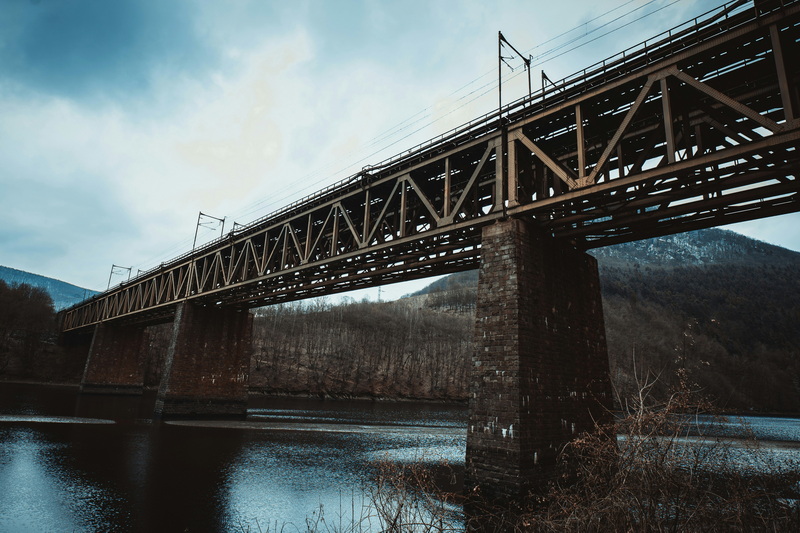

A truss bridge is a structure that uses a framework of interconnected triangles to distribute loads efficiently. The triangle is the key geometric shape in truss bridges because it maintains its shape under pressure, unlike squares or rectangles, which can deform. This makes truss bridges ideal for spanning long distances and supporting heavy loads, both in real-world engineering and in LEGO constructions.
Triangles are the strongest shape in engineering. When force is applied to a triangle, it is evenly distributed along its sides, preventing bending and maintaining structural integrity. In a truss bridge, this means the weight of the load is transferred efficiently from the bridge deck to the supports, minimizing the risk of collapse.
There are several classic truss designs, each with its own advantages:
- Warren Truss: Features a series of equilateral triangles. It is simple, strong, and efficient for evenly distributed loads.
- Pratt Truss: Uses vertical and diagonal members, with diagonals slanting towards the center. It is excellent for longer spans and variable loads.
- Howe Truss: Similar to Pratt but with diagonals slanting away from the center, making it better for heavier loads at the ends.
- K Truss: Uses a K-shaped pattern, providing extra rigidity and support for longer spans.
Each design can be replicated with LEGO, but some are more suitable for specific applications or available LEGO pieces.
A successful LEGO truss bridge must distribute the weight of the load (such as LEGO cars or trains) evenly across the entire structure. This is achieved by:
- Placing strong supports at each end (the abutments)
- Using multiple layers of bricks to increase strength
- Ensuring that the truss framework is securely connected to the bridge deck
LEGO offers a variety of bricks and Technic pieces. For maximum strength:
- Use long Technic beams for the main chords (top and bottom of the truss)
- Reinforce connections with Technic pins and connectors
- Use standard bricks for the deck and support towers
- Overlap bricks to avoid weak points
The length and height of your bridge will affect its strength. A longer span requires a stronger truss framework, while a taller bridge may need additional bracing to prevent wobbling.
Before building, sketch your bridge and decide on the type of truss you want to use. For most LEGO builders, the Warren truss is a great starting point due to its simplicity and effectiveness.
Key Considerations:
- Desired length and width (e.g., 64 studs long, 12 studs wide)
- Type of load (cars, trains, or just for display)
- Available LEGO pieces
Start by building a sturdy base or abutments at each end. These should be at least five bricks tall and wide enough to support the bridge deck.
- Use multiple layers of bricks for added strength
- Ensure the base is stable and does not wobble
The deck is the flat surface that vehicles will cross. For added rigidity:
- Use long plates or Technic beams as the main deck
- Overlap bricks and plates to avoid weak joints
- Add cross-bracing underneath for extra support
This is the most critical step. Build two identical truss sides using your chosen pattern (e.g., Warren truss with equilateral triangles).
- Use Technic beams for the top and bottom chords
- Connect the chords with vertical and diagonal beams to form triangles
- Secure the joints with Technic pins or connectors
Carefully attach the truss sides to the deck using Technic connectors or by embedding studs into the deck.
- Ensure the trusses are parallel and evenly spaced
- Add horizontal beams between the trusses for lateral stability
To maximize strength:
- Add additional layers of bricks or plates on top of the deck
- Use Technic liftarms or beams to connect the tops of the trusses
- Add diagonal bracing between the trusses if possible
Place weights or LEGO vehicles on the bridge to test its strength.
- Observe any bending or weak points
- Reinforce areas that flex or separate
- Experiment with different truss patterns or additional bracing
| Truss Type | Strength | Ease of Construction | Best For | Visual Appeal |
|---|---|---|---|---|
| Warren | High | Easy | Evenly distributed load | Clean, simple |
| Pratt | Very High | Moderate | Variable loads, trains | Classic look |
| Howe | High | Moderate | Heavy end loads | Robust |
| K Truss | Very High | Challenging | Long spans, heavy loads | Complex, bold |
The Warren truss is ideal for most LEGO builders. Its repeating triangle pattern is easy to replicate with standard Technic beams and connectors, and it provides excellent strength for its weight.
The Pratt truss is slightly more complex but offers superior performance for longer bridges or those supporting trains. It requires careful placement of vertical and diagonal members.
The Howe truss is similar to the Pratt but is better for bridges where heavy loads are concentrated at the ends. It is also straightforward to build with LEGO.
The K truss is the most complex but provides the highest strength for long spans. It is best suited for advanced builders with a large collection of Technic pieces.
- Use Technic beams and pins wherever possible for maximum strength
- Overlap bricks to avoid creating weak joints
- Add multiple layers to the deck and trusses
- Distribute weight evenly across the bridge
- Test your bridge regularly and reinforce any weak areas
- Experiment with different truss patterns and spans
- Build realistic support towers or piers
- Add decorative elements such as railings or lights
- Create a river or valley scene underneath the bridge
- Build a double-deck bridge for trains and cars
- Construct a moveable or drawbridge section
- Combine truss and arch elements for extra strength and visual interest
Building a LEGO truss bridge is a rewarding project that blends creativity, engineering, and hands-on problem-solving. The best design for your bridge depends on your goals, available pieces, and desired span. For most builders, the Warren truss offers an excellent balance of strength, simplicity, and visual appeal. By applying engineering principles, using the right LEGO components, and testing your design, you can construct a bridge that is both impressive and robust. Whether you are competing in a bridge-building challenge or simply exploring the wonders of structural engineering, mastering the art of the LEGO truss bridge will elevate your building skills to new heights.
The Warren truss is generally considered the strongest and most efficient design for LEGO truss bridges, thanks to its use of equilateral triangles which evenly distribute weight and provide excellent rigidity. For longer spans or heavier loads, the Pratt or K truss designs may offer additional strength.
Technic beams, liftarms, and connectors are ideal for constructing the main structural elements of a truss bridge. Standard bricks and plates can be used for the deck and supports, but Technic pieces offer superior strength and flexibility.
To increase your bridge's load-bearing capacity, use multiple layers of bricks, reinforce all joints with Technic pins or connectors, and ensure the truss framework is securely attached to the deck. Distribute weight evenly and test your bridge with increasing loads, reinforcing weak points as needed.
The maximum span depends on your design, materials, and construction techniques. With careful engineering and strong truss patterns, LEGO bridges can span over 48–64 studs (or more) and support several LEGO vehicles. Testing and incremental reinforcement are key to achieving longer spans.
Yes, combining different truss patterns can create a unique and even stronger bridge. For example, you might use a Warren truss for the main span and a Pratt truss for the approach sections. Just ensure that the transitions are well-reinforced and the load is distributed evenly.
