When it comes to constructing a foot bridge, one of the most critical components is the foundation. The foundation of a foot bridge must be able to withstand various environmental conditions, including water flow, potential flooding, and erosion. The choice of foundation depends on several factors, including soil conditions, the span length of the bridge, and the expected load it will carry. In this article, we will explore the different types of foundations suitable for foot bridges and discuss their advantages and disadvantages.
Foot bridges can be made from a variety of materials such as steel, wood, or composite materials, with decks constructed from wood, concrete, or asphalt[2]. However, regardless of the material used for the bridge itself, the foundation is what ensures the structure's stability and longevity. Foundations for foot bridges can be broadly categorized into two main types: shallow foundations and deep foundations.
Shallow foundations are suitable for areas with solid, well-compacted soil or high bedrock. The most common type of shallow foundation is the spread footing, which distributes loads over a large area close to the ground surface. This type of foundation is often used for smaller bridges with shorter spans[1][6]. Shallow foundations are generally less expensive and easier to construct compared to deep foundations[4].
Deep foundations are necessary when the soil conditions are poor or the bridge spans a long distance. Deep foundations, such as driven piles or drilled shafts, extend deep into the ground to reach stable soil or bedrock, providing the necessary support for larger or heavier bridges[1][4]. Deep foundations are more expensive and complex to construct but can carry heavier loads and provide lateral support[4].
There are several types of bridge foundations, each suited to different conditions:
- Spread or Open Foundation: Suitable for dry ground that is firm enough to hold the bridge structure. It is most effective when hard soil is within 1.5-3 meters from the bed of the watercourse and when scouring is minimal[3].
- Raft Foundation: Used when the watercourse bed is composed of soft clay or silt and there is no hard soil available below 1.5-2.5 meters. It is best for heavy loads and uneven settlement conditions[3].
- Grillage Foundation: Best suited for heavy, isolated footings on piers where deep foundations should be avoided. It is also suitable for poor subsoil conditions[3].
- Inverted Arch Foundation: Ideal when the depth for foundation excavation is limited and the soil bearing capacity is low[3].
- Pile Foundation: Effective in situations where hard strata are not accessible at an appropriate depth below the river's bed level and the soil is extremely soft. It is also suitable for significant river bed scouring and heavy loads[3].
- Well Foundation: Works best where there is good soil about 3-4 meters below the river bed level and the river bed is composed of sandy soil[3].
- Caisson Foundation: Used when there is a hard stratum near the river bed, but the depth of the water is too high, making it uneconomical to exclude water from the dry bed to sink the wells[3].

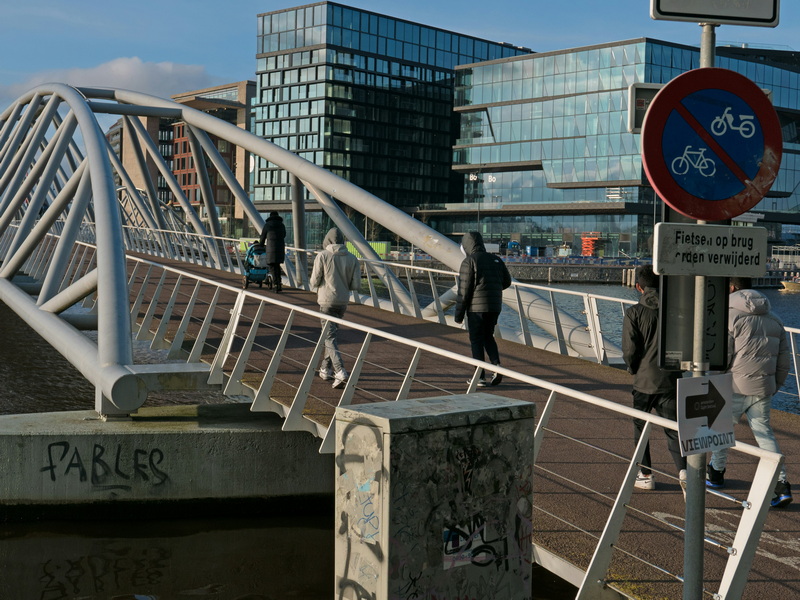

The Bridge of Flowers in Massachusetts is an example of a well-designed foot bridge foundation. It rests on solid bedrock, utilizing cast-in-place concrete abutments and piers. The use of reinforcing bars socketed into the bedrock enhances stability and prevents sliding[1][6].
At Florida State University, helical pulldown micropiles were used for pedestrian bridge foundations due to the presence of underground concrete box culverts adjacent to the foundations. This solution allowed the load to be transferred below the culverts, ensuring that they were not overloaded[5].
For the New Wear Footbridge in Sunderland, a bespoke cantilever piling solution was developed due to access restrictions. This innovative approach allowed the team to overcome design and environmental challenges, setting a benchmark for future projects[7].
When building a foot bridge over a creek or any water body, environmental considerations are crucial. The bridge should not disrupt natural habitats or cause erosion. Techniques like rock beaching can prevent undermining of the banks, and ensuring enough space under the bridge for wildlife to pass through can help maintain biodiversity[1].
If large and stable rocks are available, they can be used as abutments, reducing construction costs and environmental impact[1].
This method allows for precise matching with bedrock, providing excellent stability. It is particularly useful when the foundation needs to be integrated with natural rock formations[1].
Offers strength and durability but requires experienced labor. It is commonly used in both shallow and deep foundations to enhance structural integrity[1].
Helical piles are becoming increasingly popular for foot bridge foundations due to their efficiency, ease of use, and long-term strength. They can overcome poor soil conditions and are ideal for sensitive environments as they do not disturb the soil significantly[9].
Choosing the right foundation for a foot bridge is critical to ensure its safety and durability. The decision between shallow and deep foundations depends on soil conditions, span length, and expected load. Advanced techniques such as using helical piles and cast-in-place concrete can provide efficient and environmentally friendly solutions. By considering environmental impacts and employing innovative construction methods, foot bridges can be built to last while preserving natural habitats.
- The main types of foundations for foot bridges are shallow foundations and deep foundations. Shallow foundations include spread footings and are suitable for solid soil conditions, while deep foundations, such as piles and drilled shafts, are used in poor soil conditions or for longer spans[1][4].
- Environmental considerations are crucial when building a foot bridge over water. The design should minimize disruption to natural habitats, prevent erosion, and ensure enough space for wildlife passage. Techniques like rock beaching and using environmentally friendly materials can help achieve these goals[1][11].
- Helical piles are a type of deep foundation that uses a screw-like mechanism to anchor into the ground. They are efficient, easy to install, and suitable for poor soil conditions. Helical piles are also environmentally friendly as they do not significantly disturb the soil and can be removed without leaving a trace[9].
- Common mistakes include inadequate geotechnical analysis, insufficient foundation depth, and poor material selection. These mistakes can lead to foundation failure and structural instability[1].
- Geotechnical analysis is crucial for determining the type of foundation needed. It helps assess soil conditions, bearing capacity, and the need for deep or shallow foundations. This analysis ensures that the chosen foundation can support the bridge's load safely and effectively[11].
