Building a popsicle stick bridge is a popular and educational engineering project that combines creativity, physics, and structural design. Among various truss designs, the Pratt truss bridge stands out for its efficiency, strength, and relative simplicity, making it a favored choice for model bridge builders. This article explores the best design principles for a popsicle stick Pratt truss bridge, detailing construction techniques, material considerations, structural advantages, and tips to maximize strength and load capacity. We will also answer common questions to guide enthusiasts from beginners to advanced builders.
The Pratt truss is a classic bridge design characterized by its diagonal members which slope toward the center of the span, paired with vertical members. This configuration efficiently handles tension and compression forces: the diagonals typically take tension, while the verticals handle compression. This arrangement allows for a strong yet material-efficient structure.
- Diagonal members slope inward toward the center bottom chord.
- Vertical members connect the top and bottom chords, spaced evenly.
- Triangles formed by these members provide rigidity and distribute loads effectively.
- The design is well-suited for longer spans and heavier loads compared to some other truss types.

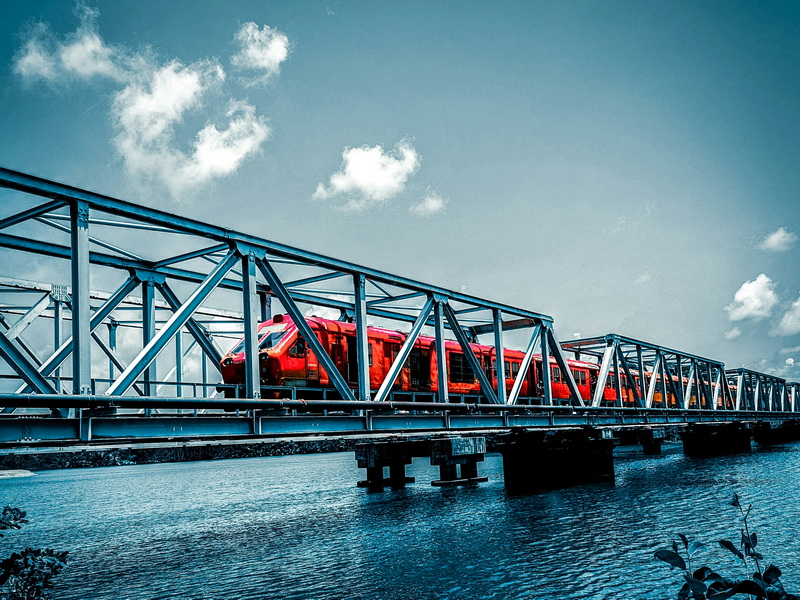

This design has been widely used in full-scale bridges, especially during the era of iron and steel railway bridges, and translates well into model bridges made from popsicle sticks.
To build a strong popsicle stick Pratt truss bridge, selecting the right materials and tools is essential:
- Popsicle sticks: Standard size, preferably new and uniform.
- Glue: Hot glue is common for quick bonding; wood glue or super glue can provide stronger, more durable joints.
- Cutting tools: Heavy-duty scissors or a craft knife for trimming and shaping sticks.
- Clamps or clothespins: To hold joints firmly while glue dries.
- Ruler and pencil: For precise measurements and marking.
- Sandpaper: To smooth and square off stick ends for better glue adhesion.
- Optional: Paint or markers for aesthetic customization.
Proper preparation of sticks—trimming rounded ends to create flat surfaces and sanding to remove irregularities—improves joint strength by allowing glue to form a thin, uniform bond layer.
Start by sketching your bridge design on graph paper. Decide on dimensions such as length (e.g., 13.5 inches), height (around 4 inches), and width (approximately 3.75 inches). Planning the number of vertical and diagonal members is critical; a common approach is to have five vertical beams and six angled supports per side.
- Lay three popsicle sticks side by side, touching at their ends.
- Glue two sticks perpendicular over the joints to hold them together.
- Repeat for the top chord, usually with two sticks joined by one perpendicular stick.
- Allow these to dry thoroughly.
- Attach vertical beams evenly between the top and bottom chords.
- Add diagonal supports sloping inward toward the center bottom chord, starting from the middle vertical beam and moving outward.
- Use clamps to ensure tight joints.
- Repeat for the other side truss.
- Position the two side trusses parallel to each other at the desired bridge width.
- Glue horizontal members across the top chords to connect the sides.
- Add lateral bracing between the trusses, preferably in an X shape rather than simple angled braces, to prevent lateral movement and increase stability.
- Lay popsicle sticks perpendicular across the top chords to form the roadway.
- Space sticks evenly and glue securely.
- Reinforce high-stress joints with small gussets or additional sticks if needed.
- Add diagonal bracing on the ends and underneath the deck.
- Double up sticks in areas expected to bear the most load, such as the last diagonal members near the ends.
- Allow the entire structure to dry completely before testing.
Doubling diagonal sticks on each end of the bridge significantly increases the strength where stress concentrations occur. This reinforcement counters bending and potential failure points.
Replacing simple angled braces with full X-shaped lateral bracing on the sides prevents the bridge from leaning or twisting under load, enhancing overall rigidity.
Accurate angles ensure that tension and compression forces are distributed as intended. Using guides or jigs during construction helps maintain consistent geometry.
The choice of glue and how it is applied affects joint strength. Thin, even glue layers and proper curing time create rock-solid bonds that hold under heavy loads.
- Efficient use of materials: The design uses fewer sticks compared to other trusses for comparable strength.
- Load distribution: Triangular patterns effectively spread forces, reducing stress on individual sticks.
- Ease of construction: The repetitive pattern and straightforward geometry make it accessible for beginners.
- Scalability: The design can be adapted for different span lengths and load requirements.
- Educational value: Demonstrates fundamental engineering principles such as tension, compression, and structural stability.
- Weak joints: Ensure sticks are sanded and glued properly; avoid excessive glue that creates stress risers.
- Lateral instability: Incorporate X-shaped bracing to prevent twisting.
- Uneven load distribution: Double up critical diagonals and reinforce joints at stress points.
- Material limitations: Use high-quality sticks and avoid damaged or warped pieces.
The best design for a popsicle stick Pratt truss bridge balances simplicity, strength, and efficient use of materials. Key factors include precise construction of top and bottom chords, evenly spaced vertical and diagonal members, reinforcement of critical areas by doubling sticks, and robust X-shaped lateral bracing. Attention to detail in preparing sticks and applying glue further enhances durability. This design not only holds impressive loads relative to its weight but also serves as an excellent educational project demonstrating core engineering concepts. With careful planning and execution, a popsicle stick Pratt truss bridge can achieve remarkable strength and efficiency.
Hot glue is popular for quick bonding, but wood glue or super glue often provides stronger, more durable joints. Applying glue thinly and evenly and allowing sufficient drying time is crucial for maximum strength.
A sturdy bridge can be built with around 50 to 70 sticks, depending on size and design complexity. Doubling up sticks in high-stress areas may increase the count but improves load capacity.
X-shaped bracing prevents lateral movement and twisting of the bridge under load, significantly increasing stability compared to single angled braces.
Yes, painting is optional and can make the bridge visually appealing. However, ensure paint is dry before gluing, as wet paint can weaken adhesive bonds.
Place the bridge between two supports and gradually add weight at the center span. Observe for any deformation or failure points. Record the maximum load held before breaking to evaluate efficiency.
