Truss bridges are a remarkable innovation in civil engineering, characterized by their unique design that utilizes interconnected triangular units to support loads. This structural form allows truss bridges to span significant distances while efficiently distributing forces across their framework. In this article, we will explore the definition, components, types, advantages, disadvantages, historical context, modern applications, and design considerations of truss bridges.

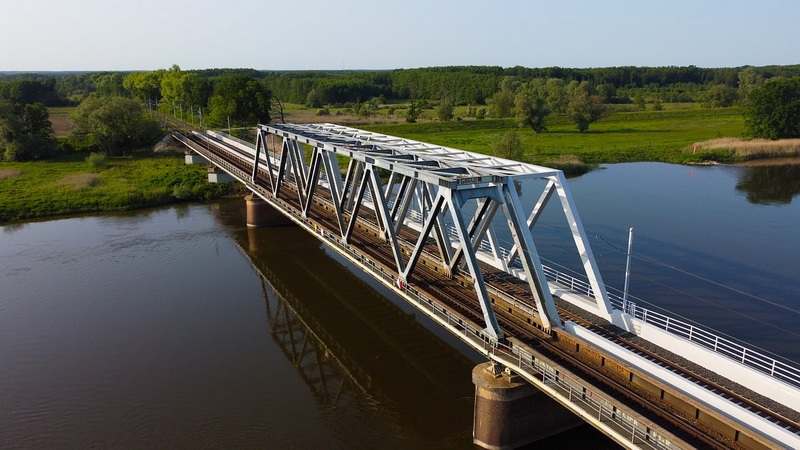

A truss bridge is defined as a bridge whose load-bearing superstructure is composed of a truss—a structure made up of connected elements that typically form triangular units. The design of a truss bridge enables it to effectively manage the forces acting upon it, including tension and compression. By utilizing the geometric stability of triangles, truss bridges can support substantial loads over long spans.
The primary components of a truss bridge include:
- Chords: The top and bottom members of the truss that bear the primary loads.
- Web Members: The diagonal and vertical elements that connect the chords and form the triangular patterns.
- Supports: The points at which the bridge is anchored to the ground or other structures.
Understanding the definition of a truss bridge is crucial for appreciating its engineering significance. The triangular configuration allows for efficient load distribution, making it possible to create longer spans with less material than other bridge designs.
Understanding the components of a truss bridge is essential for grasping how they function. The main elements include:
- Top Chord: The upper horizontal member that experiences compressive forces. It plays a critical role in maintaining the shape of the truss and supporting loads from above.
- Bottom Chord: The lower horizontal member that experiences tensile forces. It provides stability to the structure and helps resist bending moments.
- Web Members: These are the diagonal and vertical members that connect the top and bottom chords. They help distribute loads throughout the structure and are vital for maintaining overall stability.
- Joints: The connections between different members can be pinned or fixed depending on the design. Joints are crucial for transferring forces between members effectively.
- Deck: The surface on which vehicles and pedestrians travel can be positioned above (deck truss), below (through truss), or within (half-through truss) the truss structure. The deck's design impacts how loads are transferred to the truss.
Each component plays a vital role in ensuring that the bridge can withstand various loads while maintaining its structural integrity. Understanding these components helps engineers design safer and more efficient bridges.
There are several types of truss bridges, each with its unique design characteristics and applications:
- Pratt Truss: This design features diagonal members that slope down towards the center. It is efficient for handling vertical loads and is commonly used in railroad bridges. The Pratt truss is particularly effective at distributing weight from heavy trains due to its ability to handle dynamic loading conditions.
- Howe Truss: Similar to the Pratt truss but with diagonal members sloping upwards towards the center. This design is effective for both vertical and lateral loads. The Howe truss is often used in situations where lateral stability is crucial, such as in areas prone to high winds.
- Warren Truss: Recognized for its equilateral triangles, this type distributes loads evenly across its structure. It is often used in highway bridges due to its simplicity and efficiency. The Warren truss's uniform distribution of forces makes it an excellent choice for long spans where weight must be minimized.
- King Post Truss: A simple design with two outer vertical posts connected by a horizontal beam at the top and a central vertical member (the king post). It is ideal for short spans, such as pedestrian bridges or small roadways.
- Queen Post Truss: Similar to the king post but with two vertical posts on either side of a central horizontal beam, allowing for longer spans than the king post design. This type is often seen in older bridges where longer spans were needed without increasing material costs significantly.
Each type of truss bridge has specific advantages depending on factors such as span length, load requirements, and environmental conditions. Engineers select the appropriate type based on these considerations to ensure optimal performance.
Truss bridges offer numerous advantages that make them popular choices in various applications:
- Strength-to-Weight Ratio: Their unique design provides high strength while minimizing material usage, resulting in lighter structures capable of spanning greater distances. This efficiency translates into lower construction costs and reduced environmental impact.
- Material Efficiency: The triangular configuration allows for efficient use of materials, reducing costs without compromising structural integrity. Engineers can optimize designs to use less steel or wood while still achieving safety standards.
- Versatility in Design: Various types of trusses can be adapted to meet specific design requirements based on load conditions and span lengths. This adaptability makes them suitable for diverse applications ranging from highways to railroads.
- Ease of Construction: Many trusses can be prefabricated off-site and assembled quickly on location, reducing construction time. This efficiency is particularly beneficial in remote areas where access may be limited.
- Aesthetic Appeal: Well-designed trusses can enhance the visual appeal of a bridge while maintaining functionality. Architects often incorporate artistic elements into truss designs to create iconic structures that become landmarks within their communities.
These advantages contribute significantly to why engineers continue to favor truss bridges for various infrastructure projects worldwide.
Despite their many advantages, truss bridges also have some drawbacks:
- Complex Construction Requirements: Building a truss bridge requires precise engineering and skilled labor to ensure proper load distribution. Any miscalculation during construction can lead to structural failures or safety hazards.
- Space Requirements: The interconnecting triangular components need ample space to bear and distribute heavy loads effectively. In urban environments where space is limited, this requirement may pose challenges during construction.
- Aesthetic Limitations: Some may find traditional truss designs less visually appealing compared to modern concrete or arch bridges. As architectural trends evolve toward sleek designs, older styles may be viewed as outdated or unattractive.
- Maintenance Needs: Older wooden or metal trusses may require regular maintenance to prevent deterioration from environmental factors like rust or rot. Ongoing maintenance costs must be factored into project budgets over time.
Understanding these disadvantages helps engineers make informed decisions when selecting bridge types based on project requirements and constraints.
The history of truss bridges dates back centuries, with early designs primarily utilizing wood as their main material. In North America during the late 1700s and early 1800s, builders began developing more sophisticated designs that combined simplicity with economic advantages.
One notable advancement was Ithiel Town's lattice truss design patented in 1820, which allowed for large spans using minimal materials. This innovation revolutionized bridge construction by demonstrating how efficient designs could reduce costs while maintaining structural integrity.
As iron became more available in the 19th century, metal truss bridges began to dominate due to their enhanced strength and durability compared to wooden counterparts. Notable examples include the Iron Bridge over the River Severn in England, completed in 1779—the first major cast iron structure—and many American railroads adopting metal designs during this period as well.
The evolution continued into the 20th century with innovations such as the Bailey bridge designed during World War II by Sir Donald Coleman Bailey. This portable bridge was lightweight yet strong enough to support military vehicles and could be assembled quickly without specialized tools—a significant advantage during wartime logistics.
The development of steel fabrication techniques further advanced bridge construction methods throughout this period; engineers began experimenting with different shapes and configurations leading up through today's modern designs seen across urban landscapes worldwide.
Today's engineering practices continue to evolve with advancements in materials science and computational modeling techniques. Steel has become the dominant material for modern truss bridges due to its high strength-to-weight ratio and durability against environmental factors like corrosion when treated properly.
Modern software tools allow engineers to simulate various loading conditions on bridge designs before construction begins. This capability ensures that each component is optimized for performance while adhering to safety standards set forth by organizations such as AASHTO (American Association of State Highway and Transportation Officials).
Additionally, sustainability has become an essential consideration in contemporary bridge design; many engineers now focus on using recycled materials wherever possible while ensuring minimal environmental impact during construction processes.
Trusses are also increasingly being integrated into innovative designs such as pedestrian walkways over busy streets or riverside parks—creating multifunctional spaces that enhance community connectivity while providing safe passageways for foot traffic without obstructing vehicular flow below them.
Furthermore, advancements in technology allow architects greater freedom when designing aesthetically pleasing structures; modern materials like glass fiber reinforced polymer (GFRP) enable lighter yet stronger alternatives compared traditional steel options—opening new avenues for creativity within structural engineering fields today!
When designing a truss bridge, several key considerations must be taken into account:
1. Load Analysis: Engineers must calculate all potential loads that will act on the bridge, including dead loads (the weight of the structure itself) and live loads (traffic and environmental factors). Understanding these forces helps determine how much material will be required for each component based on expected usage patterns throughout its lifespan.
2. Material Selection: The choice of materials affects both strength and weight; common materials include steel for its high tensile strength along with wood offering aesthetic appeal depending upon context—engineers must weigh pros/cons carefully before finalizing decisions regarding which type best suits project needs overall!
3. Span Length: The distance between supports influences which type(s)oftrussshouldbeusedlongerspansmayrequiremorecomplexdesignsensurestabilitywhileminimizingdeflectionduringuseover time!
4. Environmental Factors: Weather conditions such as wind speed/snow load/seismic activitymustbeconsideredduringdesignensure safety longevity—engineers utilize historical data predict potential impacts future performance under varying circumstances!
5. Aesthetic Considerations: In addition functionalitymanybridgesserveaslandmarksorsymbolswithincommunities—thus aesthetic elements alsoimportantconsiderationwhenfinalizingdesignchoices!
By carefully considering these factors throughout all stagesofdevelopmentengineerscancreatebridgesmeetbothfunctionalrequirementsandcommunityexpectations!
Truss bridges represent a significant achievement in engineering history, combining strength, efficiency, versatility across various applications while providing safe passageways connecting communities together! By understanding howtrusseswork—alongwiththeircomponents,typeadvantages/disadvantages,historicalcontextmodernapplicationsanddesignconsiderations—we gain insight intotheircriticalrole bridginggapsbothliterallyfiguratively! Asengineeringtechnologyadvanceswecanexpectfurtherinnovationsintrusdesignsthatwillenhancesafetyfunctionalitywhilepreserving aestheticvalueswithinourbuiltenvironment!
Common materials include steel for its strength and durability; wood for aesthetic purposes; aluminum for lightweight structures; reinforced concrete for added stability; composite materials like GFRP are also gaining popularity due their unique properties!
Engineers consider factors such as load requirements (dead/live), span length (distance between supports), material availability/cost constraints/aesthetic preferences when selecting suitable type(s)oftrusstoensureoptimalperformanceoverall!
Yes! Trusses are widely used roofs (especially large commercial buildings), towers (such telecommunications towers), cranes due efficiency distributingloads—they're also found residential homes providing support roofs attics!
Triangles provide inherent stability; they do not deform under load like other shapes might—this makes them ideal distributingforcesevenlythroughoutstructure ensuring safety longevity over time!
Weather conditions such wind load/snow accumulation/temperature fluctuations cause expansion/contraction impacting structural integrity—engineers must account these factors duringdesignprocessestomaintainperformance standards throughout lifespan!
