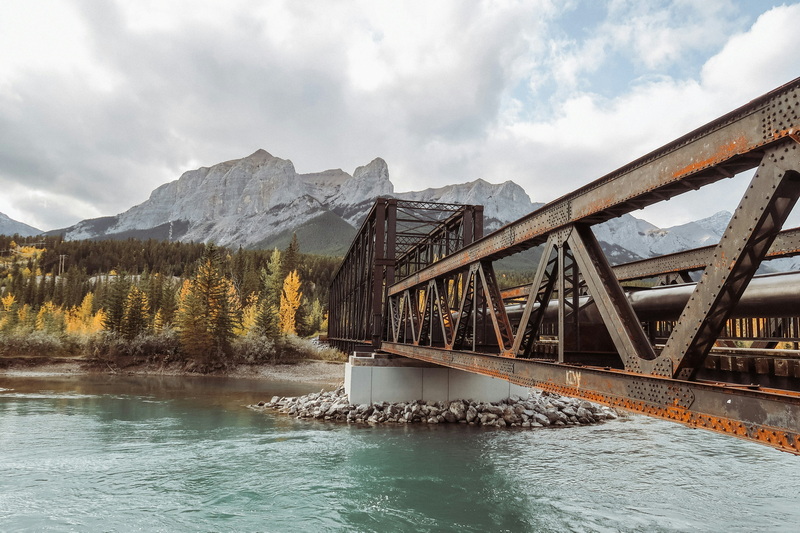

A truss bridge is a type of bridge whose load-bearing superstructure is composed of a truss, a structure of connected elements usually forming triangular units[11]. Truss bridges represent a distinct category within bridge design, characterized by their efficient use of materials and ability to handle significant loads across varying spans[2]. These bridges are integral to transportation networks worldwide, facilitating the movement of people and goods over obstacles such as rivers, valleys, and other geographical impediments[1]. The truss design, with its interconnected framework of beams arranged in triangular patterns, ensures that the bridge can withstand stress and distribute it effectively throughout the structure[4].
At its core, a truss bridge is a load-bearing structure designed to support weight from above and transfer it to the foundations below[1]. The fundamental components include vertical, horizontal, and diagonal members. The horizontal members, known as chords, reinforce the bridge, with the top chords experiencing compression and the bottom chords experiencing tension[1]. Diagonal members connect to the chords to transfer compression and tension forces, forming the triangular shapes that define truss bridges[1]. These triangular shapes provide the structure with the strength needed to manage loads, often using less material than beam bridges[1]. The load is transferred to the ground through abutments at each end of the truss[1].
Truss bridges gained prominence in the 19th and early 20th centuries due to their cost-effectiveness and structural efficiency[11]. Early designs were simple, making them suitable for a variety of applications[11]. The arrangement of triangles in truss bridges became a hallmark of their construction, with various truss types named after their designers or the locations where they were first implemented[3]. This historical evolution has led to a diverse range of truss bridge designs, each optimized for specific load and span requirements[3].
1. Chords: The top and bottom horizontal members of the truss[4][9]. The top chords are subject to compression, while the bottom chords are under tension[1].
2. Web Members: These include the diagonal and vertical elements connecting the chords[4][9]. They distribute the load and maintain the structure's integrity[4].
3. Truss Joints (Panel Points): The intersection points where individual truss pieces meet[9].
4. Abutments: Supports at the ends of the bridge that transfer the load to the ground[1][4].
5. Piers: Intermediate supports, when present, provide additional stability, especially in longer-span bridges[4].
The design and configuration of truss bridges vary widely, each suited for specific applications and load conditions[3].
1. Pratt Truss: Characterized by vertical members and diagonal members sloping downwards towards the center, the Pratt truss is efficient for medium-span bridges[3].
2. Warren Truss: Featuring diagonal members forming a series of equilateral or isosceles triangles, the Warren truss is well-suited for medium to long spans[3].
3. Howe Truss: With vertical members and diagonal members sloping upwards towards the center, the Howe truss was commonly used in the past but is less common today[3].
4. Baltimore Truss: A variation of the Pratt truss, the Baltimore truss includes additional secondary members to handle heavier loads and longer spans[3].
5. Vierendeel Truss: Unlike other truss types, the Vierendeel truss does not have diagonal members[3]. It relies on rigid connections to resist bending forces[3].
Truss bridges offer several benefits that make them a preferred choice in many construction scenarios[2].
1. High Strength: The triangular arrangement provides exceptional strength, enabling truss bridges to support heavy traffic loads[2].
2. Long Span Capability: Truss bridges can be constructed over both short and long distances, making them versatile for various locations[2].
3. Road Placement Flexibility: The road deck can be placed on top of the truss, simplifying construction and integration with existing infrastructure[2].
4. Economical Material Use: Truss bridges efficiently utilize materials, minimizing waste and reducing overall construction costs[2].
5. Rapid Installation: Prefabrication of truss components allows for quick on-site assembly, reducing construction time[5].
6. Increased Span Length: The triangular force distribution minimizes stress concentration, making longer spans possible[5].
7. Accessibility: The open structure of truss bridges allows for easy access for electrical and mechanical installations[5].
Despite their advantages, truss bridges also have certain drawbacks[2].
1. High Maintenance: The numerous components require regular and thorough maintenance to ensure structural integrity[2][8].
2. Complex Design: Precise and intricate design is essential for ensuring the bridge's suitability for its intended location and load[2].
3. Heavy Weight: The overall weight of the structure can be substantial, potentially requiring additional support in certain areas[2].
4. Space Requirements: The interconnected triangular components need considerable space, which can be a limitation in constrained environments[5][8][10].
5. Material Waste: Errors in design or construction can lead to significant material waste due to the precise specifications required[2].
6. Aesthetic Considerations: Truss bridges may not be the most visually appealing option compared to other bridge designs[2].
The design and material selection for truss bridges are critical to ensure structural integrity and longevity[7].
1. Material Options: Common materials include steel, timber, and reinforced concrete, each offering different strength, weight, and cost characteristics[2].
2. Load Analysis: Engineers must conduct thorough load analysis to account for the weight of the bridge itself, traffic loads, wind loads, and seismic activity[1][4].
3. Structural Analysis: Detailed structural analysis is performed to determine the forces acting on each member of the truss, ensuring that the bridge can safely handle the anticipated loads[4].
4. Joint Design: Proper joint design is essential to ensure that loads are effectively transferred between members[9].
5. Environmental Factors: Consideration must be given to environmental factors such as temperature variations, humidity, and exposure to corrosive elements, which can affect the lifespan of the bridge[8].
Regular maintenance and inspection are crucial for the safe and reliable operation of truss bridges[8].
1. Visual Inspections: Routine visual inspections can identify signs of corrosion, cracking, or other damage[8].
2. Non-Destructive Testing: Techniques such as ultrasonic testing and radiographic testing can be used to assess the condition of critical components without causing damage[8].
3. Load Testing: Load testing involves applying known loads to the bridge and measuring its response to verify its structural capacity[4].
4. Protective Coatings: Applying protective coatings can help prevent corrosion and extend the lifespan of the bridge[8].
5. Component Replacement: Damaged or deteriorated components should be promptly replaced to maintain the bridge's structural integrity[8].
Numerous iconic truss bridges around the world showcase the versatility and durability of this design[3].
1. Forth Bridge (Scotland): A cantilever truss bridge known for its distinctive appearance and long span[3].
2. Sydney Harbour Bridge (Australia): An iconic arch truss bridge that carries rail, vehicular, and pedestrian traffic[3].
3. Eads Bridge (USA): A historic steel truss bridge that spans the Mississippi River[3].
4. Harding Memorial Bridge (USA): Also known as the US 40 Memorial Bridge, is a crossing of the Missouri River near Kansas City[3].
Truss bridges are employed in a wide range of applications due to their adaptability and structural efficiency[2].
1. Highway Bridges: Carrying vehicular traffic over rivers, valleys, and other obstacles[2].
2. Railway Bridges: Supporting heavy rail traffic across various terrains[2].
3. Pedestrian Bridges: Providing safe passage for pedestrians and cyclists[2].
4. Pipeline Bridges: Carrying pipelines for water, oil, and gas[2].
5. Industrial Bridges: Supporting heavy equipment and materials in industrial facilities[2].
Advancements in technology and materials are shaping the future of truss bridge design[5].
1. Advanced Materials: The use of high-strength steel, composite materials, and other advanced materials is enabling the construction of lighter, stronger, and more durable truss bridges[5].
2. Digital Design and Modeling: Building Information Modeling (BIM) and other digital tools are facilitating more efficient and accurate design and analysis of truss bridges[5].
3. Smart Bridges: The integration of sensors and monitoring systems is enabling real-time assessment of bridge performance, allowing for proactive maintenance and repairs[5].
4. Sustainable Design: There is a growing emphasis on sustainable design practices, including the use of recycled materials, energy-efficient construction techniques, and designs that minimize environmental impact[5].
Truss bridges are essential structures in modern infrastructure, offering a blend of strength, efficiency, and adaptability[1]. From their historical roots to ongoing advancements in design and materials, truss bridges continue to play a vital role in facilitating transportation and supporting economic development worldwide[11]. By understanding the principles behind truss bridge design, engineers and policymakers can make informed decisions about their construction, maintenance, and future development, ensuring the continued safety and reliability of these critical structures[4].
The primary advantage of a truss bridge is its high strength-to-weight ratio[2]. The triangular design efficiently distributes loads, allowing for longer spans with less material compared to other bridge types[1].
The frequency of inspections depends on the age, condition, and traffic volume of the bridge[8]. However, most bridges undergo routine visual inspections at least every two years, with more detailed inspections conducted as needed[8].
The lifespan of a truss bridge is influenced by factors such as material quality, environmental conditions, traffic loads, and maintenance practices[8]. Regular maintenance, corrosion protection, and timely repairs can significantly extend the lifespan of a truss bridge[8].
Yes, truss bridges are commonly used for railway traffic[2]. Their high strength and ability to support heavy loads make them well-suited for carrying trains over various terrains[2].
In a Pratt truss, the diagonal members slope downwards towards the center, while in a Warren truss, the diagonal members form a series of equilateral or isosceles triangles[3]. The Pratt truss is more efficient for shorter spans, while the Warren truss is better suited for medium to long spans[3].
