A truss bridge is a type of bridge whose load-bearing superstructure is composed of a truss, a structure of connected elements typically forming triangular units. These connected elements, often straight, can experience stress from tension, compression, or sometimes both, in response to dynamic loads. Truss bridges are known for their efficient use of materials, making them an economical choice for construction.
At its core, a truss bridge is a load-bearing structure that incorporates multiple vertical, horizontal, and diagonal members. These members are arranged in triangular shapes, which allows forces to be efficiently transferred throughout the structure. This design maximizes the bridge's strength while using a minimal amount of materials. The entire assembly of these interconnected members is referred to as a "truss," which provides support for the bridge and its weight across large span areas.

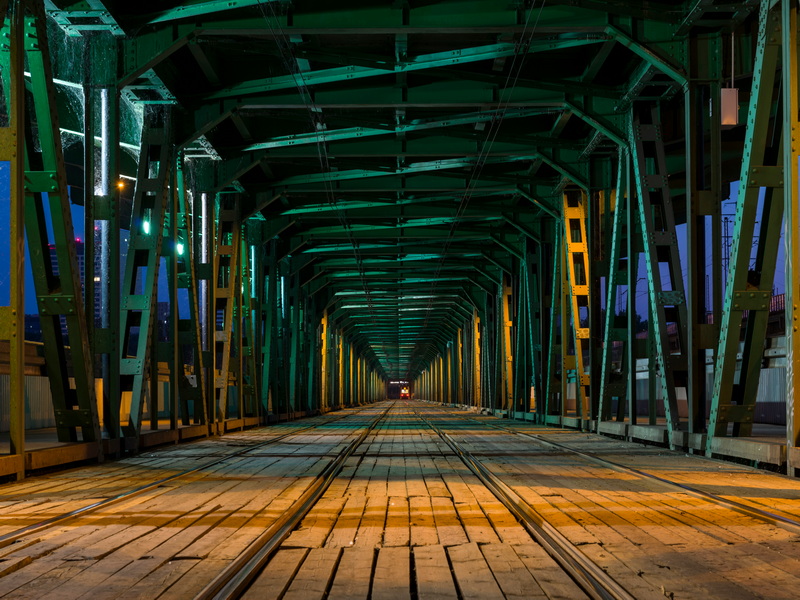

A truss consists of individual members that work together as a unit, experiencing either tension or compression. Tension members are subjected to forces that pull outward at their ends, while compressive forces push or compress inward. Even in wooden truss bridges, tension members often consist of individual metal pieces like bars or rods. The individual members create a triangular pattern, and in a truss bridge, two long, straight members, known as chords, form the top and bottom. These chords are connected by a web of vertical posts and diagonals. Abutments at the ends and, in some cases, piers in the middle support the bridge. A well-designed truss effectively distributes stresses throughout its structure, enabling the bridge to safely support its weight, the weight of crossing vehicles, and wind loads.
Truss bridges were among the first bridge designs in the 19th and early 20th centuries. Their simple designs made them a popular choice during this period, and they played a crucial role in the expansion of transportation networks.
Truss bridges offer several advantages in construction:
- High Strength: The triangular shape provides a great amount of strength, enabling it to carry heavy traffic loads, making it ideal for densely populated areas.
- No Span Restrictions: Truss bridges can be constructed over both very long and very short distances, making them versatile for various locations.
- Road Placement: The road can be placed on top of the bridge, simplifying construction and integration into existing processes.
- Economical: Truss bridges require minimal materials, and each piece is used efficiently, resulting in little waste and the use of cheap, lightweight materials.
- Rapid Installation: Truss structures are prefabricated in factories and easily assembled on-site, leading to quicker construction timelines.
- Increased Span Length: Their triangular force distribution minimizes force concentration, allowing for longer span lengths.
- Accessibility: Triangular spaces between truss members create pathways for electrical and mechanical installations.
Despite their advantages, truss bridges also have several drawbacks:
- Maintenance: Truss bridges require close and involved maintenance of all components, as each part plays an integral role in the bridge's integrity and safety.
- Design Complexity: Precise and often complicated designing is necessary to build a truss bridge appropriate for its intended area, requiring careful consideration of sizing, spacing, and proportions.
- Weight: The overall weight of the structure can be very heavy, posing challenges in areas without much support and often requiring additional support beams.
- Weight Capacities: Older truss bridges were initially built for lighter vehicles and may not withstand the heavy-duty vehicles common today.
- Material Waste: Construction or design mishaps can lead to significant material waste because the specifications must be perfect for the bridge to function as intended.
- Space: The supports that truss bridges require can take up considerable space, potentially affecting surrounding areas and the water beneath it.
- A Lot of Maintenance is Required: A truss bridge, like any load-bearing structure, will require regular and detailed maintenance. Truss bridges may provide high levels of support, but the additional components and connections of the bridge mean it requires high levels of maintenance as well.
- Space Consuming: The structure of a truss bridge is large by design, hence can take up quite a bit of space. This means that in certain places, the truss bridge may not be the best option or might need adjustment of existing structures in order to accommodate these bridges.
- Requires Professional to Built: Truss bridges requires professional to built.
- High maintenance costs: The maintenance costs of so many parts can be expensive. A truss bridge, like any load-bearing structure, will require regular and detailed maintenance. So many parts to look after can mean that this is expensive—not to mention time consuming!
- Space Requirement: The interconnected triangular components require ample space, particularly in large truss bridges.
- Perfect Construction: Truss bridges require perfect construction to work. They must distribute weight evenly.
- Lower Weight Tolerance: Older truss bridges designed for light traffic can have a lower weight tolerance.
- Width requirements: There are width requirements in relation to span length to achieve the required strength.
- Appearance: Less attractive to look at compared to modern concrete bridges.
- Specialists Required: Requires architectural and engineering specialists – less use of general laborers and steelworkers.
Several types of truss bridges exist, each with its own unique design and application. These include:
- Pratt Truss: Characterized by vertical members and diagonal members sloping down towards the center, the Pratt truss is well-suited for longer spans.
- Howe Truss: With vertical members and diagonal members sloping upwards towards the center, the Howe truss is commonly used for shorter spans.
- Warren Truss: Featuring diagonal members only, forming a series of equilateral or isosceles triangles, the Warren truss is known for its strength and efficiency.
- K-Truss: The K-truss incorporates vertical members and diagonal members that intersect in the middle, forming a "K" shape, which enhances its load-bearing capacity.
The selection of materials and design elements for a truss bridge depends on various factors, including the bridge's span, load requirements, and environmental conditions. Common materials used in truss bridge construction include steel, timber, and concrete. Steel is favored for its high strength-to-weight ratio, while timber is a renewable and cost-effective option for shorter spans. Concrete is often used for bridge decks and foundations due to its durability and compressive strength.
Design considerations for truss bridges involve determining the optimal configuration of members to efficiently distribute loads and minimize stresses. Engineers use structural analysis techniques to calculate the forces acting on each member and ensure that the bridge can safely withstand the anticipated loads.

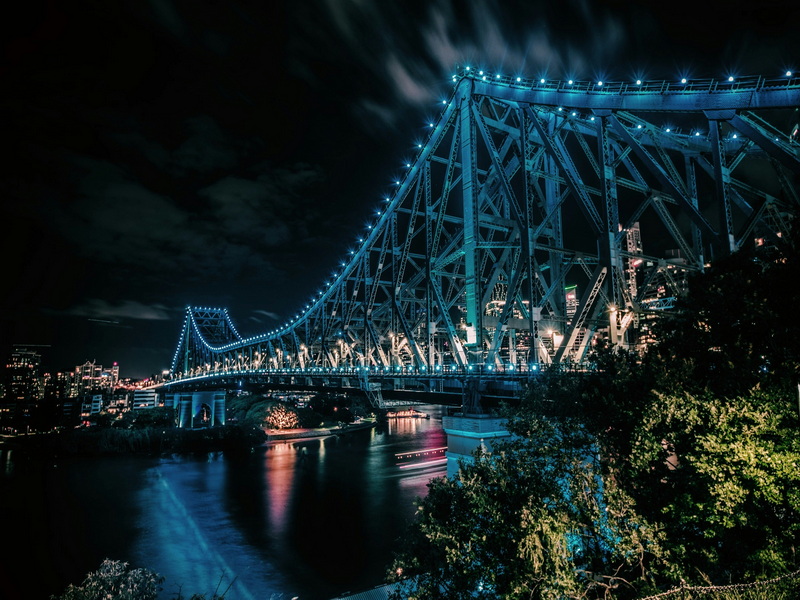

Several notable truss bridges around the world showcase the versatility and durability of this bridge type:
- Tokyo Gate Bridge, Kōtō City, Japan
- Astoria-Megler Bridge, Columbia River, USA
- Quebec Bridge, Canada
While modern bridge designs have evolved, truss bridges continue to be a viable option for certain applications. Their cost-effectiveness and ability to span long distances make them suitable for rural areas and locations with limited resources. Additionally, advancements in materials and construction techniques have led to the development of more efficient and aesthetically pleasing truss bridge designs.
Truss bridges are load-bearing structures composed of interconnected elements, usually in triangular units, that efficiently distribute tension and compression forces. They offer high strength, versatility in span length, and economical use of materials. While requiring careful maintenance and design, truss bridges have played a significant role in transportation infrastructure and continue to be relevant in specific contexts. Their historical importance and ongoing adaptations ensure that truss bridges will remain a vital part of engineering for years to come.
Truss bridges are highly efficient in terms of material use because the truss design distributes loads effectively, allowing for longer spans with less material. This efficiency translates to cost savings in construction.
Truss bridges are designed to handle both tension and compression forces within their members. Tension forces pull outward, while compression forces push inward. The triangular arrangement of the truss ensures these forces are distributed evenly.
The most common materials used are steel, timber, and concrete. Steel is favored for its high strength-to-weight ratio, timber for its cost-effectiveness in shorter spans, and concrete for its durability in decks and foundations.
Truss bridges require regular and detailed maintenance due to the many interconnected parts, each of which plays a crucial role in the bridge's structural integrity. Maintenance includes inspecting and repairing connections, replacing worn or damaged members, and protecting against corrosion.
Yes, truss bridges are still relevant due to their cost-effectiveness and ability to span long distances, particularly in rural areas. Modern advancements in materials and construction have also improved their efficiency and aesthetics.
