Truss bridges are a type of bridge that uses a truss as its main structural element. A truss is a structure composed of straight members connected at their ends to form a rigid framework. This design allows truss bridges to be both strong and lightweight, making them an efficient choice for spanning short to medium distances. In this article, we will explore the concept of truss bridges, their types, notable examples, and the advantages they offer.

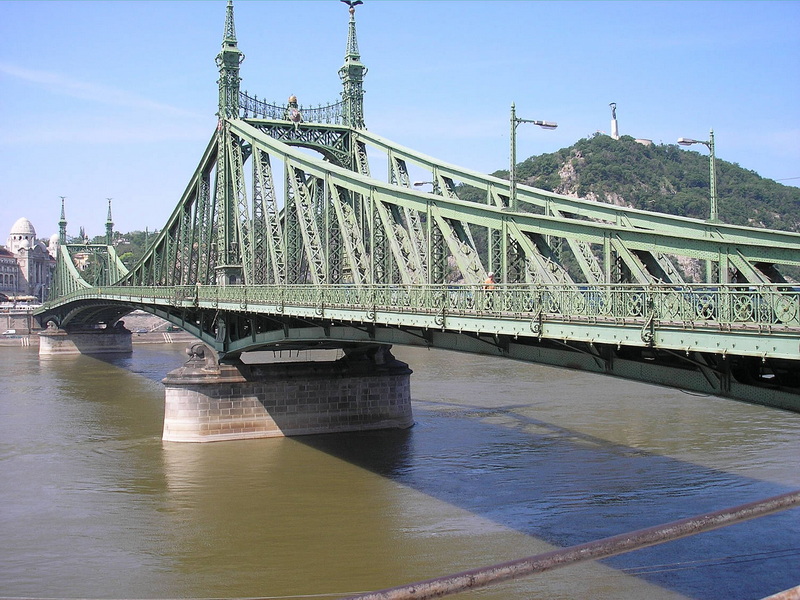

Truss bridges have been a cornerstone of engineering since the early 19th century. They are characterized by their use of triangular units to distribute loads efficiently across the bridge. The basic components of a truss bridge include top and bottom chords (horizontal members) and multiple vertical and diagonal members that form triangular shapes. These shapes help to strengthen the bridge by distributing tension and compression forces effectively.
There are several types of truss bridges, each with its unique arrangement of members:
- Warren Truss: Known for its equilateral triangles, this style does not use vertical members. It alternates compression and tension between the members.
- Pratt Truss: Diagonals slope towards the center, with vertical members in compression and diagonal members in tension.
- Howe Truss: Diagonals slope away from the center, with diagonal members in compression and vertical members in tension.
- K Truss: Features smaller diagonal and vertical members, with vertical members in compression and diagonal members in tension.
Located in Japan, the Ikitsuki Bridge is the longest continuous truss bridge in the world, with a main span of 400 meters. It connects Ikitsuki to the island of Hirado and is designed to withstand seismic forces, making it an excellent example of modern truss bridge engineering.
Spanning the mouth of the Columbia River between Oregon and Washington, this bridge is one of the longest continuous truss bridges in North America. It consists of three spans with a total length of 6,545 meters and a main span of 376 meters.
In Canada, the Quebec Bridge is a cantilever truss bridge known for its impressive span and historical significance. It was completed in 1917 and is one of the longest cantilever bridges in the world.
Located in Scotland, the Forth Bridge is a cantilever truss bridge that was completed in 1890. It is an iconic example of Victorian engineering and a UNESCO World Heritage Site.
In the United States, the Bollman Truss Railroad Bridge is a pioneering example of early American bridge engineering. Patented in 1852, it was the first successful all-metal bridge design used extensively on railroads.
Truss bridges offer several advantages that make them a popular choice for various applications:
- Efficient Use of Materials: Truss bridges are economical because they use materials efficiently, distributing loads across the structure effectively.
- Strength and Durability: The triangular structure provides excellent strength and stability, allowing truss bridges to withstand various environmental conditions.
- Versatility: Truss bridges can be made from different materials, including timber, iron, steel, and concrete, making them adaptable to different environments and requirements.
- Aesthetic Appeal: Truss bridges often have a distinctive appearance that can add to the landscape's visual appeal.
While truss bridges are strong and efficient, they also have some limitations:
- Complexity: The design and construction of truss bridges can be complex, requiring precise engineering to ensure stability and safety.
- Maintenance: Over time, truss bridges may require significant maintenance to ensure that all members remain secure and functional.
- Span Limitations: While continuous truss bridges can span longer distances, traditional truss bridges are generally limited to shorter spans unless they are designed as continuous structures.
The history of truss bridges dates back to the early 19th century when they were first used in the United States and Europe. Initially, truss bridges were made from wood, but with advancements in metallurgy, iron and steel became the preferred materials. The development of new truss designs, such as the Pratt and Warren trusses, allowed for greater efficiency and longer spans.
One of the earliest innovations in truss bridge design was the introduction of the Bollman Truss by engineer Wendel Bollman in 1852. This design was the first successful all-metal bridge and was widely used on railroads. The Bollman Truss marked a significant shift towards metal construction, which offered greater strength and durability compared to wooden bridges.
In recent years, truss bridges have seen significant advancements in design and materials. The use of high-strength steel and advanced computer simulations has allowed engineers to create longer and more complex truss structures. Additionally, the integration of seismic design principles has enabled truss bridges to withstand earthquakes and other seismic events more effectively.
Advancements in engineering have significantly impacted truss bridge design, allowing for more efficient and durable structures:
- Computational Modeling: Modern computational tools enable detailed stress analysis and optimization of truss designs, reducing material usage while maintaining structural integrity.
- High-Strength Materials: The development of high-strength steel and advanced composites has increased the load capacity and lifespan of truss bridges.
- Seismic Design: Incorporating seismic design principles helps truss bridges resist earthquakes and other seismic events, ensuring safety in seismically active regions.
The Ikitsuki Bridge in Japan is a prime example of modern truss bridge engineering. Completed in 1991, it features a continuous truss design that spans 400 meters. The bridge is designed to withstand strong winds and seismic forces, making it a model for resilience in challenging environmental conditions.
The Quebec Bridge, completed in 1917, is a cantilever truss bridge that holds significant historical importance. Initially intended to be the longest cantilever bridge in the world, it faced challenges during construction, including a major collapse in 1907. Despite these setbacks, the bridge was completed and remains an engineering marvel.
As technology continues to evolve, truss bridges are likely to incorporate more advanced materials and design techniques:
- Sustainable Materials: There is a growing interest in using sustainable materials, such as recycled steel and advanced composites, to reduce the environmental impact of bridge construction.
- Advanced Computational Tools: Future designs will likely rely more heavily on computational modeling to optimize structural performance and minimize material usage.
- Integration with Other Technologies: Truss bridges may be integrated with other technologies, such as smart sensors, to enhance maintenance and monitoring capabilities.
Truss bridges are a testament to the ingenuity of engineering, offering a blend of strength, efficiency, and aesthetic appeal. From the iconic Ikitsuki Bridge to the historical Quebec Bridge, these structures have played a crucial role in connecting communities and facilitating transportation across the globe. As technology advances, truss bridges continue to evolve, incorporating new materials and designs to meet modern demands.
A continuous truss bridge distributes loads across all spans, which can reduce the amount of material needed compared to a series of simple trusses. This design also enhances stability by providing rigid connections throughout the structure.
Common types of truss bridges include the Warren, Pratt, Howe, and K Truss. Each type has a distinct arrangement of vertical and diagonal members that affect how tension and compression are distributed.
The Ikitsuki Bridge in Japan is the longest continuous truss bridge, with a main span of 400 meters. It is designed to withstand seismic forces and is an example of modern engineering.
Notable examples include the Ikitsuki Bridge, Astoria–Megler Bridge, Quebec Bridge, Forth Bridge, and the Bollman Truss Railroad Bridge. Each of these bridges showcases unique engineering achievements and historical significance.
Truss bridges can be constructed from a variety of materials, including timber, iron, steel, reinforced concrete, and prestressed concrete. The choice of material depends on the specific requirements of the bridge, such as environmental conditions and load capacity.
