The infrastructure landscape of Zimbabwe is characterized by a pressing need for durable and efficient bridging solutions. Among these, the steel Bailey bridge stands out due to its modular design and adaptability to various terrains. A 50-meter span BS5400-compliant steel Bailey bridge is particularly significant, as it effectively balances structural efficiency with the necessity to cross medium-sized waterways. However, the lifespan of these bridges can be significantly reduced due to environmental factors, overloading, and inadequate maintenance. This article explores strategies to enhance the longevity of a 50m BS5400 steel Bailey bridge in Zimbabwe.

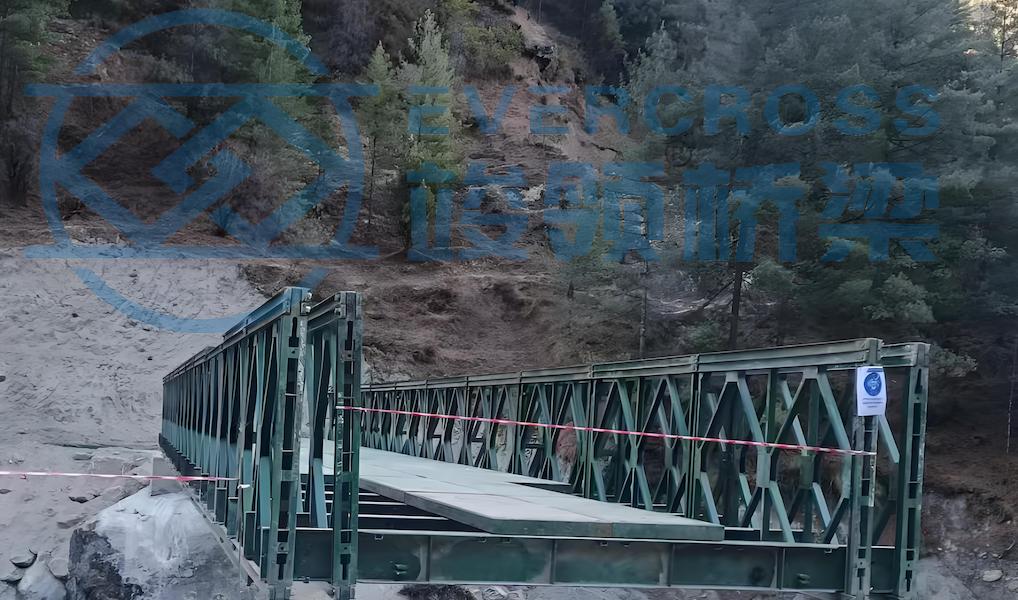

The Bailey bridge is a portable, pre-fabricated truss bridge originally designed by the British during World War II. Its modularity allows for quick assembly and deployment, making it ideal for various applications, including military and civilian use. The bridge consists of individual components such as panels, transoms, stringers, and decking, which are manufactured to standard sizes for easy transport and assembly. This design not only facilitates rapid construction but also allows for easy repairs and modifications, making it a versatile choice for many infrastructure projects.

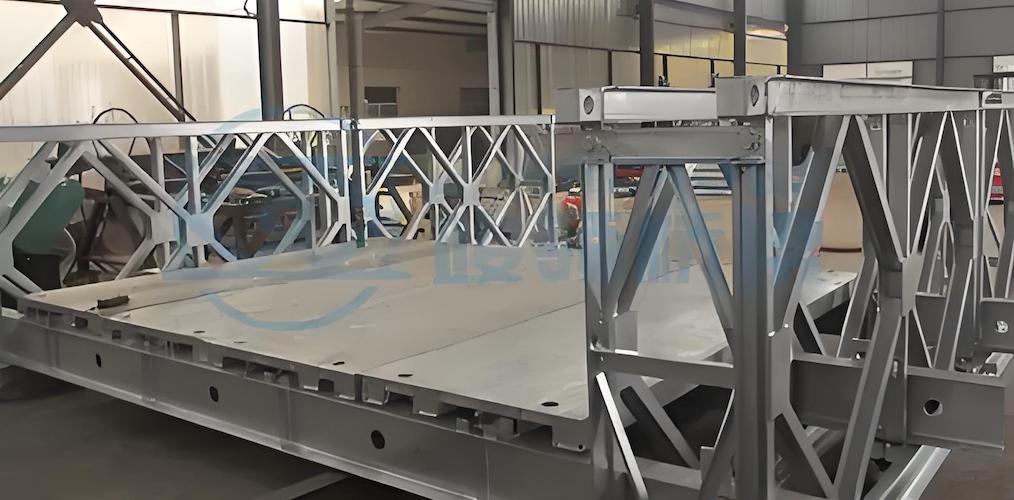

The basic building block of a Bailey bridge is the panel, a welded steel unit that forms a truss with high structural strength. These panels are connected to achieve the desired span and load-bearing capacity. For a 50m span in Zimbabwe, a multi-story assembly is often used, stacking panels vertically to create a deeper truss system capable of handling heavier loads. This design is particularly beneficial in regions where the terrain is uneven or where the bridge must support significant vehicular traffic.
BS5400 is a comprehensive British Standard that outlines the design, materials, fabrication, erection, and inspection of bridges. Although the original Bailey bridge concept predates this standard, modern components are designed to comply with BS5400 and other international codes. The advantages of adhering to this standard include:
Comprehensive Design Philosophy: BS5400 employs a limit state design philosophy, considering all possible failure states and ensuring a safer, more reliable structure. This approach allows engineers to anticipate potential issues and design solutions that enhance the bridge's resilience.
Stringent Material Specifications: The standard mandates specific grades of steel, ensuring the material can withstand calculated stresses and has good toughness. This is crucial in environments like Zimbabwe, where temperature fluctuations and humidity can affect material performance.
Detailed Fatigue Design: BS5400 includes classifications for weld details and connections, ensuring that cumulative damage from repetitive loading does not exceed limits. This focus on fatigue resistance is vital for maintaining the structural integrity of bridges subjected to heavy traffic.
Fabrication and Workmanship Standards: Strict tolerances for fabrication ensure high-quality welds and components, preventing fatigue cracks. This attention to detail during the manufacturing process translates into longer-lasting structures.
Load Testing Requirements: Proof load testing is often required for non-standard bridges, providing verification of design assumptions and construction quality. This step is essential for ensuring that the bridge can handle the expected loads throughout its lifespan.
The designed service life of a 50m BS5400 steel Bailey bridge is typically between 50 to 100 years. However, achieving this lifespan in Zimbabwe's challenging environment requires proactive management. Several key factors influence the longevity of these bridges.
Corrosion is the primary adversary to the longevity of steel bridges in Zimbabwe. The mechanism involves electrochemical reactions that form rust when steel is exposed to moisture and oxygen. Zimbabwe's climate, characterized by a rainy season and high humidity, exacerbates this issue. The combination of these environmental factors creates an ideal setting for corrosion to thrive, leading to significant structural concerns over time.
Corrosion reduces the cross-sectional area of critical load-bearing members, weakening the structure and potentially leading to fatigue cracks. Rust jacking can also force connections apart, compromising the bridge's integrity. The economic implications of corrosion are substantial, as repairs can be costly and time-consuming, diverting resources from other essential infrastructure projects.
To combat corrosion, a high-quality protective coating is essential. This involves:
Surface Preparation: Thorough cleaning to remove all contaminants, ensuring a strong bond for the coating. This step is critical, as any remaining rust or debris can compromise the effectiveness of the protective layers.
Primer Application: Using a zinc-rich epoxy primer for cathodic protection, which sacrifices itself to protect the underlying steel. This method not only enhances durability but also extends the time between necessary maintenance interventions.
Top Coats: Applying high-build, chemical-resistant coatings to create a barrier against moisture and UV radiation. These coatings are designed to withstand the harsh environmental conditions typical in Zimbabwe, ensuring long-lasting protection.
Regular Inspections: Conducting routine checks for scratches and rust spots, with a strict regimen for touch-ups and recoating. Establishing a schedule for inspections can help identify issues before they escalate, preserving the bridge's structural integrity.
Every vehicle crossing the bridge subjects it to stress cycles, which can lead to the initiation and propagation of microscopic cracks, particularly at weld details and connections. This phenomenon, known as fatigue, is a significant concern for bridge longevity.
Unchecked fatigue can result in sudden structural failure, making it crucial to monitor and maintain the bridge's integrity. The consequences of such failures can be catastrophic, leading to loss of life, significant economic costs, and damage to the surrounding infrastructure.
Implementing a rigorous inspection regime is vital. This includes:
Visual Inspections: Regular checks for visible signs of wear and damage. These inspections should be conducted by trained personnel who can identify potential issues early.
Non-Destructive Testing (NDT): Utilizing techniques such as Magnetic Particle Inspection and Ultrasonic Testing to detect hidden flaws. These advanced methods allow for a thorough assessment of the bridge's condition without causing any damage.
Connection Maintenance: Regularly checking for loose bolts and wear in pin holes, ensuring all connections are secure. This proactive approach can prevent minor issues from developing into major structural problems.
While bridges are designed for standard loads, real-world conditions can be harsher. Overloading from heavy vehicles and impact loads from collisions can cause significant damage, necessitating careful monitoring and management.
Flood events can erode the soil around bridge foundations, leading to settlement or collapse. The unpredictability of weather patterns in Zimbabwe can exacerbate these risks, making it essential to implement effective mitigation strategies.
To mitigate these risks, it is essential to:
Enforce Load Limits: Installing weight limit signs and monitoring vehicle loads to prevent overloading. This can be complemented by regular checks to ensure compliance with weight restrictions.
Implement Scour Protection: Using rock armor or concrete aprons around abutments to protect against erosion. Regular monitoring of river conditions can help identify potential scour issues before they become critical.
Neglecting maintenance can lead to small issues escalating into major problems. A systematic approach to maintenance is crucial for extending the lifespan of the bridge.
Establishing a Bridge Management System (BMS) can help ensure regular inspections and maintenance. This includes:
Routine Checks: Daily visual inspections for obvious issues. Local caretakers can be trained to perform these checks, ensuring that any problems are identified quickly.
Detailed Inspections: Bi-annual or annual assessments by trained engineers. These inspections should be comprehensive, covering all aspects of the bridge's structure and condition.
Record Keeping: Maintaining detailed logs of inspections, repairs, and incidents to track the bridge's health over time. This documentation is invaluable for planning future maintenance and budgeting for repairs.
While specific records on the oldest Bailey bridge in Zimbabwe are limited, many were installed during the Federation era and remain in service. For illustration, consider a hypothetical example: The Chirundu Bailey Crossing, constructed in the early 1960s.
The Chirundu bridge has survived for over 50 years due to several key factors:
Robust Original Construction: High-quality materials and construction methods provided a strong foundation. The use of durable steel and effective design principles has contributed to its resilience.
Proactive Maintenance: Regular inspections and immediate repairs of any damage ensured the bridge remained in good condition. This proactive approach has been critical in preventing minor issues from escalating.
Environmental Context: The bridge was not subjected to severe industrial or coastal corrosion, further extending its lifespan. Its location and the surrounding environment have played a significant role in its durability.
The example of the Chirundu bridge illustrates that extreme longevity is achievable. For the newer 50m BS5400 bridge, the following lessons are clear:
Invest in Quality Protection: Specify superior coating systems or hot-dip galvanizing for all components to enhance durability. This initial investment can lead to significant long-term savings in maintenance costs.
Assign Responsibility: Designate a specific entity for the bridge's upkeep to ensure accountability. Clear ownership can lead to more effective maintenance and quicker response times for repairs.
Initiate Maintenance Early: Begin scheduled inspections and maintenance from day one to prevent issues from developing. Establishing a culture of proactive maintenance can significantly extend the bridge's lifespan.
Extending the lifespan of 50m BS5400 steel Bailey bridges in Zimbabwe is not merely a technical challenge but a matter of prioritization. By addressing environmental risks, enforcing structural standards, regulating usage, and investing in maintenance, Zimbabwe can significantly enhance the service life of these critical assets. The investment in durable infrastructure is essential for the country's economic prosperity, as reliable bridges are vital for transportation and connectivity. With the right strategies in place, Zimbabwe's steel Bailey bridges can serve as resilient components of its infrastructure for decades to come.
BS5400 specifies the use of high-strength steel grades, such as Grade 43 or Grade 50, which must meet defined yield strength, tensile strength, and elongation properties. These materials are essential for ensuring the bridge can withstand the stresses it will encounter throughout its lifespan.
Local communities can participate by forming bridge management committees that oversee regular inspections and maintenance activities. Training local personnel in basic maintenance tasks, such as cleaning and minor repairs, can foster a sense of ownership and responsibility, ensuring the bridge remains in good condition.
Technologies such as sensors and drones can be employed for remote monitoring. Sensors can track structural health indicators like strain, temperature, and vibration, while drones can provide aerial inspections to identify potential issues without the need for scaffolding or ladders.
Common causes of structural failure include corrosion due to environmental exposure, fatigue from repeated loading, overloading from heavy vehicles, and inadequate maintenance practices. Addressing these issues through regular inspections and proactive maintenance can significantly reduce the risk of failure.
Inspections should be conducted regularly, with visual inspections performed daily or weekly by local caretakers. More detailed inspections by trained engineers should occur bi-annually or annually, with comprehensive assessments every four years to ensure the bridge's structural integrity and safety.
