The Bailey Bridge represents one of the most significant innovations in military and civil engineering history. This portable, pre-fabricated bridge system continues to serve as a crucial solution for both temporary and permanent crossing needs worldwide.
Developed during World War II by British engineer Donald Bailey, this innovative bridge design revolutionized military engineering and later found extensive civilian applications. The concept was brilliantly simple yet incredibly effective, allowing rapid deployment in challenging conditions.

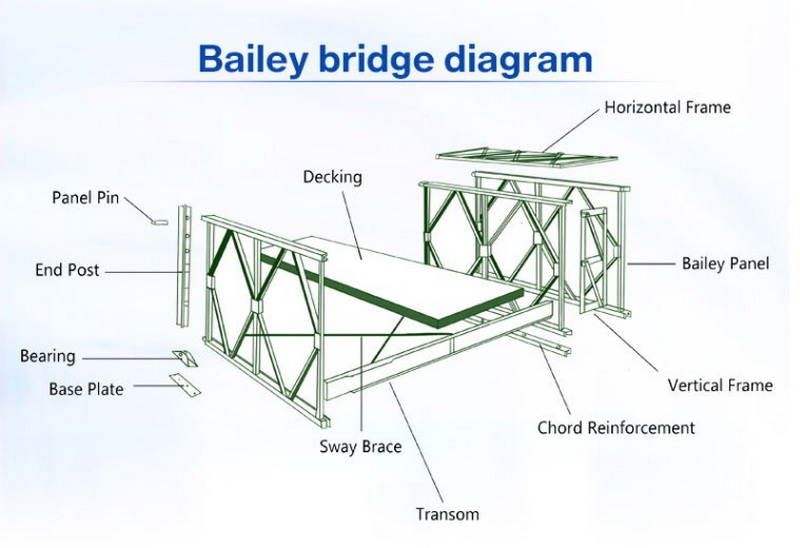

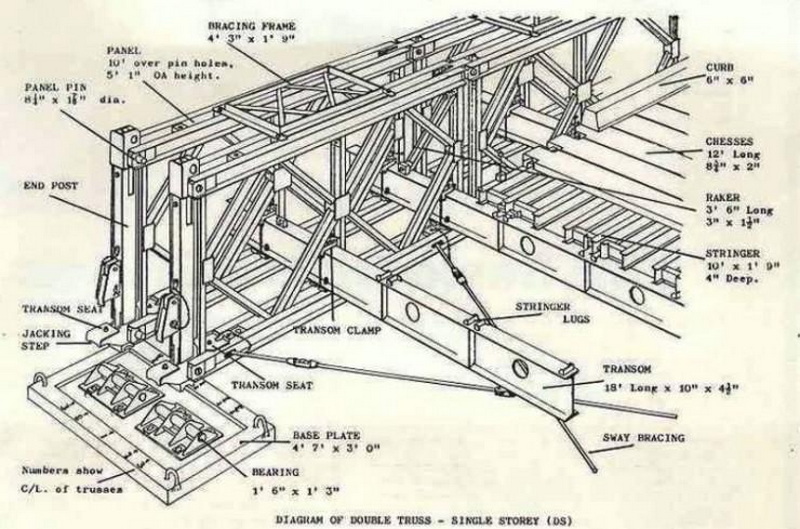

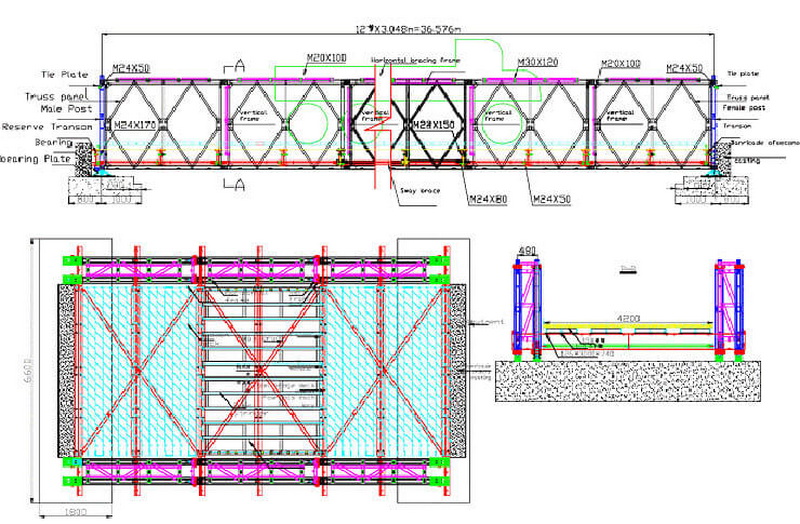

The Bailey bridge employs a modular design consisting of three main components:
1. Panels: Pre-fabricated steel trusses that form the bridge's main structure
2. Transoms: Cross-beams that support the deck
3. Stringers: Longitudinal beams connecting the transoms
- Modular construction allowing various configurations
- Lightweight yet robust components
- No specialized tools required for assembly
- Adaptable to different span lengths
- Multiple strength classifications
The construction process follows a systematic approach:
1. Site preparation and foundation work
2. Panel assembly on rollers
3. Installation of transoms and stringers
4. Decking installation
5. Launch and final positioning
- Rapid deployment in combat zones
- Emergency river crossings
- Supply route establishment
- Temporary airfield infrastructure
- Disaster relief operations
- Construction site access
- Temporary traffic diversions
- Remote area access
- Rapid deployment capability
- Minimal equipment requirements
- Versatile configuration options
- Reusable components
- Cost-effective solution
- High load-bearing capacity
- Adaptable to various terrain types
- Weather-resistant construction
- Long service life
- Easy maintenance
Contemporary Bailey bridge designs incorporate advanced materials and improved construction techniques while maintaining the original concept's simplicity and effectiveness. Modern variations include:
- Composite material integration
- Enhanced corrosion protection
- Digital design tools
- Automated assembly systems
For a visual understanding of the Bailey bridge construction process, you can watch this informative video:
The Bailey bridge continues to demonstrate its value in modern infrastructure, proving that innovative engineering solutions can stand the test of time. Its versatility, reliability, and ease of deployment ensure its relevance in both military and civilian applications well into the future.
A1: A standard Bailey bridge can span up to 200 feet (61 meters) in its basic configuration, though multiple-story and reinforced configurations can achieve greater spans.
A2: With a trained crew, a standard 100-foot Bailey bridge can typically be assembled in 24-48 hours, depending on conditions and available resources.
A3: The load capacity varies with configuration but can range from 30 to 100 tons in standard configurations, with specialized versions capable of supporting even heavier loads.
A4: Yes, Bailey bridges remain an essential part of military engineering operations worldwide, with modern variants continuing to serve in both military and civilian applications.
A5: Bailey bridges are ideal for emergencies due to their portable components, rapid assembly without specialized equipment, and ability to be installed in various weather conditions and terrains.
