Steel box girders are a crucial component in modern bridge construction, providing the necessary strength and stability to support the loads imposed by traffic and environmental factors. The design of these girders is influenced by a variety of factors, ranging from material properties to environmental conditions. This article explores the key elements that affect the design of steel box girders, ensuring a comprehensive understanding of their role in bridge engineering.

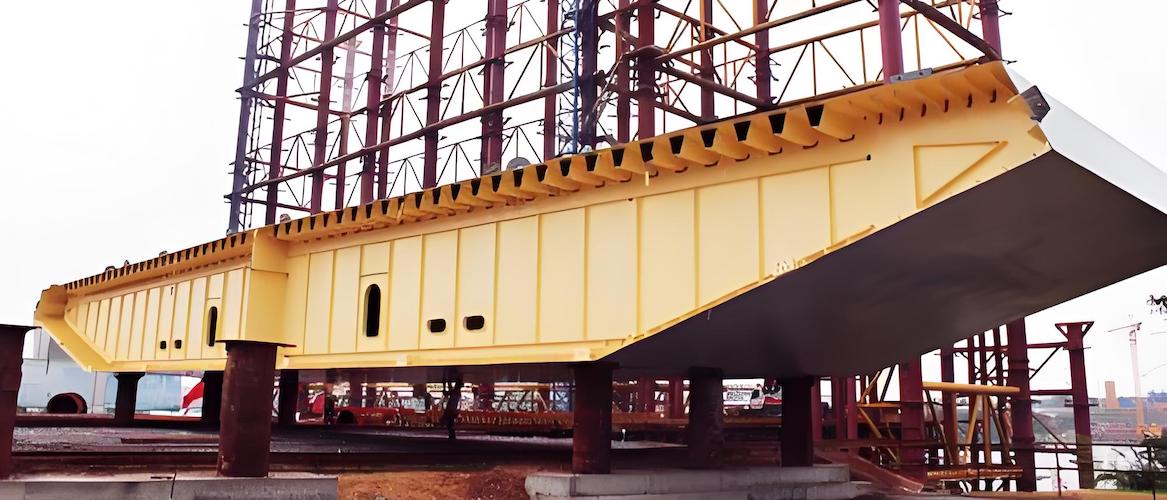

Steel box girders are structural elements characterized by their hollow, rectangular cross-section. This design allows for a high strength-to-weight ratio, making them ideal for long-span bridges. The box shape provides excellent resistance to bending and torsion, which are critical in maintaining the integrity of the bridge under various loads. The hollow nature of the girders also allows for the incorporation of additional features, such as drainage systems or electrical conduits, without compromising structural integrity. This versatility is particularly beneficial in urban environments where space is limited.

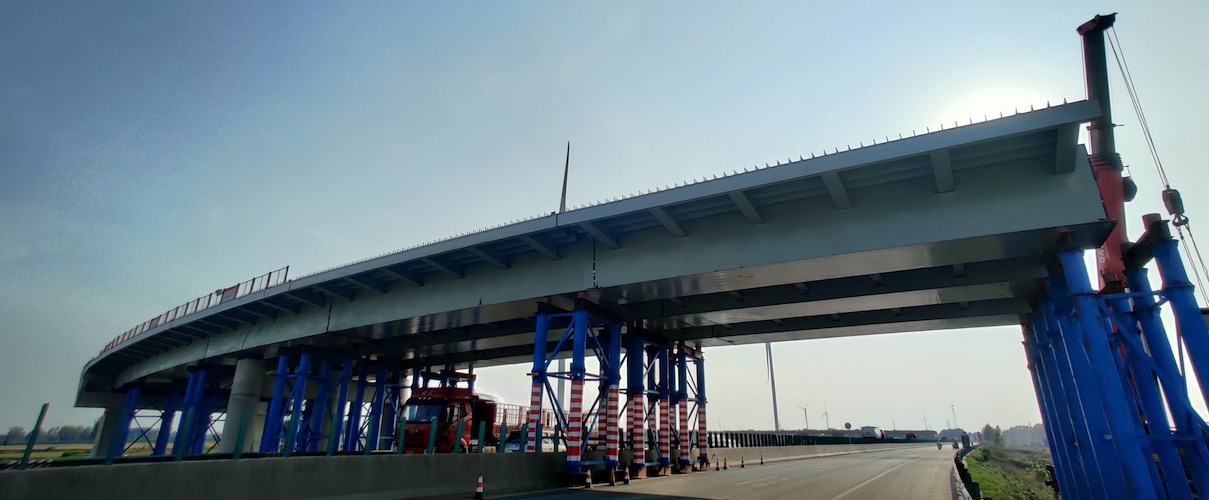

Steel box girders are commonly used in various types of bridges, including highway overpasses, railway bridges, and pedestrian walkways. Their versatility and strength make them suitable for both simple and complex bridge designs. The ability to fabricate these girders in large sections also facilitates quicker construction times, which is a significant advantage in modern engineering projects. Additionally, the aesthetic potential of steel box girders allows for innovative designs that can enhance the visual appeal of infrastructure, contributing to the overall urban landscape.
The choice of steel grade is fundamental in the design of box girders. Different grades of steel offer varying levels of strength, ductility, and resistance to corrosion. High-strength steel is often preferred for its ability to support larger loads while minimizing weight. The selection process must consider the specific requirements of the bridge, including expected traffic loads and environmental conditions. Furthermore, advancements in steel manufacturing techniques have led to the development of new alloys that provide enhanced performance characteristics, allowing engineers to push the boundaries of design.
Corrosion can significantly impact the longevity and safety of steel structures. Therefore, the design of steel box girders often incorporates protective coatings or the use of corrosion-resistant alloys. Understanding the environmental conditions, such as exposure to saltwater or industrial pollutants, is essential in selecting appropriate materials and protective measures. In addition to traditional coatings, innovative solutions such as cathodic protection systems and weathering steels are being explored to extend the lifespan of steel girders, reducing maintenance costs and enhancing durability.
Dead loads refer to the permanent static forces acting on the bridge, including the weight of the girders themselves, the deck, and any other fixed components. Accurate calculations of dead loads are crucial for ensuring that the girders can support the structure without excessive deflection or failure. Engineers utilize advanced modeling software to simulate various loading scenarios, allowing for a more precise understanding of how the structure will behave over time. This proactive approach helps in identifying potential issues early in the design process, leading to safer and more reliable structures.
Live loads are dynamic forces that vary over time, such as vehicles, pedestrians, and environmental factors like wind and snow. The design must account for these variable loads, ensuring that the girders can withstand the maximum expected forces during their lifespan. Engineers often use load combinations to simulate real-world conditions and assess the performance of the girders under different scenarios. Additionally, the increasing prevalence of heavier vehicles and changing traffic patterns necessitate ongoing research into load distribution and its effects on bridge design, prompting engineers to adapt their approaches accordingly.
The design of steel box girders must consider the bending and shear forces that occur during operation. Bending moments arise from the loads applied to the girders, while shear forces result from the distribution of these loads. Advanced structural analysis techniques, including finite element analysis, are often employed to predict how the girders will behave under various loading conditions. This analytical approach allows engineers to optimize the design for both strength and efficiency, ensuring that materials are used judiciously while maintaining safety standards.
Stability is a critical aspect of girder design, particularly for long spans. The risk of buckling must be evaluated, especially in slender girders. Engineers must ensure that the design incorporates sufficient stiffness to prevent buckling under compressive loads. This may involve adjusting the dimensions of the girders or adding bracing elements to enhance stability. Furthermore, ongoing research into innovative design techniques, such as the use of composite materials or hybrid systems, is expanding the possibilities for creating more resilient structures that can withstand extreme conditions.
Temperature fluctuations can cause expansion and contraction in steel materials, impacting the performance of box girders. Engineers must consider the thermal effects in their designs, ensuring that the girders can accommodate these changes without compromising structural integrity. Expansion joints and other design features may be incorporated to mitigate the effects of temperature variations. Additionally, the use of thermal insulation and innovative materials can help manage temperature-related stresses, further enhancing the durability of the structure.
In regions prone to earthquakes, the design of steel box girders must account for seismic forces. This involves analyzing the potential ground motion and its impact on the bridge structure. Special design techniques, such as the use of flexible connections and energy-dissipating devices, can enhance the resilience of the girders during seismic events. The integration of advanced monitoring systems also allows for real-time assessment of structural health, enabling timely maintenance and repairs to ensure safety in the event of an earthquake.
The fabrication process of steel box girders can influence their design. Advanced manufacturing techniques, such as automated welding and precision cutting, allow for more complex designs and tighter tolerances. The choice of fabrication method can also affect the overall cost and construction timeline, making it a critical consideration in the design phase. Moreover, the adoption of modular construction techniques is gaining traction, enabling the prefabrication of girders off-site and reducing on-site assembly time, which can lead to significant cost savings and improved project efficiency.
The method of erecting the girders is another important factor. Different erection techniques, such as launching or lifting, can impact the design requirements. Engineers must ensure that the girders can withstand the forces encountered during installation, which may differ from those experienced during normal operation. The development of innovative erection methods, such as the use of cranes with advanced control systems, is enhancing the safety and efficiency of the construction process, allowing for more precise placement of girders and reducing the risk of accidents.
The visual appearance of a bridge is often a significant consideration in its design. Steel box girders can be designed to complement the surrounding environment and enhance the overall aesthetic appeal of the structure. This may involve selecting specific shapes, colors, or finishes that align with the architectural vision for the bridge. The collaboration between engineers and architects is essential in achieving a balance between functionality and beauty, resulting in structures that not only serve their purpose but also enrich the urban landscape.
The integration of the bridge with its surroundings is essential for creating a harmonious design. Engineers and architects must collaborate to ensure that the steel box girders fit within the context of the landscape, considering factors such as sightlines, historical significance, and community impact. Engaging with local communities during the design process can also foster a sense of ownership and pride in the infrastructure, leading to greater public support and appreciation for the project.
The design of steel box girders in bridge construction is a complex process influenced by a multitude of factors. From material properties and load considerations to environmental impacts and aesthetic concerns, each element plays a vital role in ensuring the safety, functionality, and longevity of the bridge. As engineering practices continue to evolve, the design of steel box girders will adapt to meet the challenges of modern infrastructure demands, ensuring that they remain a cornerstone of bridge construction for years to come. The ongoing research and innovation in this field promise to enhance the performance and sustainability of steel box girders, paving the way for future advancements in bridge engineering.
Recent innovations include the use of high-performance steel alloys that enhance strength and reduce weight, advanced fabrication techniques such as robotic welding for precision, and the integration of smart sensors for real-time monitoring of structural health. Additionally, modular construction methods are being adopted to improve efficiency and reduce construction time.
Different welding techniques, such as MIG, TIG, and submerged arc welding, can influence the heat-affected zone and the overall strength of the weld. Proper selection of welding methods is crucial to minimize residual stresses and ensure a strong bond between components. Advanced techniques like laser welding are also being explored for their ability to produce high-quality joints with minimal distortion.
Long-term maintenance strategies include regular visual inspections, non-destructive testing methods such as ultrasonic testing, and the use of corrosion protection systems. Implementing a comprehensive maintenance plan that includes routine checks and timely repairs can significantly extend the lifespan of steel box girders and ensure safety.
Environmental factors such as temperature fluctuations, humidity, and exposure to corrosive elements (like saltwater) can significantly impact the design. Engineers must consider these factors when selecting materials and protective coatings to ensure durability and performance under varying conditions.
Computer modeling plays a critical role in simulating the behavior of steel box girders under various loading conditions. Finite element analysis (FEA) allows engineers to predict how girders will respond to stresses, optimize their design for weight and strength, and identify potential failure points before construction begins. This leads to safer and more efficient designs.
