Bailey bridges are a type of modular bridge that can be quickly assembled and disassembled, making them ideal for temporary or emergency use. They are widely used in military applications, civil engineering projects, and disaster relief efforts. Understanding the load limits of different types of Bailey bridges is crucial for ensuring their safe and effective use. This article will explore the various configurations of Bailey bridges, their load capacities, and the factors that influence these limits.
Bailey bridges were developed during World War II as a solution to the urgent need for portable and quickly deployable bridges. Their design has evolved over the years, but the core principles remain the same. These bridges are constructed from prefabricated steel panels that can be easily transported and assembled on-site, allowing for rapid deployment in various situations. The modular design allows for flexibility in length and load capacity, making them suitable for a wide range of applications, from military operations to civil engineering projects. The ability to quickly establish a crossing can be critical in emergency situations, where time is of the essence.

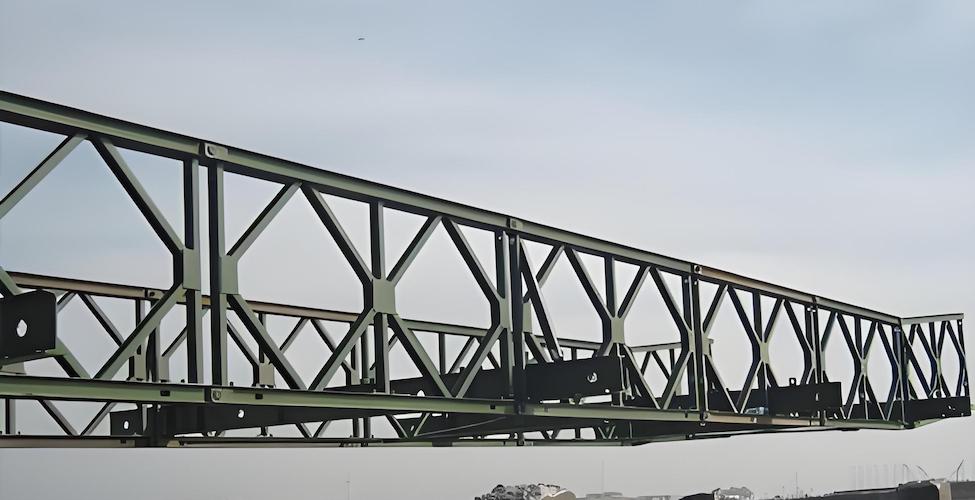

Bailey bridges are characterized by their truss design, which provides strength and stability. The main components include:
Panels: The basic building blocks of a Bailey bridge, typically made from high-strength steel. These panels are designed to interlock, creating a robust structure that can withstand significant loads.
Trusses: The framework that supports the bridge deck and distributes loads. The truss design allows for efficient load distribution, minimizing the risk of structural failure.

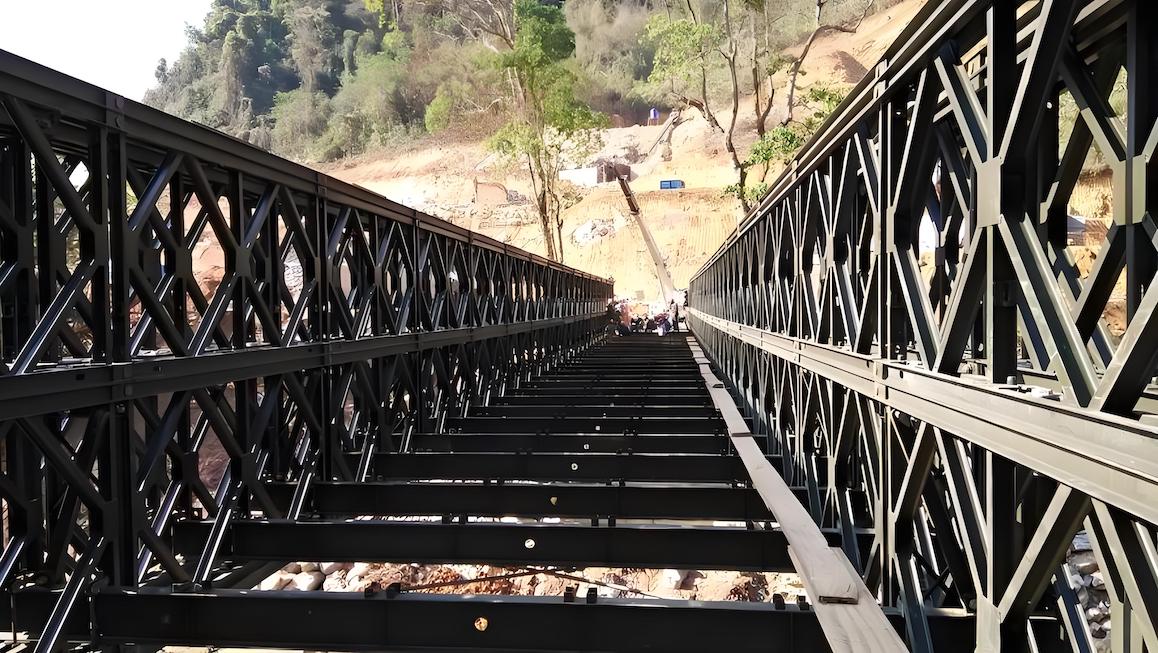

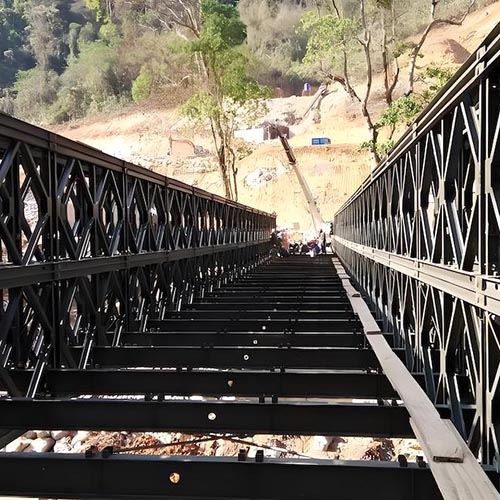

Decking: The surface on which vehicles and pedestrians travel, often made from timber or steel. The choice of decking material can affect the overall weight capacity and durability of the bridge.
The combination of these features allows Bailey bridges to be both lightweight and strong, making them an ideal choice for temporary and emergency applications.
Bailey bridges come in various configurations, each designed for specific load requirements. The load capacity of a Bailey bridge can vary significantly based on its design, materials, and intended use. Understanding these configurations is essential for selecting the right bridge for a given application.
Single Lane Bailey Bridge: This configuration is designed to support light to moderate traffic. The typical load limit for a single lane Bailey bridge is around 20 tons, making it suitable for smaller vehicles and emergency services. These bridges are often used in situations where quick access is needed, such as in disaster relief operations or temporary roadways.
Double Lane Bailey Bridge: Designed for heavier traffic, double lane configurations can support loads of up to 40 tons. This makes them ideal for military convoys and larger vehicles. The ability to accommodate two lanes of traffic increases their utility in busy environments, allowing for the efficient movement of goods and personnel.
Extra-Wide Bailey Bridge: These bridges are designed to accommodate wider vehicles and can support loads exceeding 50 tons. They are often used in industrial applications where heavy machinery needs to cross. The extra width provides additional safety and stability, particularly in environments where large vehicles are common.
M1 and M2 Bailey Bridges: These military-grade bridges are designed for rapid deployment and can support heavy military vehicles. The M1 typically has a load capacity of 30 tons, while the M2 can support up to 50 tons. Their robust design and quick assembly make them invaluable in combat situations, where infrastructure may be damaged or non-existent.
TS-12 Bailey Bridge: This configuration is commonly used in civil engineering projects and can support loads of up to 60 tons. Its design allows for quick assembly and disassembly, making it suitable for temporary applications. The TS-12 is often employed in construction sites where traditional bridging solutions may be impractical.
HD200 Bailey Bridge: This type is specifically designed for heavy-duty applications, with a load capacity of up to 100 tons. It is often used in construction and mining operations where heavy equipment needs to cross. The HD200's design incorporates advanced engineering techniques to ensure it can handle the stresses associated with heavy loads.
The load capacity of a Bailey bridge is influenced by several factors, including:
The primary material used in Bailey bridges is high-strength steel, which provides the necessary durability and load-bearing capacity. The quality of the steel and the design of the panels play a significant role in determining the overall strength of the bridge. Advances in material science have led to the development of even stronger steel alloys, which can enhance the performance of Bailey bridges under extreme conditions.
The design of the truss and the number of panels used in the construction of the bridge directly affect its load capacity. A well-designed truss system can distribute loads more effectively, allowing for higher weight limits. Engineers often use computer modeling to optimize the design, ensuring that the bridge can withstand the expected loads while minimizing material use.
The length of the bridge span also impacts its load capacity. Longer spans may require additional support or reinforcement to maintain structural integrity under heavy loads. Engineers must carefully calculate the required supports and bracing to ensure that the bridge remains stable and safe for use.
Environmental factors such as temperature, humidity, and exposure to corrosive elements can affect the performance of a Bailey bridge over time. Regular maintenance and inspections are essential to ensure that the bridge remains safe for use. In harsh environments, additional protective coatings may be applied to prevent corrosion and extend the lifespan of the bridge.
Bailey bridges are versatile and can be used in various applications, including:
Bailey bridges were originally designed for military applications, allowing for rapid deployment in combat zones. They are used to support troop movements and transport heavy equipment across temporary gaps. The ability to quickly establish a crossing can be critical in military operations, where time and mobility are essential.
In civil engineering, Bailey bridges are often used for temporary crossings during construction projects. They provide a quick solution for maintaining traffic flow while permanent structures are being built. Their modular nature allows for easy relocation and reconfiguration as project needs change.
In the aftermath of natural disasters, Bailey bridges can be deployed quickly to restore access to affected areas. Their modular design allows for rapid assembly, making them ideal for emergency situations. Humanitarian organizations often rely on Bailey bridges to facilitate the delivery of aid and supplies to remote or inaccessible locations.
Regular maintenance is crucial for ensuring the safety and longevity of Bailey bridges. Inspections should be conducted to check for signs of wear, corrosion, or structural damage. Any necessary repairs should be made promptly to prevent accidents and ensure the bridge remains within its load limits. A proactive maintenance schedule can significantly extend the lifespan of a Bailey bridge.
Before a Bailey bridge is put into service, load testing may be conducted to verify its capacity. This involves applying controlled loads to the bridge to ensure it can safely support the intended traffic. Load testing is an essential step in the deployment of any bridge, particularly in critical applications where safety is paramount.
Educating users about the load limits and proper use of Bailey bridges is essential. Clear signage should be posted to inform drivers of weight restrictions and any other relevant safety information. Training programs for operators and users can help ensure that the bridges are used safely and effectively, reducing the risk of accidents.
Bailey bridges are an essential tool in modern infrastructure, providing flexible and reliable solutions for a variety of applications. Understanding the typical load limits for different types of Bailey bridges is crucial for ensuring their safe and effective use. By considering factors such as material strength, design specifications, and environmental conditions, engineers can select the appropriate configuration for their specific needs. Regular maintenance and user education further enhance the safety and longevity of these vital structures. As infrastructure demands continue to grow, the role of Bailey bridges in providing quick and effective solutions will remain significant.
Bailey bridges were developed during World War II to provide a quick and efficient means of crossing obstacles in military operations. Their design allowed for rapid assembly and disassembly, making them ideal for temporary use in combat zones. Since then, they have been adapted for civilian applications, including construction and disaster relief.
Bailey bridges are assembled using prefabricated steel panels that interlock to form a truss structure. The assembly process typically involves laying out the panels on the ground, connecting them using pins and bolts, and then lifting the completed sections into place using cranes or other lifting equipment. This modular approach allows for quick deployment in various environments.
The load limits for Bailey bridges vary based on their configuration. A single lane Bailey bridge typically supports around 20 tons, while a double lane bridge can handle up to 40 tons. Specialized configurations, such as the HD200, can support loads of up to 100 tons, making them suitable for heavy-duty applications.
Regular maintenance for Bailey bridges includes inspections for signs of wear, corrosion, and structural damage. It is essential to check the integrity of the panels, trusses, and decking. Any necessary repairs should be made promptly to ensure safety. Additionally, load testing may be conducted periodically to verify the bridge's capacity.
Bailey bridges are commonly used in military operations, civil engineering projects, and disaster relief efforts. They are particularly valuable in situations where quick access is needed, such as during natural disasters when traditional infrastructure may be damaged or inaccessible. Their modular design allows for rapid deployment and relocation as needed.
