Bailey bridges are a type of modular bridge that can be quickly assembled and disassembled, making them ideal for temporary or emergency use. Originally designed during World War II, these bridges have become a staple in civil engineering due to their versatility and strength. This article explores the typical load capacities of Bailey bridges, their design features, applications, and factors influencing their load-bearing capabilities.
Bailey bridges were developed in the 1940s by the British engineer Sir Donald Bailey. The design was intended to provide a quick and efficient means of crossing obstacles such as rivers and ravines, especially in military operations. The need for rapid deployment of bridges in combat zones led to the creation of a structure that could be transported easily and assembled on-site without the need for heavy machinery. This innovation not only facilitated military logistics but also laid the groundwork for future applications in civilian infrastructure. Over the decades, Bailey bridges have been used in various conflicts and humanitarian missions, showcasing their adaptability and reliability in diverse environments.

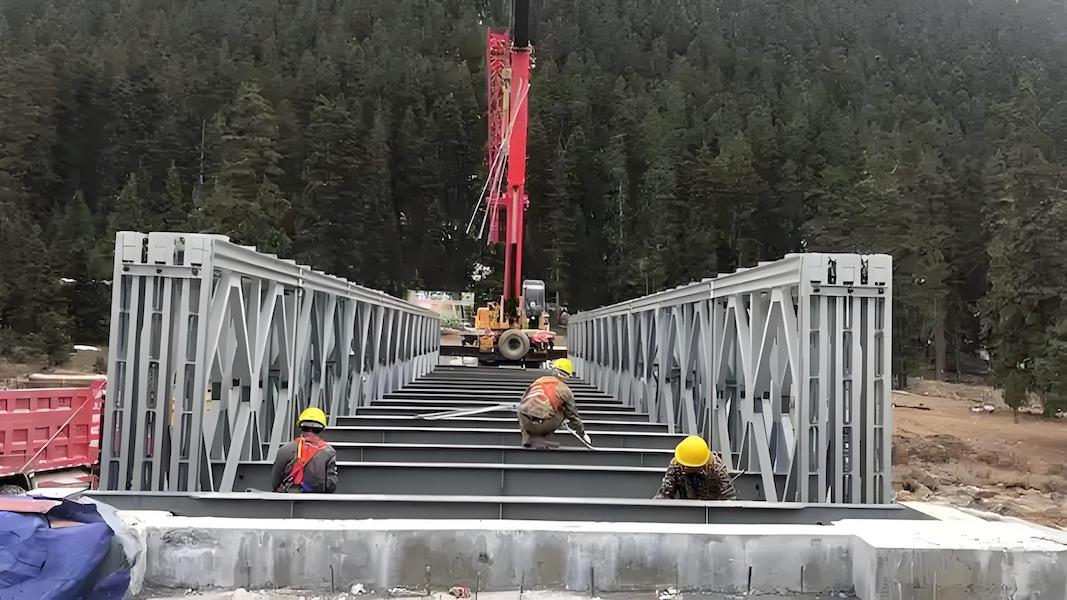

Bailey bridges are constructed from prefabricated steel panels that can be assembled in various configurations. The primary components include:
Panels: These are the basic building blocks of the bridge, typically made from high-strength steel. Each panel consists of a truss structure that provides the necessary strength and stability. The design of these panels allows for significant load distribution, which is crucial for maintaining structural integrity under heavy loads.
Decking: The surface of the bridge where vehicles and pedestrians travel. It is usually made from timber or steel, depending on the intended use and load requirements. The decking must be designed to withstand not only the weight of vehicles but also environmental factors such as rain and snow, which can affect traction and safety.
Supports: These include the abutments and piers that hold the bridge in place. The design of the supports is critical, as they must be able to handle the forces exerted by the bridge and its load, as well as any lateral forces from wind or seismic activity.
The modular design allows for different lengths and widths, accommodating various load requirements and site conditions. This flexibility is one of the key advantages of Bailey bridges, making them suitable for a wide range of applications.
The load capacity of a Bailey bridge can vary significantly based on its configuration and the materials used. Generally, a standard single-lane Bailey bridge can support loads ranging from 20 to 40 tons. However, this capacity can increase with additional truss panels and more robust designs. For instance, a double-lane Bailey bridge can typically support loads of up to 60 tons or more, depending on the specific design and engineering specifications.
The load capacity is influenced by several factors, including:
Span Length: Longer spans may require additional support and may have lower load capacities. The relationship between span length and load capacity is a critical consideration in bridge design, as it affects not only the structural integrity but also the safety of the bridge under various conditions.
Panel Configuration: The arrangement and number of panels directly affect the overall strength of the bridge. Engineers can customize the configuration to meet specific load requirements, ensuring that the bridge can safely accommodate the expected traffic.
Material Quality: The type of steel and its treatment can enhance the load-bearing capacity. High-quality materials are essential for ensuring the longevity and reliability of the bridge, especially in harsh environments.
The design of a Bailey bridge can be customized to meet specific load requirements. For example, a bridge designed for military use may have a higher load capacity to accommodate heavy vehicles and equipment. The configuration of the truss panels, including the number of panels and their arrangement, plays a crucial role in determining the load capacity. Engineers often conduct detailed analyses to optimize the design for the intended use, balancing factors such as weight, cost, and performance.
The materials used in the construction of Bailey bridges are critical to their load-bearing capabilities. High-strength steel is commonly used, which can withstand significant stress and strain. The quality of the steel, including its treatment to resist corrosion, also impacts the longevity and reliability of the bridge. Advances in material science have led to the development of even stronger and lighter materials, which can further enhance the performance of Bailey bridges.
Environmental factors such as temperature, humidity, and exposure to corrosive elements can affect the structural integrity of a Bailey bridge. Regular maintenance and inspections are essential to ensure that the bridge remains safe and functional over time. Engineers must consider the local climate and environmental conditions when designing and constructing Bailey bridges, as these factors can significantly influence their lifespan and performance.
Bailey bridges were initially designed for military applications, allowing for rapid deployment in combat zones. Their ability to support heavy military vehicles makes them invaluable in situations where traditional bridges may be damaged or destroyed. The quick assembly and disassembly capabilities of Bailey bridges enable military units to maintain mobility and logistics in challenging environments, often under time constraints. This has made them a critical asset in various military operations around the world.

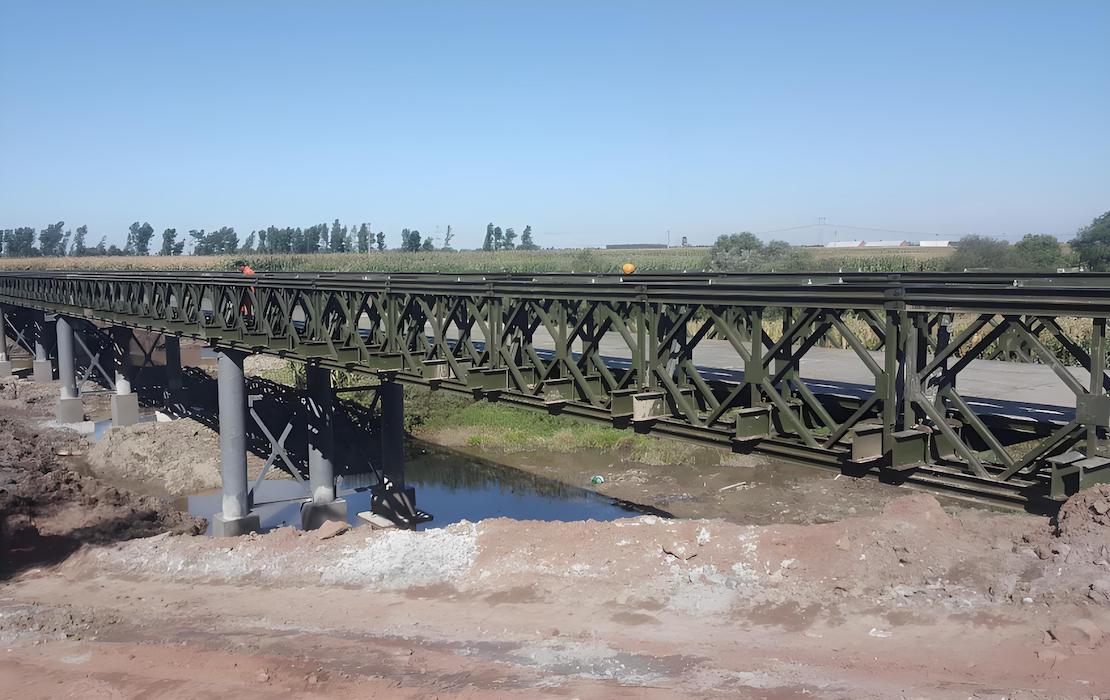

In civil engineering, Bailey bridges are used for temporary crossings during construction projects or as permanent solutions in remote areas where conventional bridge construction may be impractical. They are often employed in disaster relief efforts, providing immediate access to affected areas. The ability to quickly establish a safe crossing can be crucial in emergency situations, allowing for the transport of aid and resources to those in need. Additionally, their modular nature allows for easy relocation or expansion as project needs change.
Bailey bridges can also be found in parks and recreational areas, providing pedestrian access over streams and ravines. Their aesthetic appeal and functional design make them suitable for various public applications. Many communities have embraced Bailey bridges as a cost-effective solution for enhancing local infrastructure, allowing for improved access to natural areas and recreational facilities. Their unique design often adds a rustic charm to the landscape, making them popular in scenic locations.
To ensure the safety and longevity of Bailey bridges, regular inspections are necessary. These inspections typically focus on the structural integrity of the panels, the condition of the decking, and the overall stability of the supports. Engineers often use advanced techniques such as non-destructive testing to assess the condition of the materials without causing damage. Regular inspections help identify potential issues before they become serious problems, ensuring that the bridge remains safe for use.
Maintenance practices may include repainting to prevent corrosion, replacing damaged panels, and reinforcing supports as needed. Proper maintenance can significantly extend the lifespan of a Bailey bridge, which can last for several decades with appropriate care. Routine maintenance schedules should be established based on the bridge's usage and environmental conditions, ensuring that all necessary repairs and upgrades are performed in a timely manner. This proactive approach to maintenance not only enhances safety but also reduces long-term costs associated with major repairs or replacements.
Bailey bridges are a remarkable engineering solution that combines strength, versatility, and ease of use. Their typical load capacities range from 20 to 60 tons, depending on various factors such as design configuration and material quality. With applications in military, civil engineering, and recreational contexts, Bailey bridges continue to play a vital role in infrastructure development and emergency response. Regular maintenance and inspections are essential to ensure their safety and longevity, making them a reliable choice for temporary and permanent crossings alike. As engineering practices evolve, the design and application of Bailey bridges will likely continue to adapt, ensuring their relevance in future infrastructure projects.
The primary advantages of Bailey bridges include their rapid assembly and disassembly, modular design for easy transport, high load-bearing capacity, and versatility in various applications, including military, civil engineering, and emergency response. They can be set up quickly in remote or challenging locations, making them ideal for temporary or permanent crossings.
With proper maintenance, a Bailey bridge can last several decades. Regular inspections and maintenance practices, such as repainting to prevent corrosion and replacing damaged components, are essential to extend the lifespan and ensure the safety of the bridge.
The types of vehicles that can cross a Bailey bridge depend on its load capacity. Standard single-lane Bailey bridges can typically support loads ranging from 20 to 40 tons, accommodating vehicles such as cars, trucks, and light military vehicles. Double-lane bridges can support heavier vehicles, including larger military trucks and equipment, with capacities of up to 60 tons or more.
Yes, Bailey bridges can be used for permanent installations, especially in remote areas where traditional bridge construction may be impractical. They are often employed in civil engineering projects and can provide a reliable and cost-effective solution for long-term crossings.
Several factors can affect the load capacity of a Bailey bridge, including the span length, the configuration and number of truss panels, the quality of materials used, and environmental conditions such as temperature and humidity. Engineers must consider these factors during the design process to ensure the bridge meets the required load specifications.
