Bridge trusses have played a pivotal role in civil engineering for centuries, enabling the construction of strong, efficient, and visually striking bridges across rivers, valleys, and other obstacles. Their unique framework of interconnected elements, typically arranged in triangular patterns, ensures optimal distribution of forces, making them a preferred choice for both pedestrian and vehicular bridges. This article explores in depth the key components of a bridge truss, their functions, and how different truss designs impact structural performance.

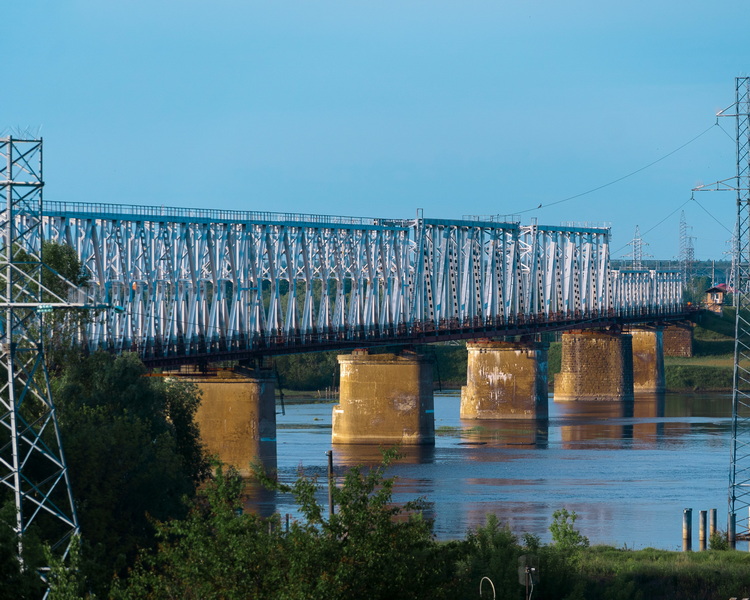

A truss bridge is a type of structure whose load-bearing superstructure is composed of a truss-a framework of straight elements connected at nodes, usually forming a series of triangles. The triangle is a fundamental shape in truss design because it is inherently stable and distributes loads efficiently. Truss bridges are designed to carry heavy loads and span considerable distances with minimal material usage, making them both economical and robust.
- Top Chord: The uppermost horizontal member of the truss, typically in compression. It resists the bending forces produced by the loads on the bridge.
- Bottom Chord: The lowermost horizontal member, usually in tension. It balances the forces from the top chord and helps maintain the truss's shape.
- Vertical Members: These connect the top and bottom chords and can be in either tension or compression, depending on the truss design and load distribution.
- Diagonal Members: These slant between the chords, forming the characteristic triangles of the truss. Diagonals are crucial for distributing loads and stabilizing the structure.
Joints are the points where the chords and web members connect. These are typically designed as pin joints, allowing the members to act primarily in tension or compression without significant bending.
The deck is the surface on which traffic moves-vehicles, pedestrians, or trains. It sits atop the truss structure and transfers live loads to the truss members.
- Floor Beams: These run perpendicular to the bridge's length and support the deck.
- Stringers: These run longitudinally along the bridge, resting on the floor beams, and provide additional support to the deck.
- Abutments: These are the end supports that anchor the bridge to the ground and transfer loads from the bridge to the earth.
- Piers: Intermediate supports used in multi-span bridges to support the superstructure between abutments.
Bracing elements provide lateral stability, preventing the truss from buckling under wind or seismic loads. They are often placed horizontally or diagonally between trusses.
The genius of the truss bridge lies in its ability to distribute loads efficiently. When a load is applied to the bridge deck, the forces are transferred through the floor beams and stringers to the truss's web members. The top chord resists compression, while the bottom chord resists tension. The diagonal and vertical members distribute these forces throughout the structure, ensuring that no single member bears excessive stress. This system allows truss bridges to span large distances and carry substantial loads with relatively lightweight materials.
While the fundamental components remain consistent, the arrangement of chords, verticals, and diagonals varies among different truss designs. Here are some of the most common types:
- Arrangement: Diagonals slope toward the center of the bridge.
- Force Distribution: Vertical members are in compression, diagonals in tension.
- Usage: Common for both rail and road bridges due to its efficiency.
- Arrangement: Diagonals slope away from the center.
- Force Distribution: Diagonal members are in compression, verticals in tension.
- Usage: Often used in wooden bridges and early iron bridges.
- Arrangement: Composed of equilateral triangles, often without verticals.
- Force Distribution: Members alternate between compression and tension.
- Usage: Popular for its simplicity and efficient material use.
- Arrangement: Diagonals and verticals form a "K" shape.
- Force Distribution: Designed to reduce the length of compression members, increasing stability.
- Usage: Suitable for longer spans.
- King Post Truss: Simple design with a single central vertical post.
- Lattice Truss: Uses multiple lightweight elements in a crisscross pattern.
- Lenticular Truss: Lens-shaped, with curved chords.
- Vierendeel Truss: Rectangular openings, no diagonals, relies on rigid joints.
Each component in a truss bridge has a specific role in resisting forces:
- Top Chord: Primarily in compression, resists bending from live and dead loads.
- Bottom Chord: Primarily in tension, balances the compressive forces from the top chord.
- Verticals: Depending on the truss type, can be in tension or compression.
- Diagonals: Alternate between tension and compression, depending on load placement and truss design.
- Joints: Designed to allow rotation, minimizing bending moments and focusing on axial forces.
Historically, truss bridges were constructed from timber, as it was readily available and easy to work with. With advancements in metallurgy, iron and later steel became the materials of choice, offering greater strength and durability. Modern truss bridges may also use reinforced concrete or advanced composites like fiber reinforced polymer (FRP), especially for pedestrian bridges in parks or remote areas.
- Efficient Use of Materials: The triangular arrangement allows for maximum strength with minimal material.
- Ease of Assembly: Many truss bridges can be prefabricated and assembled on-site, reducing construction time and costs.
- Versatility: Suitable for a wide range of spans and load requirements.
- Aesthetic Appeal: The geometric patterns of truss bridges are visually striking and can enhance the surrounding environment.
- Maintenance: Individual members can often be replaced without dismantling the entire structure.
Truss bridges are used in various settings, including:
- Highway and railway crossings
- Pedestrian walkways in parks and trails
- Access roads in industrial facilities
- Historic and heritage sites
Their adaptability and strength make them a go-to solution for many bridge engineering challenges.
While truss bridges offer many benefits, there are also challenges:
- Complexity in Design: Requires precise calculations to ensure all members are properly sized and connected.
- Maintenance: Exposed members can be susceptible to corrosion or weathering, especially in steel trusses.
- Aesthetics: While many find truss bridges attractive, some modern contexts may prefer sleeker, less intricate designs.
Bridge trusses are marvels of engineering, combining simplicity, strength, and efficiency. Their key components-chords, web members, joints, decking, floor beams, stringers, abutments, piers, and bracing-work together to create structures that have stood the test of time. Whether spanning a small creek or a mighty river, truss bridges continue to be a vital part of infrastructure worldwide, adapting to new materials and design innovations while retaining their fundamental principles.
The triangular pattern ensures that loads are distributed efficiently throughout the structure, preventing deformation and maximizing strength with minimal material.
The top chord primarily resists compressive forces, while the bottom chord handles tensile forces, working together to maintain the bridge's integrity.
Different truss designs optimize the arrangement of members to suit specific span lengths, load requirements, and material properties, providing engineers with flexibility for various applications.
Yes, modern truss bridges can be constructed from reinforced concrete or advanced composites like fiber reinforced polymer (FRP), which offer benefits like reduced weight and maintenance.
Truss bridges have many exposed members, making them susceptible to corrosion, weathering, and fatigue. Regular inspections and timely replacement of damaged members are essential for longevity.
