Bridges are essential structures that connect different land areas, allowing for the passage of vehicles, pedestrians, and goods. They serve as vital links in transportation networks, facilitating trade and travel. Among the various types of bridges, steel truss bridges stand out due to their unique design and structural integrity. This article will explore the different types of bridge structures, with a particular focus on steel truss bridges, their design, advantages, and applications.
Bridges can be classified into several types based on their design, materials, and structural systems. The four primary types of bridge structures include:
Beam bridges are the simplest type of bridge, consisting of horizontal beams supported at each end. They are typically used for short spans and are constructed from materials such as concrete, steel, or wood. The load is transferred directly to the supports, making them easy to construct and cost-effective. Beam bridges are often seen in rural areas where the spans are short, and the traffic volume is low. Their straightforward design allows for quick construction, which is particularly beneficial in regions where time and resources are limited. However, their limitations in spanning longer distances mean that they are not suitable for major highways or large bodies of water.
Arch bridges utilize a curved structure to distribute weight. The arch shape allows for the efficient transfer of loads to the supports at either end. These bridges are often made from stone, concrete, or steel and are known for their aesthetic appeal and strength. The design of arch bridges not only provides structural integrity but also adds a visual element that can enhance the surrounding landscape. They are commonly used in scenic areas where the bridge itself can become a landmark. Additionally, arch bridges can span longer distances than beam bridges, making them suitable for larger rivers and valleys.
Suspension bridges are characterized by cables suspended between towers, with the bridge deck hanging from these cables. This design allows for long spans and flexibility, making them suitable for crossing wide bodies of water. They are often used for major highways and railways. The engineering behind suspension bridges involves complex calculations to ensure stability and safety, especially in areas prone to high winds or seismic activity. The iconic Golden Gate Bridge is a prime example of a suspension bridge, showcasing not only engineering prowess but also aesthetic beauty. These bridges can accommodate heavy traffic loads while providing a smooth ride for vehicles.
Truss bridges are composed of interconnected triangular units, which provide strength and stability. They can be constructed from various materials, but steel is the most common due to its high strength-to-weight ratio. Truss bridges are particularly effective in handling both tension and compression forces. The triangular design allows for efficient load distribution, making them ideal for longer spans. Truss bridges are often used in railway applications, where the ability to support heavy loads is crucial. Their modular construction also allows for easy repairs and modifications, making them a practical choice for many engineering projects.
Steel truss bridges are a popular choice in modern engineering due to their durability, efficiency, and versatility. This section will delve into the characteristics, types, advantages, and applications of steel truss bridges.

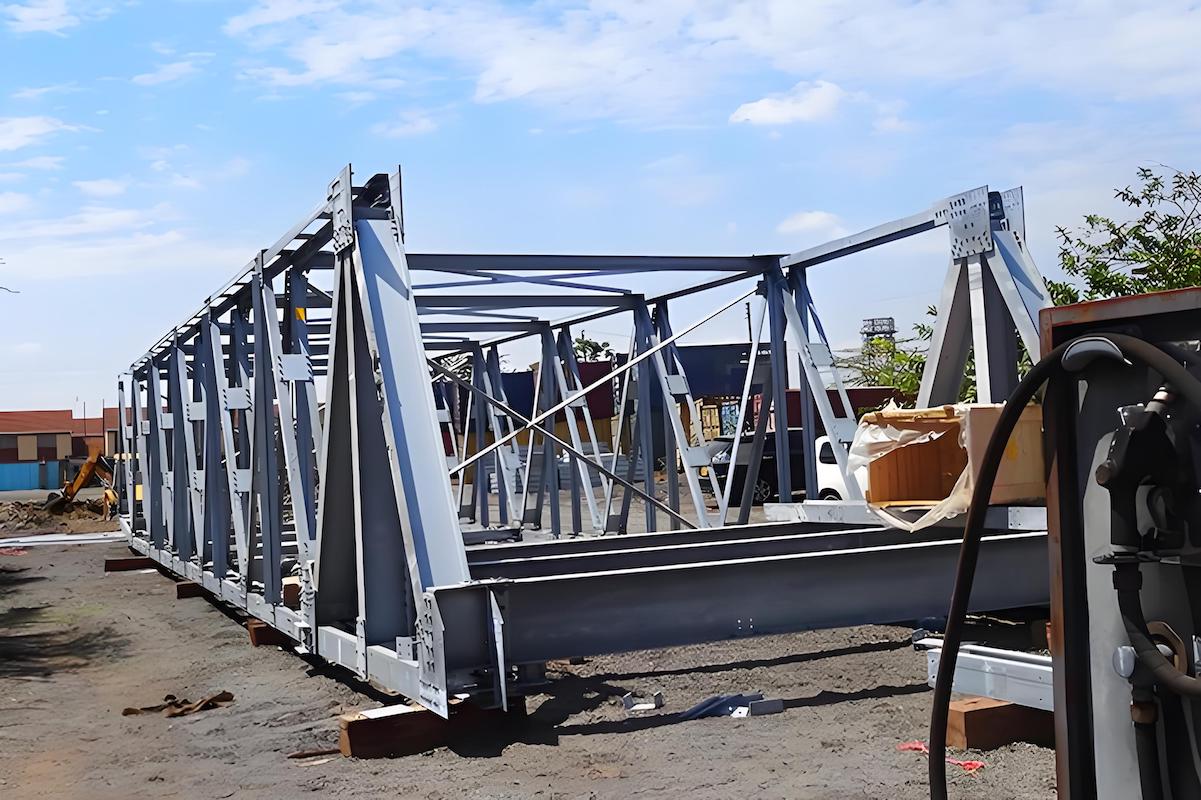

Steel truss bridges are defined by their triangular framework, which consists of straight members connected at joints. This design allows for the efficient distribution of loads, making them capable of spanning long distances without the need for excessive material. The key characteristics include:
The triangular configuration of trusses allows for effective load distribution. When a load is applied, the forces are transferred through the truss members, minimizing stress on any single component. This characteristic is particularly important in areas with heavy traffic or where the bridge may be subjected to dynamic loads, such as those caused by moving vehicles or environmental factors like wind and earthquakes. The design ensures that the bridge remains stable and safe under various conditions.
Steel truss bridges use less material compared to solid beams or arches, making them lighter and more economical. The use of steel also enhances the bridge's resistance to environmental factors such as corrosion and fatigue. This efficiency not only reduces construction costs but also minimizes the environmental impact associated with material extraction and processing. Additionally, the lightweight nature of steel truss bridges allows for easier transportation and installation, further contributing to their cost-effectiveness.
Steel truss bridges can be designed in various configurations to suit specific site conditions and load requirements. This versatility allows engineers to create customized solutions for different projects. Whether it is a simple pedestrian bridge or a complex highway overpass, the adaptability of steel truss designs makes them suitable for a wide range of applications. Engineers can modify the truss configuration to optimize performance based on factors such as span length, load capacity, and aesthetic considerations.
There are several types of steel truss bridges, each with its unique design and application. The most common types include:
The Pratt truss bridge features diagonal members that slope towards the center of the bridge. This design is particularly effective in handling vertical loads, making it suitable for railway and highway applications. The Pratt truss is often favored for its simplicity and efficiency, allowing for quick construction and reduced material costs. Its design also provides excellent stability, making it a reliable choice for areas with heavy traffic.
The Howe truss bridge has diagonal members that slope towards the ends of the bridge. This configuration is ideal for supporting heavy loads and is often used in industrial applications. The Howe truss design is particularly effective in resisting compression forces, making it suitable for bridges that need to support significant weight. Its robust structure allows for the construction of longer spans, making it a popular choice for industrial sites and heavy-duty applications.
The Warren truss bridge is characterized by its equilateral triangular design. This type of truss distributes loads evenly across the structure, making it a popular choice for both road and rail bridges. The Warren truss is known for its efficiency and strength, allowing for longer spans without the need for additional supports. Its design minimizes material usage while maximizing load-bearing capacity, making it an economical option for many projects.
The K truss bridge incorporates additional diagonal members that create a 'K' shape within the truss. This design enhances the bridge's strength and stability, making it suitable for longer spans. The K truss is particularly effective in areas where additional support is needed, providing a robust solution for heavy loads. Its unique design allows for greater flexibility in engineering, enabling the construction of bridges that can withstand various environmental conditions.
Steel truss bridges offer numerous advantages that make them a preferred choice for many engineering projects. Some of the key benefits include:
Steel has a high strength-to-weight ratio, allowing for the construction of lighter bridges that can support heavy loads. This characteristic reduces the overall material costs and simplifies the construction process. The lightweight nature of steel truss bridges also allows for easier handling and installation, reducing labor costs and construction time. This efficiency is particularly beneficial in urban areas where space and time constraints are significant.
Steel truss bridges are designed to withstand harsh environmental conditions, including extreme weather and heavy traffic. With proper maintenance, these bridges can have a long service life, making them a cost-effective investment. The durability of steel also means that these bridges require less frequent repairs and replacements, further enhancing their economic viability. Regular inspections and maintenance can ensure that steel truss bridges remain safe and functional for decades.

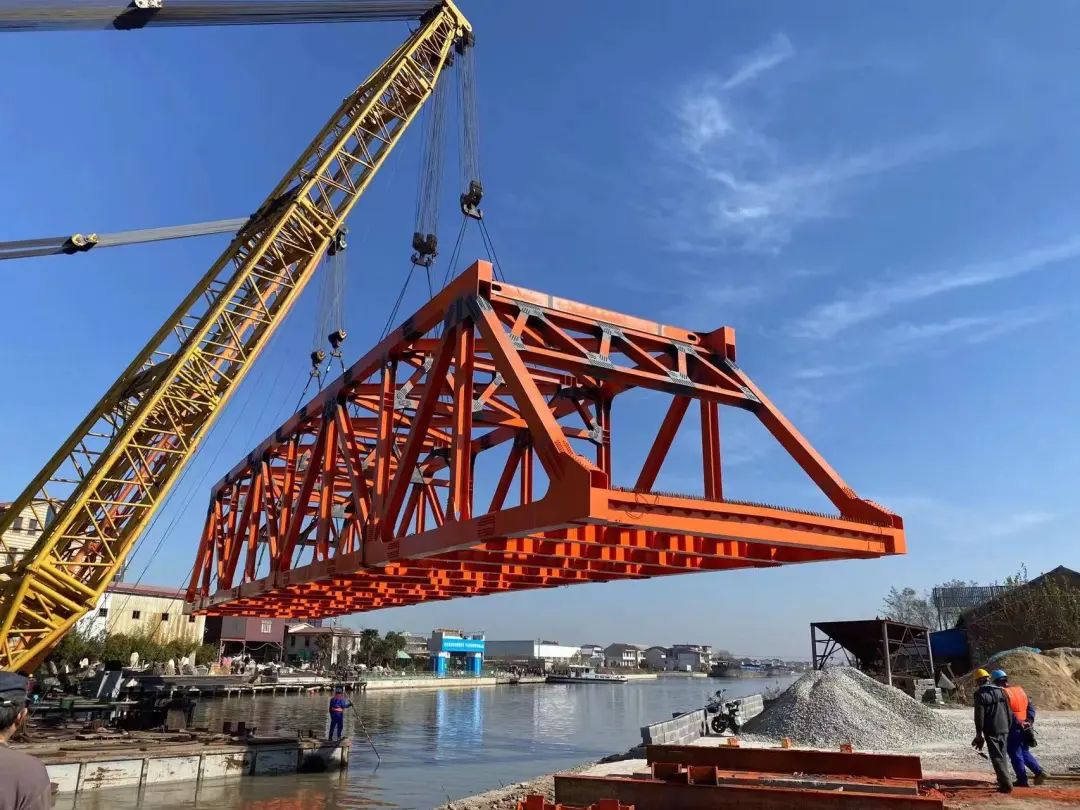

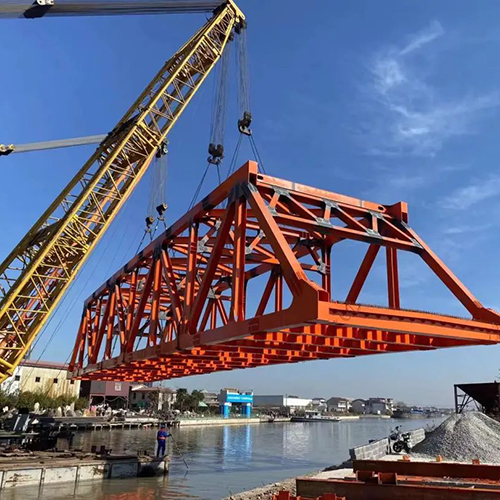

The modular nature of steel truss bridges allows for faster construction times. Many components can be prefabricated off-site, reducing on-site assembly time and minimizing disruptions. This speed of construction is particularly advantageous in projects where time is of the essence, such as in urban environments or during emergency repairs. The ability to quickly erect a bridge can significantly reduce traffic disruptions and improve overall project efficiency.
Steel truss bridges can be designed to be visually appealing, enhancing the landscape and contributing to the overall aesthetic of the area. Their unique designs can become iconic landmarks, attracting tourists and enhancing community pride. The combination of functionality and beauty in steel truss bridges allows for creative architectural expressions, making them suitable for both practical and artistic applications.
Steel truss bridges are used in a variety of applications, ranging from transportation to recreational purposes. Some common applications include:
Steel truss bridges are widely used in transportation networks, including highways and railways. Their ability to span long distances makes them ideal for crossing rivers, valleys, and other obstacles. These bridges play a crucial role in facilitating the movement of goods and people, contributing to economic growth and connectivity. The efficiency and reliability of steel truss bridges make them a preferred choice for major transportation projects.
Many pedestrian bridges utilize steel truss designs to provide safe and efficient crossings over busy roads or waterways. These bridges often feature aesthetic designs that enhance public spaces. By providing safe passage for pedestrians, steel truss bridges contribute to urban planning and community development. Their design can also incorporate features such as lighting and seating areas, making them inviting spaces for the public.
In industrial settings, steel truss bridges are used to support heavy machinery and equipment. Their strength and durability make them suitable for factories, warehouses, and other industrial facilities. These bridges can facilitate the movement of materials and personnel within industrial sites, improving operational efficiency. The ability to customize steel truss designs for specific industrial needs further enhances their utility in various applications.
Steel truss bridges are also used in parks and recreational areas, providing access to trails, viewpoints, and other attractions. Their design can complement the natural environment while ensuring safety and functionality. These bridges enhance the recreational experience by allowing visitors to explore scenic areas without compromising safety. The aesthetic appeal of steel truss bridges can also contribute to the overall enjoyment of public spaces.
Steel truss bridges represent a significant advancement in bridge engineering, combining strength, efficiency, and aesthetic appeal. Their unique design allows for effective load distribution, making them suitable for a wide range of applications. As infrastructure needs continue to grow, steel truss bridges will remain a vital component of modern engineering solutions, providing safe and reliable connections for communities around the world. The ongoing development of materials and construction techniques will likely enhance the capabilities of steel truss bridges, ensuring their relevance in future engineering projects.
Steel offers a high strength-to-weight ratio, which allows for lighter structures that can support heavy loads. It is also durable, resistant to environmental factors, and can be prefabricated for quicker construction. Additionally, steel's flexibility in design enables the creation of aesthetically pleasing bridges.
Truss bridges are designed with triangular configurations that effectively distribute dynamic loads across the structure. The interconnected members allow for the transfer of forces, minimizing stress on individual components and enhancing stability during dynamic conditions.
Regular inspections are essential to identify any signs of wear, corrosion, or structural damage. Maintenance may include repainting to prevent rust, tightening connections, and replacing any damaged components. Routine checks ensure the bridge remains safe and functional over its lifespan.
Yes, steel truss bridges can be designed to withstand seismic forces. Engineers can incorporate specific design features, such as flexible joints and reinforced connections, to enhance the bridge's ability to absorb and dissipate energy during an earthquake.
In addition to their use in highways and railways, steel truss bridges are commonly used in pedestrian walkways, industrial sites for supporting heavy machinery, and recreational areas to provide access to trails and scenic viewpoints. Their versatility makes them suitable for various applications in different environments.
